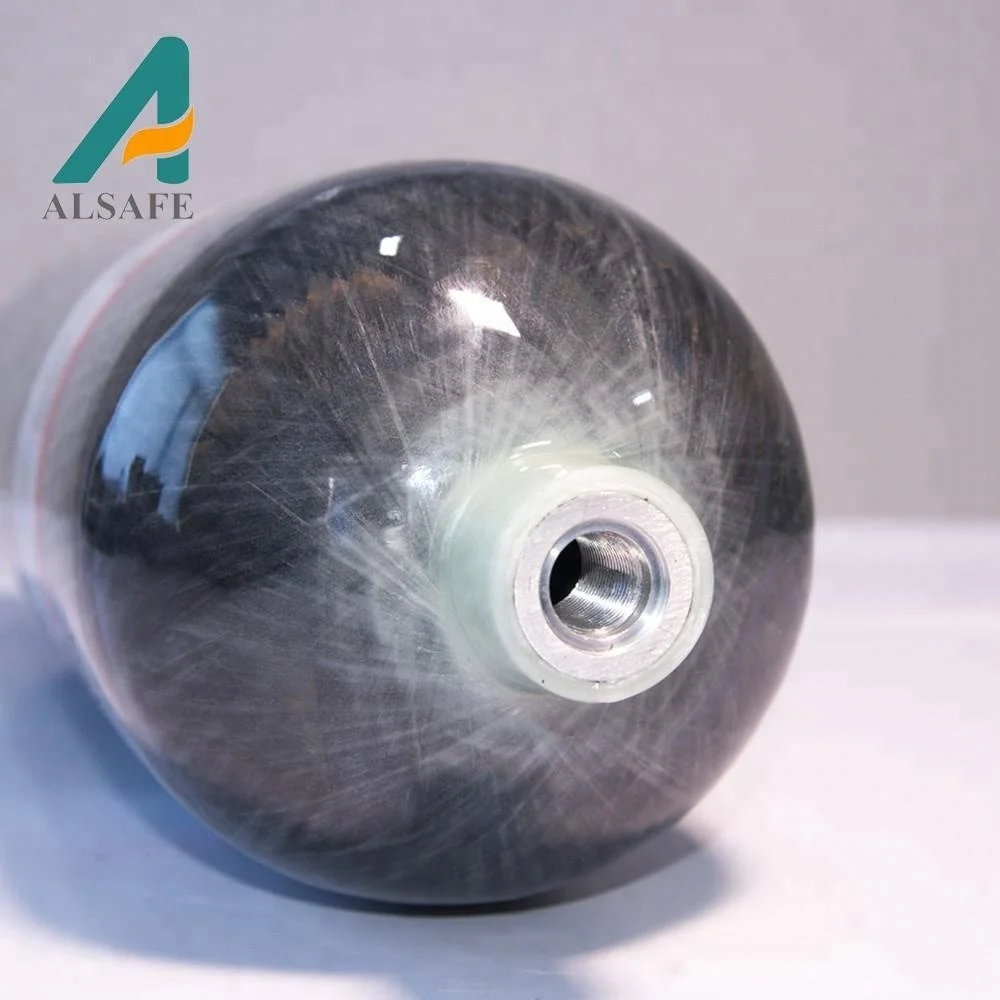

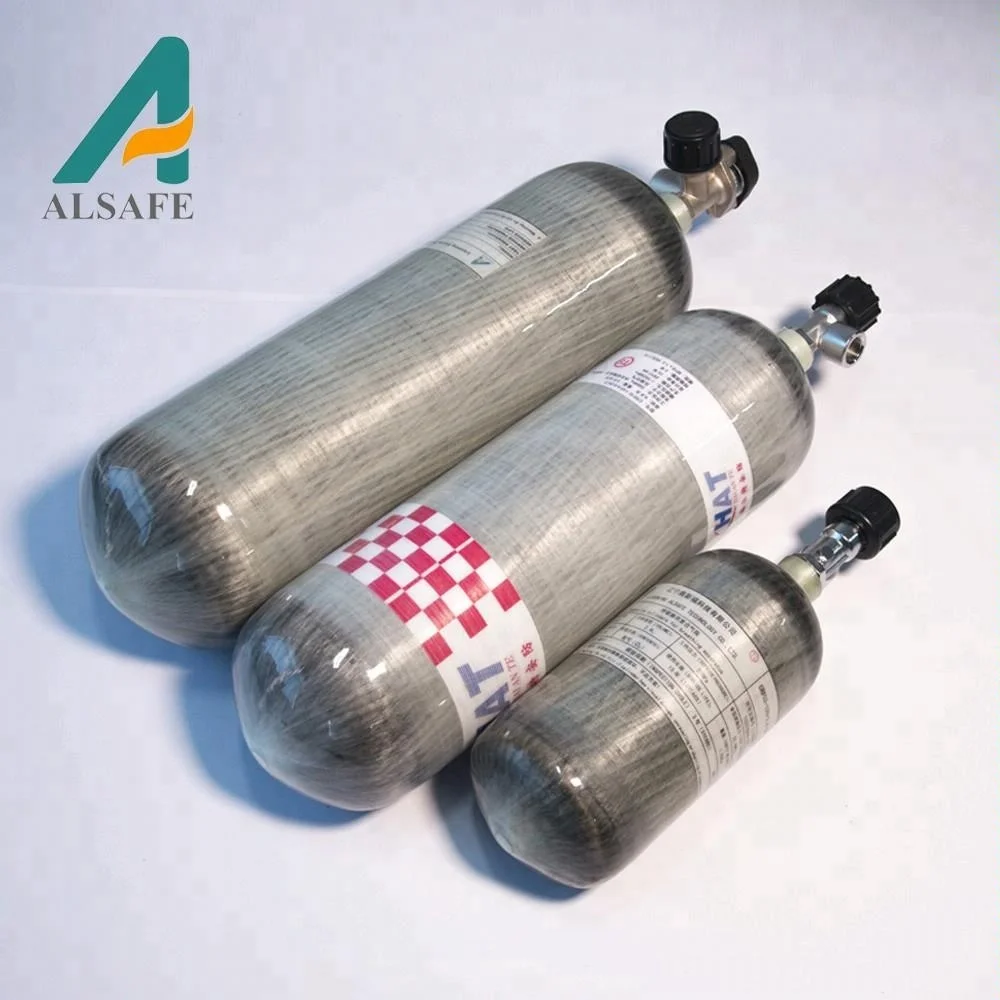

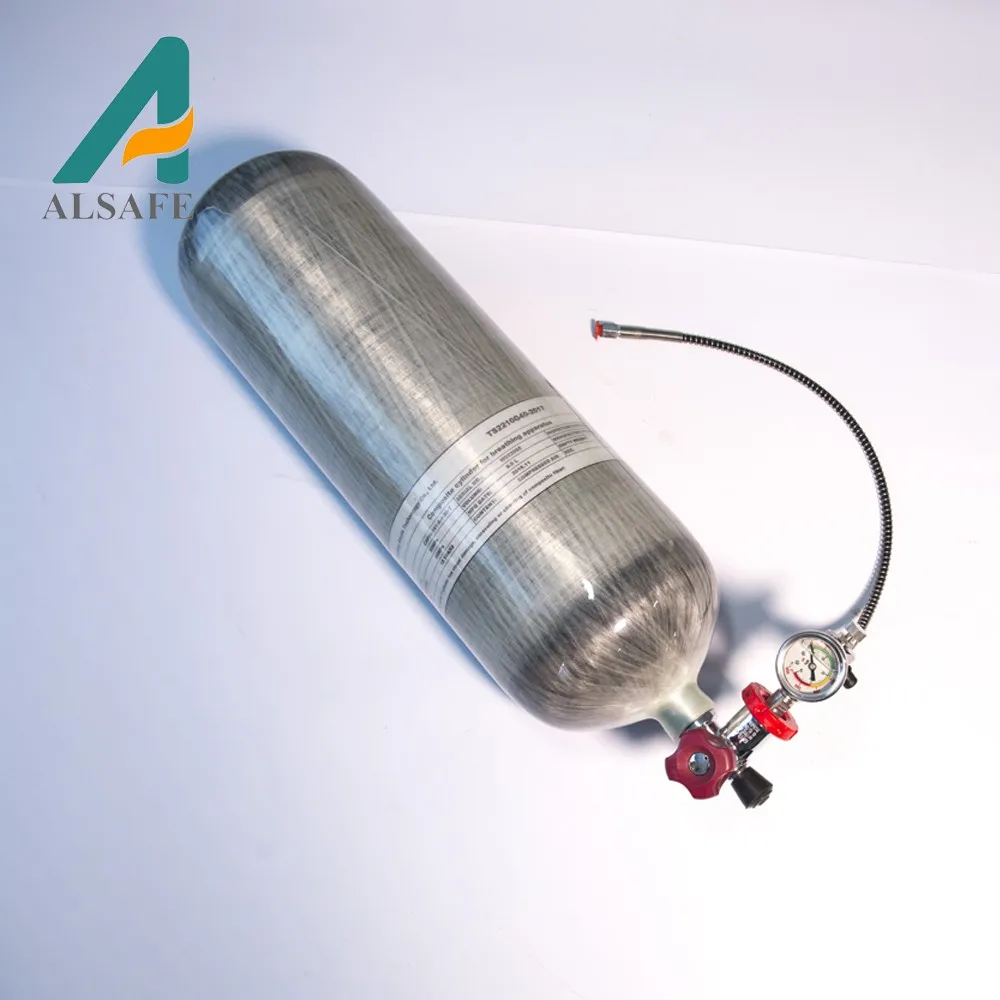

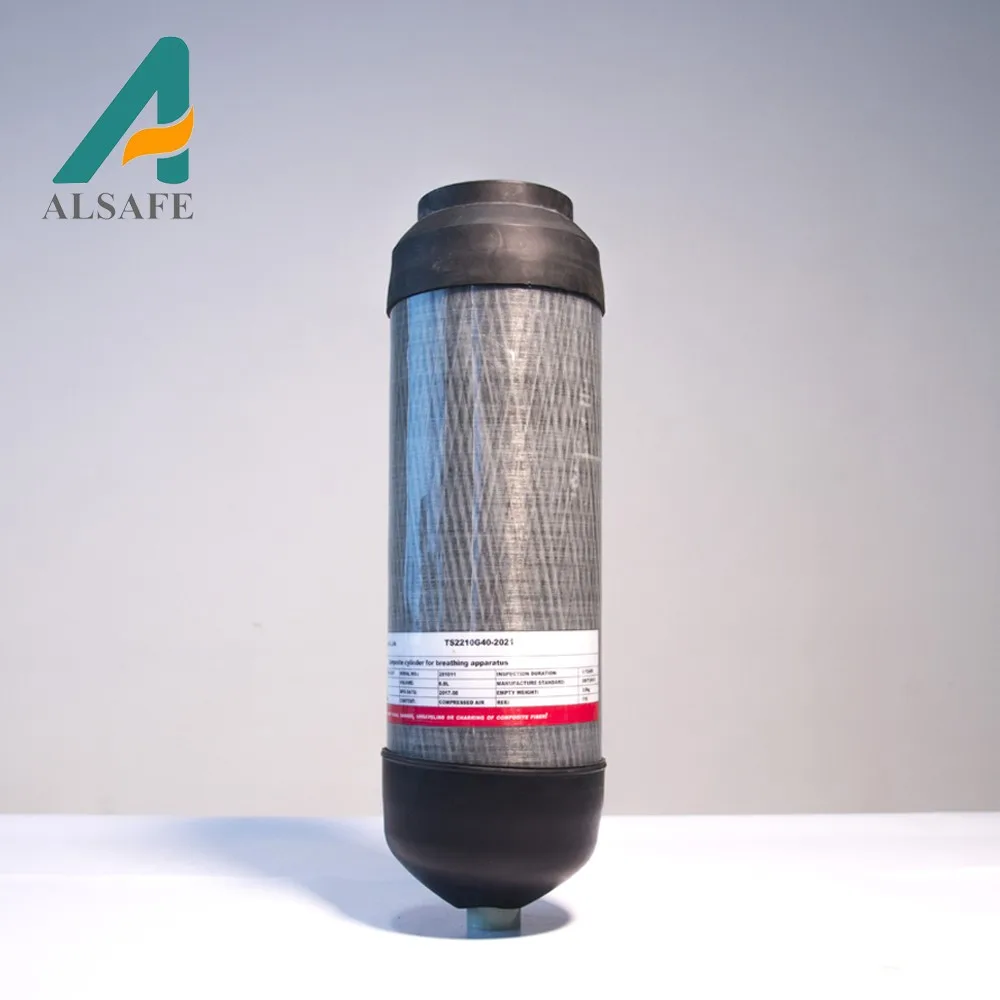

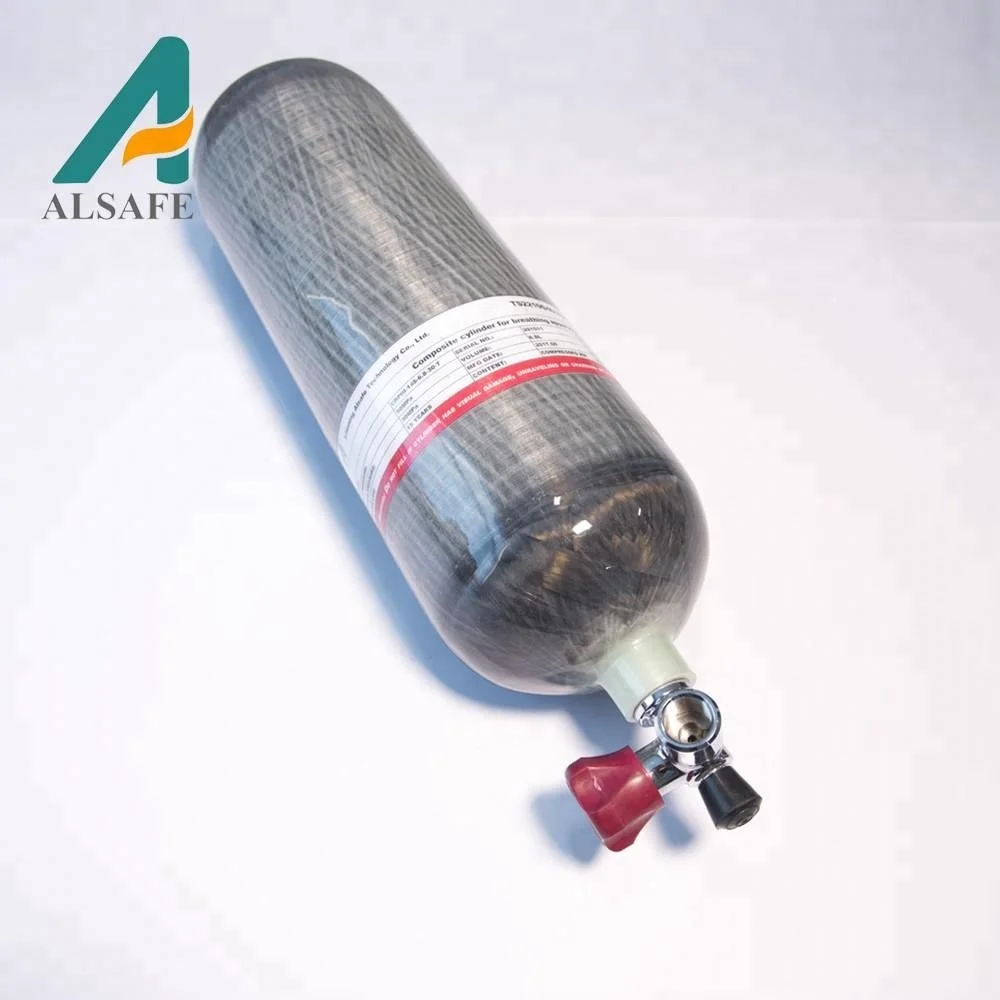

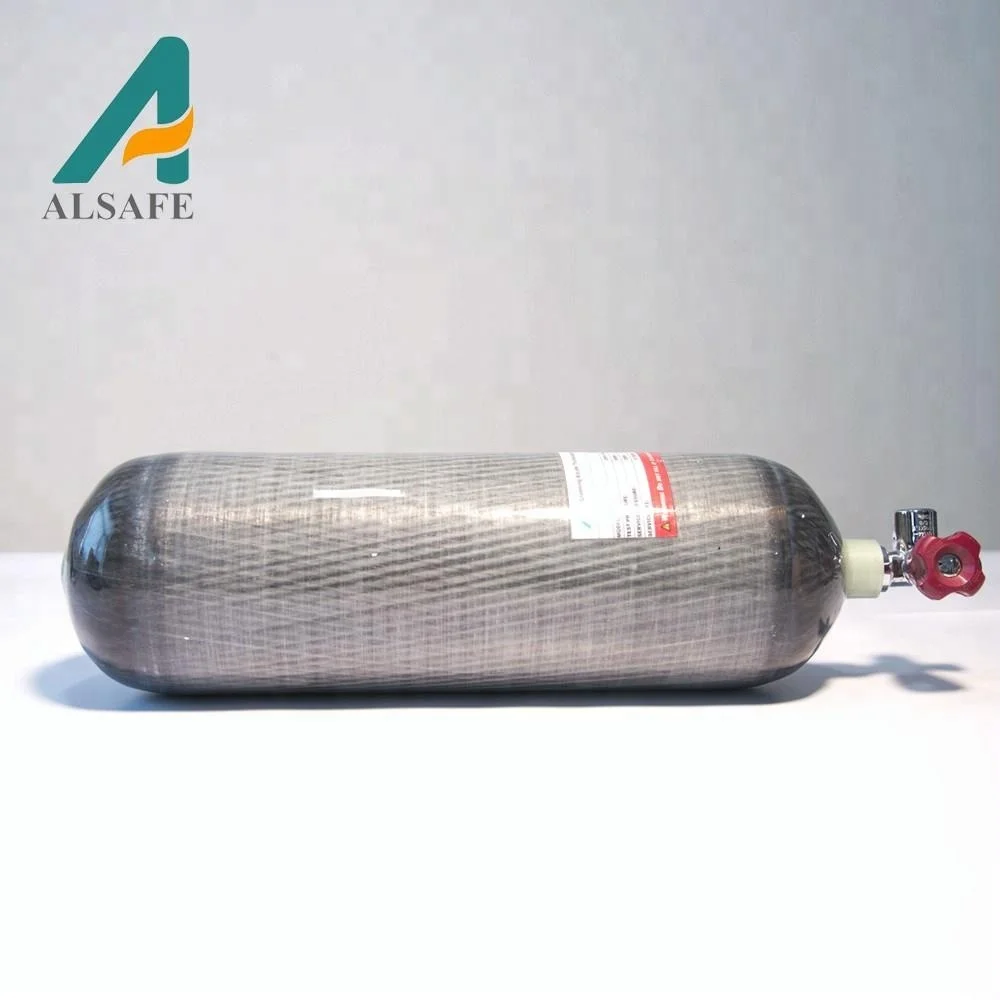

Factory price 9L 4500psi breathe compressor firefighting equipment carbon fiber gas cylinder

Product Overview

Description







      Composite gas cylinders in the heating furnace             Composite gas cylinders waiting for packing







Specification	Outside Diameter	Water Volume	Length	Weight	Working Pressure
CRPIII-106-1.6-20-T	115mm	1.6L	270mm	1.6kg	200bar
CRPIII-120-2.4-20-T	128mm	2.4L	302mm	1.8kg	200bar
CRPIII-120-2.5-20-T	128mm	2.5L	312mm	1.9kg	200bar
CRPIII-124-2.7-20-T	132mm	2.7L	310mm	1.9kg	200bar
CRPIII-145-6.8-30-T	157mm	6.8L	528mm	4.1kg	300bar
CRPIII-161-9.0-30-T	174mm	9.0L	560mm	5.2kg	300bar



Note: The specifications above are popularly used in Oxygen breathing apparatus and Self-contained breathing apparatus. However, if you need other size or specifications, please contact us directly. We would be happy to discuss your further requirements.

 gas cylin

der made in china | gas cylinder made in china | gas cylinder made in china | gas cylinder made in china | gas cylinder made in china | gas cylinder made in china | gas cylinder made in china | gas cylinder made in china

   gas cylinder made in china | gas cylinder made in china | gas cylinder made in china | gas cylinder made in china | gas cylinder made in china | gas cylinder made in china | gas cylinder made in china | gas cylinder made in china



Quality & safety



1. Liaoning Alsafe Technology Co., Ltd. has esteablished the quality guarantee system according to the Requirements for Boiler and Pressure Vessel Manufacturing Licencsing of China and abtained the certificate issued by General Administration of Quality Supervision, Inspection and Quarantine of the P.R.C (AQSIQ), qualified to manufacture B1 and B3 grade pressure vessels.



2. Each new type of cylinders before mass production has to pass type tests held in qualified laboratories approved by third party inspector (TUV, CSEI for example), including bend test, drop test, hydrostatic test, etc. according to relevant standards.



3. Every batch of cylinders (200 pieces as one batch normally) are manufactured and tested under supervision of local special equipment inspection and research institute and then issued batch test report.



4. Each finished cylinder before delivery to customers has to pass leakage test to ensure no leakage occurs.



5. Alsafe are honored to supply quality products to worldwide top brands and enterprises, and sets long term and stable cooperation due to quality products, friendly service and knowledgeable advice, which help us to gain good reputation among home and overseas customers.
