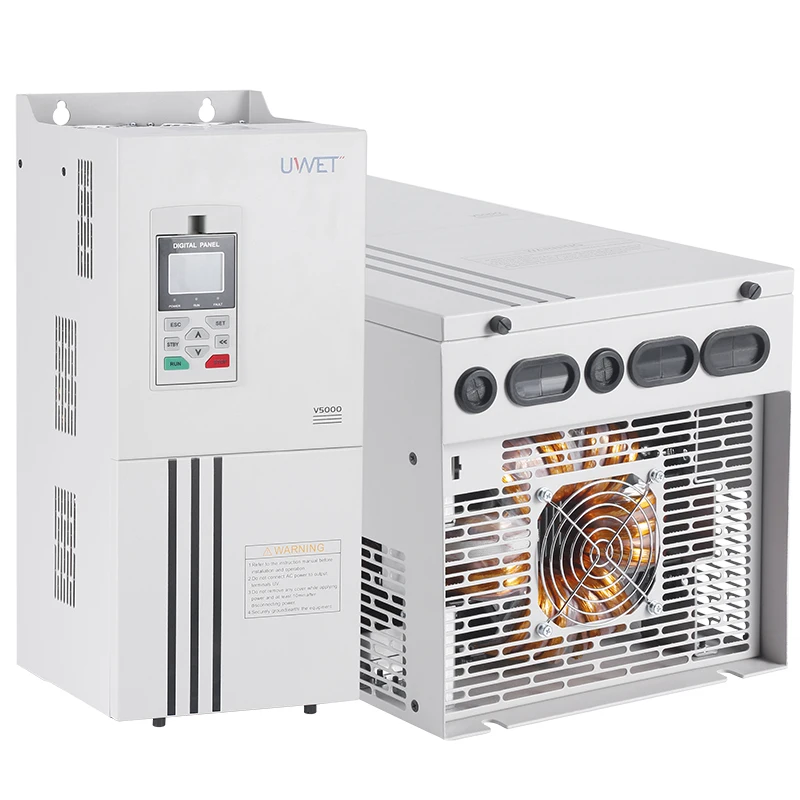

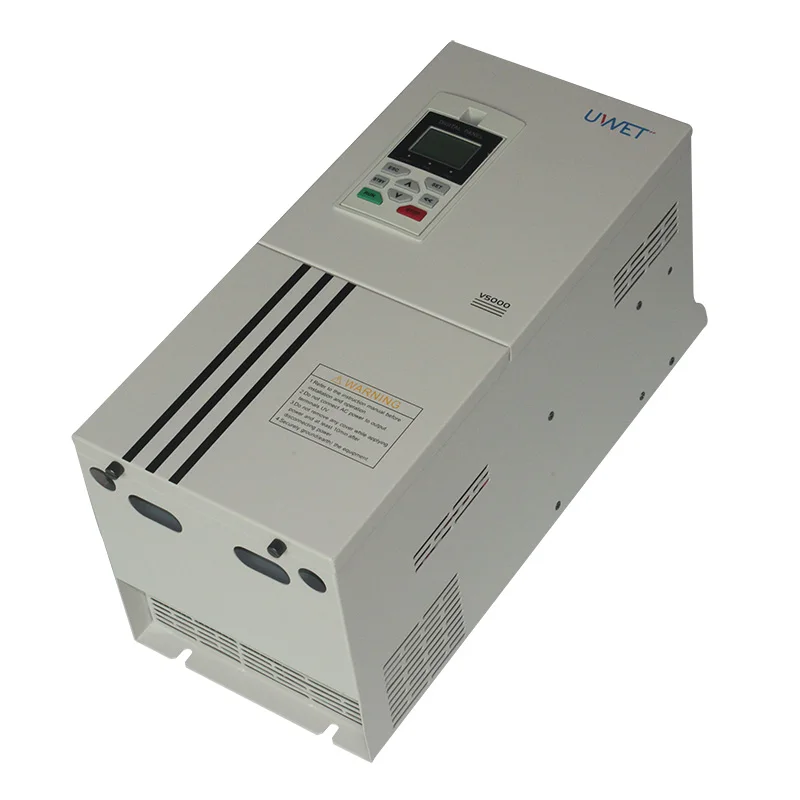

UWET V5000 3kw-25kw Electronic Ballast for UV Lighting Curing and Coating

Product Introduction

V series digital power supply is a high-tech product developed for the driving of gas discharge lamps such as mercury lamps and halogen lamps. It takes high-performance MCU as the control core and high-precision vector control algorithm to ensure the stable output of energy, so as to create excellent curing equipment for customers. This product is widely used in more than 20 fields such as painting, printing, woodworking, PCB, military medical.

Features

1) Flexible control mode: standard operation panel control, external terminal control, optional RS485 communication control.

2) Rich lighting characteristics: high Voltage mercury lamp, metal halogen lamp parameters are optional.

3) Automatically match the lamp: As long as the rated power of the lamp is set correctly, the power supply automatically compensates for the rated tube Voltage error of the lamp.

4) Automatic compensation for ambient temperature of lamp tube: automatically compensates for the energy drop caused by the exhaust.

5) Status monitoring: This machine comes with LCD human-machine interface to display the working status of the machine and lamp tube in real time.

6) Abundant status signal output: fan control, fault alarm, start-up completion, etc.

7)Standard operation panel is easy to use: start-stop control, power setting, status monitoring, parameter modification, etc.

Specifications

Input	Rated voltage, frequency			three phase(4T#series)380V 50/60Hz
	Voltage allowable range			Determined by model
Output	Voltage			Determined by model
	Frequency			8K Hz ~16K Hz
	Overload capability			110% 10min
Control Mode				vector control
Control Characteristic	Power setting Resolution			1%
	Current limitation			Power allowable setting
	Voltage limitation			110% of rated lamp tube Voltage
	power limitation			Maximum rated output power of the lamp
	Under-voltage suppression in operation			Especially for users with low grid voltage and frequent fluctuation of grid voltage, even below the allowable voltage range, the system can maintain the longest running time according to unique algorithm and residual energy allocation strategy.
Typical Function	Standby			sets standby power consumption when equipment is intermittent for energy-saving applications
	Working time record			can read lamp working time in operation
	RS485 Communication			Standard Configuration RS485 Communication Interface, Running and Stopping Commands and Machine Status Reading
	Operation			Using external Dry Contact Control to Start and Stop
	Fault analysis			with function of fault record query and fault cause analysis
Display	Operation panel display	operation Status	Monitor output voltage, output current, set power, output power, etc.
		parameter setting	Set the relevant parameter values according to actual requirements.
Protection / Alarm				Protection / Alarm of Over current, overvoltage, under voltage, overtemperature, short circuit, internal memory failure
environment	Ambient temperature			-10ºC--+50ºC(not frozen)
	Ambient humidity			Below 90%(no frost)
	Ambient environment			Indoor (no direct sunlight, no corrosion, no flammable gas, no oil mist, no dust, etc.)
	Altitude			Below 1000m
Structure	degree of protection			IP52
	Cooling method			Independent air-duct design forced air cooling

Comparison of Various UV Power Supplies

	Transformer + Capacitor	Triac Dimming Power Supply	Traditional stepless dimming power supply	V2000 intelligent variable frequency power supply
Output frequency	50HZ	50HZ	200HZ-10KHZ	20KHZ
Full power efficiency	80%	80%	90%	98%
Lamp heating	Big	Big	Small	Very small
control model	Almost no control	analog control	constant current control	Fuzzy Control of Power Vector Algorithms
Harmonic generation	Very Large electromagnetic interference	Very Large electromagnetic interference	Very Large electromagnetic interference	relatively soft
Lighting time	20min	10min	Less than 1 min	Less than 1 min
Standby switching time	Unable to measure	Unable to measure	Less than 1 min	1 second
Automatic identification of lamp parameters	No	No	No	Automatically detects the connection status of the lamp and automatically identifies the matching lamp parameters.
Lamp working status	No	No	No	More than 20-type protection when lamp parameters are matched
Realization of Touch Screen Control	Hard to achieve, and slight significance	Hard to achieve, and slight significance	Touch screen + PLC + intermediate relay (signal is still analog)	Touch screen purely digital communication
Realization of Touch Screen Control	Hard to achieve, and slight significance	Hard to achieve, and slight significance		(Standard MODEBUS protocol)
Manual operation mode	Strict operation sequence and waiting time	Strict operation seque nce and waiting time	Strict operation sequence and waiting time	One-button start without any conditions
Power regulation range	Classifi cations	50%-100%	40%-100%	10%-100%
Power constant factor	No	No	No	Automatic compensation output power
Power constant factor	No	No	No	Automatic compensation output power

Trade Show

Application

Mainly used in graphic printing industry, UV curing industry, spraying UV curing industry, wood surface treatment and other industries.
