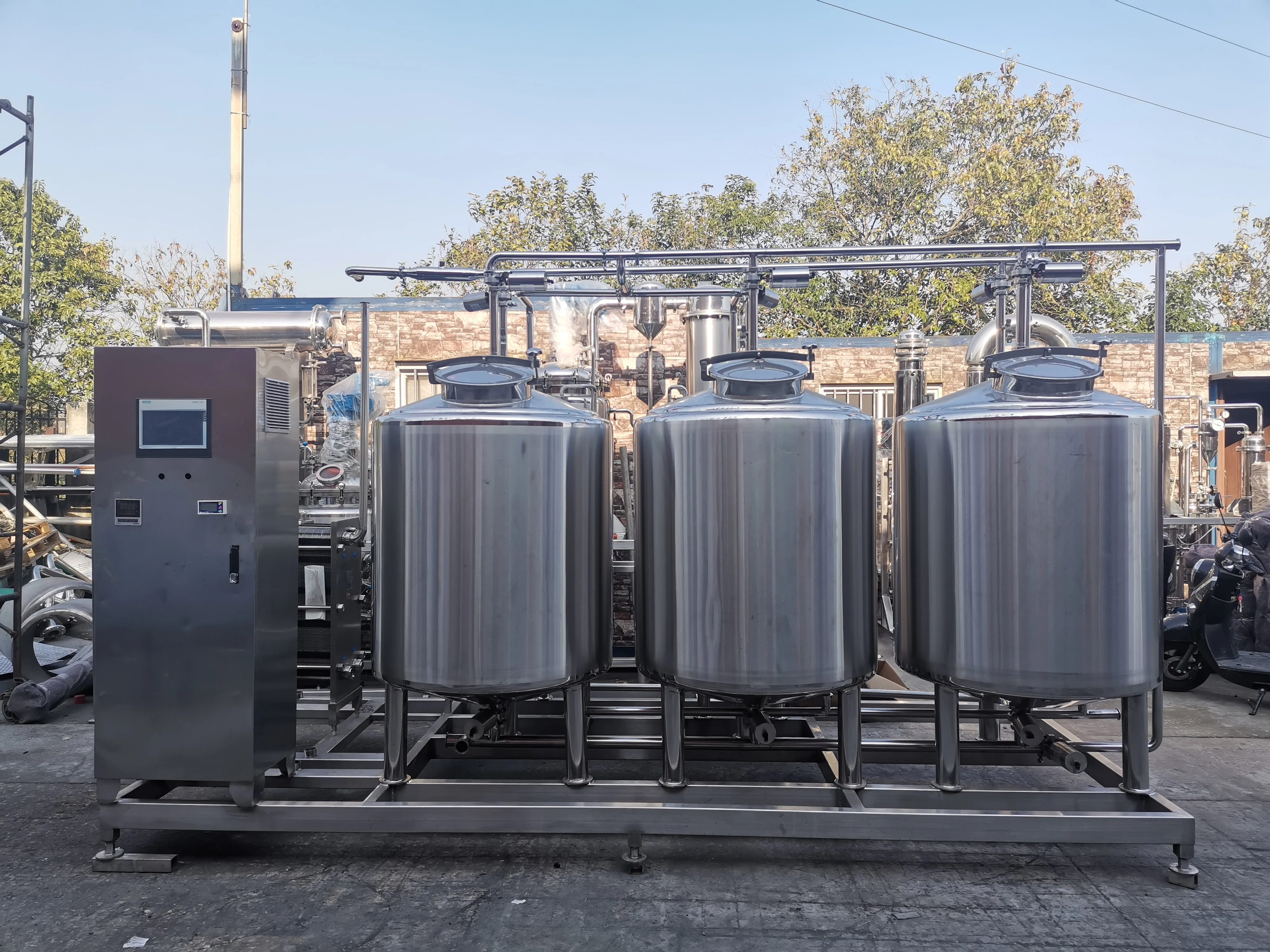

CIP automatic cleaning system equipment for machine cleaning
- Category: >>>
- Supplier: Wenzhou Chinz Machinery Co. Ltd.
Share on (62138282969):
Product Overview
Description
Products Description
Equipment overview
This CIP cleaning station is automatically controlled. All cleaning process parameters (cleaning time, acid-base concentration, cleaning solution temperature, cleaning method) can be set on the operating touch screen. When cleaning is required, specify the required cleaning device on the touch screen, select the cleaning method (three-step cleaning or five-step cleaning), and start the system, then the CIP device automatically completes the cleaning process according to the preset program. Automatic recovery by acid, alkali and water.
Application
The CIP cleaning device is widely applicable to food industry,especially applicable to dairy,fruit juice and beverage etc. industries. During the food processing,cleaning and sanitation are of great importance,and measures shall be taken to prevent any pollution to food.
Therefore,the CIP cleaning device is obviously indispensable.It can effectively control high organic wastes, microbes and bacteria etc. Furthermore,equipment,pipes and storage tanks that are compulsorily cleaned through CIP circulation cleaning fluid require no disassembly and reduce labor intensity.
Therefore,the CIP cleaning device is obviously indispensable.It can effectively control high organic wastes, microbes and bacteria etc. Furthermore,equipment,pipes and storage tanks that are compulsorily cleaned through CIP circulation cleaning fluid require no disassembly and reduce labor intensity.
Features
1 .Temperature self-control, control the opening size of the steam flow regulating valve by the outlet temperature probe detection value to ensure that the cleaning temperature is within the allowable range (control accuracy ± 2 ° C).
2 . The cleaning fluid supply and the self-circulation switching automatic control are realized by the two-position three-way valve of the cleaning liquid outlet.
3 . With a flow meter, the flow rate can be observed by observing the flowmeter value.
4 . Add chemicals with a pneumatic diaphragm pump
5 . The sampling valve and the manual valve that needs to be operated frequently are installed on the operation surface for the operator to operate.
6 . A sampling valve is provided on each tank and return line to facilitate manual detection of the concentration of the cleaning solution.
7 . All cleaning process parameters can be set on the touch screen on the electric control cabinet. The system automatically cleans according to the setup program. Several different cleaning programs have been set up inside the machine and can be selected according to the actual situation.
8 . All pneumatic valves have a manual opening function.
2 . The cleaning fluid supply and the self-circulation switching automatic control are realized by the two-position three-way valve of the cleaning liquid outlet.
3 . With a flow meter, the flow rate can be observed by observing the flowmeter value.
4 . Add chemicals with a pneumatic diaphragm pump
5 . The sampling valve and the manual valve that needs to be operated frequently are installed on the operation surface for the operator to operate.
6 . A sampling valve is provided on each tank and return line to facilitate manual detection of the concentration of the cleaning solution.
7 . All cleaning process parameters can be set on the touch screen on the electric control cabinet. The system automatically cleans according to the setup program. Several different cleaning programs have been set up inside the machine and can be selected according to the actual situation.
8 . All pneumatic valves have a manual opening function.
Product Paramenters
No. | Equipment category | 1T | 2T | 3T | 5T | 10T | |||||
1 | Semi-automatic coil heating | Single loop | Temperature control display can carry out hermetic cleaning,USA MARATHON strong acid and strong alkai adding system. | ||||||||
2 | Double loop | ||||||||||
3 | Semi-automatic plate heating | Single loop | Temperature online display and control can carry out hermetic cleaning, USA MARATHON strong acid and strong alkai adding system. | ||||||||
4 | Double loop | ||||||||||
5 | Full-automatic | Single loop | Germany SIEMENS PLC full-automatic control A) Cleaning temperature can be set freely B) Online display and compensation of acid and alkali intensity C) Liquid level can be automatically controlled and compensated D) Cleaning procedure can be set and recorded freely E) Alarm for system malfunction is realized | ||||||||
6 | Double loop | ||||||||||
7 | Triple loop | ||||||||||

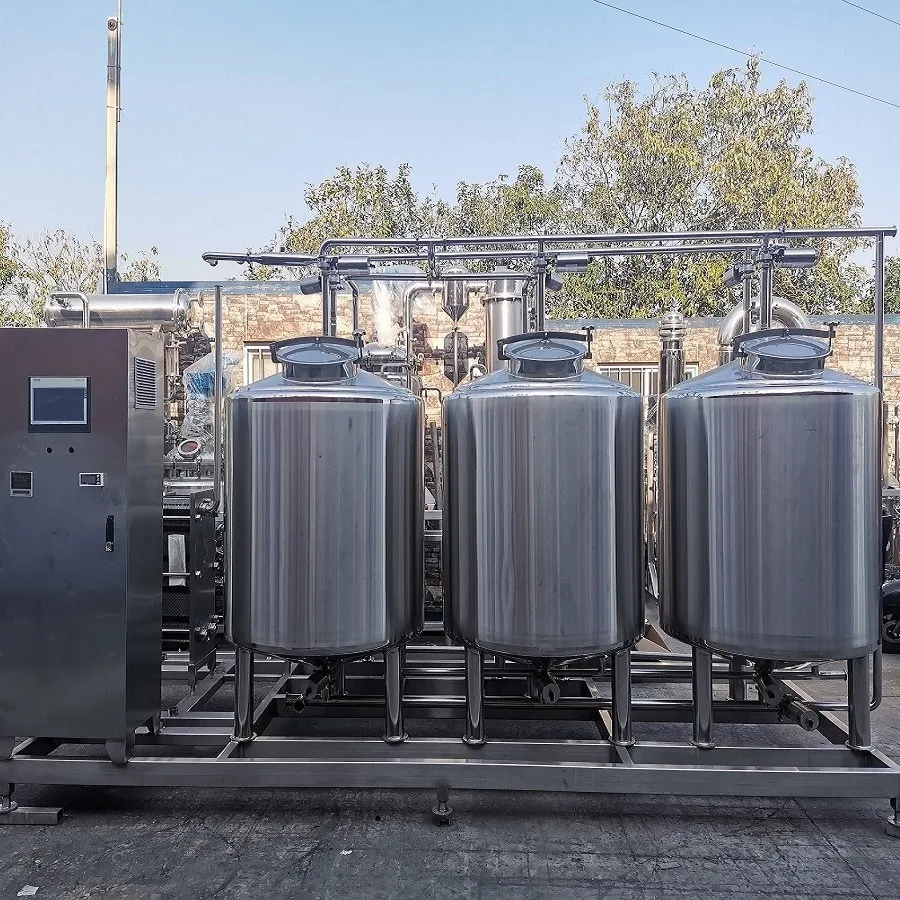

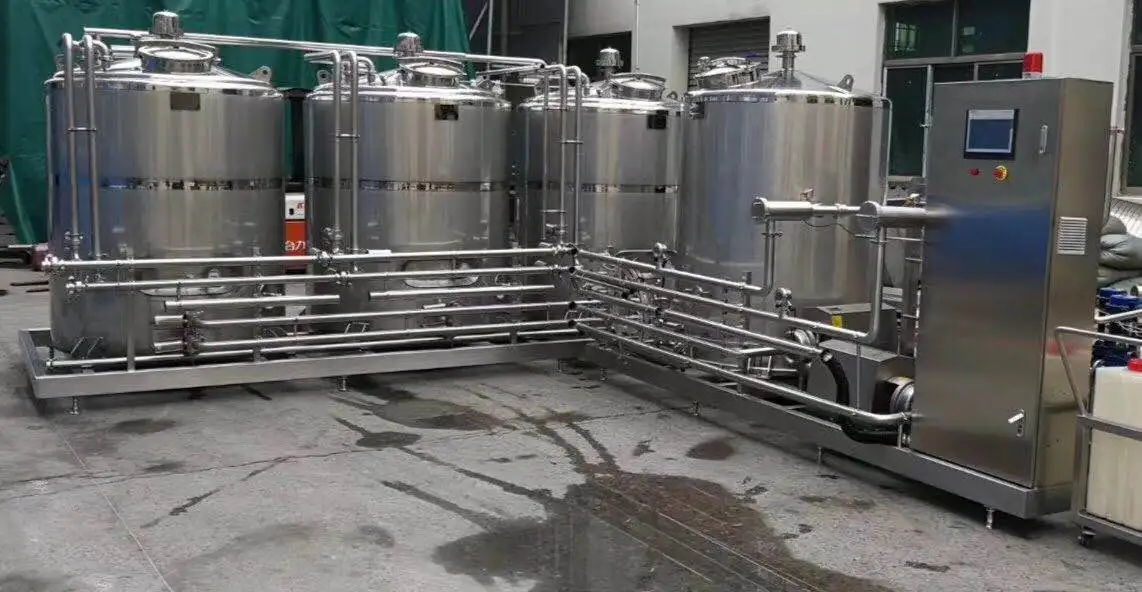

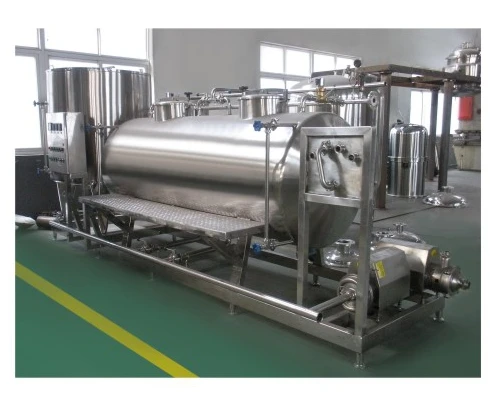

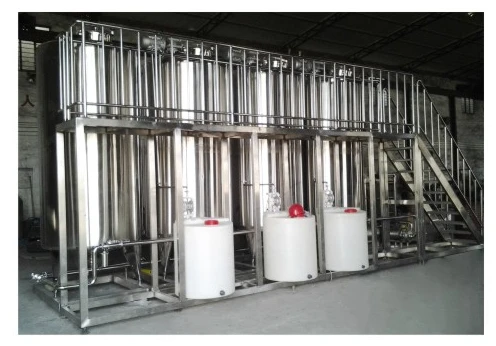

Details Images
Company Profile
Wenzhou CHINZ Machinery Co., Ltd is a high-technology enterprise integrating biochemical pharmaceutical equipment, milk food and beverage industry, chemical industry and other hygiene level fluid equipment design, manufacturing, service.
CHINZ enterprise has been wholeheartedly dedicating to the mechanical engineering and high precise hygienic fluid equipment research and development for a long time. Through technical accumulation and external cooperation for many years, the company has successfully developed various specifications of methanol and ethanol recovery unit, low temperature enrichment device.multiple effect evaporator concentrator, and multi-functional extraction tank .
CHINZ enterprise is always persisting in the business philosophy of survival with quality, development with technological
innovation, in the control point related the quality. our company implements the whole process monitoring, keeps improving in each procedure and every link strictly controls the quality, makes the product conforming with GMP standards, ensures the CHINZ product quality.
CHINZ enterprise has been wholeheartedly dedicating to the mechanical engineering and high precise hygienic fluid equipment research and development for a long time. Through technical accumulation and external cooperation for many years, the company has successfully developed various specifications of methanol and ethanol recovery unit, low temperature enrichment device.multiple effect evaporator concentrator, and multi-functional extraction tank .
CHINZ enterprise is always persisting in the business philosophy of survival with quality, development with technological
innovation, in the control point related the quality. our company implements the whole process monitoring, keeps improving in each procedure and every link strictly controls the quality, makes the product conforming with GMP standards, ensures the CHINZ product quality.
Certifications
Customer Photos
FAQ
1. What about your factory?
Our factory is located in Wenzhou and have more than 15 years experience on machinery making .
2. How will you control the quality and delivery?
All our machines will be tested before packaging. Teaching video and packing pictures will be sent to you for checking,we promise that our wooden packaging is strong enough and safety for long delivery .
3. How to finish installing?
We can guide you through the video or photos first . If the customer need to installing on site that our engineer can be sent to your country. but customer should pay the air tickets. besides, customer should arrange the accommodation for them during the trip.
4. What do we do if we encounter problem about the machine ?
Showing us the picture or video of the problem. If the problem can be solved by your workers, we will send you solution by video or pictures. If the problem out of your control, our engineer will be sent to your factory (customer will pay the fee during the trip.
5. How about warranty and spare parts?
We provide 1 years warranty for the machine,and most of the parts can be found in local market or you also can buy the parts from us .
Our factory is located in Wenzhou and have more than 15 years experience on machinery making .
2. How will you control the quality and delivery?
All our machines will be tested before packaging. Teaching video and packing pictures will be sent to you for checking,we promise that our wooden packaging is strong enough and safety for long delivery .
3. How to finish installing?
We can guide you through the video or photos first . If the customer need to installing on site that our engineer can be sent to your country. but customer should pay the air tickets. besides, customer should arrange the accommodation for them during the trip.
4. What do we do if we encounter problem about the machine ?
Showing us the picture or video of the problem. If the problem can be solved by your workers, we will send you solution by video or pictures. If the problem out of your control, our engineer will be sent to your factory (customer will pay the fee during the trip.
5. How about warranty and spare parts?
We provide 1 years warranty for the machine,and most of the parts can be found in local market or you also can buy the parts from us .
