High lumens DIP 1500nm 3000nm 8000nm 1.8 3.2v round led diode
- Category: >>>
- Supplier: Asia Incorporation Limited
Share on (62138304544):
Product Overview
Description
Product Description

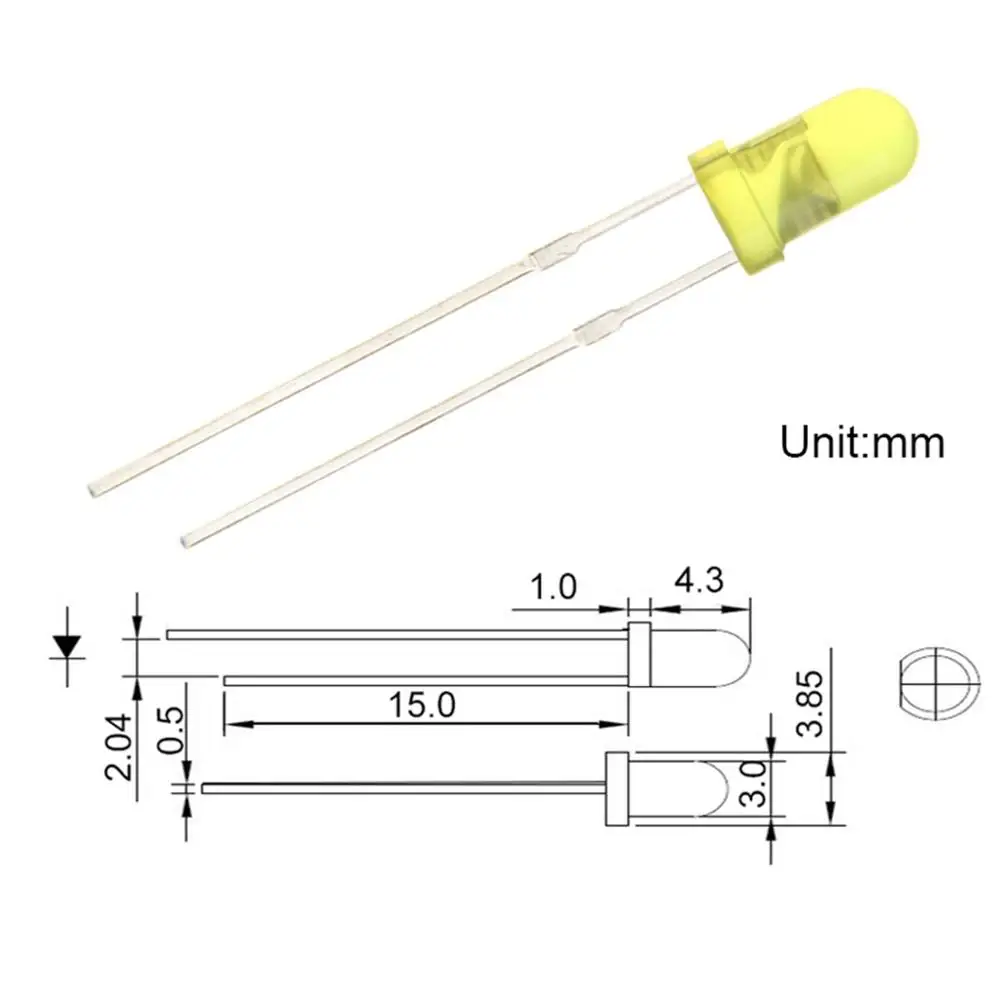

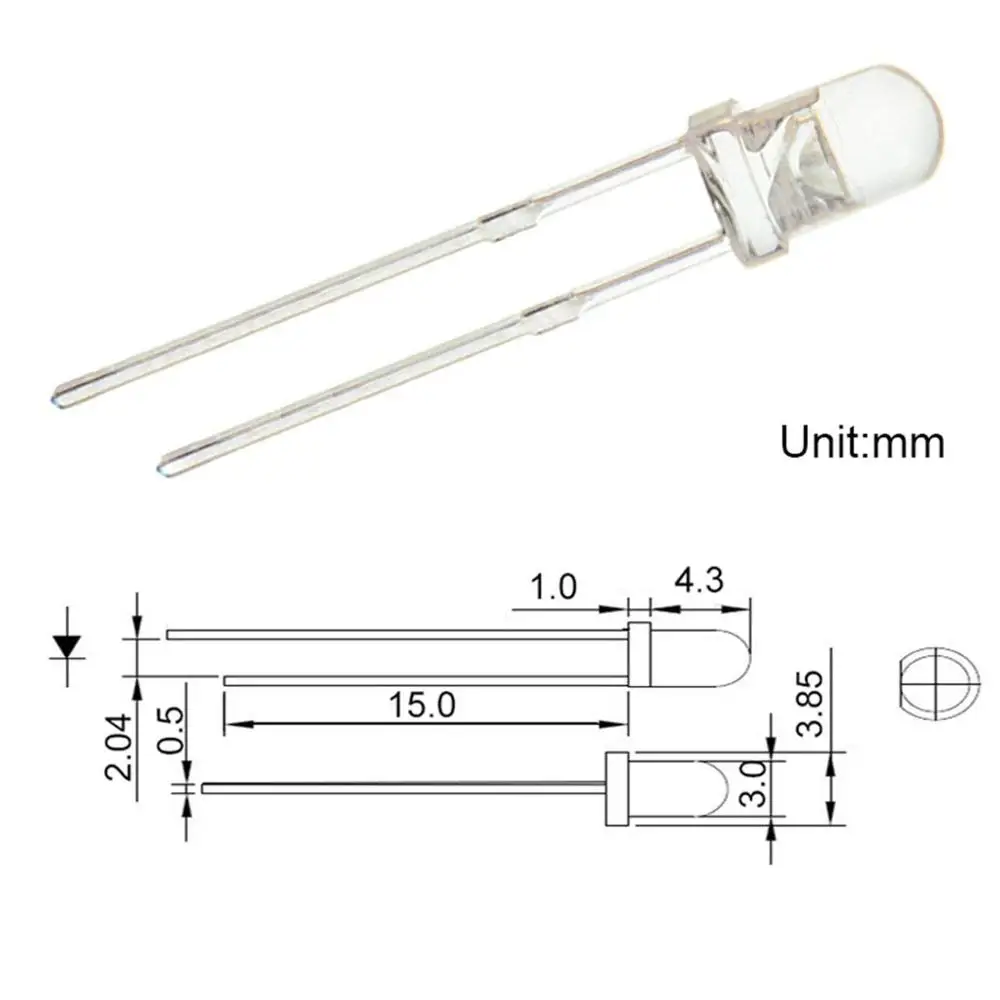

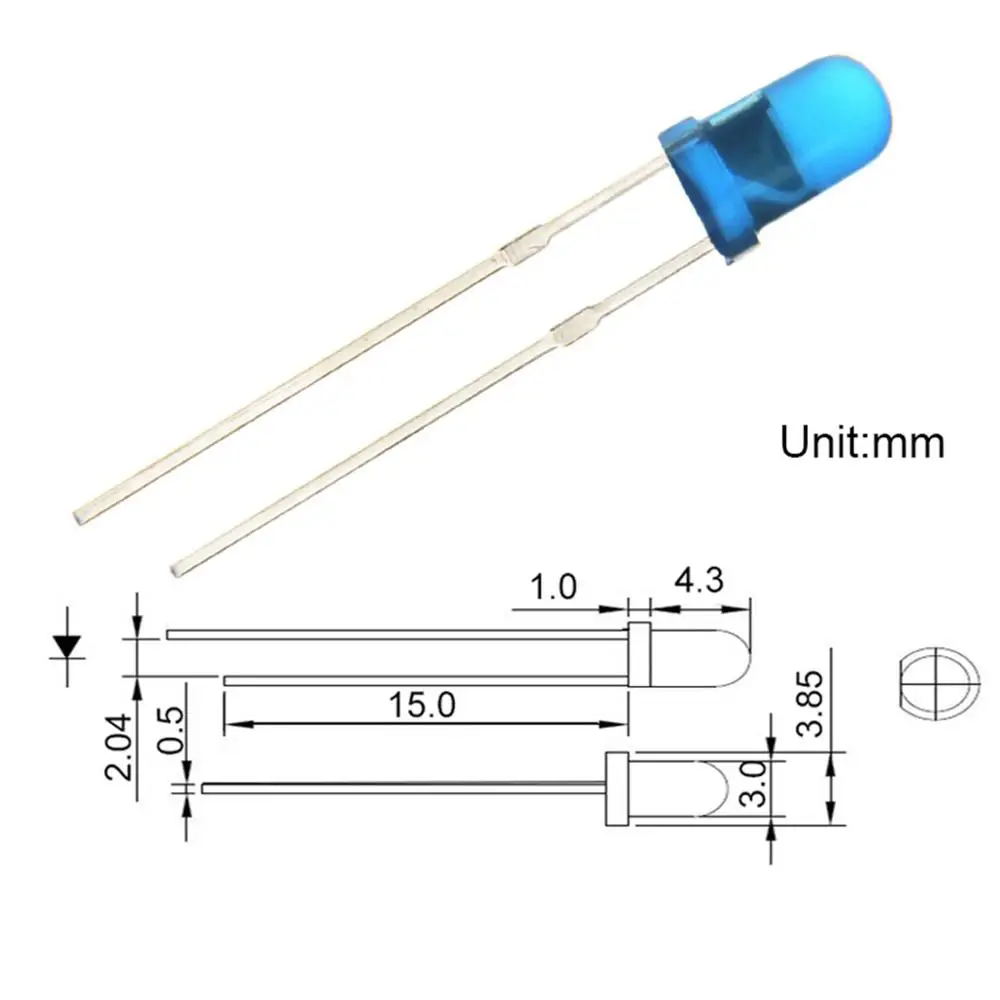

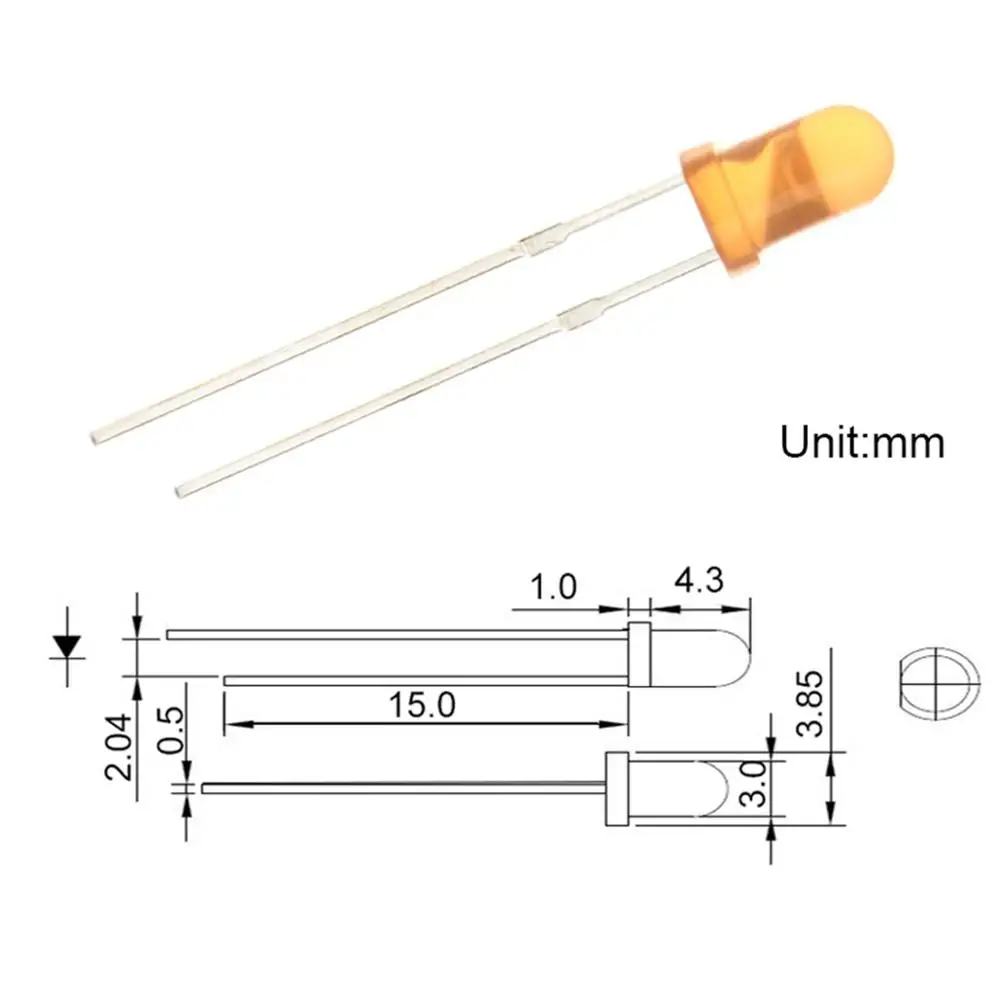

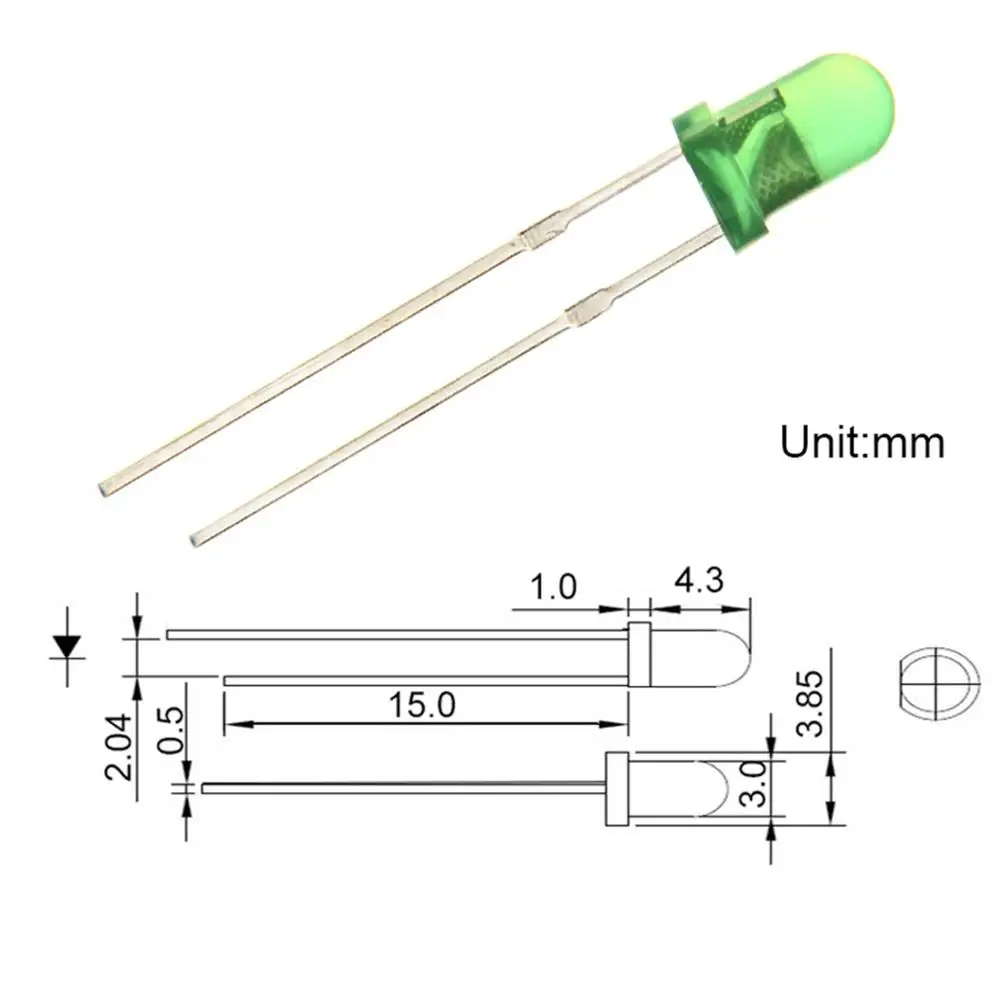

3mm dip led lamp—Our Products Stand out of Others
Over 12 years producing experience as the vendor of Samsung,Haier,LG etc.
Big scale of producing makes sure that your purchase cost is lower.
Advanced production line guarantees stable quality and long life span.
ELECTRICAL/OPTICAL CHARACTERISTICS AT Ta=25°C:
ITEM | COLOR | WAVELENGTH | VF | IF | IV |
3mm Round LED | RED | 620~630NM | 1.8~2.3V | 20mA | 4000~6000mcd |
3mm Round LED | GREEN | 520~525NM | 3.0~3.4V | 20mA | 7000~10000mcd |
3mm Round LED | BLUE | 460~465NM | 3.0~3.4V | 20mA | 300~5000mcd |
3mm Round LED | YELLOW | 590~595NM | 1.9~2.4V | 20mA | 3000~5000mcd |
3mm Round LED | ORANGE | 600~605NM | 1.8~2.4V | 20mA | 3000~5000mcd |
| 3mm Round LED | WARM WHITE | 2700~3000K | 3.0~3.4V | 20mA | 4~6LM |
| 3mm Round LED | NETURAL WHITE | 4000~4500K | 3.0~3.4V | 20mA | 5~7LM |
| 3mm Round LED | PURE WHITE | 6000~6500K | 3.0~3.4V | 20mA | 5-7LM |
