New AMADA press brake and bending machine for sheet metal processing
- Category: Metal Sheeting Processing Machines >>>
- Supplier: Maanshan Genuo Machinery Manufacturing Co. Ltd.
Share on (62138359348):
Product Overview
Description
Product Description
Features
1.Easy input mode
-Angular input mode
*After the input plate thickness automatically input mold conditions.
*Through the input of the project learning function,if there is the same plate thickness can immediately call
*After the input plate thickness automatically input mold conditions.
*Through the input of the project learning function,if there is the same plate thickness can immediately call
the previous data.
*Even if the new product program,can also quickly complete the setting according to the actual performance.
*Pressure,extension value conversion can also be automatically carried out.
*The conversion of FR bending can be done automatically by simply entering the internal R size.
-Direct input
-Direct input
*There is no need to input bending conditions,after direct input to determine the positioning size[L and work with
the positioning size D.
*During actual processing,bending control and data setting are carried out by hand wheel.
2. Powerful digital preservation
*Not just programs,but also cheat sheets.
*The program can be named separately for login.
2. Powerful digital preservation
*Not just programs,but also cheat sheets.
*The program can be named separately for login.
*The notes recorded on the touch screen can be used to save the mold configuration,bending order and other
matters needing attention.
*The internal storage can save 1000 workpiece,and it can also be saved to the external USB storage device.

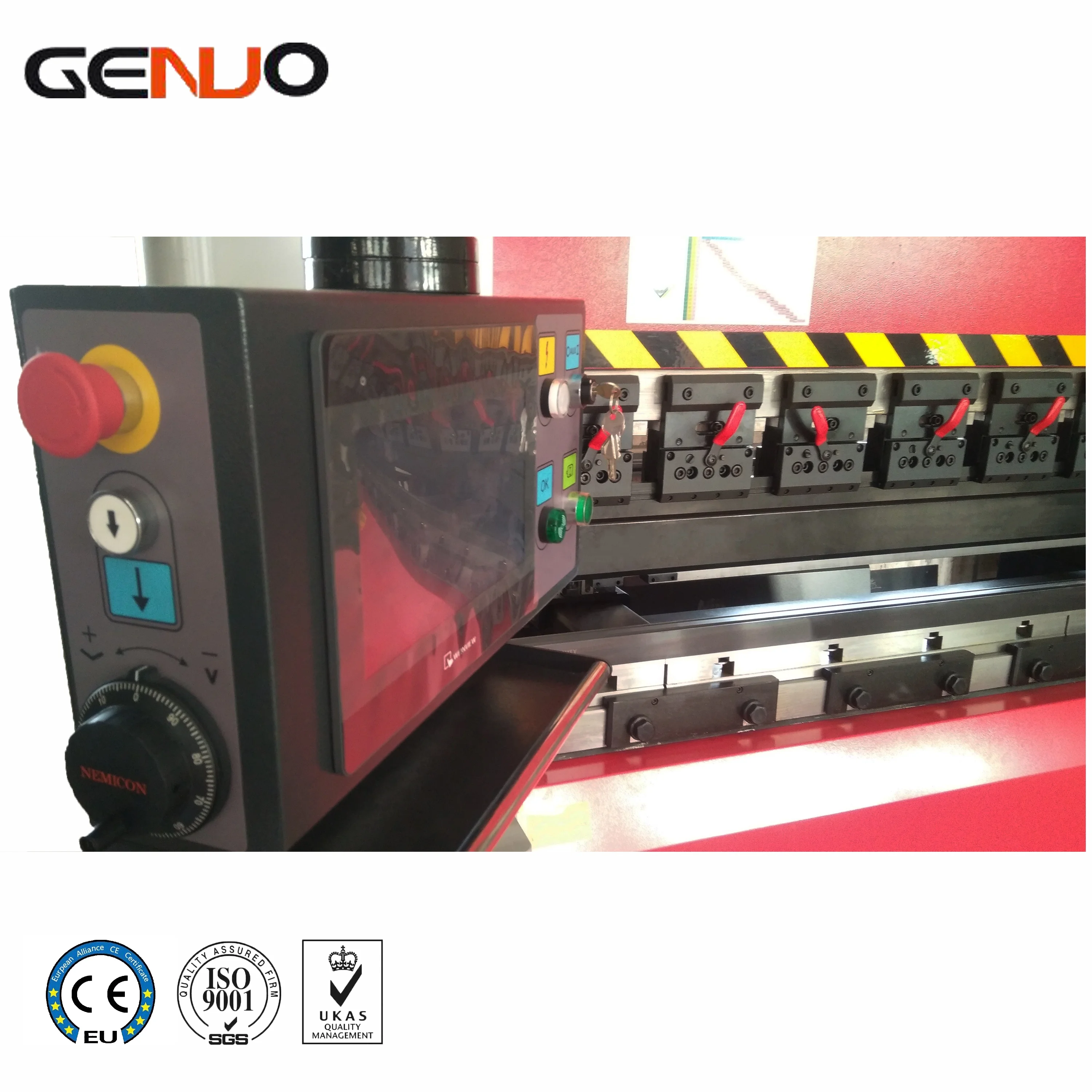

3.Portable Coloful touch screen CNC system input.
*It can input high-precision position setting in a short time.
*Through simple operation,it can input project data of 99 at will,and can also input bending correction.
3.Portable Coloful touch screen CNC system input.
*It can input high-precision position setting in a short time.
*Through simple operation,it can input project data of 99 at will,and can also input bending correction.
| Type | Back-gaugeRange | Ram Strokes | Max open | power |

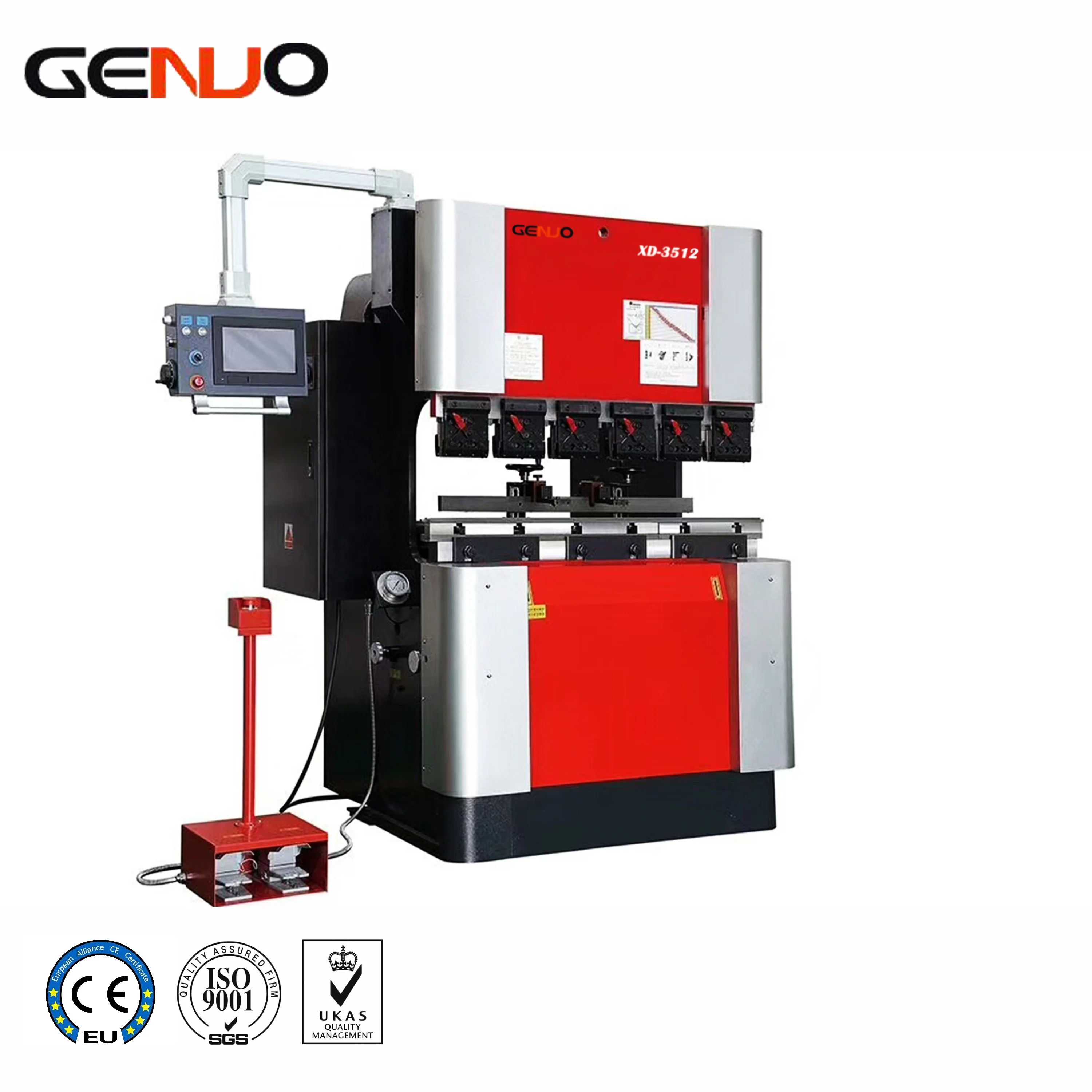

| XD-3512 | 10-500mm | 100mm | 430mm | 5.5kw |

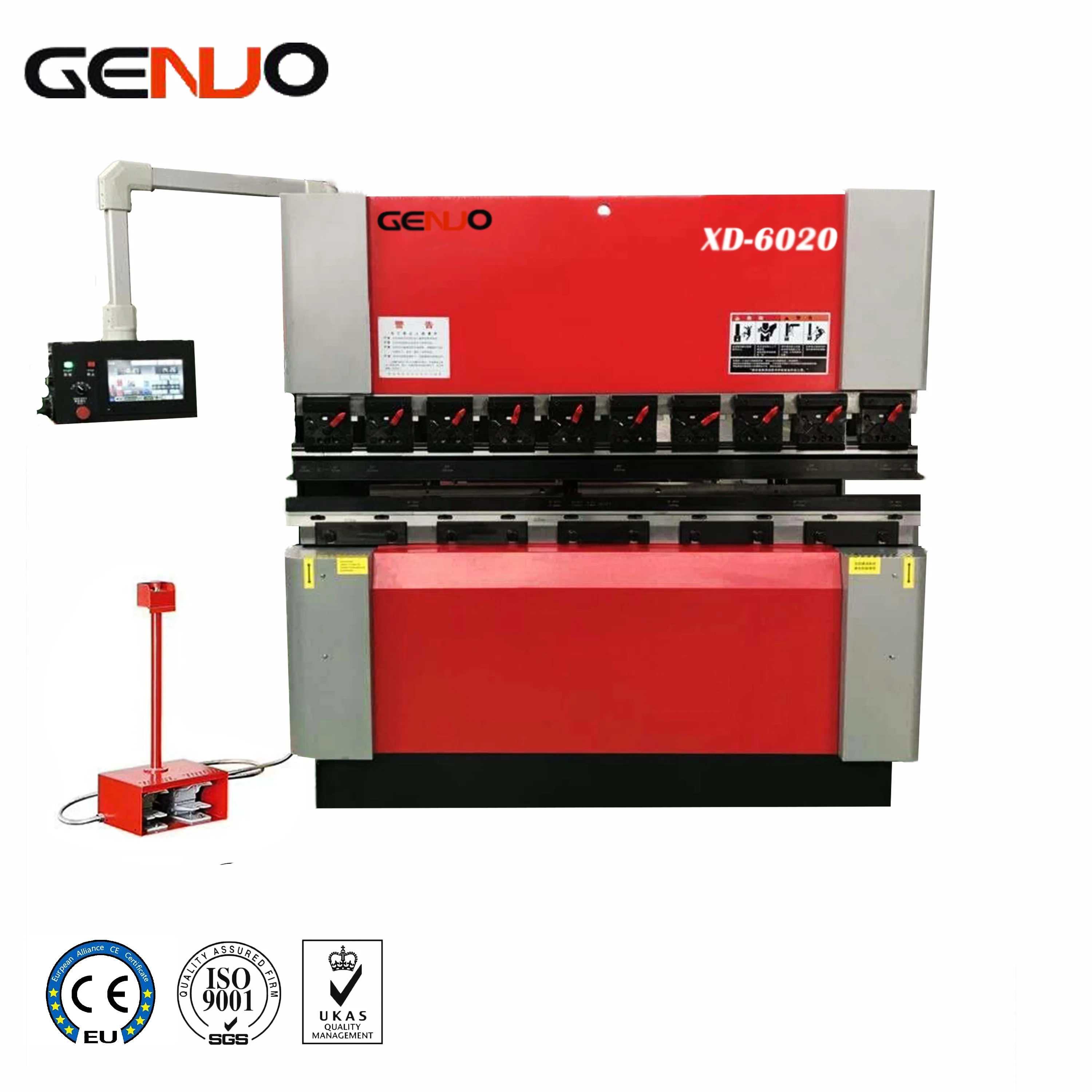

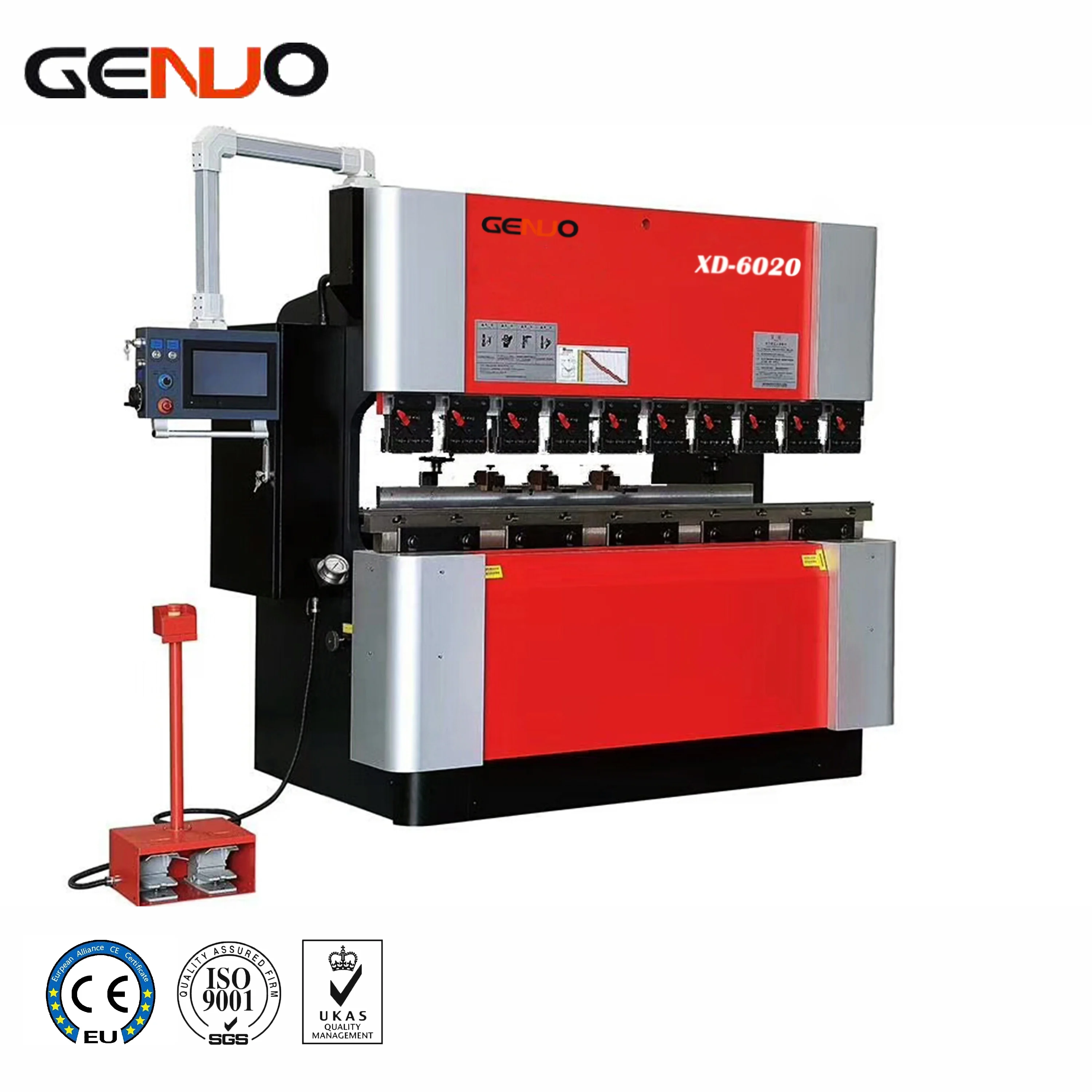

| XD-6020 | 10-550mm | 100mm | 430mm | 5.5kw |
| XD-8020 | 10-550mm | 100mm | 430mm | 7.5kw |

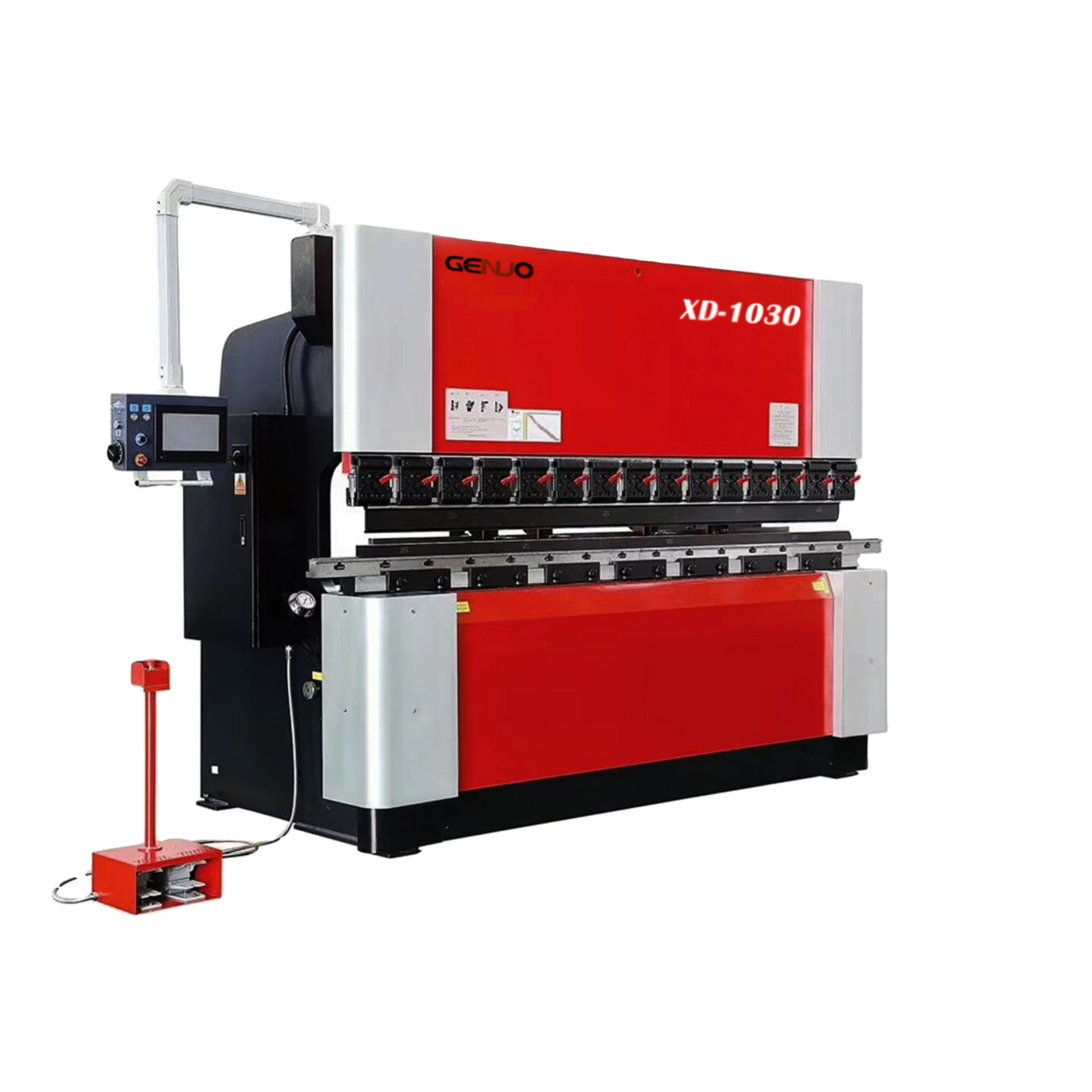

| XD-1030 | 10-600mm | 105mm | 435mm | 7.5kw |
| Dimension | throat depth | poles distance | Woektable length | nominal force |
| 1300*1200*2000 | 200mm | 1000mm | 1200mm | 400KN |
| 2200*1300*2100 | 280mm | 1800mm | 2000mm | 630KN |
| 2200*1400*2200 | 320mm | 1800mm | 2000mm | 880KN |
| 4200*1500*2300 | 400mm | 3000mm | 3200mm | 1100KN |
