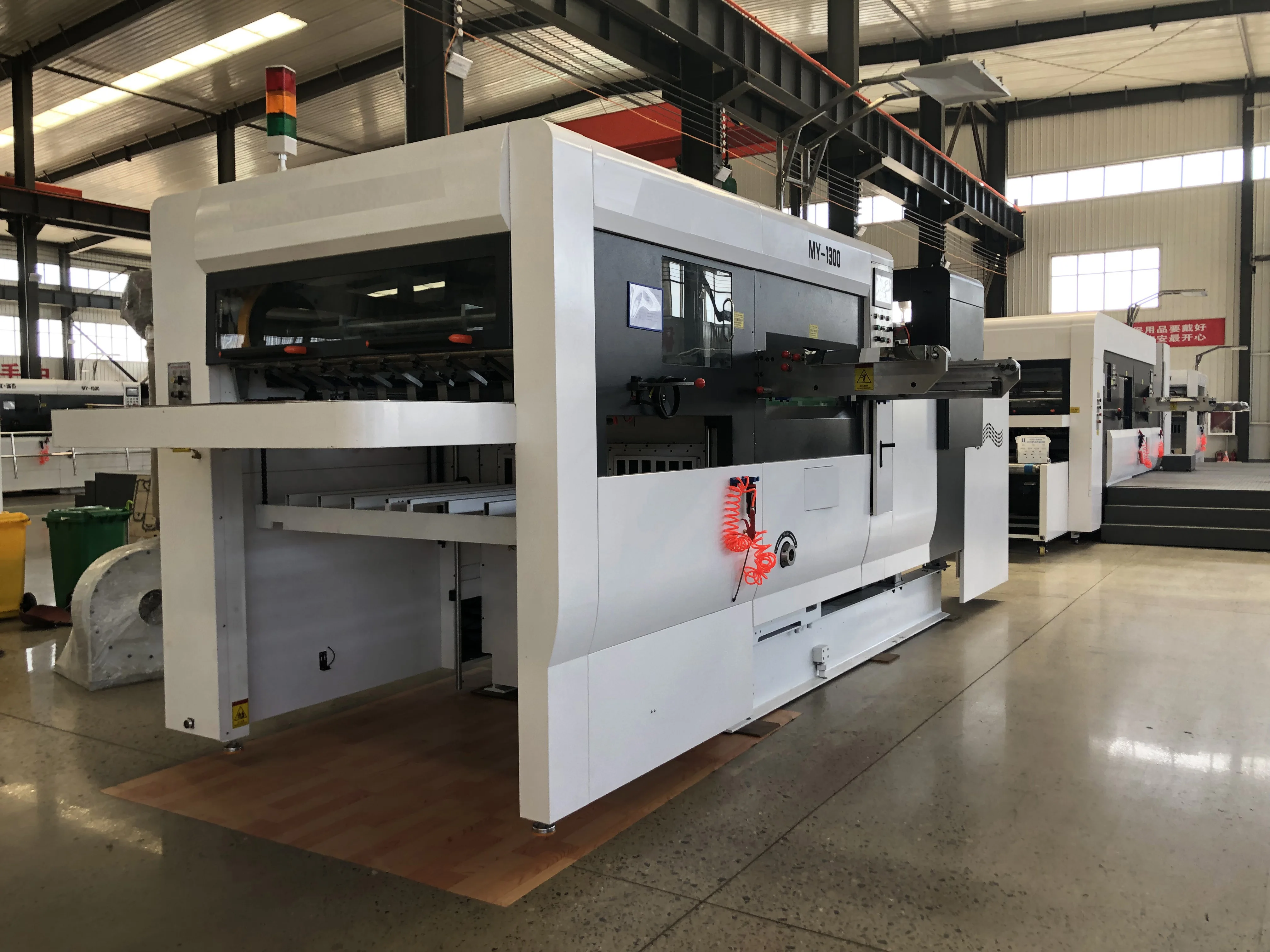

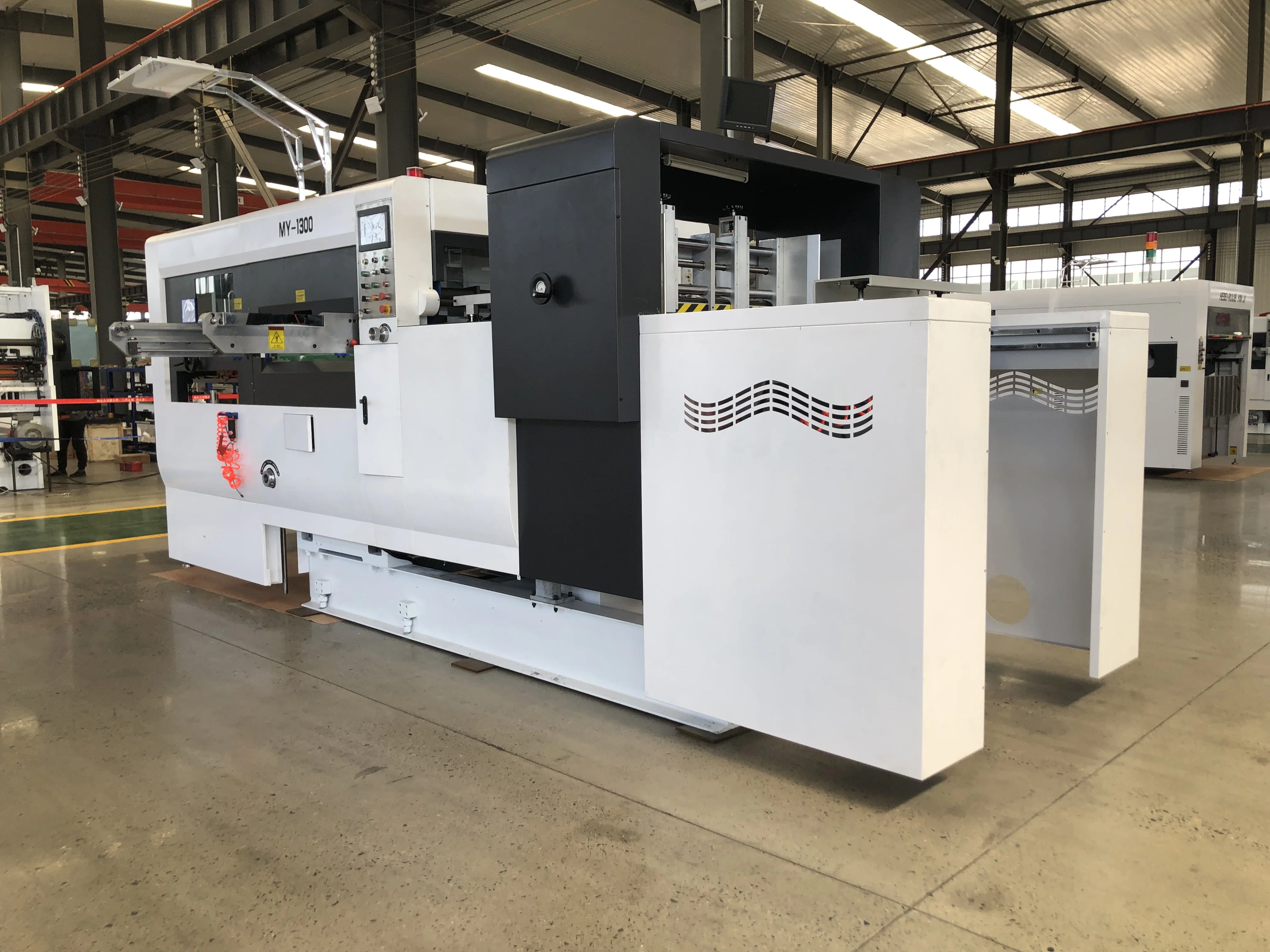

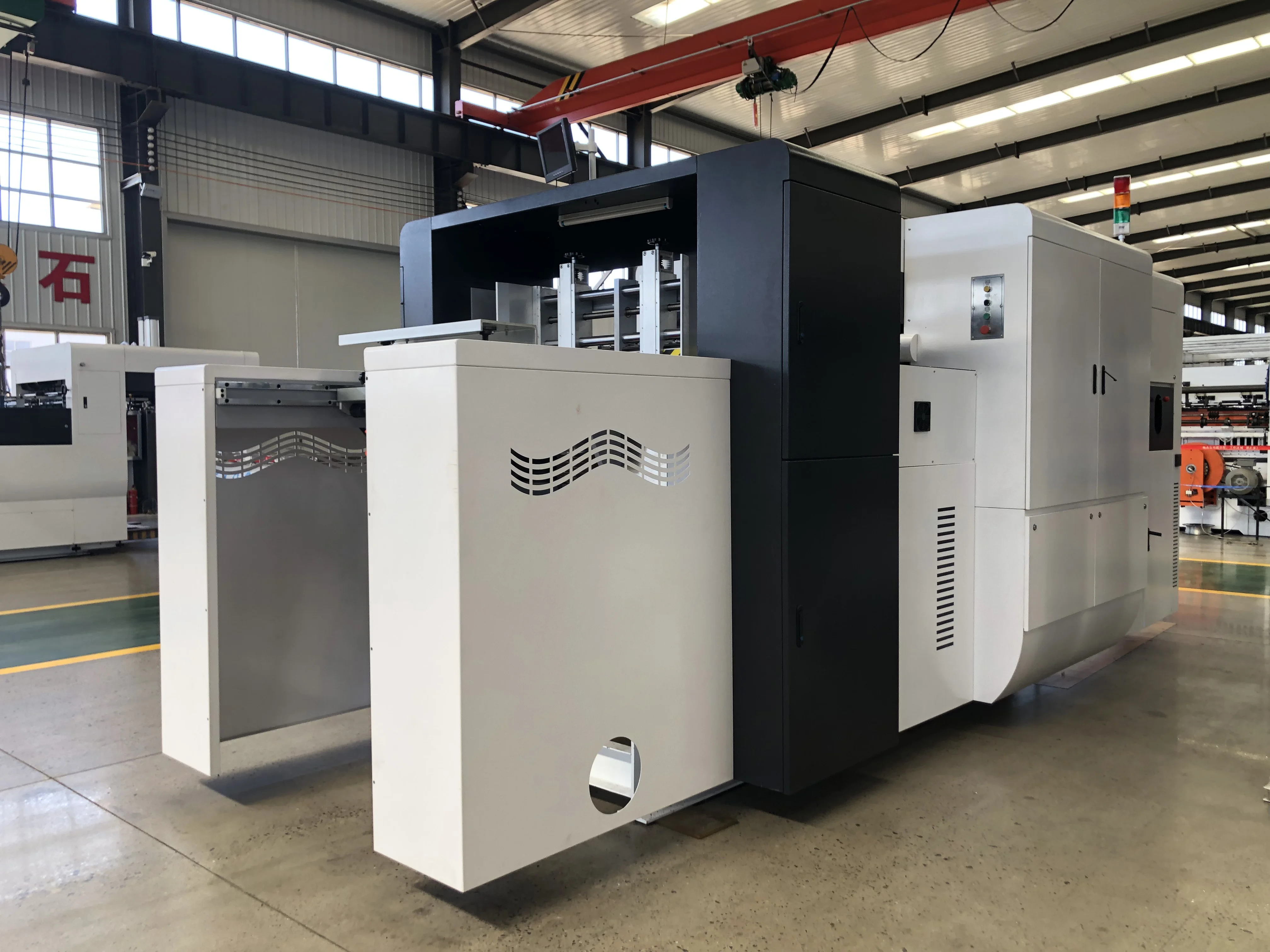

I PACK High Speed Lead Edge Feeding Die cutting Machine cardboard making factory

Product Overview

Description

AUTOMATIC FLATE DIE CUTTING & CREASING MACHINE LIST

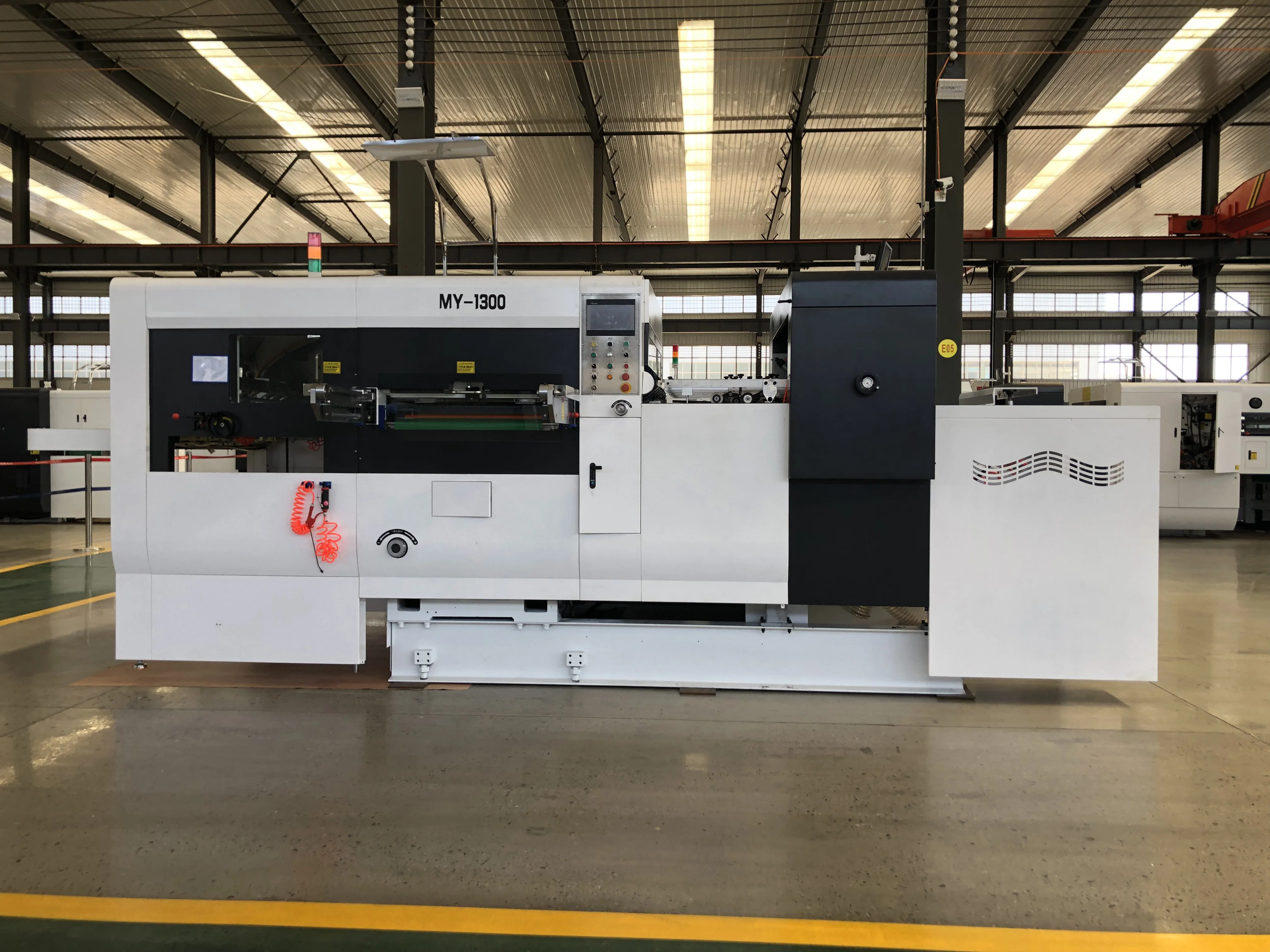

Models &Parameters	MY1300	MY1500	MY1650
Max Paper Size	1320*980mm	1510*1120mm	1670*1200mm
Min Paper Size	350*450mm	450*500mm	500*550mm
Max Die Cutting Size	1300*960mm	1490*1100mm	1650*1180mm
Die Cutting Pressure	350T	380T	400T
Corrugated Paper	3-10mm	3-10mm	3-10mm
Max Die Cutting Speed	5000(pics/h)	5000(pics/h)	4500(pics/h)
Total Power	24.5KW	24.5KW	32KW
	Stripping    28.5KW	Stripping   28.5KW	Stripping   35KW
Total Weight	16.5T	19.5T	23T
	Stripping    18.5T	Stripping   21.5T	Stripping   26T
Whole Size(mm)	5900*2365*2346	6200*2380*2356	7000*2980*2450
	Stripping 7080*2365*2346	Stripping 7400*2365*2346	Stripping 8500*2365*2346







*The whole machine wallboard and platform are all made of high-strength ductile iron to ensure large die cutting pressure



*Imported PLC control, touch screen adjustment, all adjustments are adjusted by motor, saving time and effort



*Automatic counting and non-stop paper-out design, with hydraulic lifting platform feeding system, convenient for non-stop paper feeding and paper-out

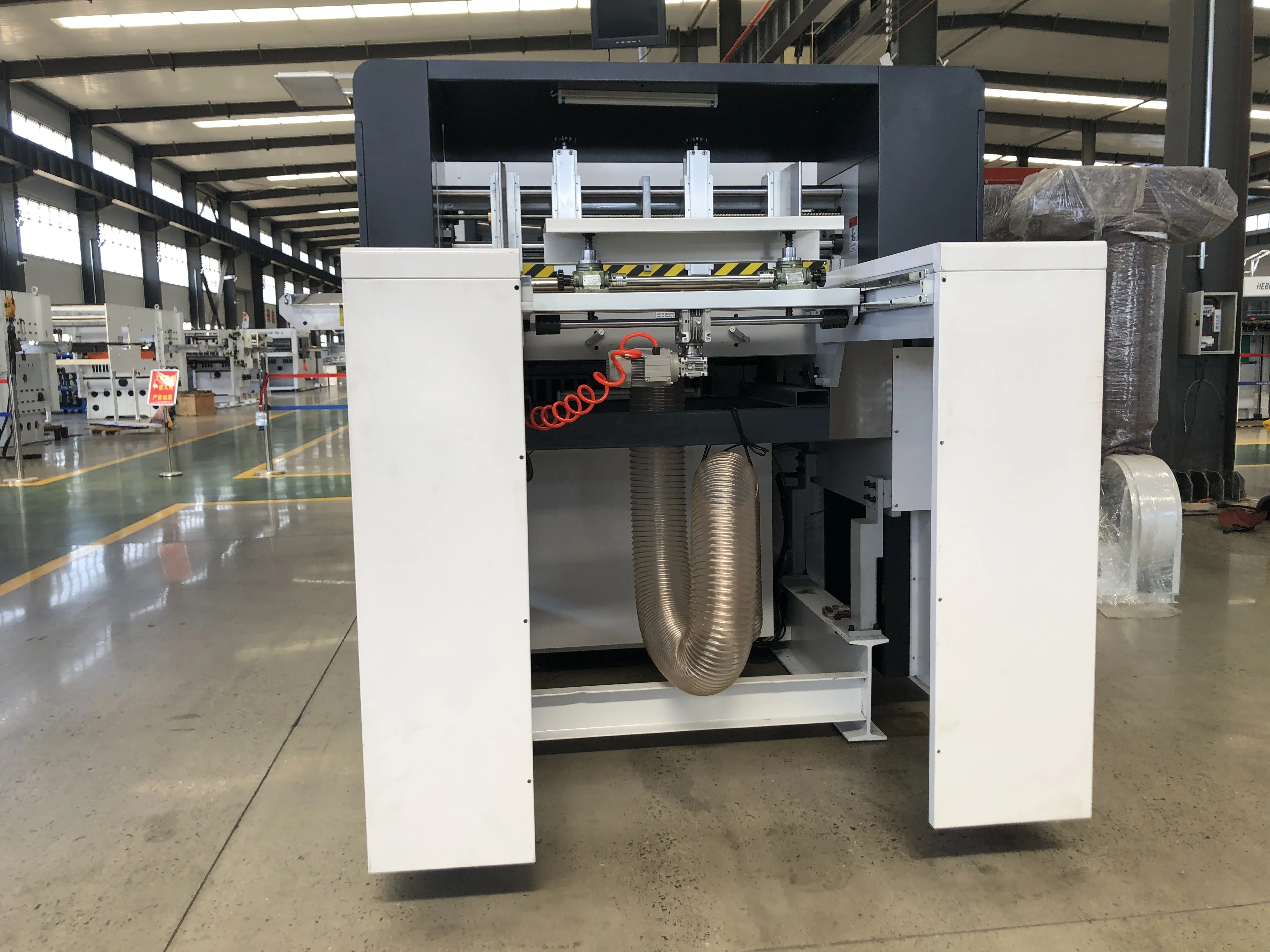

Feeding Parts

Lead edge feeder(under suction feeder)



*Independent servo-type leading edge, paper feeding mode can adjust the transfer length arbitrarily, maximizing reduce the damage to the strength of corrugated board



*Left and right baffle can be electrically adjusted



*Use high-power high-pressure fan to ensure smooth delivery of warped cardboard, air volume can be adjusted by micro-machine to adapt to 3-9mm corrugated paper



Feeding table



*Adjustable brush and platen roller ensure accurate delivery of cardboard to front and side gauges



* Advanced push gauge and pull gauge can accurately put the cardboard into the accurate die-cutting position and enter the die-cutting section



*Taiwan Ruike photoelectric sensor can effectively prevent paper misplacement from entering the machine, thus reducing the scrap rate and improving the die cutting accuracy



*The paper pressing part is controlled by the cylinder, which makes lifting easier



Main Body



*Worm gear material is made of high quality alloy copper, precision machine tool processing, hand-scraping, high precision and especially wear-resistant



*The shock absorption booster system makes the machine less wear and tear, more pressure



*Using Japanese SMC rotary joint with pneumatic clutch, low noise, long life and smoother braking



*Equipped with automatic centralized lubrication system, the crank connecting rod of the main drive adopts forced oil supply



Driving Part



*The intermittent box drive adopts Taiwan's professional ternary cam indexing mechanism, which makes the transmission noise smaller, the drive is more stable, and the maintenance and replacement is more convenient



*The gripper body is made of high quality hard aluminum alloy profile, the surface is anodized, the rigidity is strong, the material is light, the inertia is small, and the paper can be accurately transferred in high speed operation



*The main chain adopts the original British RENOLD/Germany IWIS, which has good anti-stretching effect. The PLC can control the centralized chain oil supply system to complete the lubrication of the chain as needed



*Install a torque limiter between the intermittent mechanism and the main drive shaft. When the machine is overloaded, it will automatically stop the protection to reduce the damage to the machine



Die Cutting Part



*Safe and flexible design of the rotating device makes the board adjustment board faster and more convenient



*The frame is made of pneumatic lock plate, the protective beam and the lock nut are designed to make the template more stable



*The die-cut steel plate is made of 70Cr material, which is more durable; the upper part is provided with a floating air floating device, which makes the die-cutting board easy to enter and exit



* Die-cut protective window design for safer operation



Electric Part



*Siemens variable frequency speed control main motor, Japan Futian inverter, give the machine output stable and reliable power



*Automatic control and real-time detection of processes from paper feeding, paper feeding, die cutting and delivery, using PLC and HMI control



*Human-machine interface display system can display various working conditions in real time, multi-tone speaker alarm when a fault occurs, and automatically stop, truly guaranteeing human-machine safety
