Specifications:
Product Name:

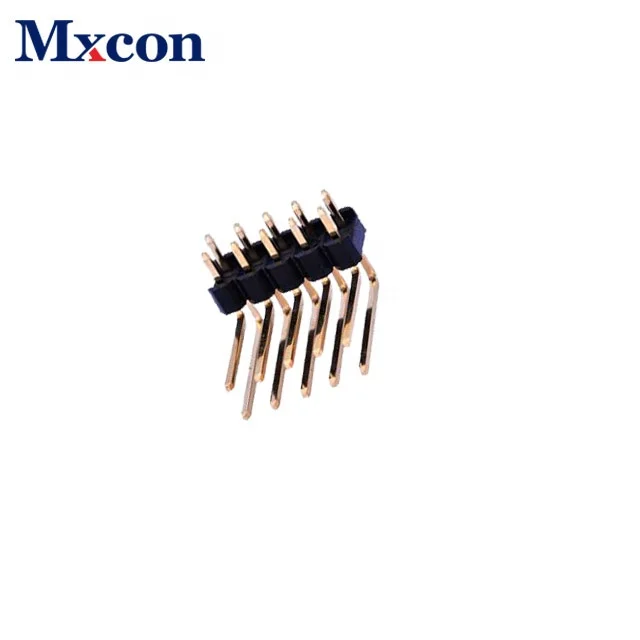

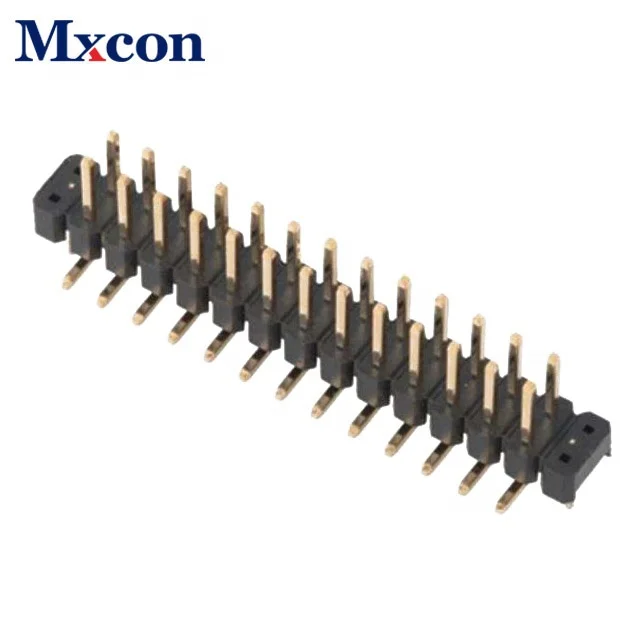

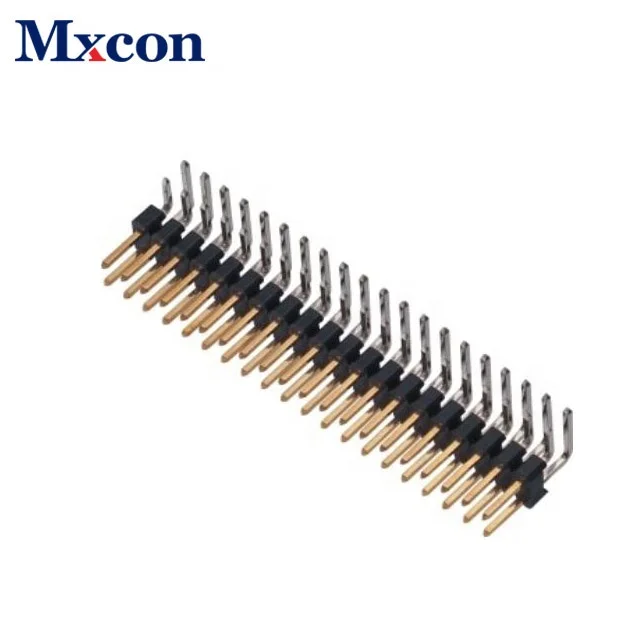

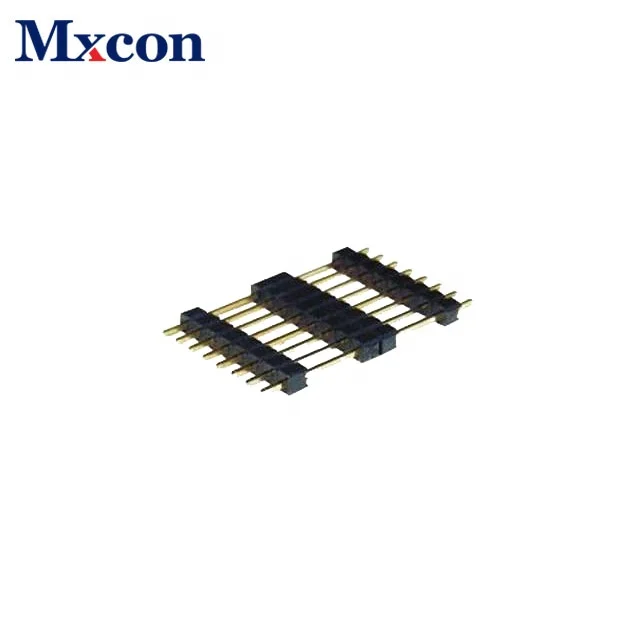

male pcb header
Description:
Pitch: 2.54mm
Row Number :dual row
Color: Black , Grey
Orietional :vertical SMT, straight
Housing
PA6T/PA9T/LCP+30%G.F UL94V-0
Insulator Height for choice:
1.0mm ,1.5mm ,1.7mm ,2.0mm ,2.5mm ,2.8mm
Number of Pin
1~40pin
Contact Material:
Brass
Contact Plating:
Gold (Au) or Tin (Sn) Plated over Nickel (Ni)
Insulator/Plastic Material:
PBT,PA6T ,PA9T ,LCP
Rating Current:
3.00AMP
Contact Resistance:
20mΩ Max
Insulating Resistance:
1000 MΩ Min
Withstanding Voltage:
AC 500V/Minute
Temperture:
-40°C to +105°C
Sample Lead time
Free, 2~5days
Production lead time
5-7days
OEM/ODM
Accepted
Drawing
Our Services
1. Provide free samples
2. Accept ODM/OEM with strong R&D team
3. Fast response to your inquiry and feedback
4. Good quality with strict quality control
5. Professional after-sale team
Packaging & Shipping
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag
special Packing depend on customer
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method; If goods is large: Sea or Air shipping method. Please nitfy me you have any special needs.
Payment
Our company accept T/T, Western union, Paypal, Alipay for payment, Please inform us if you have a prefer payment way.
Company Information
Shenzhen Meiwang Electronic Technology Co.,Ltd has 10 years’ experience for producing precise connector and cable assemblies.
Factory location close to Hongkong and Raw materials market ,which could help saving your cost .
We have a R&D team and department for making custom design products for our customers.
We passed different certifications and qualification honors such as ISO 9001:2015,ROHS and SGS.
Our products include:pin headers, female header series , box header,ejector header series, Board to Board, Wire to board connectors, Wafer/housing/terminal connectors, RF coaxial connectors, antenna shrapnel, Pogo Pin, FFC/FPC connectors, SD/TF/CF/SIM card connector ,USB connector,RJ45 Connector,DIN41612 connetor series,RF cable assembly, electronic wire harness, etc., which can be customized according to customers’ needs.
Our products are widely used in the areas including: consumer electronics, electronic communications, security, industrial and power control, instrumentation, automotive electronics, new energy, LED optoelectronics and other industries. To meet the market demand, we work hard to develop new products through research and development.
