Cheap Digital Wireless Room Electronic Floor Heating Thermostat With 868MHz

>>Transmitter:

1.Running Mode

Hold the dial button for 5 seconds to access the system running mode switch, then turn the dial to choose different mode between:

HEAT (Heating): adjust the temperature by turn the dial

COOL (Cooling): adjust the temperature by turn the dial

OFF (Frost Protection): it will start heating when the room temperature is under 7°C

Then press the dial again to confirm the running mode or wait for 10 seconds to confirm the setting automatically.

2.Calibrate the temperature

Temperature calibration and SWING settings): Hold the dial for 5 seconds to access to the mode switch setting and select HEAT or COOL mode, then press the dial to access the interface of temperature calibration “CAL” (in -3.0~+3.0, in 0.5°C increments); turn the dial to set the desired value, then press the dial again to set the Swing value between 0.2~2°C.

3.Restoring thermostat to factory default

Remove the batteries then put it back, hold the dial until display the full screen then release, the defaul running mode is HEAT, it means the thermostat has been restored to factory default settings.

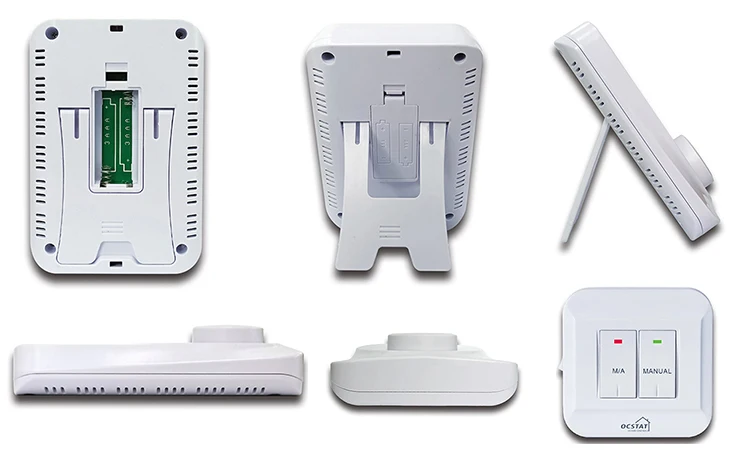

>>Receiver:

1.Manual receiver control

Press the MANUAL button to separate to the thermostat from the receiver. In this case the boiler or the air conditioner connected to the receiver can be turned on or off manually without temperature control. Fixed green light indicates the MANUAL mode. Press the M/A button to activate or deactivate the boiler. (The red LED lights up when the boiler is on). Press the MANUAL button to stop manual control and resume automatic operation (thermostat-controlled) (the green LED turns off).

2.ON/OFF button on the receiver

O: OFF

When there is no need to use the thermostat, the users can just turn OFF (by the left side of the receiver) to power off the receiver and it does not need to remove the front case.

I: ON

The receiver is normal operating;
