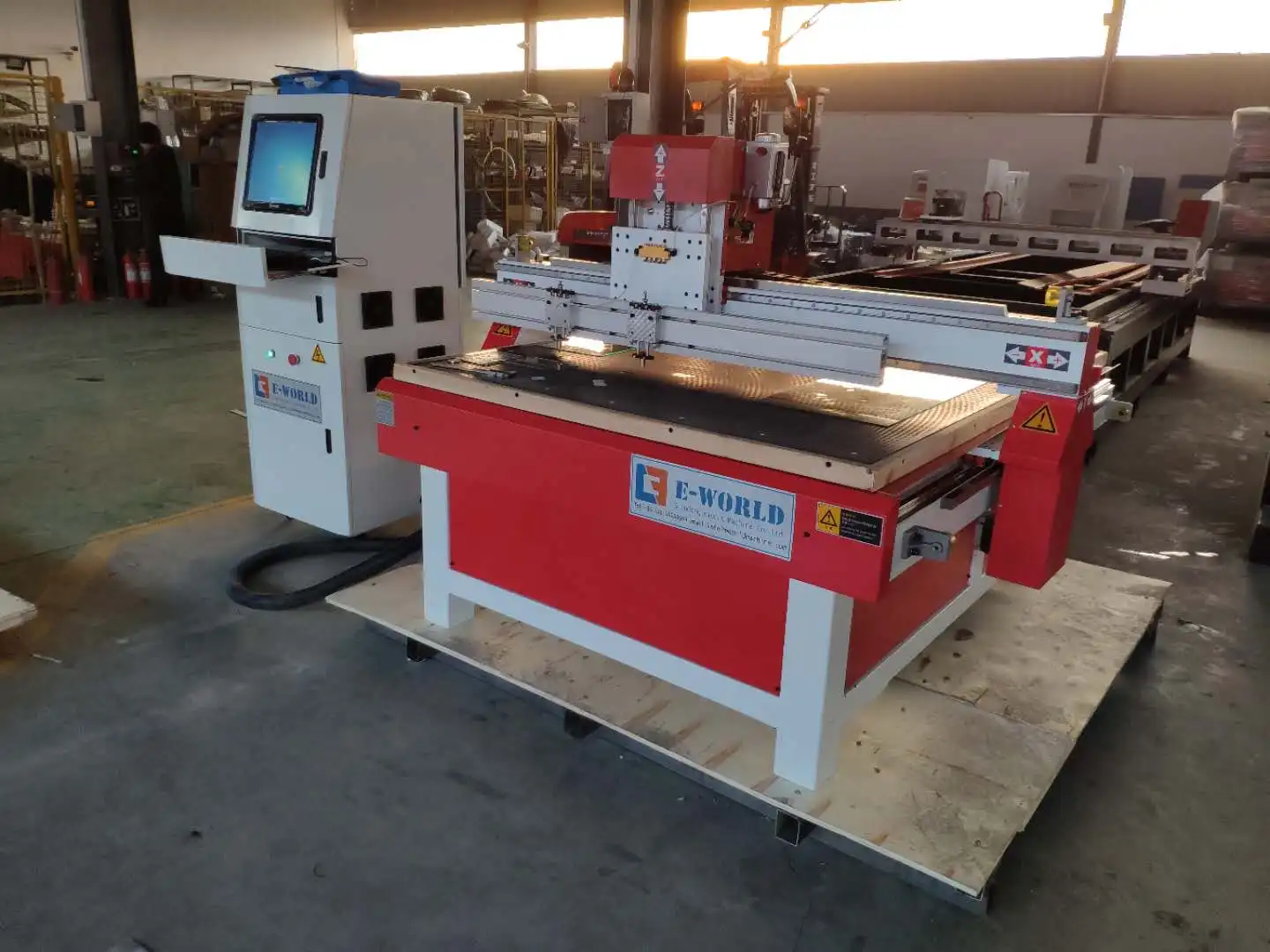

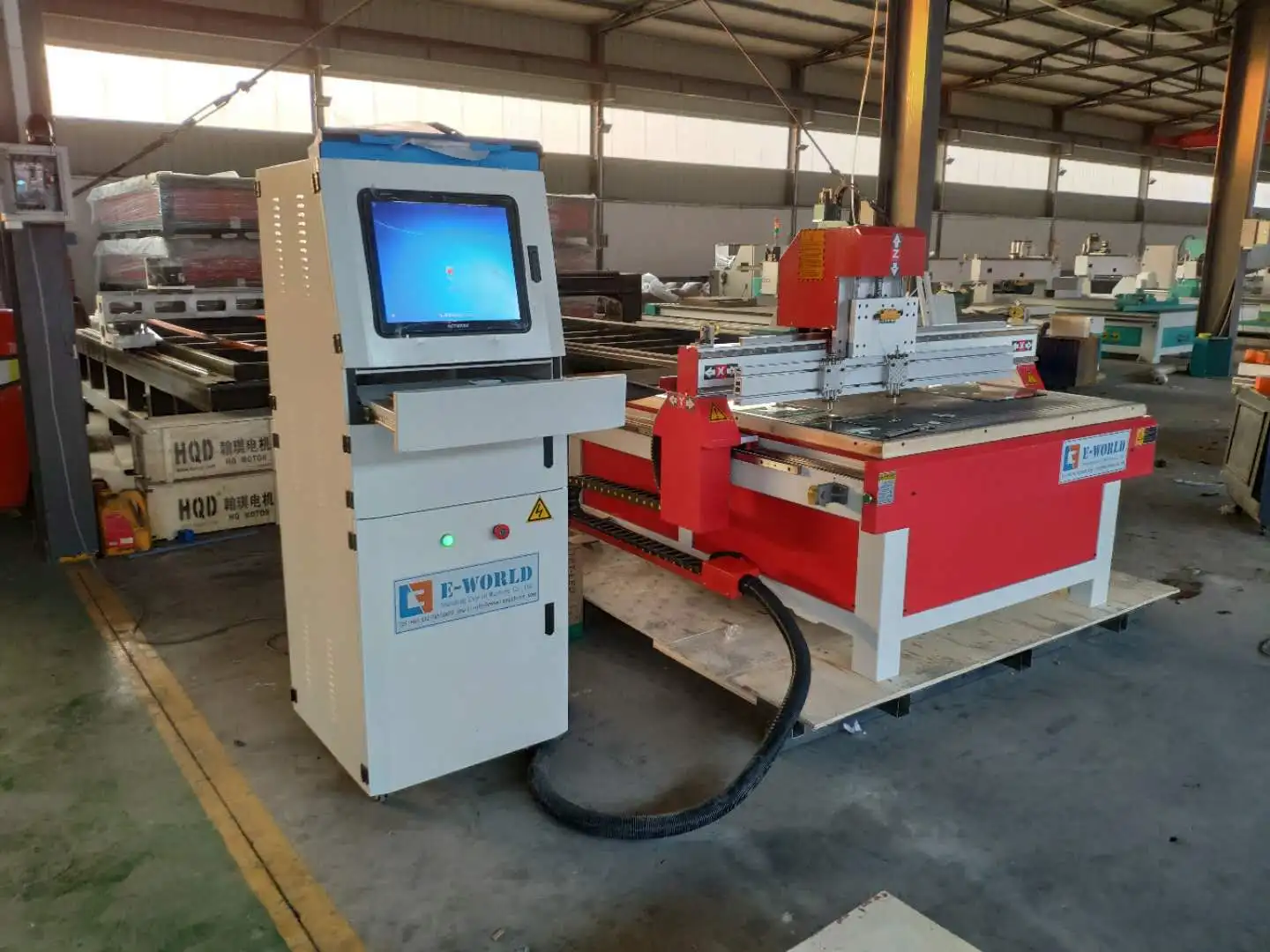

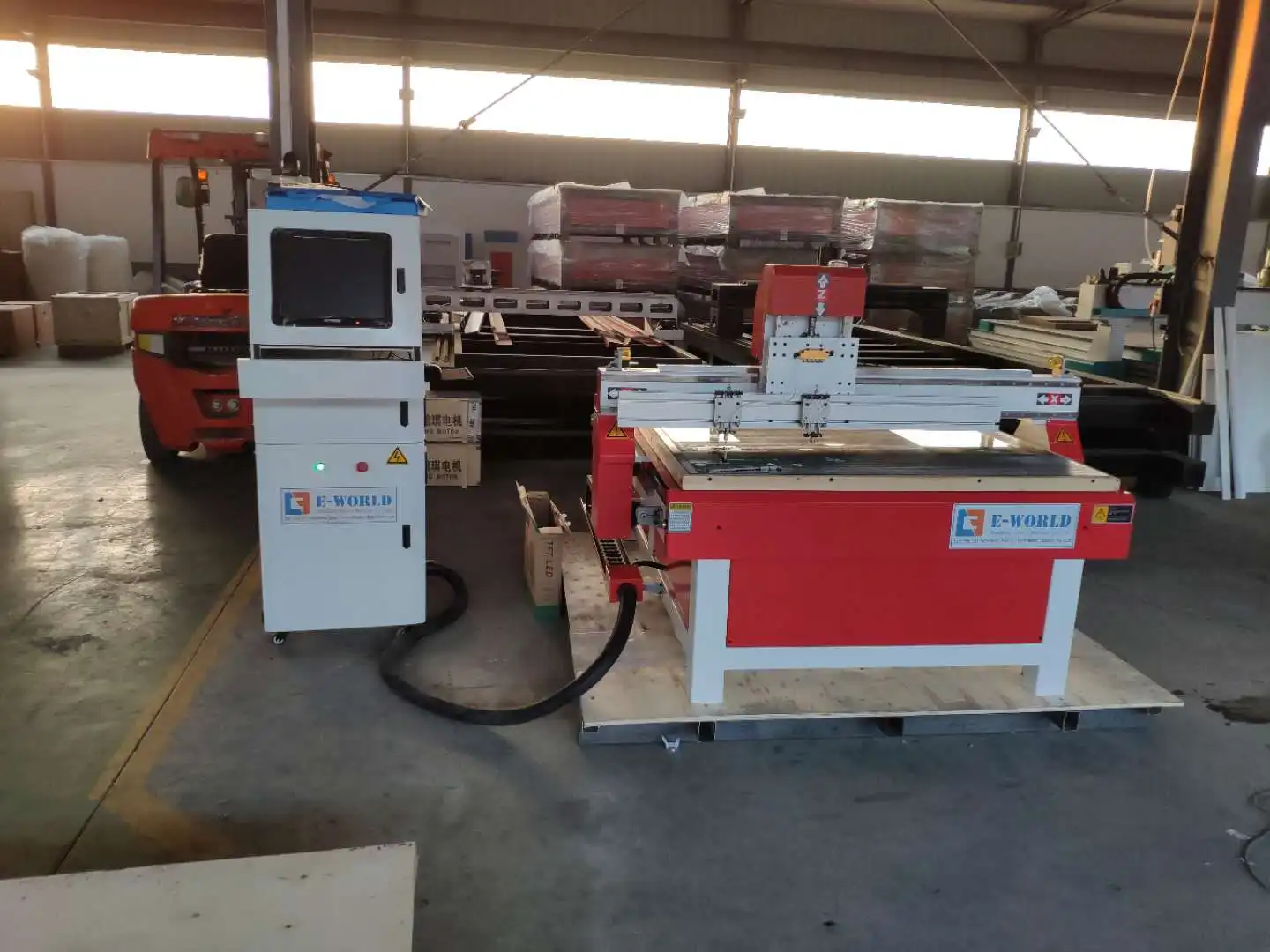

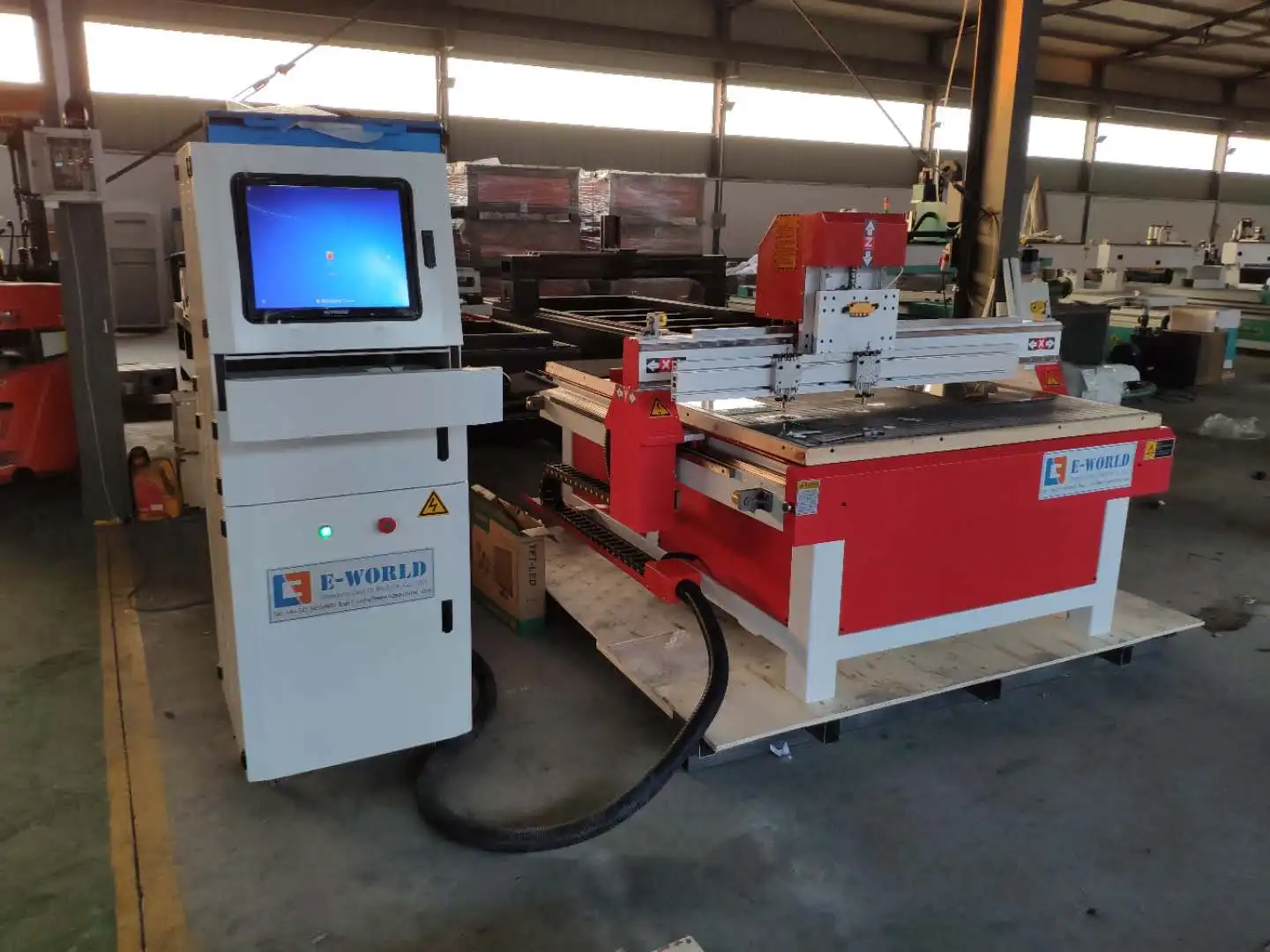

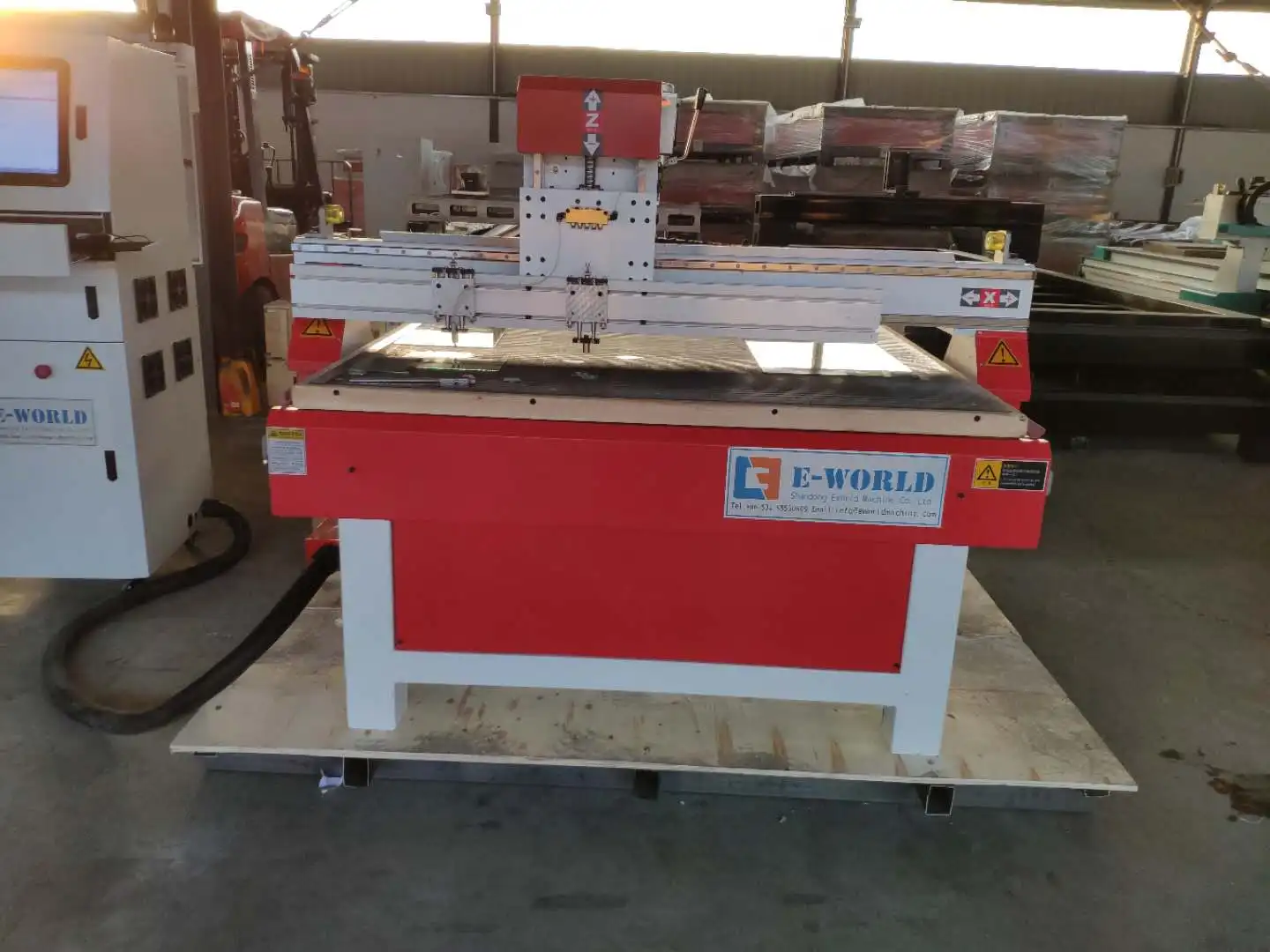

High speed CNC glass cutting stone cutting vertical engraving milling machine

Product Overview

Description



Introduction:

1, Work flow: After starting the inputting machine, arms automatically suck glass  from the shelf. Under sensor controlled, glass automatically find glass edge in the X and Y directions. After moving glass sheets to designated location, transport glass to the automatic cutting table.Cutter will move to coordinate origin, and automatically start to cut according to the preinstall graph.

2,The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing.











Feature:

1.Bed using thick wall pipe welding and become, the high temperature tempering treatment, ensure that the deformation is small, rigid good, the intensity is big.

2.The X,Y axis adopt reliable motor drive, selected pairing, ensure the smooth movement.

3.Using high precision level gear rack drive, high precision, speed and strength.

4.Adopts imported linear guide square, high precision, long life.

5.Mechanical and electrical full excellent design, selection of all kinds of electrical accessories, the failure rate drop

6.Software compatibility: compatible type3 / Artcam/Castmate/wentai and so on the many kinds of CAD/CAM design software.

7.Performance worry about: a breakpoint renewal carving, power off recovery, processing time prediction, and other functions, the real human nature design.



Technical parameters:

Working size	1300*1300mm
Cutting thickness	1-12mm
Table size	1300*1300mm
Cutting speed	20m/min
Machine bed	Steel lathe bed
X-Y-Z movement	Imported gear rack
Working accuracy	≤±0.15mm/m
Repositioning accuracy	≤±0.15mm/m
Driver motors	stepper
Working voltage	AC 220V
Total power	2.5 KW
Command code	G code*uoo,*mmg,*plt
Software	Artcam,Wenta
Computer system	Windows 98/2000/XP/Win7
control	Nc Studio
Oil lubrication system	Automatic
Table surface	bakelite plate
Packing size	1770*1370*1780mm
Weight	500KGS
