VSB 60 Factory Precision Manufacturing Valve Seat and Guide Honing Machine Boring machine Cylinder Honing Machine
VSB-60 Factory Precision Manufacturing Valve Seat and Guide Honing Machine Boring machine Cylinder Honing Machine
VSB-60 Factory Precision Manufacturing Valve Seat and Guide Honing Machine Boring machine Cylinder Honing Machine

VSB 60 Factory Precision Manufacturing Valve Seat and Guide Honing Machine Boring machine Cylinder Honing Machine

Share on (62138904141):


Price:$9,500.00 - $11,500.00

Quantity:


Product Overview

Description







Products Description

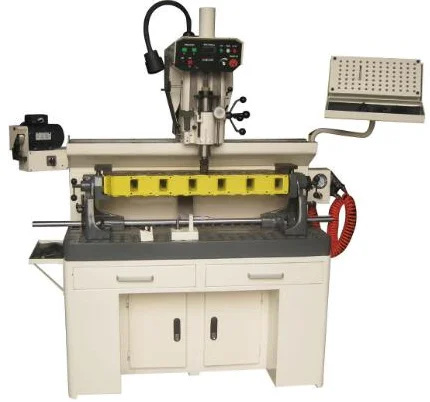

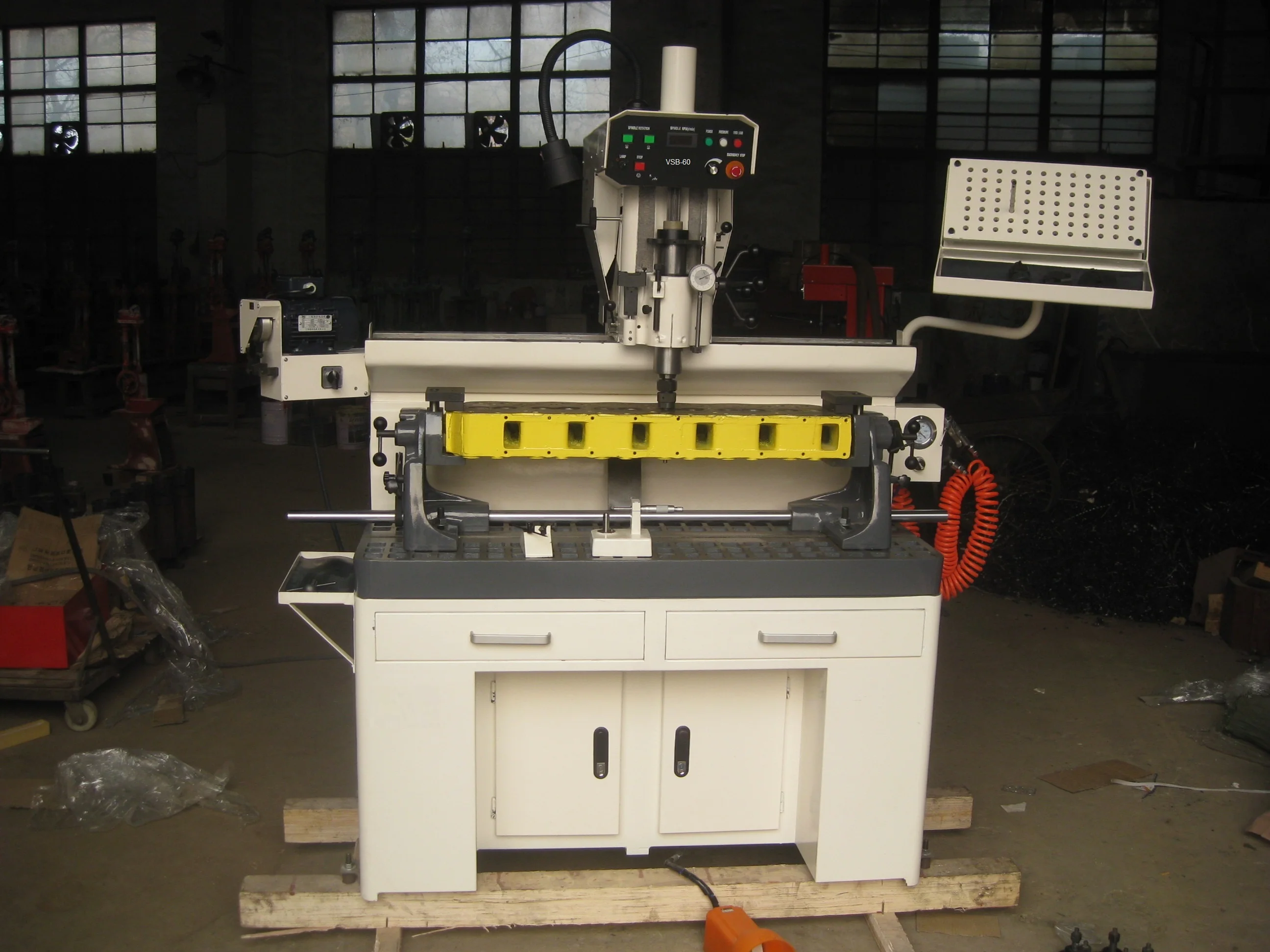

Valve Seat and Guide Machine VSB-60
Puts your shop ahead in the fast growing headwork business with the most versatile and accurate machine
on the market.
Built to take on everything from subcompacts to big diesels. Big. Tough and Fast!
You can set up and run any head up to 48” (1220 mm) long in record time. Up to 54” (1370 mm) with special fixture.

Feature:
1) 3 angle single blade cutter cut all three angles at once and ensure accuracy, finish the seats with no grinding.They assure exact seat widths from head to head plus concentricity between seat and guide.
2) Fixed pilot design and ball drive combine to automatically compensate for slight deviations in guide alignment, eliminating additional setup time from guide to guide.
3) Light weight power head "air-floats" on rails paralle to table surface up and away from the chips and dust.
4) Universal handles any size head.
5) Spindle tilts at any angle up to 12°.
6) Dial in any spindle speed from 20 to 420 rpm without stopping rotation.
7) Comlete acc's supplied with machine and can be exchanged with Sunnen VGS-20.




Model
VSB-60
The size of work table (L×W)
1245*410mm
The size of fixture
1245*232*228mm
Max. length of the cylinder head
1220mm
Note: Equipped with special fixture,
max. cylinder head length can be up to 1370mm.
Max. width of the cylinder head
400mm
Valve seat boring diameter (sealing surface of seat)
14 to 63.5
Max. spindle travel
175mm
The spindle swing angle
-12° to 12°
The rotation angle of cylinder head fixture
0 to 360°
Taper hole of spindle
30°
Spindle rotation speed (infinitely variable speeds)
50 to 380rpm
Main motor (variable frequency motor)
rotate speed 3000rpm
(Positive & negative) 0.75kw 50/60 HZ
Tool sharpener motor
0.18kw
The speed of tool sharpener motor
2800rpm
The vacuum generator
0.6≤p≤0.8Mpa
The pressure of working
0.6≤p≤0.8Mpa
Net weight of the machine
700kg
Gross weight of the machine
950kg
Machine overall dimension (L×W×H)
184*75*195cm
Machine packing size (L×W×H)
184*75*195cm


Company information




Customer Review




FAQ


Q1: How long guarantee period you offer?/ how is warranty?
A1: 12 month guarantee after machine on board.

Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.
Cost-value replacing parts available beyond the warranty period.
Quick action and reply for the technical questions at any time.

Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customer requirements(relative cost born
by customer.

Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet different requirements.

Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more you trust us! So you can rest assured on our quality products and our best services.

Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
