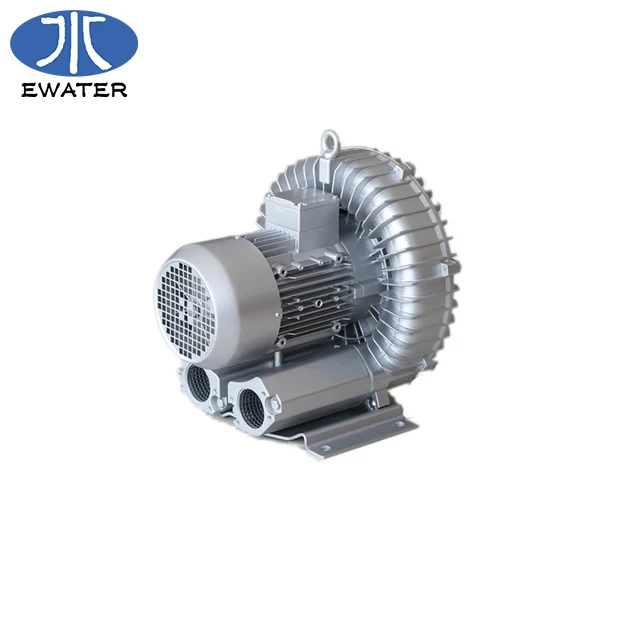

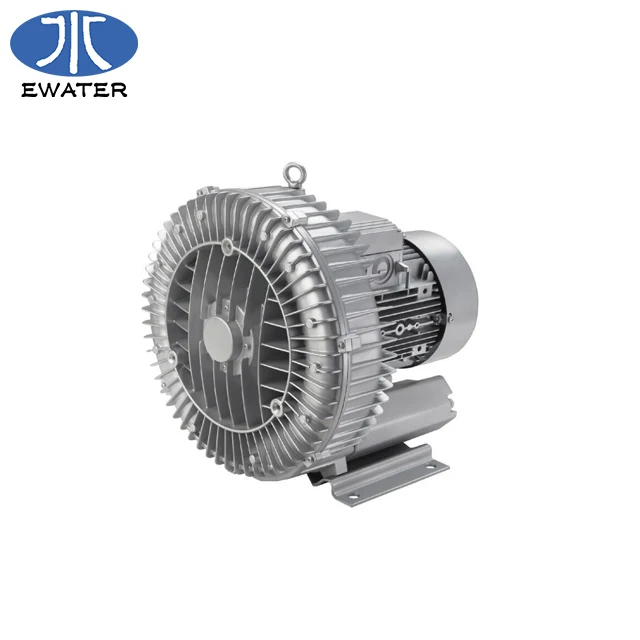

Factory Hot Sale Electric Industrial Vacuum Blower 0.75hp Side Channel Regenerative

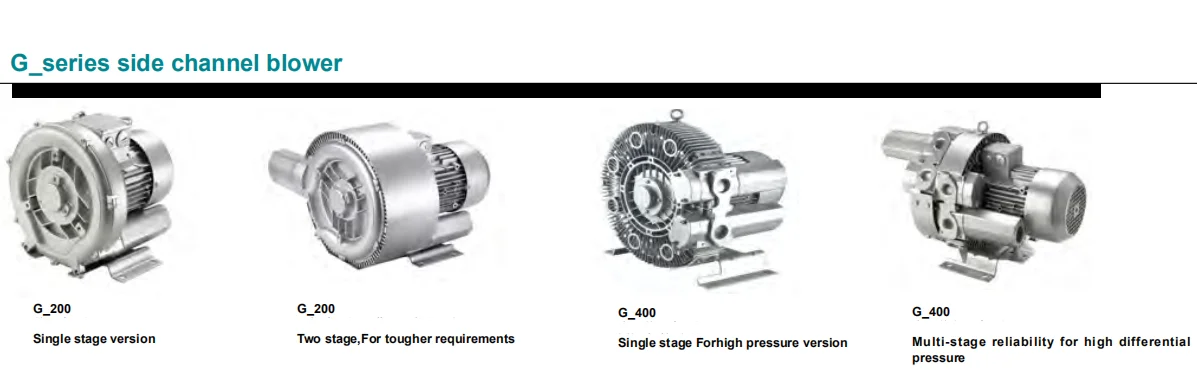

 The G_series side channel blower feature voltage range motors for 50Hz and 60Hz in protectio n c lass IP55

(insulation class F) are UL,CE,CCC approved.This makes them the ideal solution for world wide use.They can

be used without any modifications or tests in Europe,America and Asia.They are mostly available ex stock.They

are available for your requirements anytime.

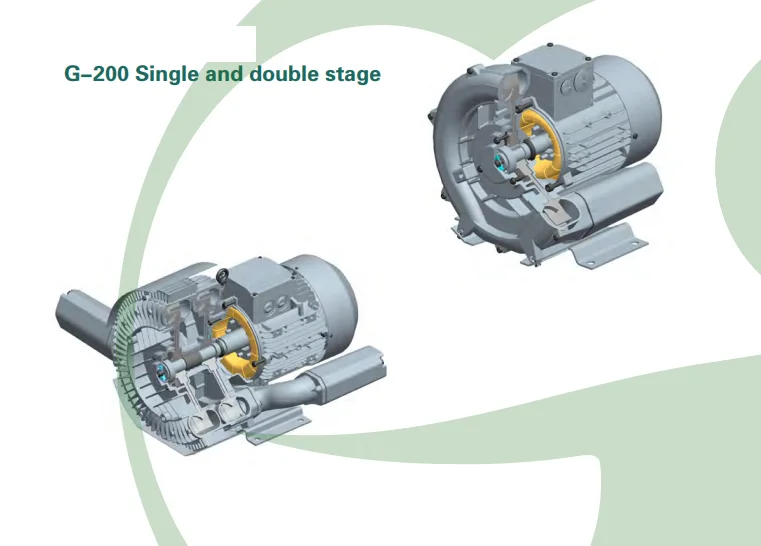

The impellers in the G_series machines are mounted directly on the motor shaft for noncontact compression

entirely without friction.Maximum operational reliability,even at high differential pressures.is ensured by the

arrangement of the bearings outside the compression chamber.

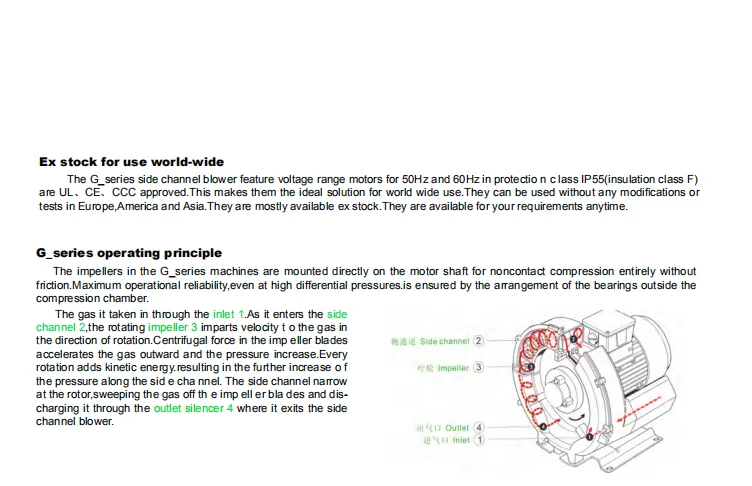

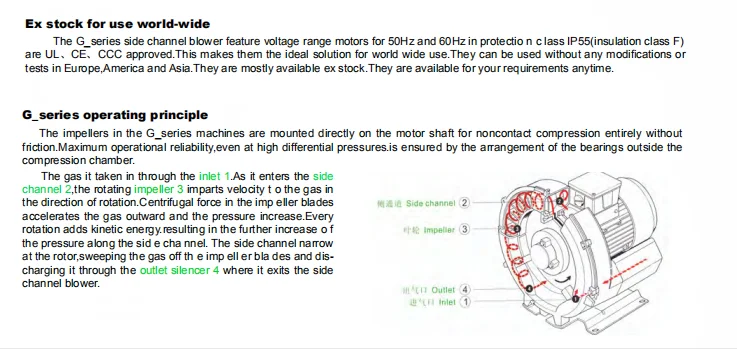

The gas it taken in through the inlet 1.As it enters the side channel 2,the rotating impeller 3 imparts velocity to

the gas in the direction of rotation.Centrifugal force in the imp eller blades accelerates the gas outward and the

pressure increase.Every rotation adds kinetic energy.resulting in the further increase of the pressure along the

side channel. The side channel narrow at the rotor,sweeping the gas off the impeller blades and discharging

it through the outlet silencer 4 where it exits the side channel blower.
