WTRE-05 5L Labarotory Rotary Evaporator Price Rotovap Distillation Machine with Chiller
- Category: Evaporator >>>
- Supplier: Hangzhou,West,Tune,Trading,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
WestTune Evap 1.3-Gallon/5L WTRE-05 Rotary Evaporator with Motorized Lift
A Rotary Evaporator is a device used in extraction laboratories for efficient and gentle distillation of solvents from samples by evaporation. Rotary evaporation is most often and conveniently applied to separate “low boiling” solvents such a butane or ethyl alcohol from compounds which are solid at room temperature and pressure.
WTRE-05 evap is an ideal model made for users who are looking for more capacity than the standard 2L.

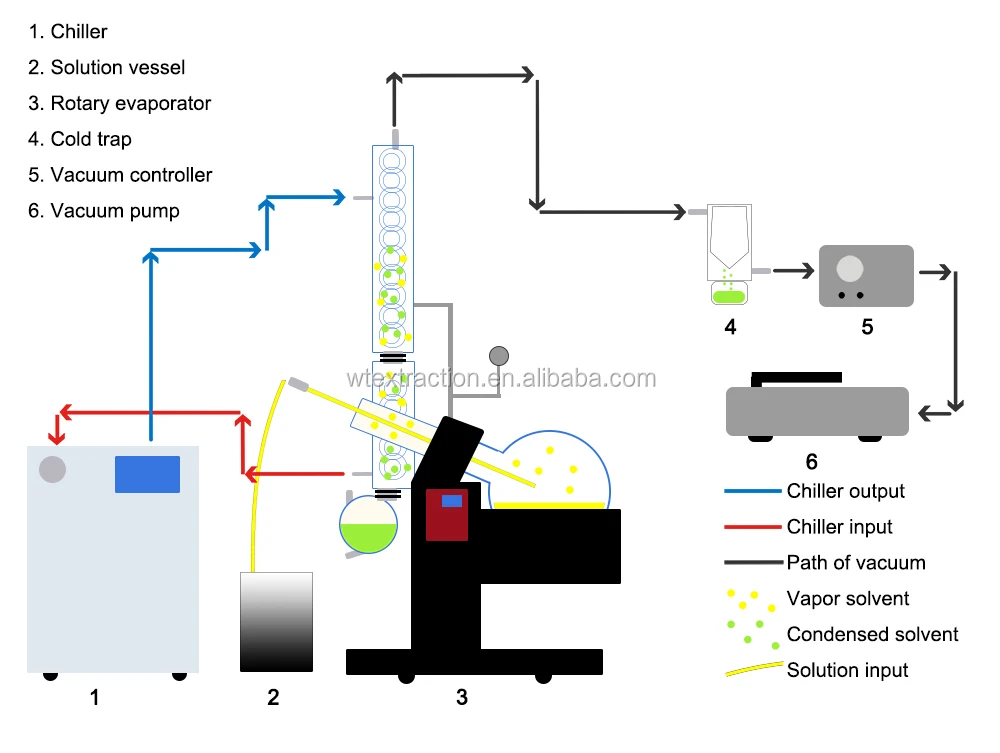

Follow chart of WTRE-05
A Rotary Evaporator is a device used in extraction laboratories for efficient and gentle distillation of solvents from samples by evaporation. Rotary evaporation is most often and conveniently applied to separate “low boiling” solvents such a butane or ethyl alcohol from compounds which are solid at room temperature and pressure.
WTRE-05 evap is an ideal model made for users who are looking for more capacity than the standard 2L.
Follow chart of WTRE-05

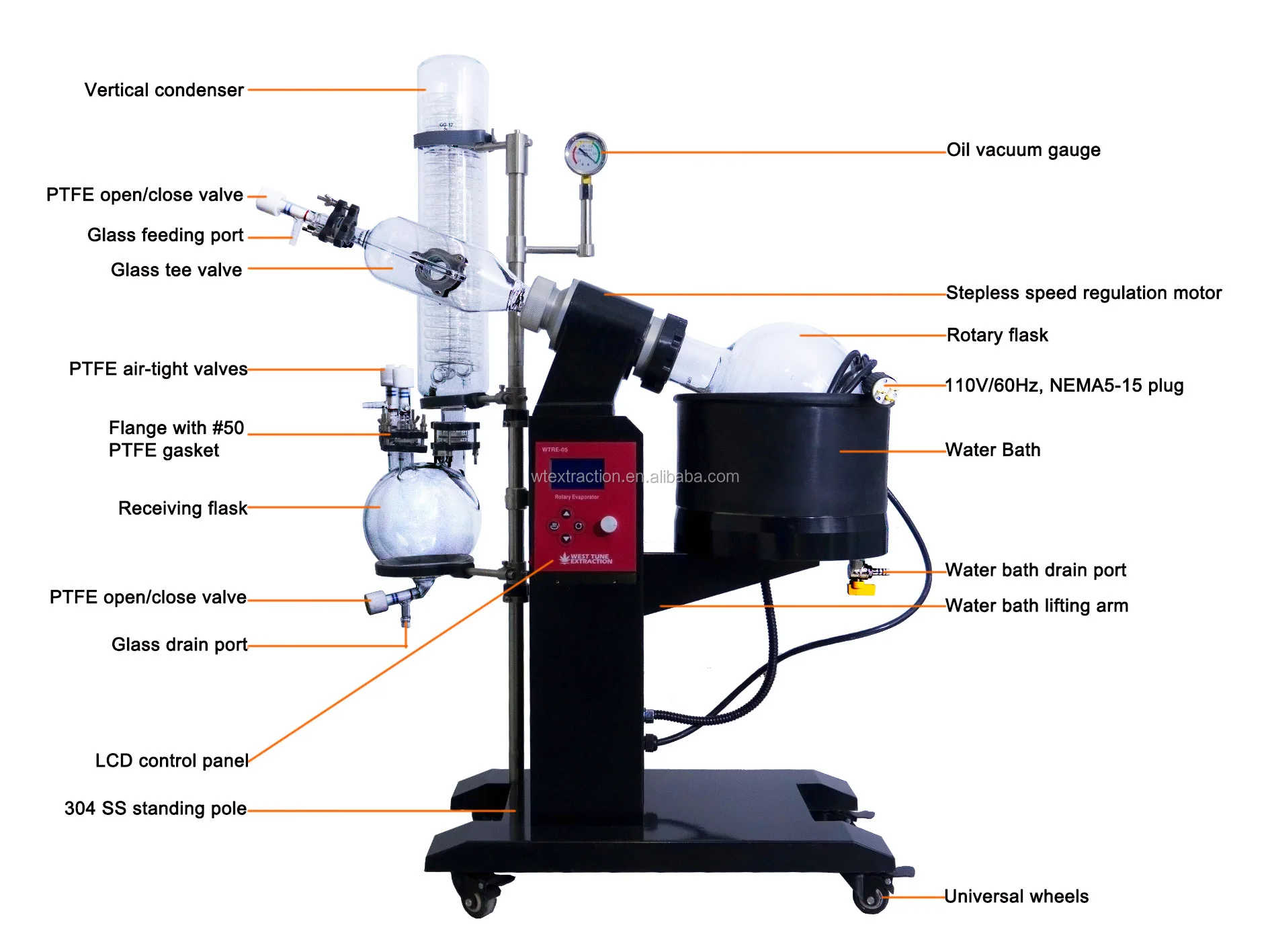

Parts Diagram of WTRE-05

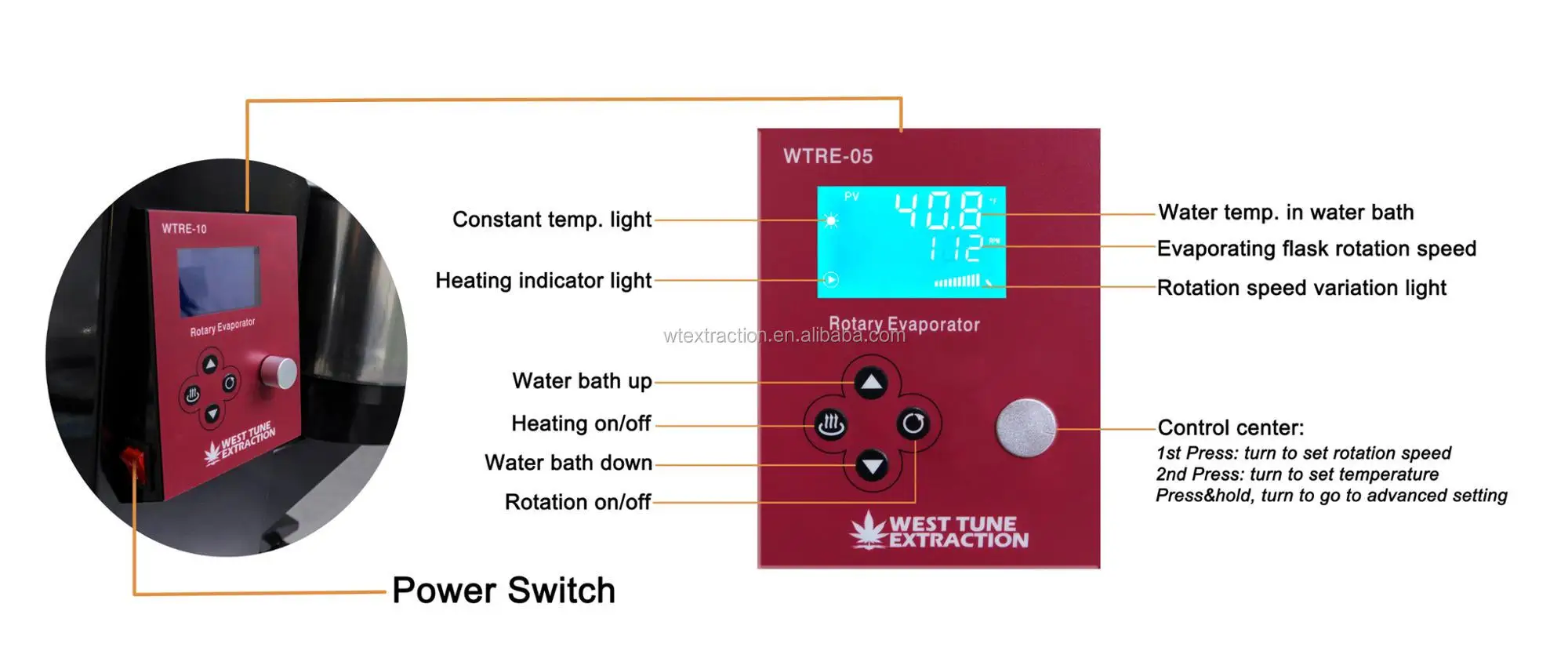

LCD control panel diagram:
Features:
1. All PTFE valves for improved sealing and chemical resistance
2. Anti-dry heating function
3. Large LCD display
4. PID temperature and rotation speed controls
5. Direct injection capability for continuous feeding of your material
6. Compact wheels design for improved workspace allocation
7. Receiving flask drain port for easy draining
8. Mobility with locking casters
9. Motorized water bath lifting for precise control.
10. Specialized motor for no classless adjustable speed
11. CE Listed
2. Anti-dry heating function
3. Large LCD display
4. PID temperature and rotation speed controls
5. Direct injection capability for continuous feeding of your material
6. Compact wheels design for improved workspace allocation
7. Receiving flask drain port for easy draining
8. Mobility with locking casters
9. Motorized water bath lifting for precise control.
10. Specialized motor for no classless adjustable speed
11. CE Listed
Model | WTRE-05 Rotary Evaporator |
Operating Ambient Temperature | 5~35C / 41~95F |
Glass Material | GG-17 High Borosilicate |
Power (V/Hz) | 120V 60Hz |
Speed Regulation | Digital Step-less Regulation |
Rotation Speed | 0-120 RPM |
Set Temperature | 0-99C / 0-210F |
Temperature Control | Digital Temperature Control |
Maximum Vacuum Pressure | -29.8 inHg |
Evaporating Flask Capacity | 5L (5000ml) |
Receiving Flask Capacity | 3L (3000ml) |
Condenser Style | Vertical Double Helix |
Evaporation Capacity | Alcohol >/= 4 L/H |
Heater Max Current Draw (Amps) | 18.2 |
Water Bath Material | 304 Stainless Steel |
Water Bath Size | 11.5 x 7.5 in. |
Lifting Function | Electric |
Lifting Stroke | 120mm / 4.7 in. |
Total Power Consumption (kW) | 2.2 kW |
Dimensions | 36 x 18 x 54 in. |
Weight | 90 lbs. |
Vacuum Connection | 3/8” Barb |
Condenser Connection | 3/8” Barb |
Warranty | 1 Year excluding glass parts |
Certifications | CE |

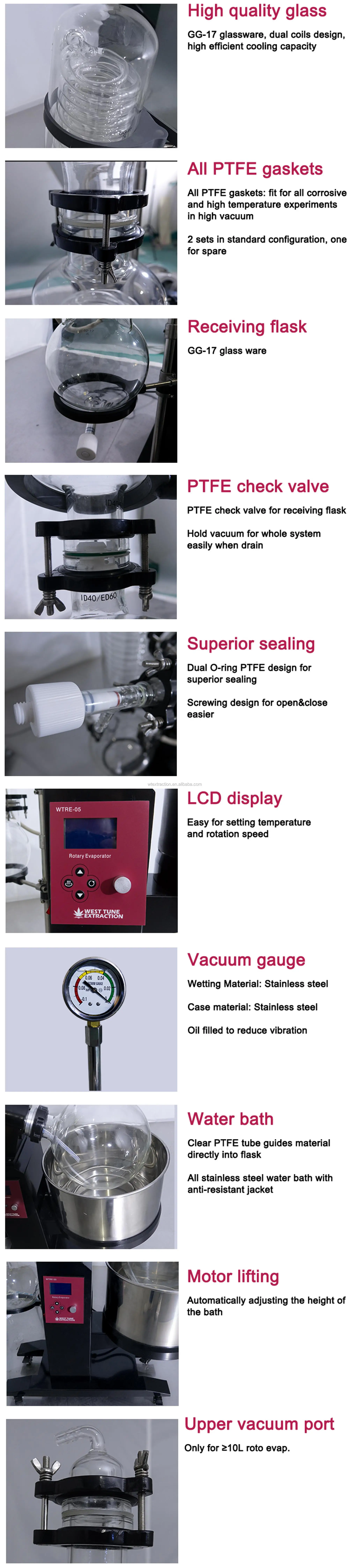

More details pictures:
