1000L 2000L 3000L Commercial Brewing Beer Equipment Turnkey Brewery Solution
- Category: >>>
- Supplier: SHANDONG SHENDONG CO. LTD.
Share on (62139022098):
Product Overview
Description
1000L 2000L 3000L Commercial Brewing Beer Equipment Turnkey Brewery Solution
Product Description
1. 1000L Brewery Configuration
1000L Beer Brewing Equipment | |
Milling System | 300-500KG/h |
Mashing System | 1000L 2 vessels/3 vessels/4 vessel brewhouse |
Fermentation System | 1000L/2000L |
Control System | PLC /PID |
CIP System | 100L |
Cooling System | 2000-3000L |
Chiller | 5HP*2 |
2. 1000L Saccharifying System
Our experienced team of engineers and brewers work together to design every brewhouse. We meticulously focus on the details, like pump and valve placement, aiming to maximize brewhouse efficiency and ease of use. With a NDL Craft Brewhouse you will hit your gravity targets quicker and run up and down the platform less often.
A typical 2-vessel:
Combination Mash Lauter Tuns are the first combination vessel in these smaller brewhouses line ups. This vessel should be sized to favor the Lauter operation, and have the mechanics for mixing mash and graining out.
Next inline is the combination of the Kettle and Whirlpool tanks. This combination vessel is designed and sized for being primarily a kettle, but is equipped with a tangential fitting for whirlpooling.
1000L brewhouse can be in various combination:
Send Inquiry>>
3. 1000L Fermentation System
Fermentation tanks are where the magic happens. It’s important to have a precisely built vessel to condition your beer as it ferments. NDL Craft offers fermentation tanks with ultra-precise welding and polishing, complete traceability, and material exactness to meet all international safety standards. From small, pub-size fermenters to towering outdoor tanks, we have the manufacturing capability and expertise to custom-build fermentation tanks of all sizes.
Item | Introduction | |
01 | Volume | 1000L |
02 | Dimension | 1260*2650mm |
03 | Material | Stainless steel 304 or 316,or red copper |
04 | Insulation | Polyurethane, TH: 80mm |
05 | Fermentation tank | Glycol jacket: Dimple jacket on the cone and side Or single wall with jacketed,or single layer fermentor. |
06 | Head | Double or single dish head on the top |
07 | Accessories | Sample valve, pressure gauge, solenoid valve, pressure relief valve, racking arm, CIP arm and Blow off arm, dry hops port and so on. |
Send Inquiry>>
4. Auxiliary Equipment

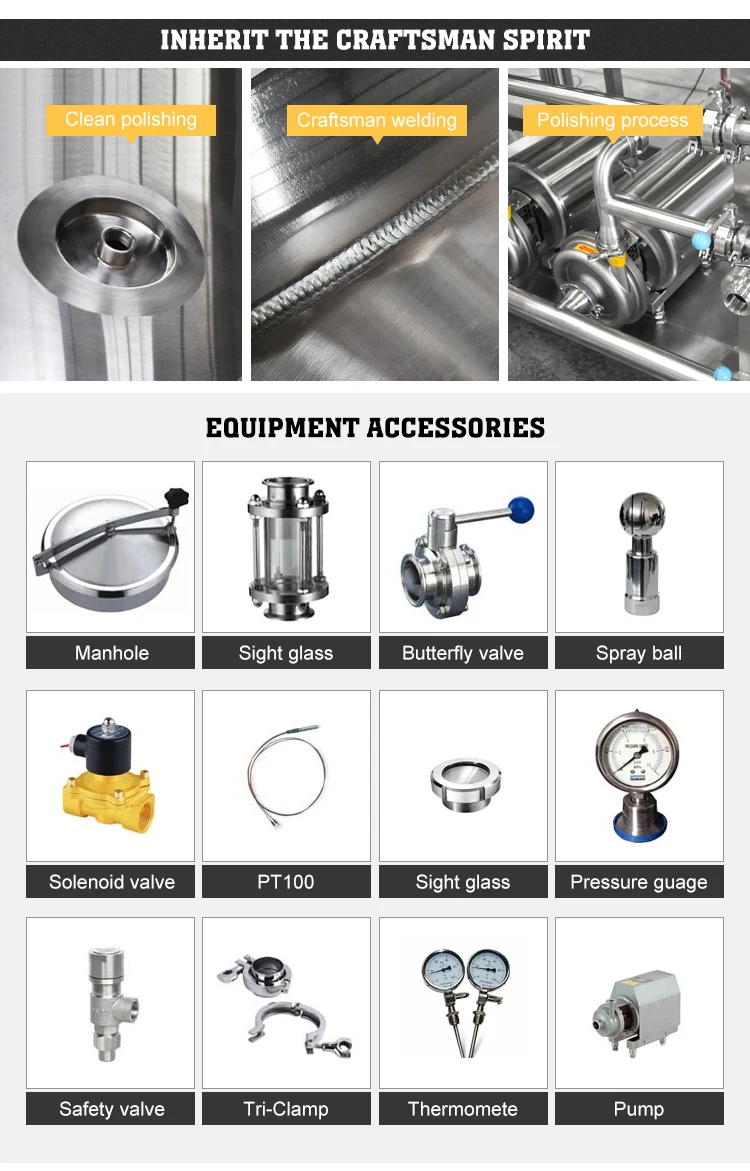

5. Accessories
Production Process
Processing Equipment

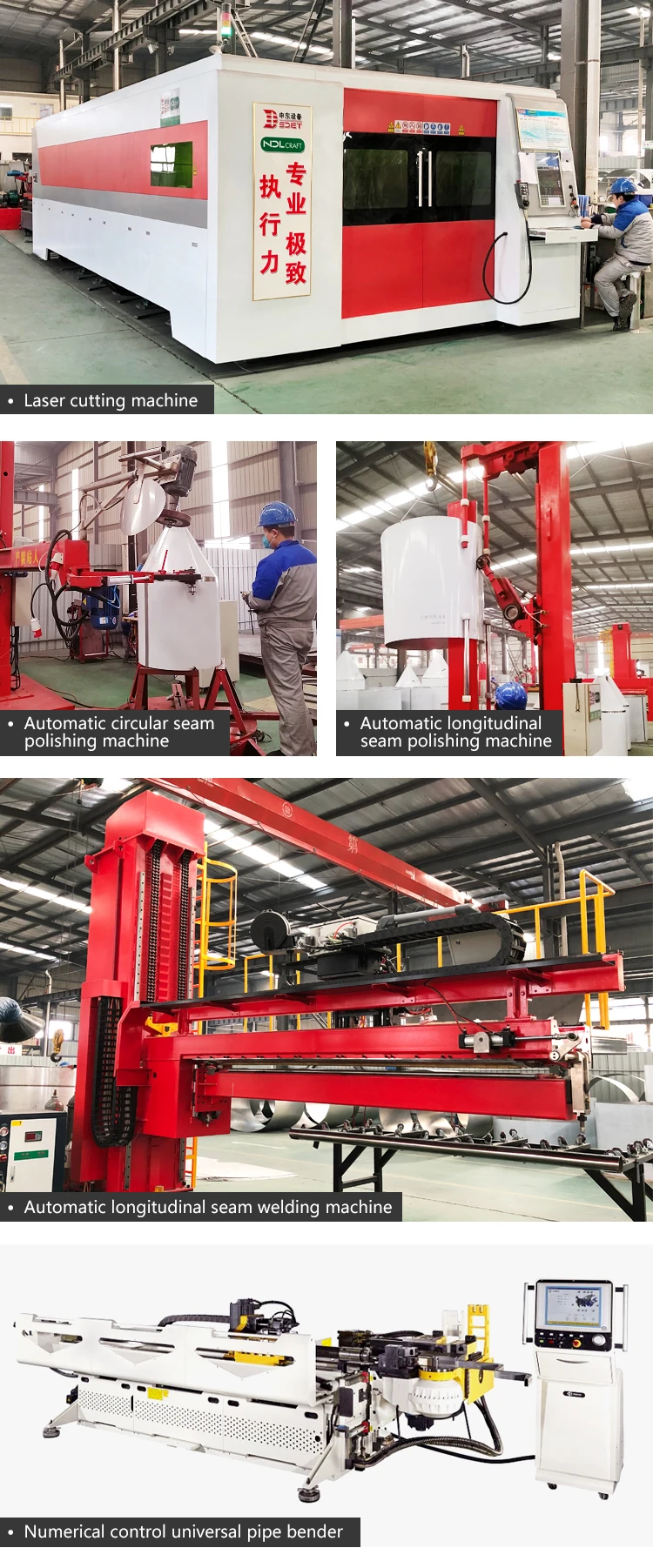

The company deploys within our factory a series of advanced production and testing equipment, such as laser cutting, automatic welding, automatic mechanical polishing, CNC pipe bending, spectrometer, X-ray detector among other critical pieces of equipment.
Company Information
NDL Craft, founded in 2011, is a brewing equipment manufacturer and brewing technology engineering company that provides many kinds of customized tanks and turnkey projects throughout the world. The company attaches great importance to the research and development of core technology. On the basis of maintaining the manufacturing cost of China, the company can design according to CE PED standards and ASME design codes, and institutes production and quality control methods according to both European and American quality standards.
NDL Craft has passed quality audits for internationally recognized certifications; ISO9001, 2000 International Quality Management System Certification,
ISO14001 Environmental Certification,
ISO18001 Occupational Health and Safety System Certification,
DI, and DII Pressure Vessel Certification.
We have also been recognized at a national-level as a scientific and technological innovation enterprise with 15 patented technologies granted in China.
