Electric Straight Grinder

Share on (62139199757):


Price:RUB 605.79

Quantity:


Product Overview

Description

Product Description



Die Grinder Detail:

1.Diameter: 3,6,1.5-6,25mm
2.Power: 145,230,280,500W
3.Speed: 22000,25000,30000,0-30000r/min
4.Weight: 1,1.2,1.5,1.8,2kg

5.Certificate: GS,CE, EMC,ROHS



Die Grinder Features and Functions:

1. Commonly known as grinding machine; electric grinder; electric grinder, electric tool for sanding with grinding wheel or grinding disc.
2. The real charm of mold electric grinder is that it can be used for cutting, trimming, styling, grinding and polishing of metal and non-metal materials with abrasive abrasives for various purposes.
3. Its main abrasive abrasives are:
3.1 Cutting class: resin high-speed cutting sand, cutting sand with cloth mesh, diamond cutting
3.2 Grinding: various shaped ceramic grinding heads, sand rings, sand drums, handle wheel
3.3 Polishing: wool felt wheel, mat, small cloth wheel, wire brush, copper wire brush, with polishing paste for various purposes.

4. Selection of common grinding heads
4.1 White corundum, chrome corundum grinding wheel, resin grinding wheel for general steel parts, high speed steel (white steel knife) and so on.
4.2 Green silicon carbide grinding wheel for cemented carbide.
4.3 Diamond grinding wheel, diamond grinding wheel is used for hard materials such as cemented carbide, porcelain and jade.
4.4 Carbide rotary crucible is used for general steel parts with hardness not exceeding HRC55, non-ferrous metals, wood materials, etc.
4.5 High-speed steel (white steel) rotary boring is used for easy-cutting steel, non-ferrous metals, wood materials, etc.



ModelProduct NameSpecificationPacking Size(cm)G.W/N.W
(kg)
PCS/CTN20' Loading Qty(pcs)
NEEG-01
(CE)
Electric GrinderRated voltage:110/220V
Rated Frequency:50/60Hz
Rated Input power:145W
No-load speed:5000-30000r/min
Collet chuck dianeter:3mm
////
NEEG-02
(CE)
Electric GrinderRated voltage:110/220V
Rated Frequency:50/60Hz
Rated Input power:230W
No-load speed:22000r/min
Collet chuck dianeter:6mm
////
NEEG-03
(CE)
Electric GrinderRated voltage:110/220V
Rated Frequency:50/60Hz
Rated Input power:520W
No-load speed:25000r/min
Collet chuck dianeter:6mm
////
NEEG-04
(CE)
Electric GrinderRated voltage:220V
Rated Frequency:50Hz
Rated Input power:280W
No-load speed:30000r/min
Collet chuck dianeter:6mm
////
NEEG-05
(CE)
Electric GrinderVoltage&Frequency:230V~50Hz             Rate Power:135 W                                     No Load Speed:8000~30000 r/min          VDE plug,   2m                                            Packing in BMC+40 pcs accories44*31*37.513/12//
NEEG-06
(CE)
Electric GrinderRated voltage:110/220V
Rated Frequency:50/60Hz
Rated Input power:165W
No-load speed:0-30000r/min
Collet chuck dianeter:3mm
////
NEEG-07
(CE)
Electric GrinderRated voltage:110/220V
Rated Frequency:50/60Hz
Rated Input power:230W
No-load speed:30000r/min
Collet chuck dianeter:1.5-6.0mm
////

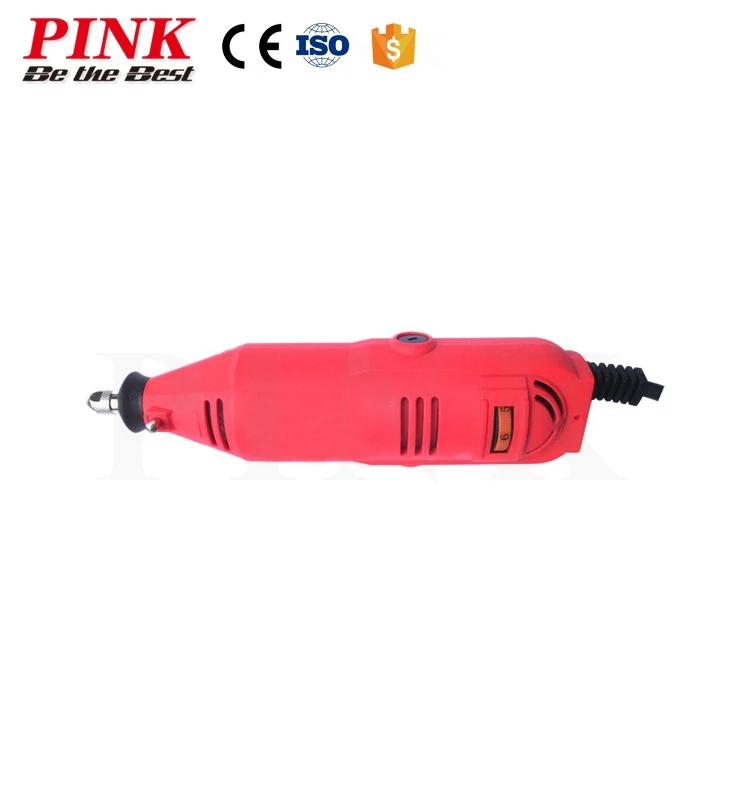

1 23 Die Grinder 04.jpg1 23 Die Grinder 05.jpg1 23 Die Grinder 14.jpg1 23 Die Grinder 15.jpg





Company Information



Jiaxing Pink Electronic Technology CO., LTD. is an enterprise that specializes in electric tool, we export during the past 10 years.



We emphasize and concentrates on professional services to our clients. We believe that excellent quality of products, timely delivery of goods, and competitive prices are the keys to establish and maintain the long term business relationships with our customers in a mutual beneficial way.



Our company is about 120km far from Shanghai in the east and 90km far from Hangzhou in the west, it enjoys very convenient transportation. Sincerely welcome every customer to visit our factory.

1



Packaging & Shipping

 2  3



FAQ

 4 FAQ



If you are interested in our Die Grinder, please don't hesitate to contact us.
