by the SIO derivation, support 8-way
programmable input and output.
Product Application:
KH-H81A can meet the needs of most professional customers in the market. Mainly used in the field of multi-serial port, industrial automation, POS terminals, multi-display and other industries.
SPECIFICATIONS FOR motherboard H81
Model NO.
KH-H81A
CPU
Support Intel Haswell/Broadwell LGA1150 Onboard processor
Chipset
Intel H81 | Maximum power consumption:4.1W
Memory
2*240Pin DDR3 UDIMM sockets support dual DDR3L 1066/1333/1600 MHz (up to16GB) | Not support ECC
BIOS
AMI EFI BIOS
I/O function
Fintek F81866AD+2*F81216AD chipset 1* 2*4Pin keyboard mouth interface can transfer to PS/2 and keyboard mouth interface 1*2*10Pin GPIO led by chipset, supports 8 inputs and 8 outputs 1*2*10Pin LPT pin, extracted from LPT interface COM1_COM6 extracted from IO, and COM7_COM14 extracted from F81216AD
Ethernet
2*RJ45 Gigabit network interface Intel I211 network chip | support adaptive 10/100/1000Mbps and WOL function
Display interface
VGA1:1*DB15 | VGA1 Maximum resolution:1920*1200@60HZ VGA2:1*DB15 | VGA2 Maximum resolution:1920*1200@60HZ HDMI:1*2*8Pin 2.0mm can transfer to HDMI | Maximum resolution: 1920*1200@60HZ support VGA1+VGA2, VGA1+HDMI, VGA2+HDMI Independent 2 displays
SATA interface
1*SATA (7 Pins) | support SATA3.0,SATA2.0, and SATA1.0 1*Power outlet(4 Pins)
USB interface
2*USB 3.0 ( support Maximum supply 4*USB3.0 ), backward compatible with USB 2.0 4*USB 2.0 2*2*5Pin 2.54mm pins transfer to 4*USB 2.0 PS: USB78 and MINI PCIE are selected one by one.
Serial interface
2*DB9 4*2*5Pin 2.0, COM3_COM6 can transfer to DB9 2*2x20Pin 2.0mm COM7_COM10/ COM11_COM14 can transfer to DB9 COM1-COM14 support RS232, COM2 support RS422/RS485 COM1_COM14 support +5V/+12V power supply, and can be used to power COM through dedicated adapter cable. COM7-COM14 is optional
Audio
Realtek ALC662 audio control chip | support Two-channel stereo Two single-hole rear sockets and 1*2*5Pin 5.4mm support Mic_in2
General I/O
1*GPIO contact pin(2x5 pins) extracted from SIO | support 8 channels I/O
1. Support Intel Haswell/Broadwell high performance processors (i3/i5/i7 CPU Socket:LGA1150) 2. Up to 14 COM ports can be supported, all COM support RS232 mode, COM2 also supports RS422 and RS485 mode. 3. When necessary, COM can be powered by a special adapter 4. Up to 12 USB ports can be supported, USB3.0 can be supported up to 4 5. VGA+VGA+HDMI display, rich display interface. 6. Support 2xPCI, 1xPCIE X16, 1xPCIE X4 and 2xMini PCIE 7. Support power amplifier function
Certifications

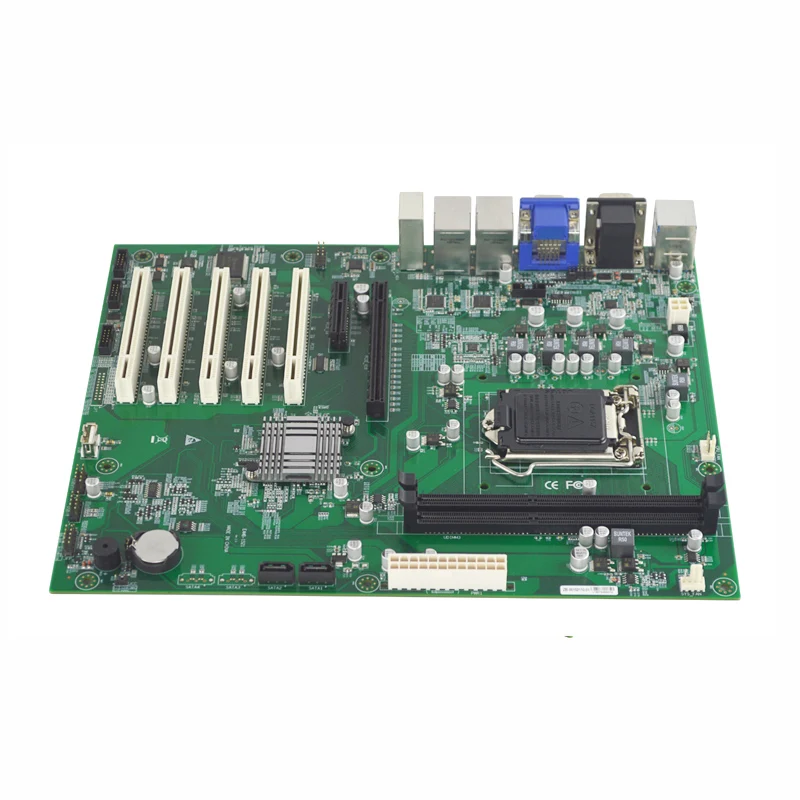

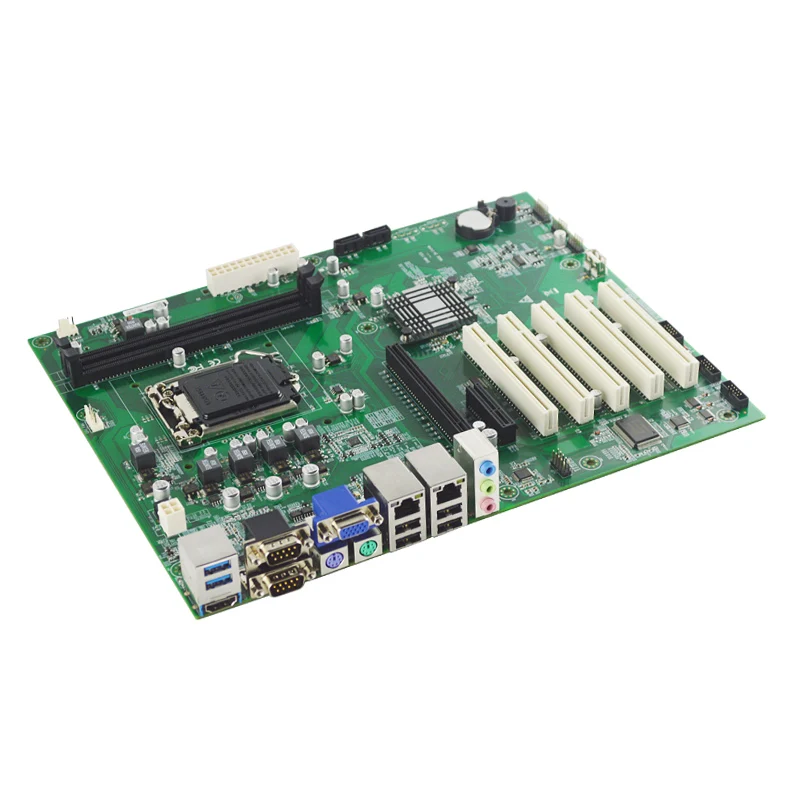

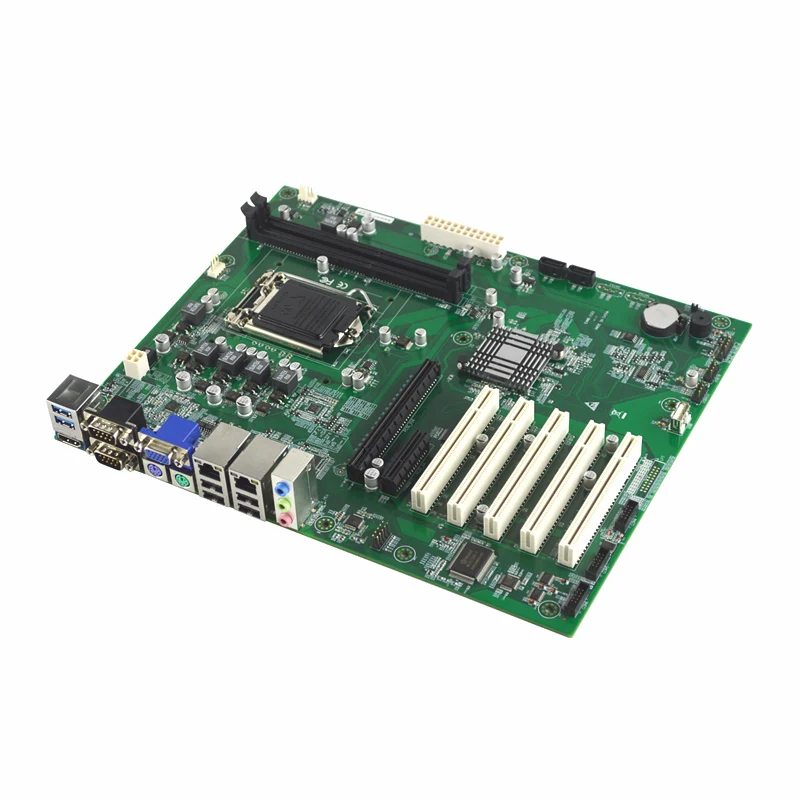

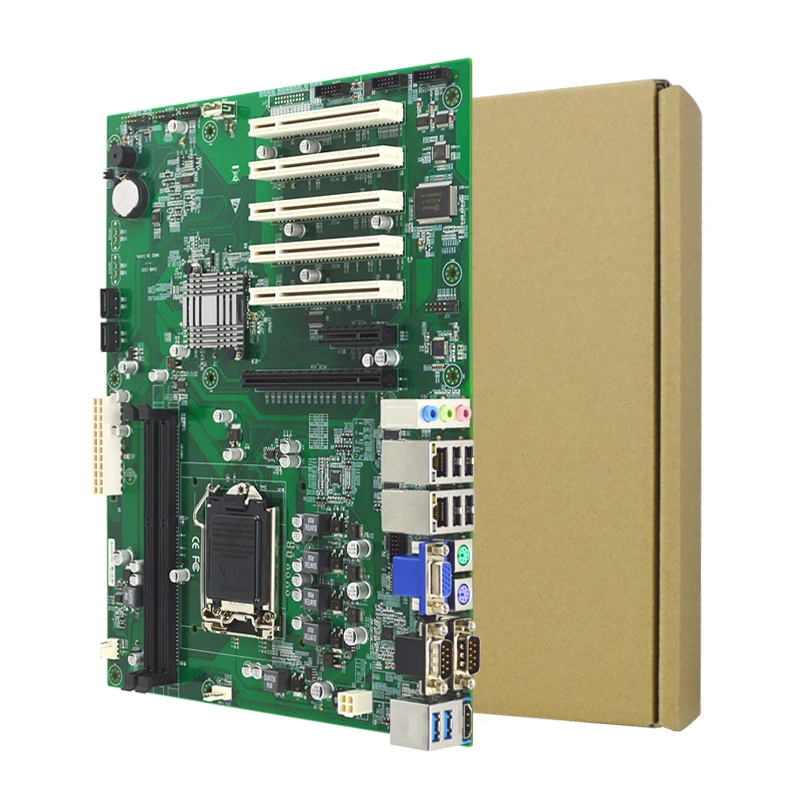

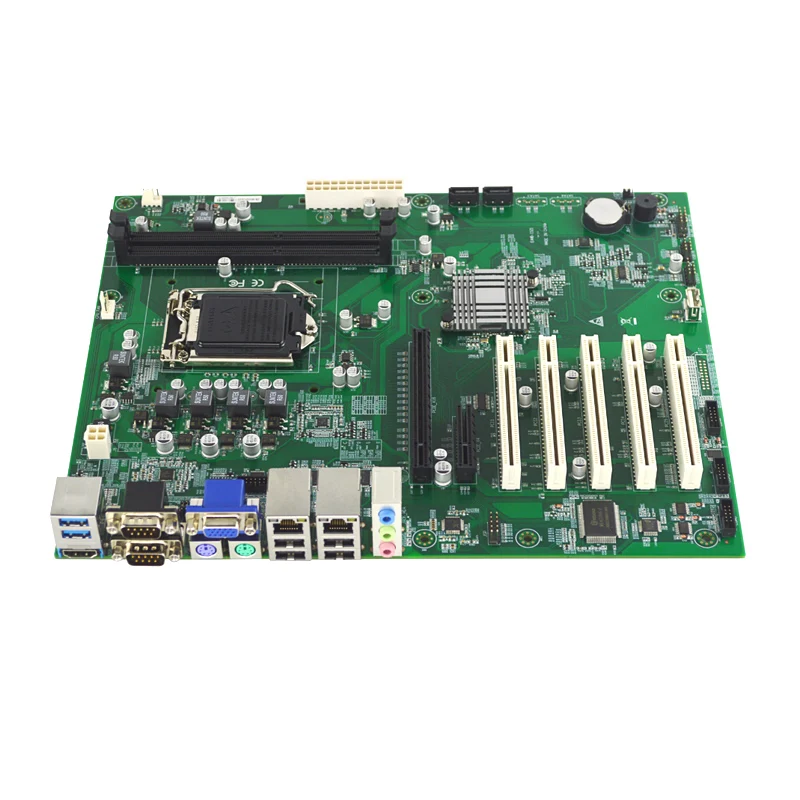

Detailed Images
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* 1 years quality warranty and lifetime technology support and Maintenance, Further details will covered under supply Agreement. * After 1 year warranty, provide free technology support and module maintenance service, but all the shipping costs will be on customer account.
Packing & Delivery
Packaging
Size(CM)
29 (L) * 29 (W) * 6 (D)
Weight(KG)
1.5
Packaging Details
The inner package is EPE.
The outer package is carton box(Size: L*W*H).
Or we can according to customers special request, the price will be negotiated.
