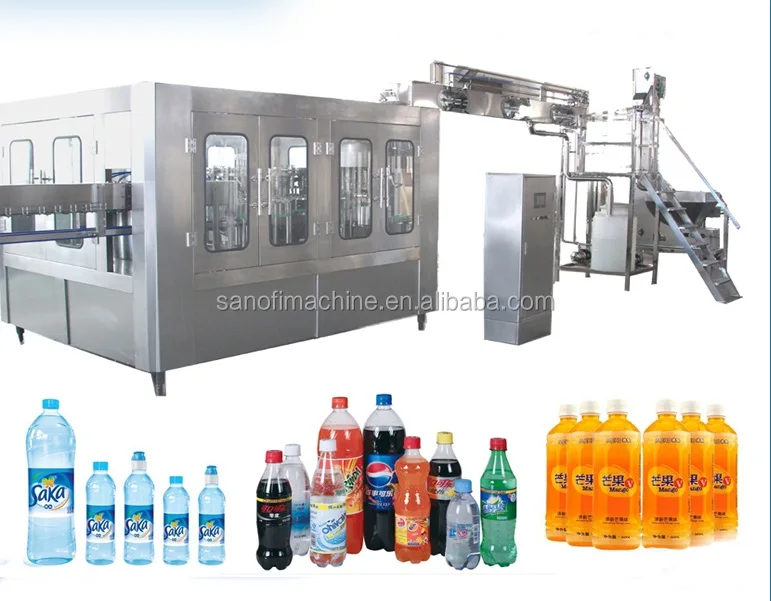

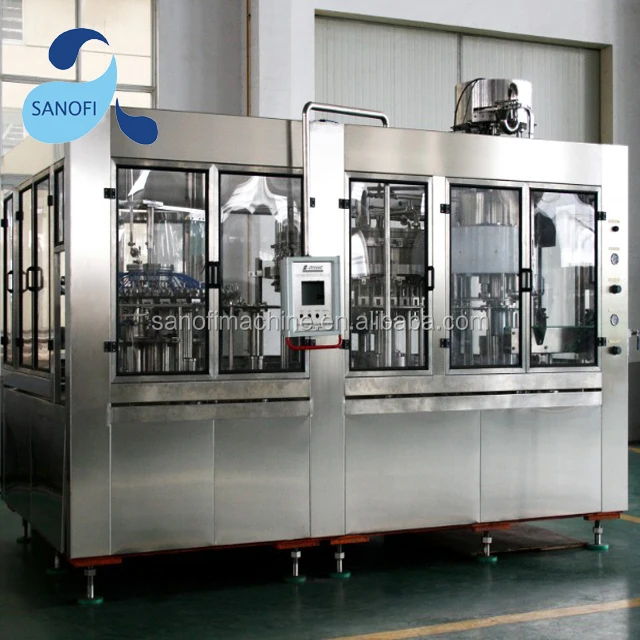

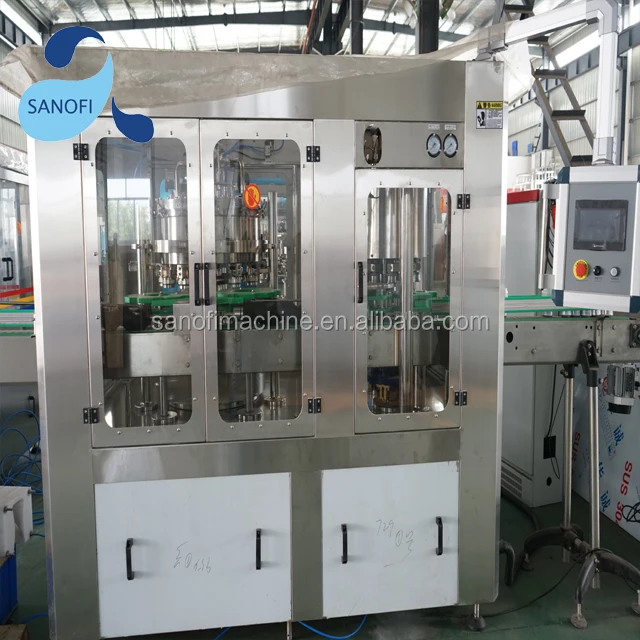

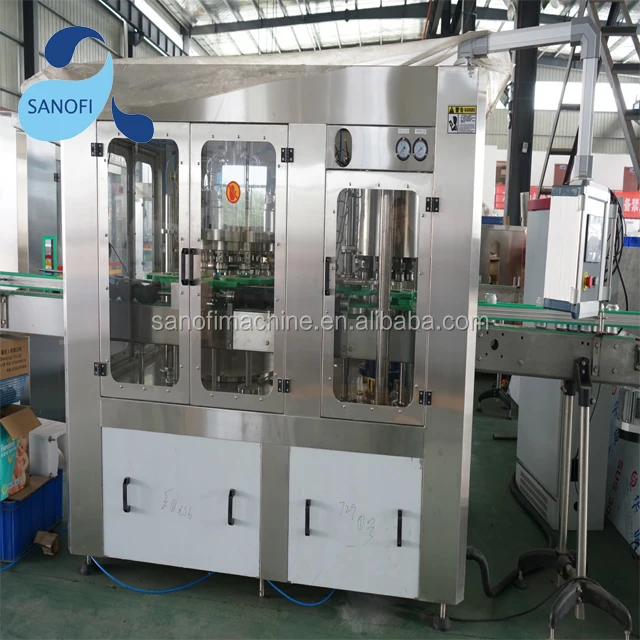

Automatic 500ml / 1L Carbonate Soda Drink Filling Machine
- Category: >>>
- Supplier: Zhangjiagang Sanofi Machinery Co. Ltd.
Share on (62139387182):
Product Overview
Description
CSD filling line
1.Suitable size: 250-2000ml
2.Capacity: 1000-15000bph
3.Degassing system :plastic bottle
4.Filling temperature: below 4degree
We can supply following model CSD filling machine
Model | 12-12-6 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-15 |
Washing No | 12 | 18 | 24 | 32 | 40 | 50 |
Filling No | 12 | 18 | 24 | 32 | 40 | 50 |
Capping No | 6 | 6 | 8 | 10 | 12 | 15 |
Production Capacity(500ml) | 3000BPH | 5000BPH | 8000BPH | 12000 | 15000 | 18000 |
Install Capacity(KW) | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.6 |

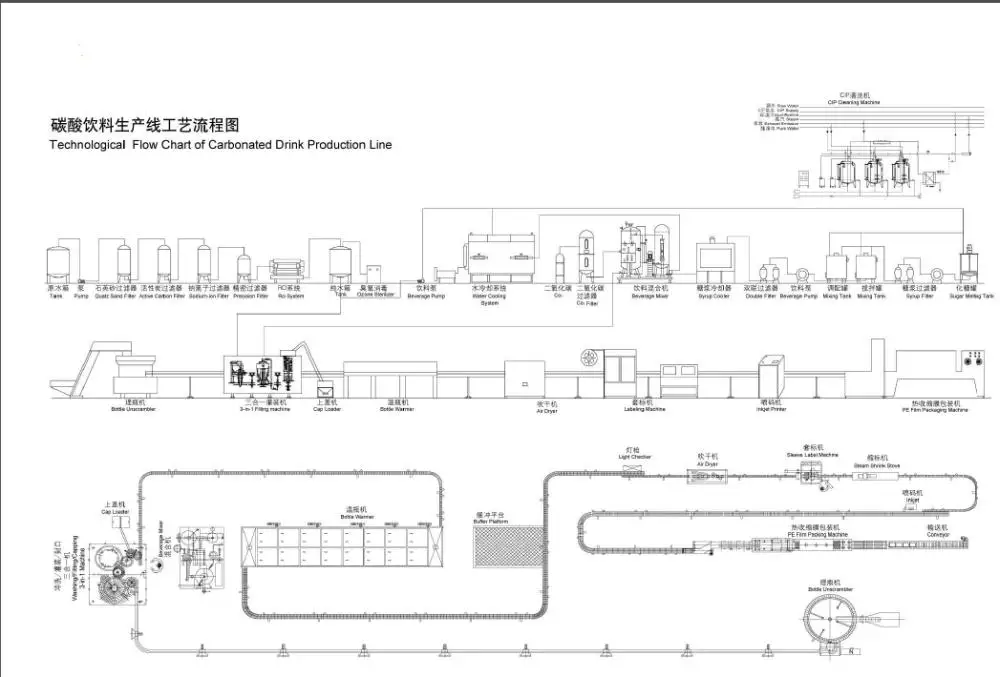

CARBONATED DRINK PRODUCTION LINE FLOW CHART
The whole production line includes:
1, Water treatment---- To get clean water;
2, Blow molding machine---To get plastic bottles
3, Bottle unscrambler---Sort bottle going into filling machine
4, Air conveyor

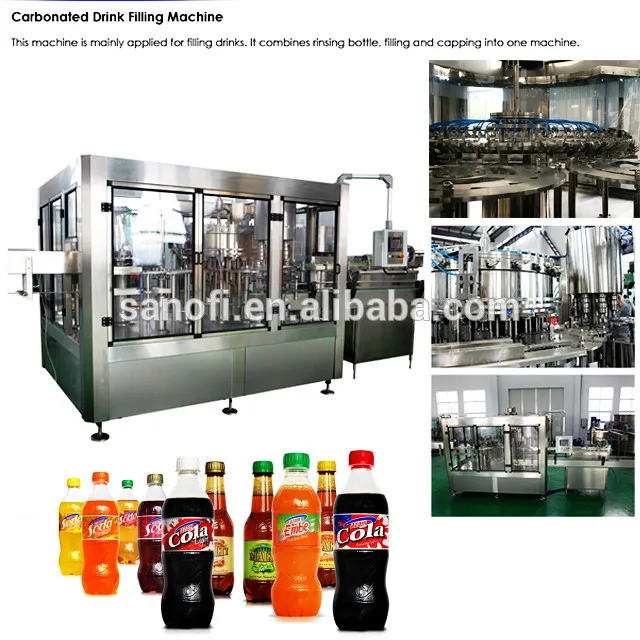

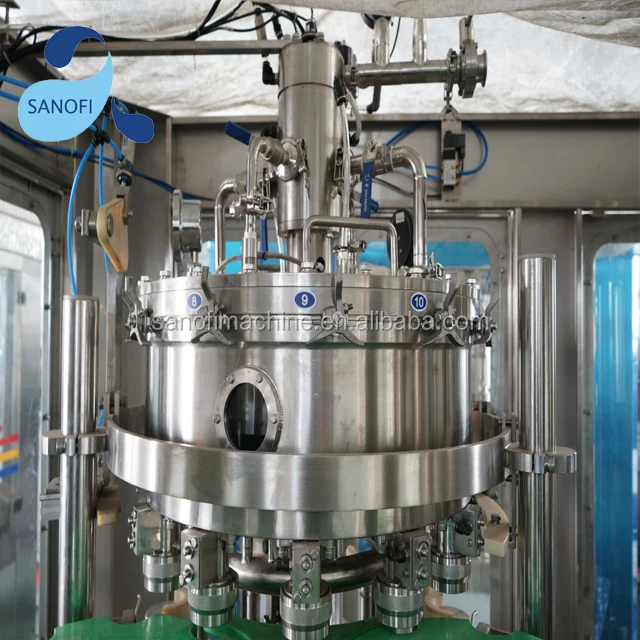

5, Rinsing-filling-capping 3-in-1 monoblock

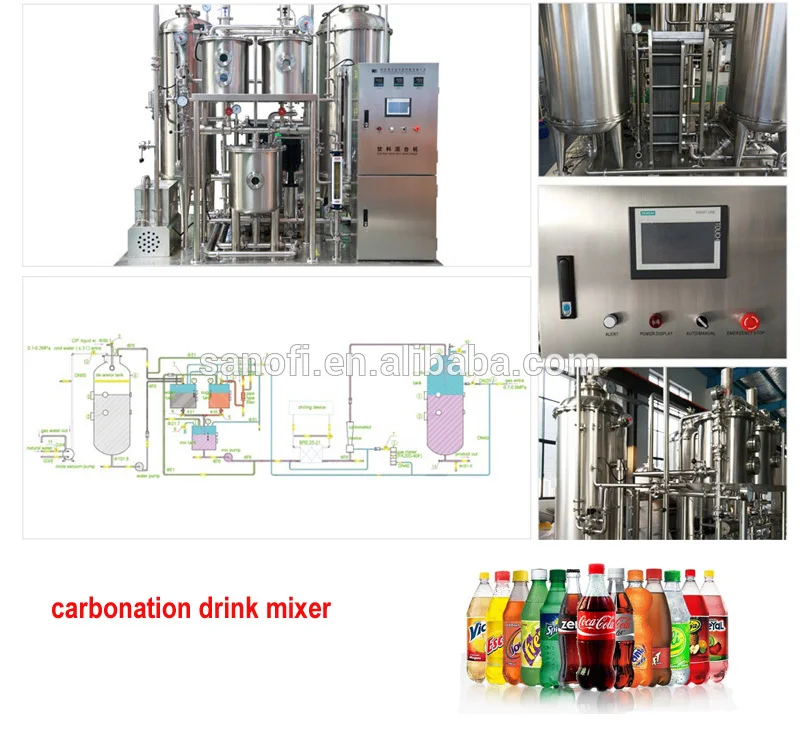

6, Mixer (Carbonater)
7, Bottle Warmer

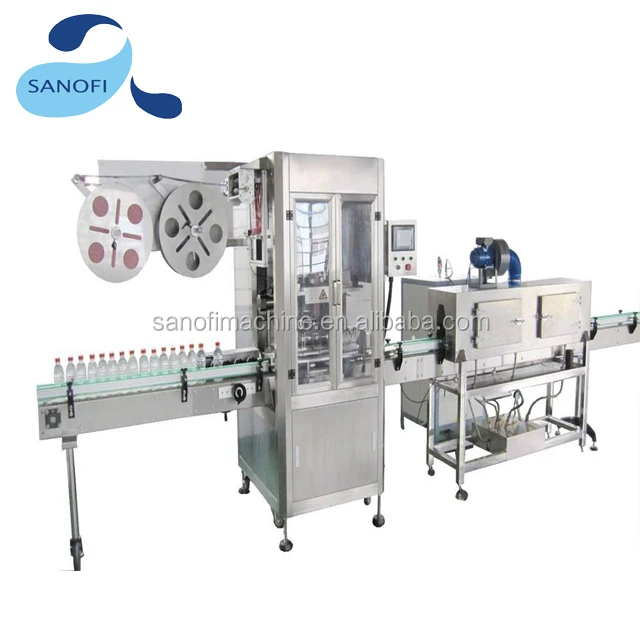

8, Sleeve / OPP labeler

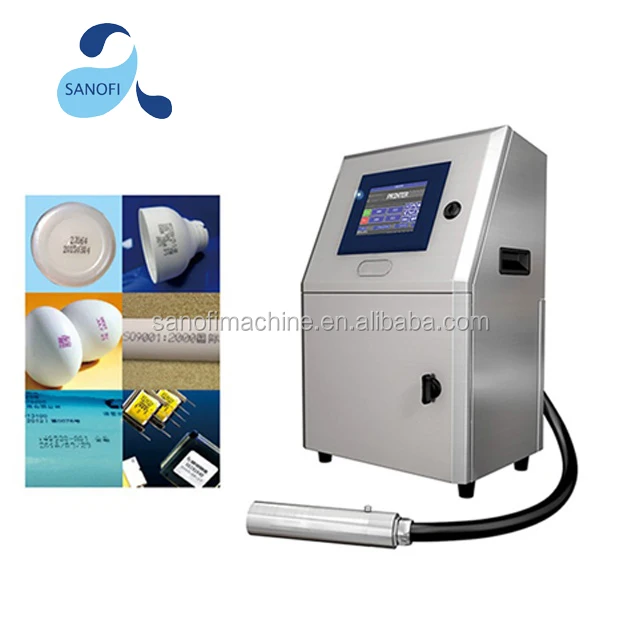

9, Air dryer, visual inspection, ink jet printer

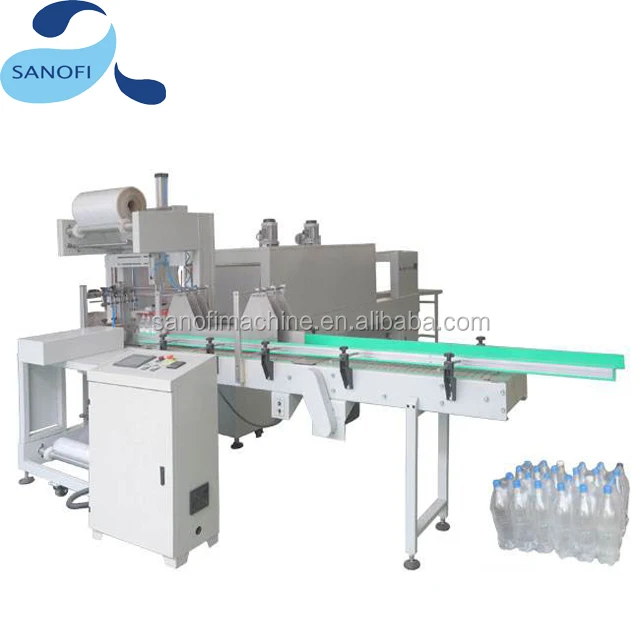

10, Shrink wrapper / wrap-round case packer
11, Palletizer
