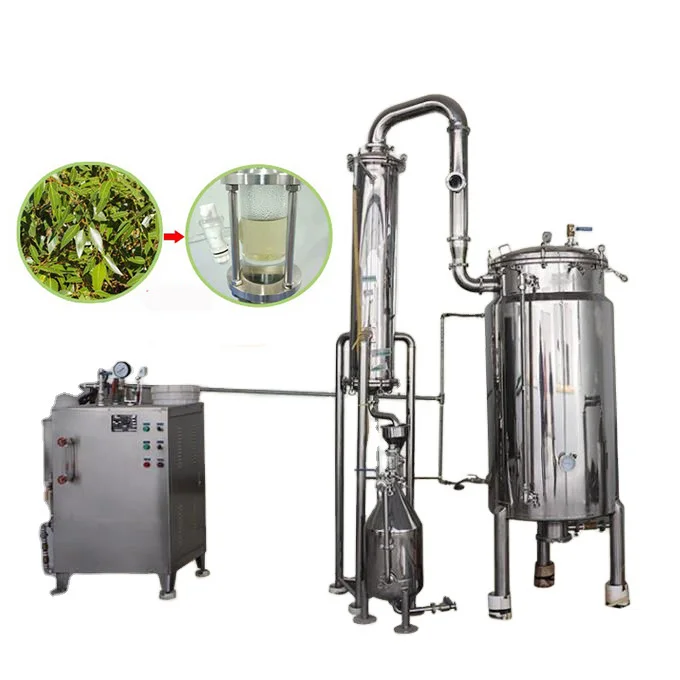

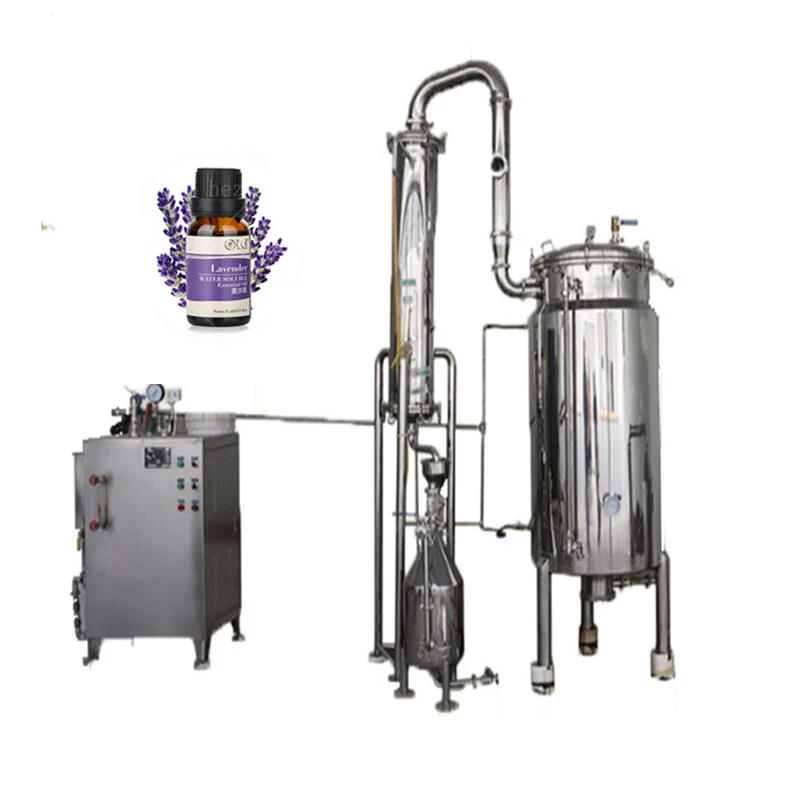

rosemary oil extract herb juice extractor machine distiller for essential oils
Product Application of essential oil extraction equipment:
Our essential oil extraction equipment, health products, biological drugs, cosmetics and food .This uses technology and chemical separation, can extract plant components efficiently by steam distillation , have good effect in collecting essential oil from plants.
Our essential oil extraction equipment, health products, biological drugs, cosmetics and food .This uses technology and chemical separation, can extract plant components efficiently by steam distillation , have good effect in collecting essential oil from plants.
Main advantage essential oil extraction equipment:
(1)By steam-distillation to reach the extraction of essential oils.
(2)Easy operation. One people can operate this machine easily .
(3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100℃ high temperature under the conditions
of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be ore faster.
(4)Compact structure.It covers only about 1.5 square meter.
(1)By steam-distillation to reach the extraction of essential oils.
(2)Easy operation. One people can operate this machine easily .
(3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100℃ high temperature under the conditions
of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be ore faster.
(4)Compact structure.It covers only about 1.5 square meter.
Details Images

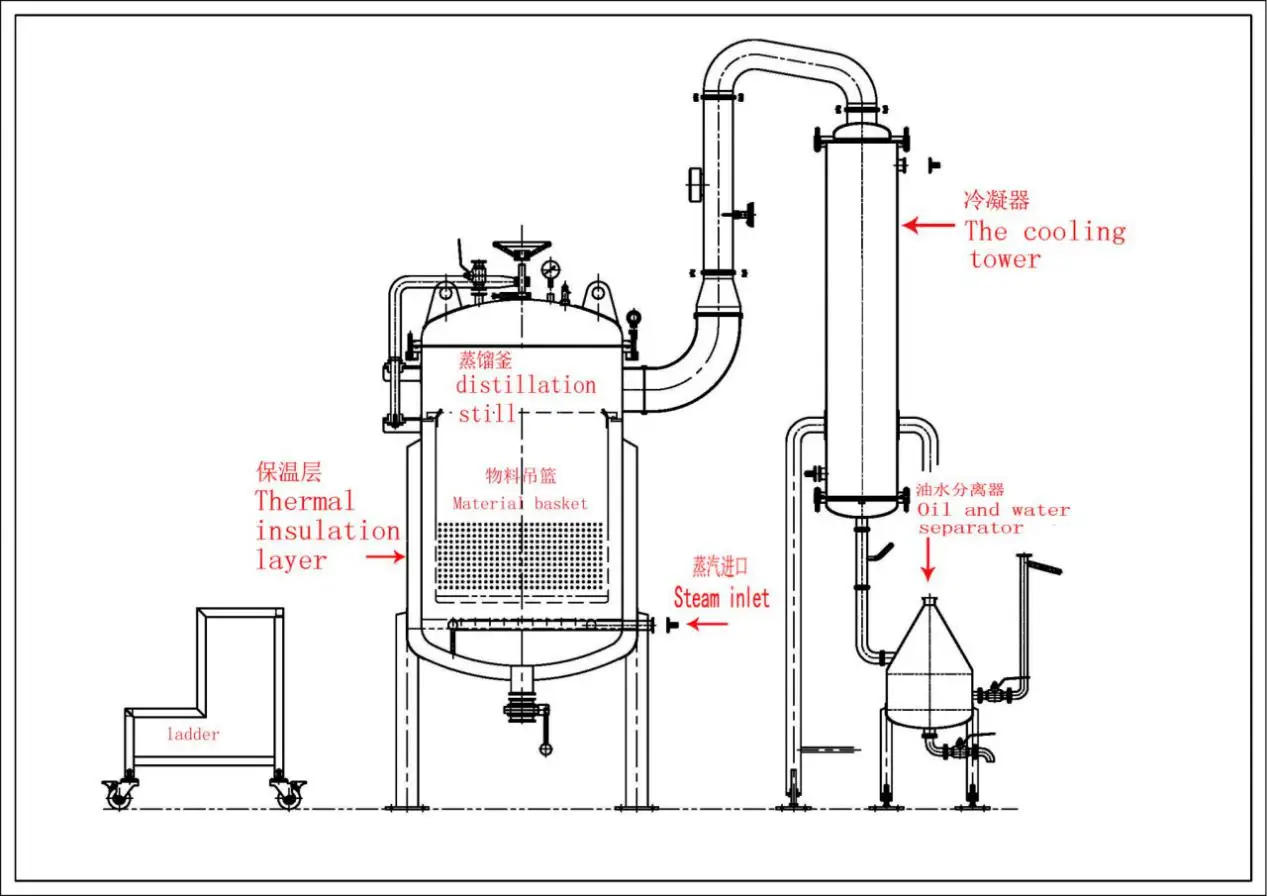

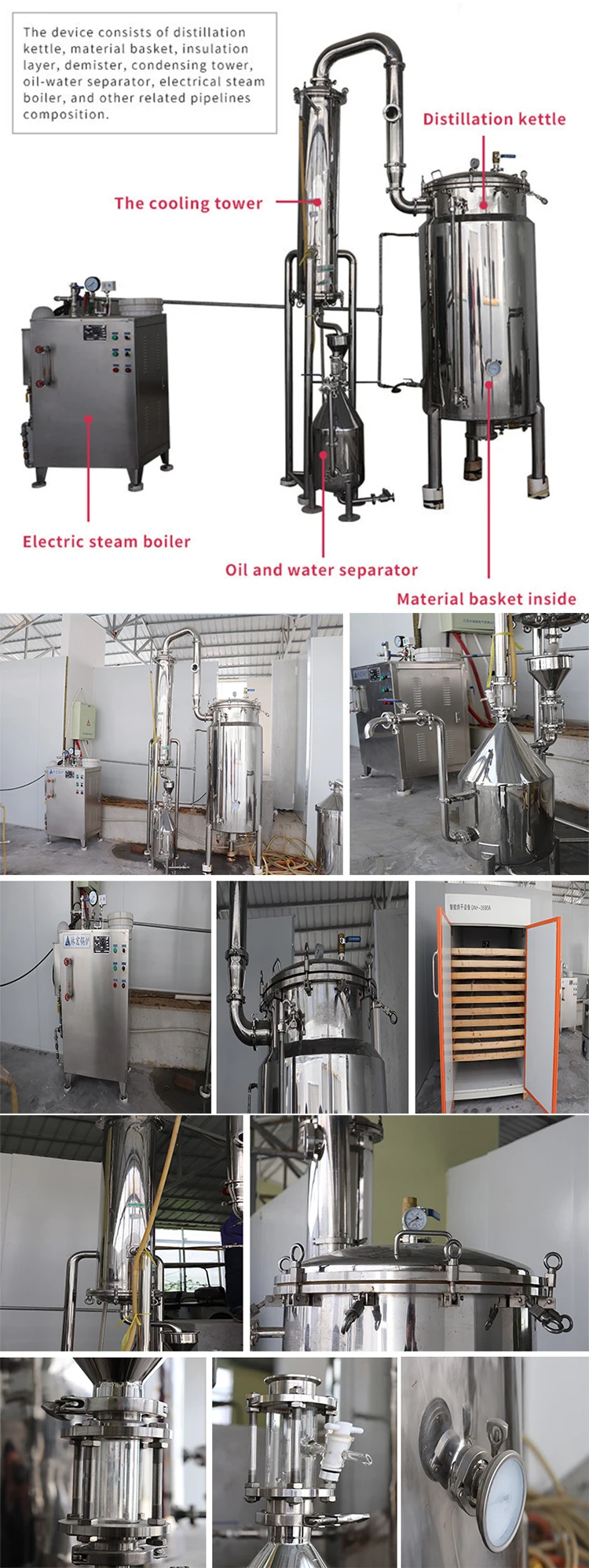

The device consists of distillation kettle, material basket, insulation layer, demister, condensing tower, oil-water separator,
(Gas or oil-fired boiler), and other related pipelines composition.
(Gas or oil-fired boiler), and other related pipelines composition.
Product structure
Distillation kettle | Effective volume: Effective volume 300L, Steam direct heating, Heat exchange area 5m2. Inside: design pressure: 0.09Mpa, working pressure: normal pressure; design temperature:120℃, work temperature≤100℃.Working medium:water; Insulation layer: Material Aluminium silicate, thickness 50mm Drain valve:DN75 | ||
Demister | Size Φ102×400, clamping band quick connect installation, demister to facilitate cleaning.Meet the GMP requirements. | ||
Condenser | Vertical condenser.:Heat transfer area is greater than 2.5m2 Pipeline: designed pressure: normal pressure;working pressure: normal Pressure; design temperature: 100℃, work temperature≤100℃. Working medium:Secondary steam. Length: Φ25×2; Shell: designed pressure: 0.3Mpa,working pressure: normal pressure; design temperature: 80℃,work temperature: 15~30℃. Working medium: cooling water. |
Applications
Description | Raw material | Description | Raw material |
Gaultheria procumbens essential oil distiller | Gaultheria procumbens leaf | Cinnamomum cassia essential oil distiller | Cinnamomum cassia Cinnamon bark |
Achillea millefolium essential oil distiller | Achillea millefolium flower and upper branches | Santalum album essential oil distiller | Santalum album Wood core and root core |
Cymbopogon nardus essential oil distiller | Cymbopogon nardus Leaf blade | Matricaria chamomilla essential oil distiller | Matricaria chamomilla flowers |
Pimenta dioica essential oil distiller | Pimenta dioica seeds | Anthemis nobilis essential oil distiller | Anthemis nobilis flowers |
Angelica archengelica essential oil distiller | Angelica archengelica root | Cinnamomum zeylanicum essential oil distiller | Cinnamomum zeylanicum Wood core and root core |
Angelica archengelica essential oil distiller | Angelica archengelica seeds | Salvia sclarea essential oil distiller | Salvia sclarea Leaf and upper branch |
Pimpinella anisum essential oil distiller | Pimpinella anisum seeds | Eugenia caryophylatta essential oil distiller | Eugenia caryophylatta bud |
Arnica montana essential oil distiller | Arnica montana root | Eugenia caryophylatta essential oil distiller | Eugenia caryophylatta Leaf |
Application:

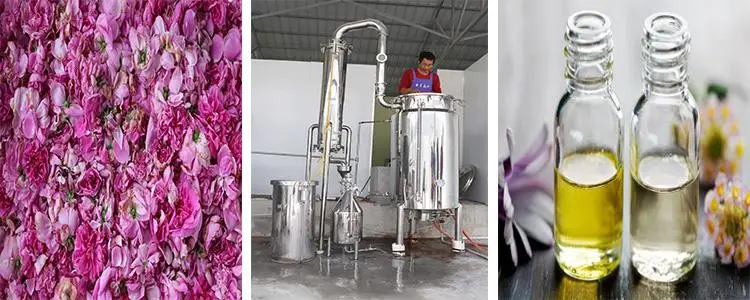

Wide application: Essential oil distillation machine could used for vacuum distilling for the flower, plant, leaf, pericarp. such
as Lavender, Rosemary, Pine and Fir Needles, Peppermint, Basil, Eucalyptus Leaves etc.
Wide application: Essential oil distillation machine could used for vacuum distilling for the flower, plant, leaf, pericarp. such
as Lavender, Rosemary, Pine and Fir Needles, Peppermint, Basil, Eucalyptus Leaves etc.
