860 960mhz RFID UHF USB interface PR9200 indoor Desktop RFID Reader
- Category: >>>
- Supplier: Shenzhen Tasei RFID Co. Limited
Share on (62139580976):
Product Overview
Description

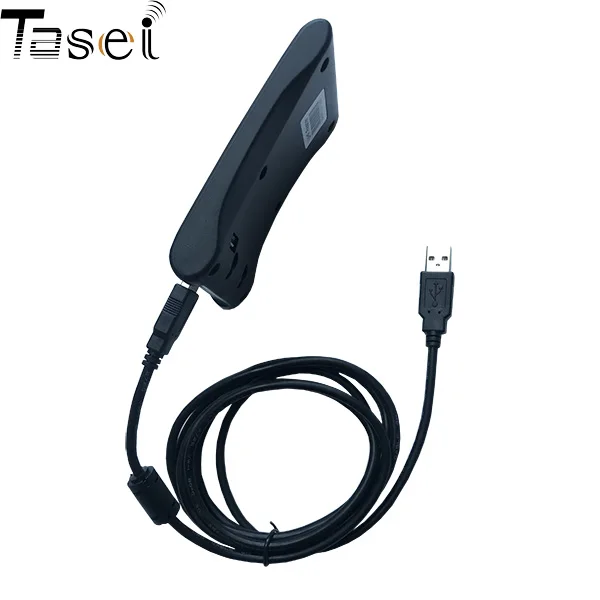

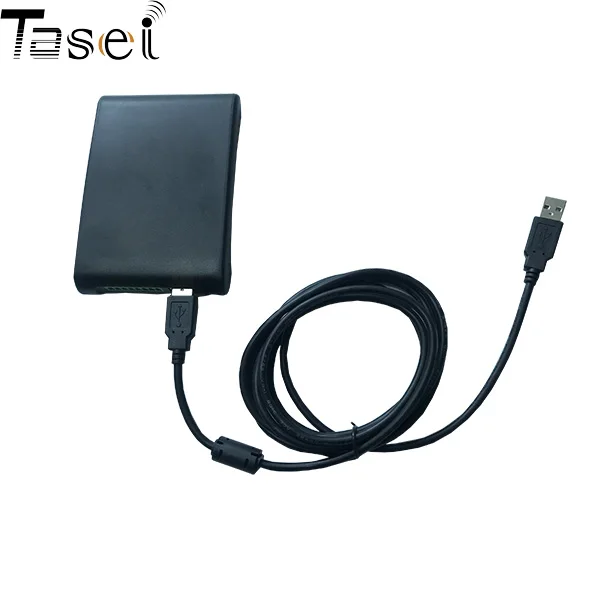

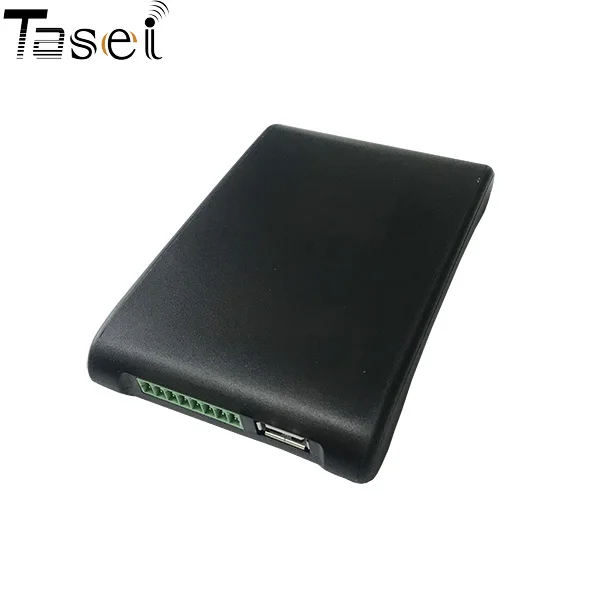

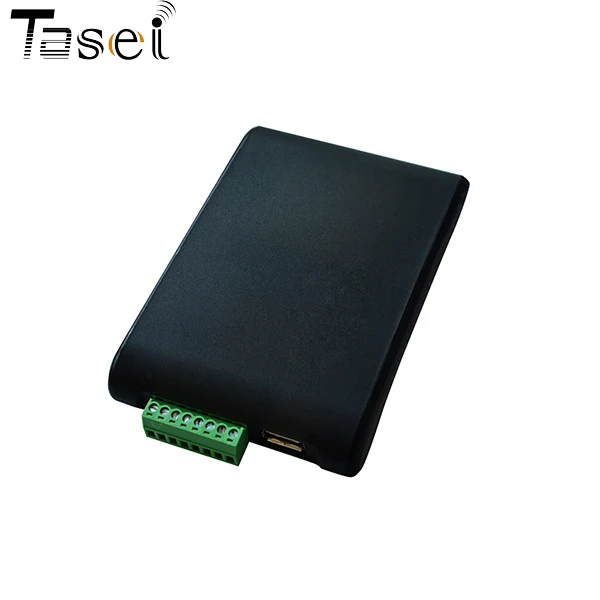

860-960mhz RFID UHF USB interface PR9200 indoor Desktop RFID Reader
Product Description
Phychip PR9200 Inside | Excellent Consistency |
PR9200 has an outstanding performance with a low cost | A model of design consistency Every indicators are calibrated rigorously,ensure consistency |
Using the highest performance components | More Interface |

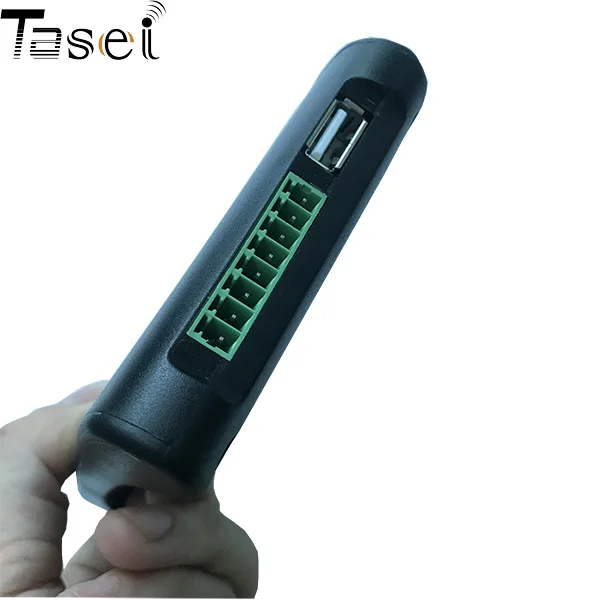

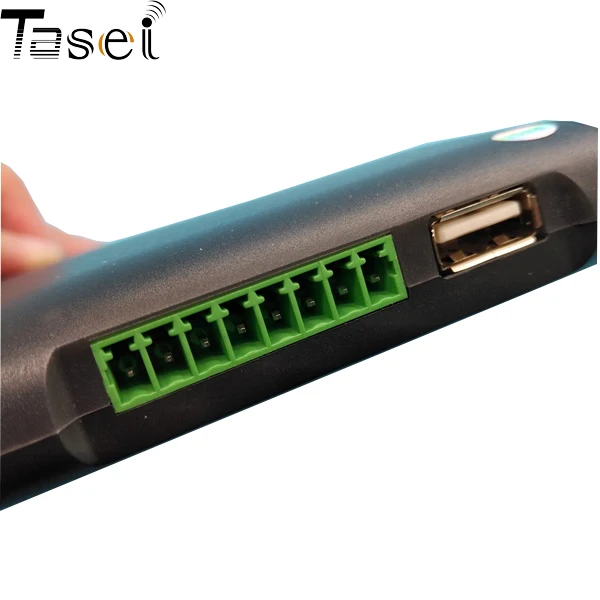

Using 50x50mm Microstrip ceramics antenna.Operating tag without fade zone Using FT232 USB to serial chip.Providing the most stable communication in the industry All of components with the highest level and very low temperature drift coefficient,which can work in harsh environments | Support USB 2.0 Interface Support RS-232 Interface Support Wiegand26 Interface Support Wiegand34 Interface Support USB powered Support Independent power supply |
Excellent Performance of Reading Tags | Low-Power |
Read range is adjustable from 10cm-3m The highest writing tags successful rate in the industry Multi-tag identification:>50pcs Read Rate:>50pcs/s
| No heat during long-term continuous full load working at room temperature Continuous Current<200mA3.5V(26dbm output) Continuous Current<110mA3.5V(18dbm output) |

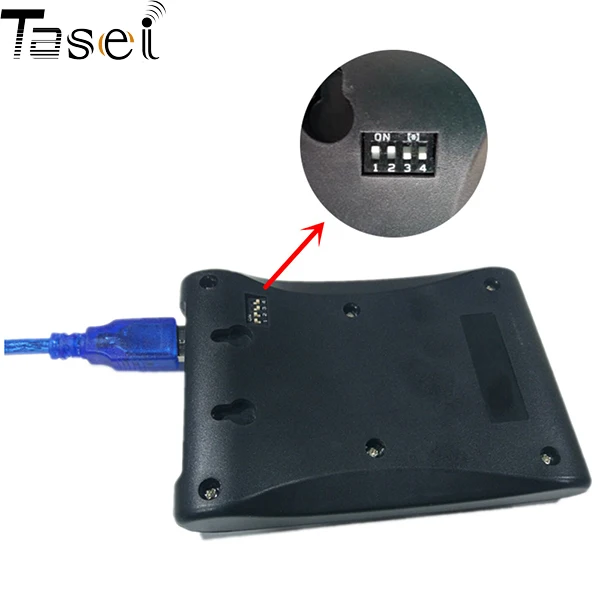

Support two installation method | Color |
Can be used as a desktop reader Can be wall-mounted,used as access control | Light Gray ,orange ,Black |
Specification
Physical Characteristics | |
Input Voltage | DC 3.5V-5V |
Operating Current | 180mA 3.5V (26dbm output,25°C) 110mA 3.5V (18dbm output,25°C) |
Starting Time | <100ms |
Working Environment | |
Operating Temp | -20°C to 70°C |
Storage Temp | -20°C to 85°C |
Humidity | <95%(+25°C) |
Performance Parameter | |
Protocol | ISO 18000-6C(EPC gen2) |
Frequency Range | 902MHz~928MHz or 865MHz~868MHz or customize others frequency according to your needs |
Antenna | TS-322 ----Built-in 0dbi circular antenna (50-80cm) |
TS-322A----Built-in 2dbi circular antenna (1m-2m) | |
Output Power | 0-26dbm |
Output Power Precision | +/- 1dB |
Output Power Flatness | +/- 0.2dB |
Receive Sensitivity | < -70 dBm |
Peak Inventory Speed | >50 tags/sec |
Tag Buffer Capacity | 200 tags 96 bit EPC |
Tag RSSI | Supported |
Host Communication | USB 2.0 RS-232 Wiegand26 Wiegand34 |
Max Baud Rate | 115200 bps(default and recommended) 38400bps |
Working Regions | US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Mainland China Japan Korea Malaysia Taiwan |
Product details
Related Products
Company Information
Packaging & Shipping
Shipping Mode :
By Express : DHL ,UPS,FEDEX,TNT : 3-5 days
By Air : 5-10 days
By sea : 12-25 days
Our Services
As a listed company from china manufacturer, we support you:
· Completely Free SDK and technical support for you.
· ODM/OEM customization services according to your needs.
· 12 months warranty for your devices and other parts. and 6 months for the batteries. Exend warranty,it'll cost 0.5% for each per year.
· Free maintenance of the devices and part of accessories replacement in the warranty .if out of the warranty, you'll have to pay the basic cost for them.
