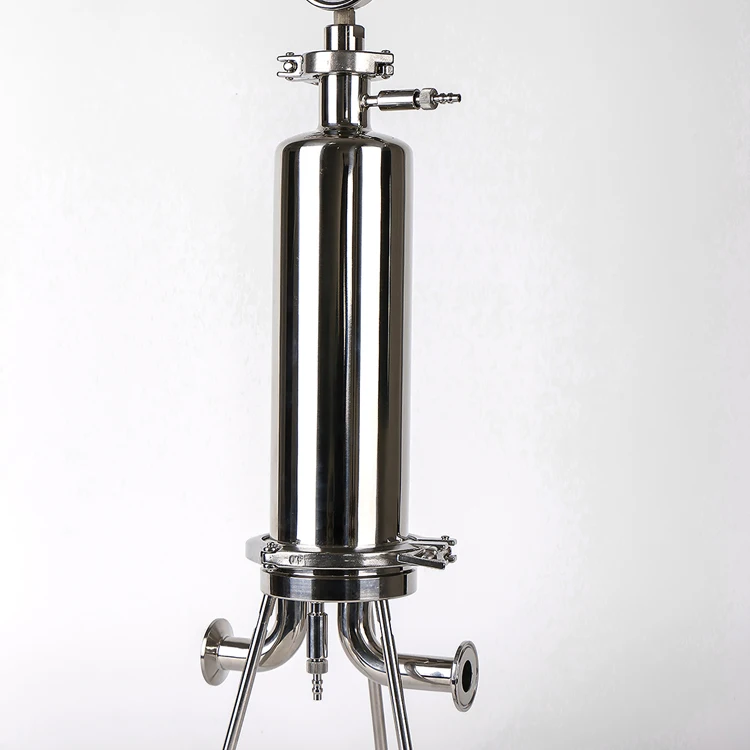

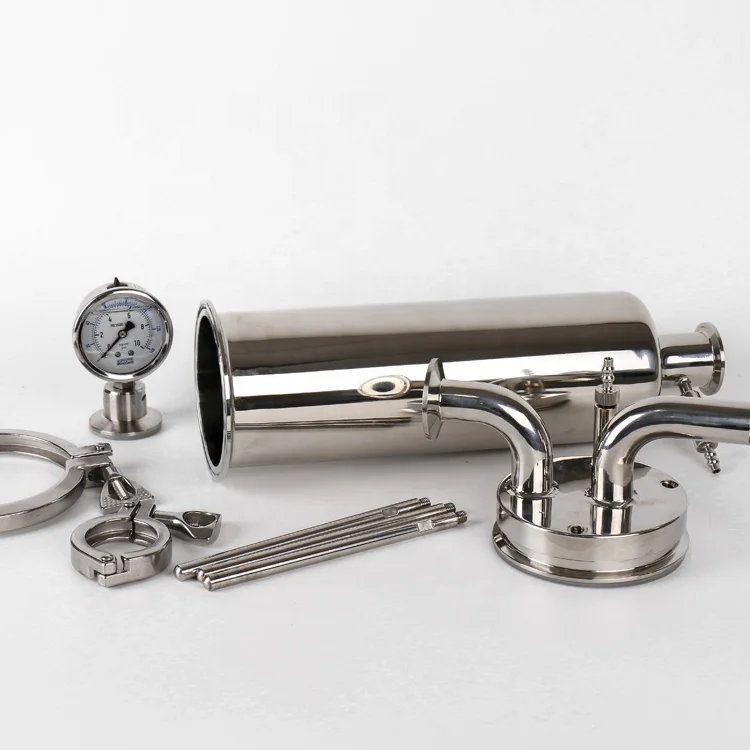

SS 316 L Sanitary Cartridge Wine Beer Filter Housing For Wine Beer Pharmacy

Product Overview

Description



sanitary beer making equipment cartridge filter housing



Product Features

• l  Single or Multiple Cartridges Sanitary Filter Housings are available-1,3,5,7,9,12 pcs round


• l  Models for 10’’,20’’,30’’ and 40’’ Cartridge are available


• l  0.25RA Electropolished Finish for Head and Elbows and Mirror Polished Bowl Ensures Optimal-Cleanability in Critical Areas while Maintaining Cost Effectiveness


• l  Inlet and Outlet are Connections from 1’’ to 3’’.


• l  304 or 316l Stainless Steel Materials of Construction are Available


• l  Sealing System Available for 226 or 222 O-ring Cartridges

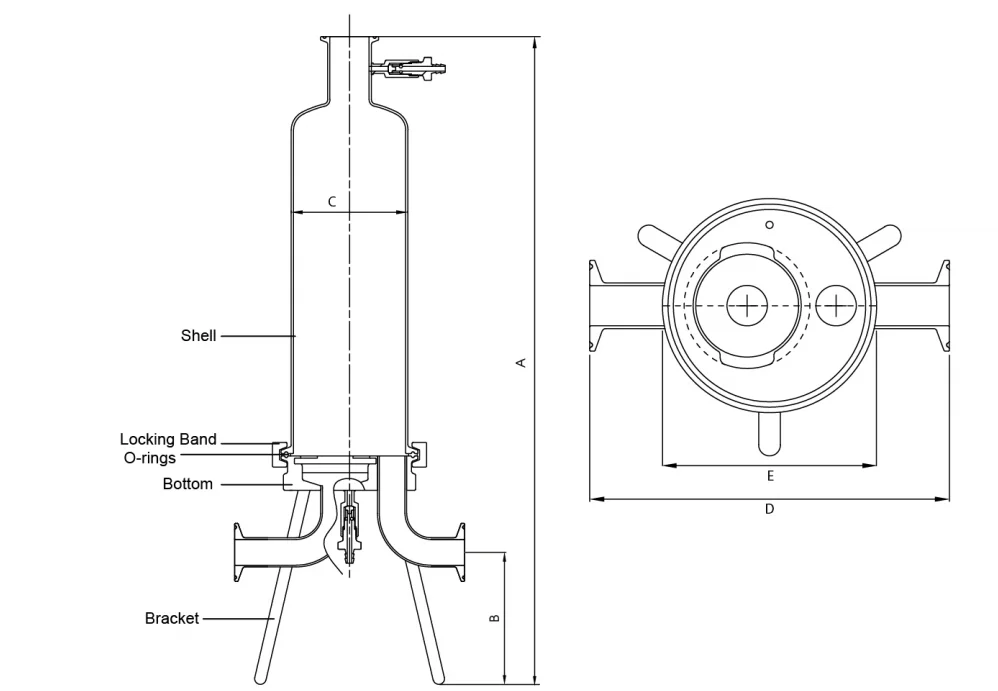

Dimension Data:

c	Cartridge No.	Inlet/Outlet Connection Size(mm)	Dimension Inches<mm>					Cartridge Diameter Inches (mm)
			A	B	C	D	E
PDI10-1	1	1”(25.4)	17.1”(434)	2.6”(65)	4”(102)	4.1”(105)	7.4”(188)	2.7”(68)
PDI20-1	1	1”(25.4)	27.1”(688)
PDI30-1	1	1”(25.4)	37.1”(942)
PDI40-1	1	1”(25.4)	56.6”(1438



Ordering Information:

Product Name	Cartridge Length	Construction Material	Inlet/Outlet Connection Size	CB-Tri-Clamp Bracket	Cartridge Type
PDI	10=10” 20=20” 30=30” 40=40”	A=304 SS SL=316L SS	1=1” 1.5=1.5” 2=2”	CB= Tri-Clamp Bracket	8= Single Open End with 222O-rings+Fin End 7= Single Open End with 226 O-rings+Fin End























































1. Q: Are you manufacturer ?

A:Yes, we are the manufacturer with continuous and improved R & D, production, sales and service supply.

2.Q: What are your main products ?

A: Our products are Mirco pleated filter cartridges,high flow filter cartridges,depth-stack filter cartridges,pleated filter cartridges,carbon filter cartridges,melt blown filter cartridges,string wound filter cartridge,and so on.

3.Q: How to get a quotation ?

A: In order to send you our best price, please kindly inform us detailed product parameters.

4.Q: Could you provide free sample ?

A: Yes, we could provide free sample if the value not big,but the courier charge will be on your side.

5.Q: What’s your payment terms ?

A: Mainly accept T/T,L/C is also available if order amount big.Other payment terms can be further discussed.

6.Q: What is your delivery time ?

A:In normal condition, 20’container needs about 15-20days,40’’container needs about 30days.

7.Shipping :

If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,.



More details or other questions, pls do not hesitate to contact me!~
