6600 Counts AC/DC Digital Clamp Meter with Double Mold PM2108

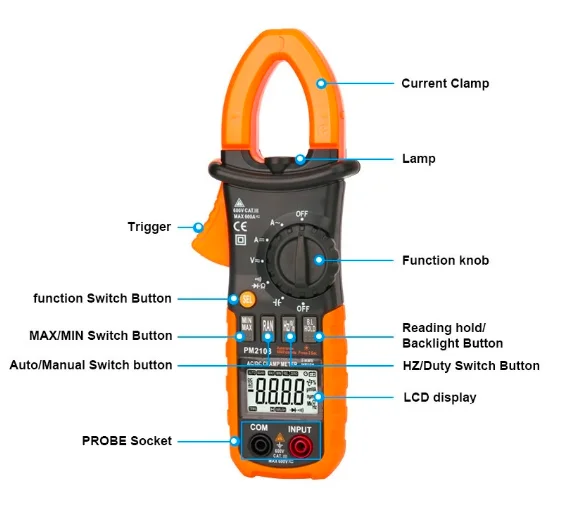

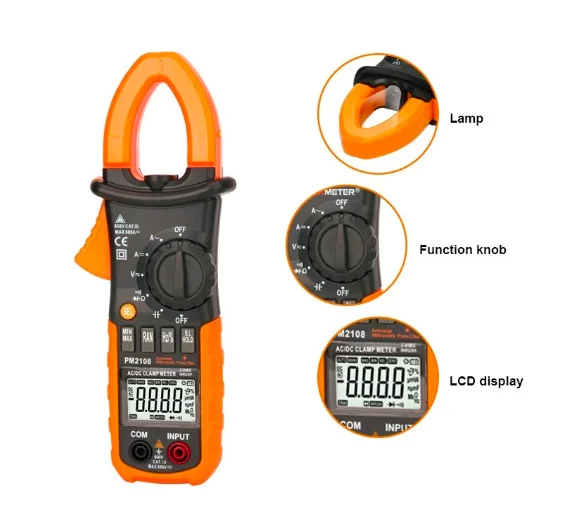

Features (PM2108 True RMS Digital Analog AC DC Current Clamp Meter)

6600 counts Display

Auto Ranging and manual range

Inrush current

True RMS

Auto Power Off

MAX/MIN value Hold

Data Hold

Low Battery Display

Display Backlight

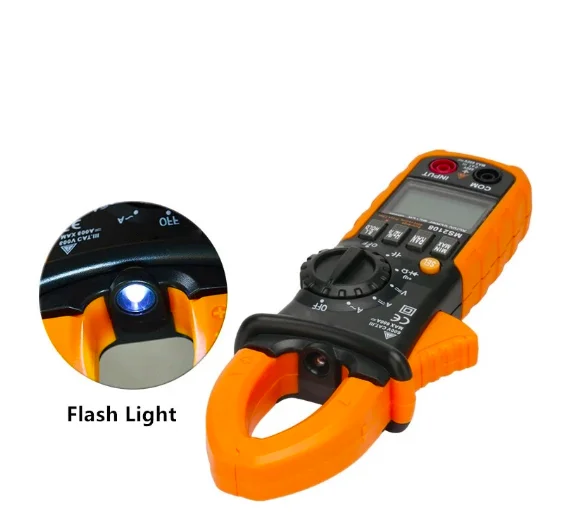

Work light

Diode

2.7V

Continuity Buzzer

<50Ω

Jaw Opening

Φ26mm/1.0”

Power supply

1.5V(AAA)x3 Batteries

Weight

Approx 245g

Size

280mmx78mmx35mm

Safety Rating

CE CAT.III600V RoHS

Specifications

DC Voltage

660mV/6.6V/66V

±(0.8% +3)

660V

±(1.0% +5)

AC Voltage

660mV/6.6V/66V/660V

±(1.5% +5)

DC Current

66A/600A

±(3.0% +10)

AC Current

66A/600A

±(3.0% +10)

INRUSH CURRENT

(100ms)

66A/600A

±(10.0%+60)

Resistance

660Ω/6.6kΩ/66kΩ/660KΩ/6.6MΩ

±(1.2% +2)

66MΩ

±(2.0% +5)

Capacitance

6.6µF/66µF/660µF/6.6mF/66mF

±(4.0% +3)

Frequency

10KHz

±(1.5% +5)

Duty Cycle

10%~ 95%

±(3.0+2%)
