Product Overview

Description

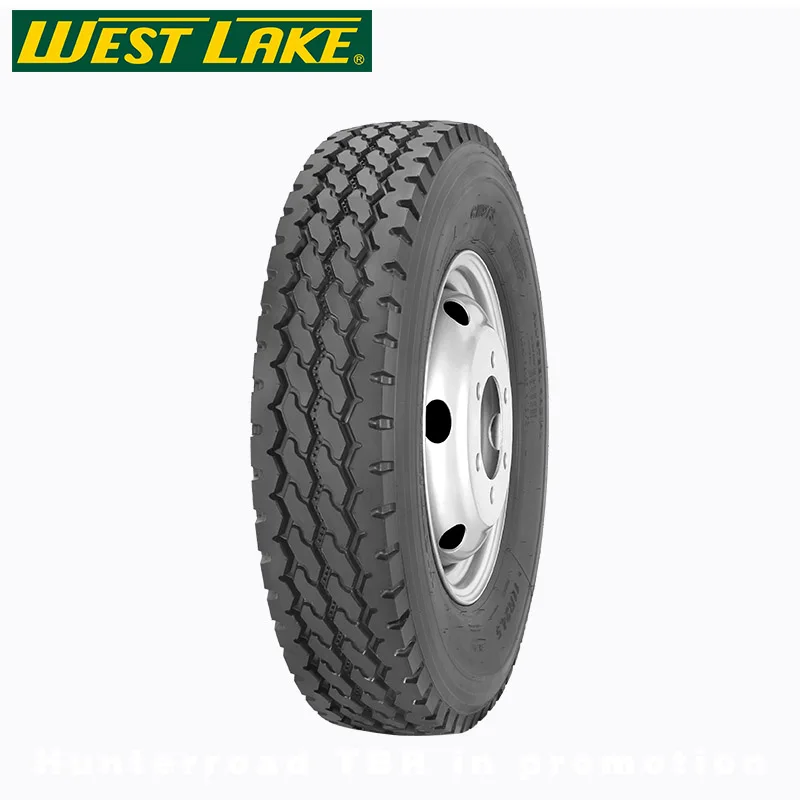

WestLake Goodride Chaoyang brand CM973 10.00R20 11R24.5 TBR Bus Tyre All Steel Radial Truck Tires











Benefits and Features

Wide, deep tread helps provide long tread life in regional conditions

Zig-zag ribs ensure even wear and grip on wet, dry and snowy roads

Size	LR/PR	Service index	Tread Depth (mm)	Standard Rim	Overall Diameter (mm)	Section Width (mm)	Max. Load Capacity at Cold Inflation Pressure
Single	Dual
(kg)	(lbs)	(kPa)	(psi)	(kg)	(lbs)	(kPa)	(psi)
10.00R20	J/18	149/146J	17.5	7.5	1054	278	3250	7160	930	135	3000	6610	930	135
11R24.5	G/14	146/143L	15.0	8.25	1104	279	3000	6610	720	105	2725	6005	720	105
11R24.5	H/16	149/146L	15.0	8.25	1104	279	3250	7160	830	120	3000	6610	830	120
