Heavy duty outdoor garden utility pulled atv log trailer
US $3000-$3500
Small boom crane trailer
- Category: Motorcycle & ATV Trailers >>>
- Supplier: Yantai Rima Machinery Co. Ltd.
Share on (62139842957):
Product Overview
Description
Product Description

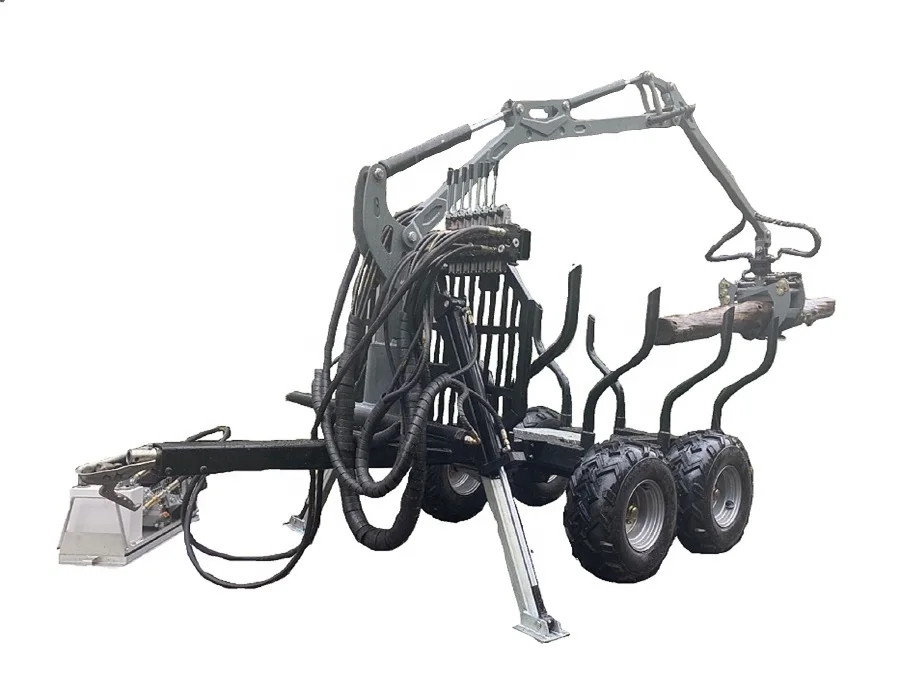

ATV timber trailer with crane
Model | TTC34 |
Max reach | 3.4m |
Lifting capacity(3.4m) | 200kg |
Lifting capacity(2m) | 500kg |
Turning radius of crane | 360° |
No. of swing cylinder | 2pcs |
Max. open & area of wood grapple | 700mm/0.08 m2 |
Max. load of hydraulic rotator | 1 ton(10KN) |
Hydraulic rotator turning radius | unlimited |
Working pressure | |
Control valve | 7 sets |
Power Unit | 6.5HP engine |
Weight | 260kg |
Max. load | 1500kg |
Total length | 3230mm |
Width with wheels | 1440mm |
Height | 1600mm |
Height of front plate | 1100x700mm |
No. of “S” | 2sets(Optional 3sets) |
Length of loading area | 2120-3520mm |
Loading area volume | 1.6--3m3 |
Min. ground clearance | 200mm |
Wheel | Standard 22x11-10 (Optional 25X10-12) |
Weight | 260kg
|
Company Information
Packaging & Shipping
FAQ
Title goes here.
Q: Are you a factory or trading company?
A: We have our own factory, using "Self-produced Self-marketing" business model,reducing the cost of intermediate links.
Q: How can I get some samples?
A: We are honored to offer you samples.
Q: How does your factory do regarding quality control?
A:Quality is priority. RIMA always attach great importance to quality controlling from the very beginning to the very end. Warmly welcome to visit us!
Q: If I need different measurements or weight, could you offer OEM service?
A: Sure, we can provide OEM service, also we can make new mould for your product,attaching your name brand.
