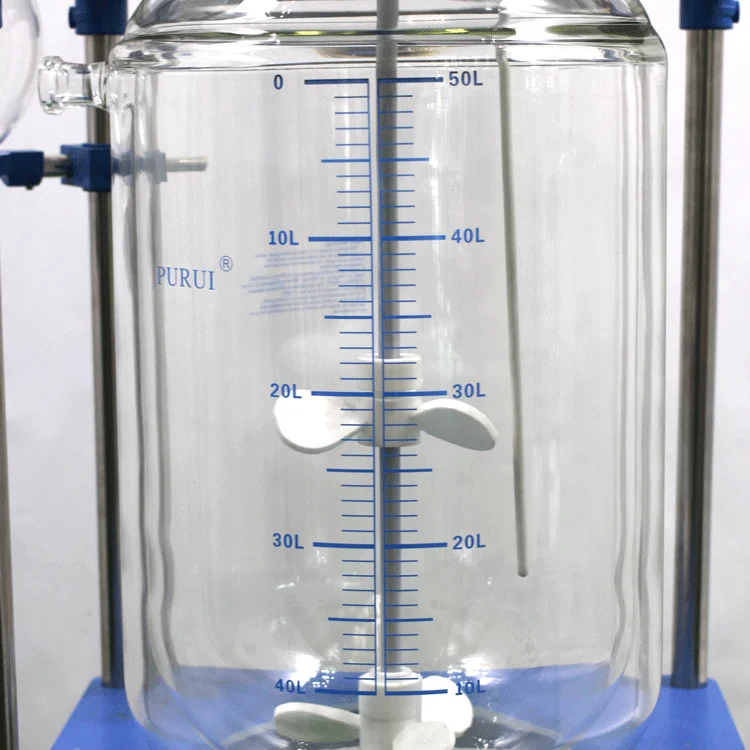

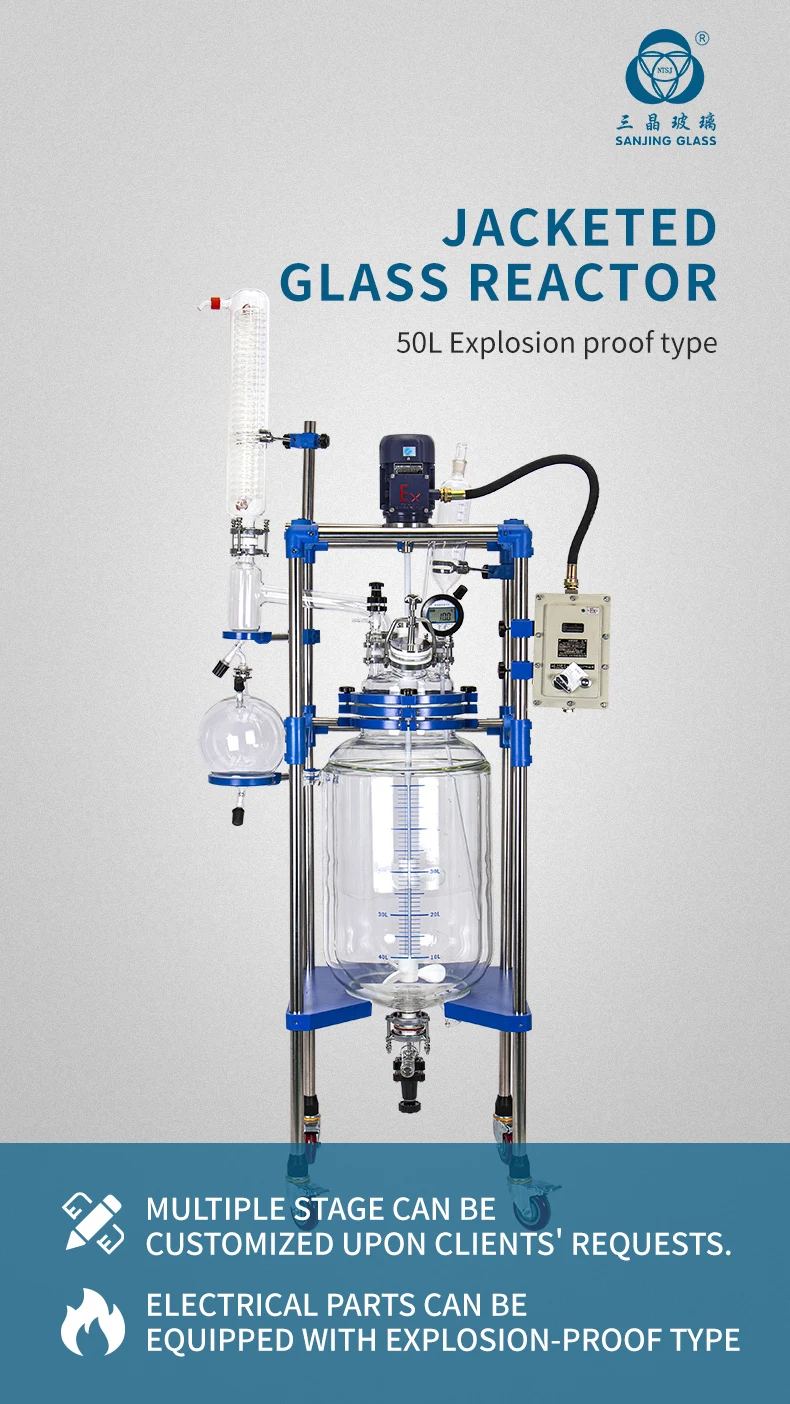

Hot sell 50L explosion proof jacketed chemical glass reactor for laboratory
- Category: >>>
- Supplier: Nantong Sanjing Chemglass Co. Ltd.
Share on (62139919446):
Product Overview
Description
Product Description
Product Application
The jacketed glass reactor is made by 3.3 borosilicate glass ,and there are 2 layers. The reaction solvent can be put into inner layer for stirring reaction.The middle layer can be connected with different sources (water or oil) for cyclic heating or cooling reaction by heating and cooling circulator.Under the condition of constant temperature , the stirring reaction can be carried out under normal pressure or negative pressure according to the requirements. The glass reactor can also be used for reflux and distillation,which is an ideal experiment and production equipment for modern fine chemical plant, biological pharmacy and new material synthesis.
Product Attribute | ||||||||||
Product Modle | FPGR-5 | FPGR-10 | FPGR-20 | FPGR-50 | FPGR-100 | |||||
Volume(L) | 5 | 10 | 20 | 50 | 100 | |||||
Neck No.on Cover | 5 | 6 | 6 | 6 | 6 | |||||
External Diameter of Inner Vessel(mm) | 180 | 230 | 290 | 365 | 460 | |||||
External Diameter of Outer Vessel(mm) | 230 | 290 | 330 | 410 | 500 | |||||
Cover Diameter(mm) | 180 | 265 | 265 | 265 | 340 | |||||
Vessel Height(mm) | 400 | 450 | 550 | 850 | 950 | |||||
Motor Power(W) | 120 | 180 | 180 | 180 | 370 | |||||
Vacuum Degree(Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | |||||
Rotation Speed(rpm) | 50-600 | 50-600 | 50-600 | 50-600 | (50-600) | |||||
Torque(Nm) | 1.9 | 1.9 | 1.9 | 2.86 | 5.89 | |||||
Power(V) | 220 | 220 | 220 | 220 | 220 | |||||
Diamension(mm) | 450x450x1200 | 650x650x1900 | 700x500x2000 | 700x500x2300 | 1000x700x2700) | |||||
Main Features
1) The whole stainless steel frame structure (the connection part of the three-way and four-way exquisite connection) is compact and firm, and it's easy to move.
2) VFD(variable-frequency drive) motor controller can realize high-medium-low-speed operation,which is accurate and operable. And fully explosion-proof system is feasible.
3)The kettle chamber and jacket are designed without dead angle, and the special solid feeding port on the cover is convenient for cleaning without disassembly.
4)The lower discharge part is easy to release concentrated liquid and residuum.
5)The heating (cooling) solution in the sandwich layer will be completely eliminated after the reaction.
Detailed Images
More products
Packaging&Shipping
Why Choose Us
Sanjing Chemglass is one of the leading and professional manufacturers and traders specialized in research, development and production of chemical glass instrument in China. Main products include high-end customized glass reactor, wiped film evaporator, rotary evaporator, short path molecular distillation and chemical glass accessory which has received the certification of ISO9001, CE and BV. The founder of Sanjing Chemglass Mr. Xing has over 30 years relevant experience.
Sanjing Chemglass is able to provide professional service with design, manufacturing, equipment selection, instrument supporting, installation, debugging and maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, CBD oil purification and new material.
Sanjing Chemglass is able to provide professional service with design, manufacturing, equipment selection, instrument supporting, installation, debugging and maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, CBD oil purification and new material.
Sanjing Chemglass is located in Nantong which is very convenient and only takes 2 hour-drive-away from Shanghai Airport. Sanjing Chemglass is the largest scale of production glass factory in China with over forty thousand square meters area. And we have over two hundred employees with high rate capacity utilization. The annual sales figure of Sanjing Chemglass has reached twenty million dollars.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee customer satisfaction. As a result of our high-quality products and outstanding customer service, we have formed global sales network including Russia, America, Switzerland, India, Paraguay, New Zealand, Netherlands, Thailand and South Africa. In addition, we also build the relationship with more than 10 overseas distributors.
If you are interested in any of our product or would like to discuss a customized order, please feel free to contact us. We are looking forward to forming successful business relationship with new clients around the world.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee customer satisfaction. As a result of our high-quality products and outstanding customer service, we have formed global sales network including Russia, America, Switzerland, India, Paraguay, New Zealand, Netherlands, Thailand and South Africa. In addition, we also build the relationship with more than 10 overseas distributors.
If you are interested in any of our product or would like to discuss a customized order, please feel free to contact us. We are looking forward to forming successful business relationship with new clients around the world.
Our Service
FAQ
Q:Are you trading company or manufacturer?
A: We are professional manufacturer of lab equipment and we have our own factory.
Q: How long is your delivery time ?
A: Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are out of stock.
Q: Do you provide samples? ls it free?
A: Yes, we could offer the sample. Considering the high value of our products,the sample is not free, but we'll give you our best price including shipping cost.
Q: What is your terms of payment?
A: 100% Payment before shipment or as negotiated terms with clients. For protecting clients' payment security, Trade Assurance Order is highly recommended.
A: We are professional manufacturer of lab equipment and we have our own factory.
Q: How long is your delivery time ?
A: Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are out of stock.
Q: Do you provide samples? ls it free?
A: Yes, we could offer the sample. Considering the high value of our products,the sample is not free, but we'll give you our best price including shipping cost.
Q: What is your terms of payment?
A: 100% Payment before shipment or as negotiated terms with clients. For protecting clients' payment security, Trade Assurance Order is highly recommended.
