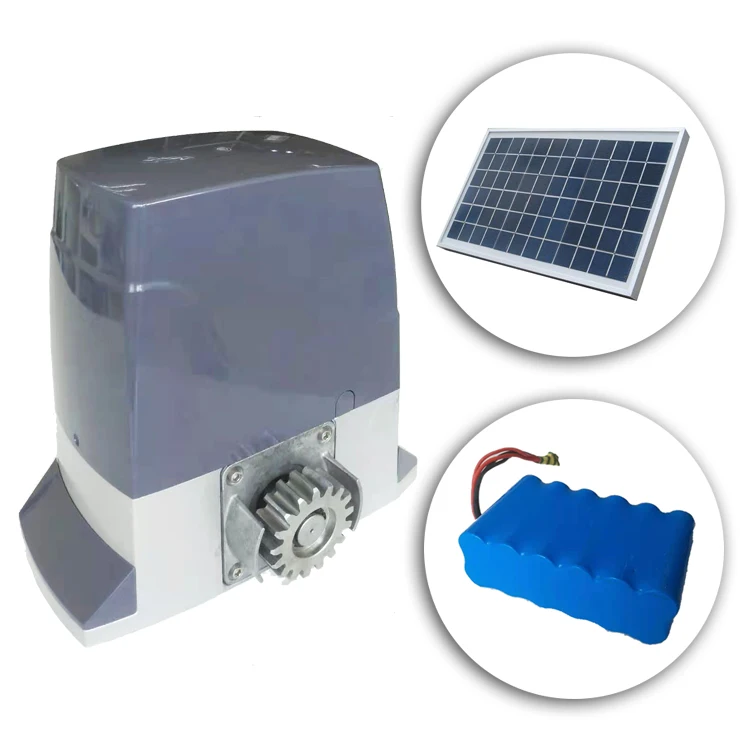

  • DC sliding gate operator with battery backup and solar panels

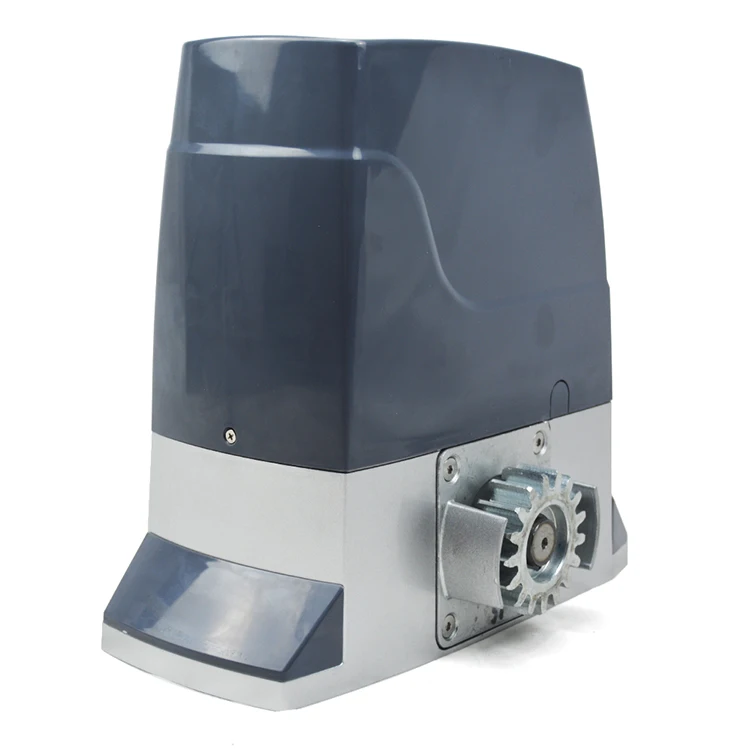

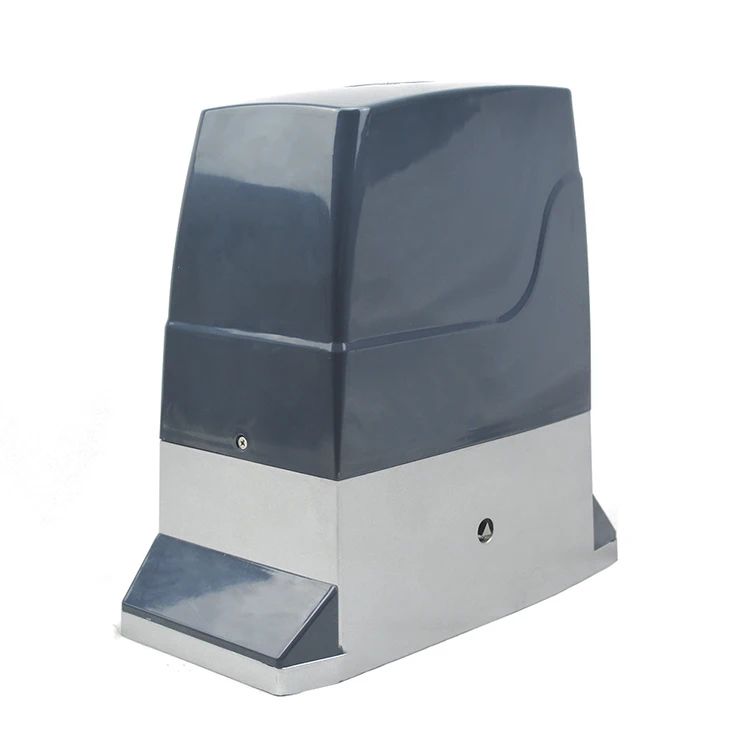

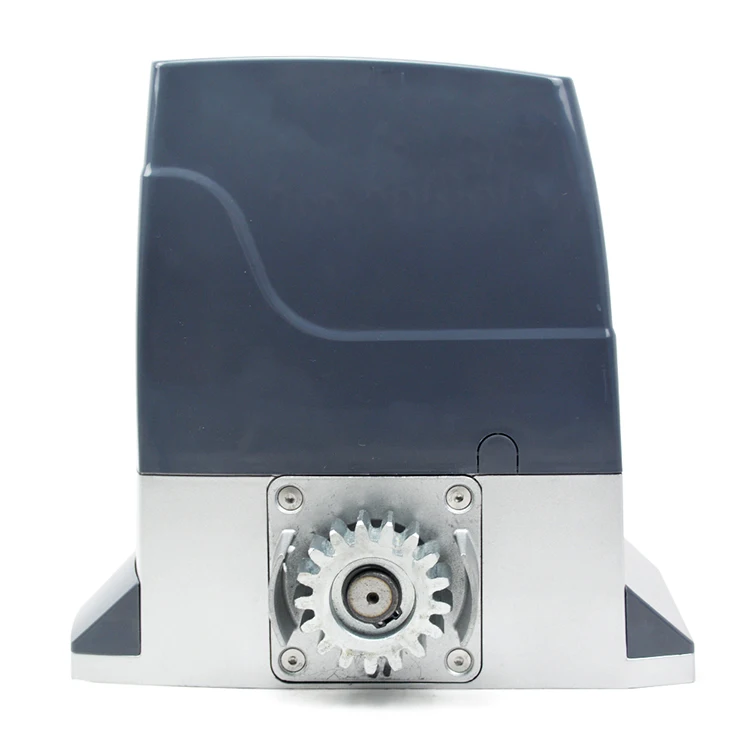

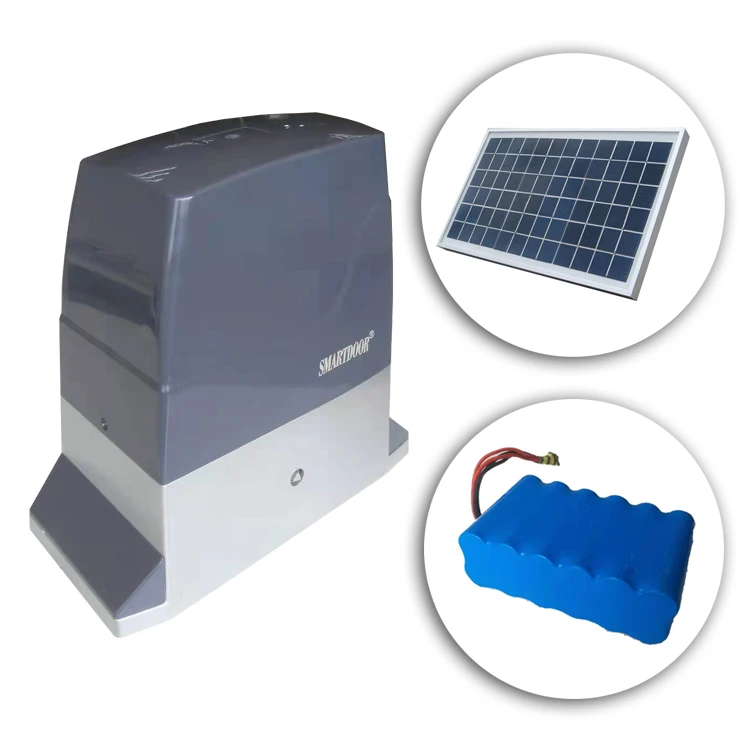

DC sliding gate operator with battery backup and solar panels
DC sliding gate operator with battery backup and solar panels
DC sliding gate operator with battery backup and solar panels
DC sliding gate operator with battery backup and solar panels
DC sliding gate operator with battery backup and solar panels
DC sliding gate operator with battery backup and solar panels
DC sliding gate operator with battery backup and solar panels

DC sliding gate operator with battery backup and solar panels

Share on (62140104567):


Price:

Quantity:


Product Overview

Description



Detailed Images

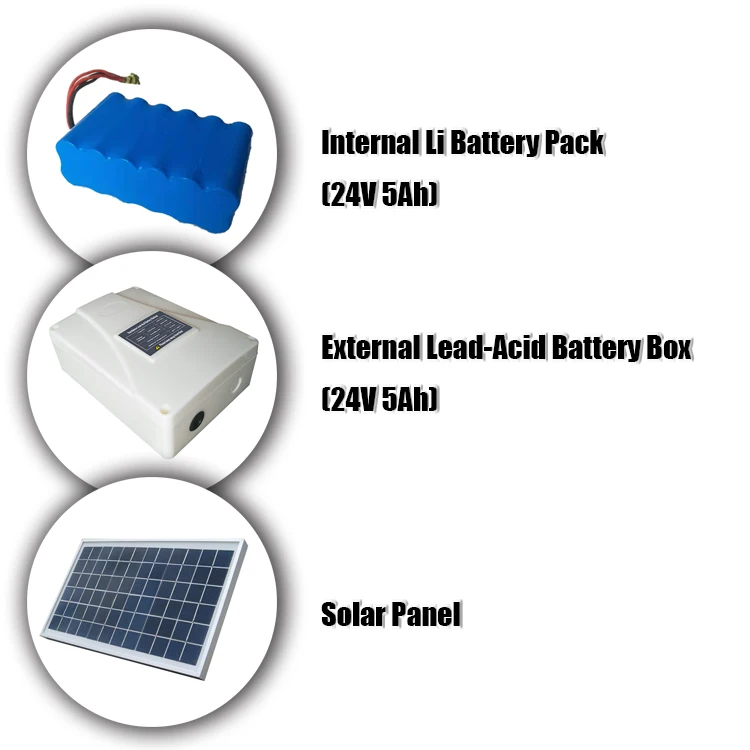

Optional Parts:




Product Description


Model
BG1000/1500/2000
BGH1200
Features
▶ With onboard socket for standalone bluetooth module
▶ With internal housing for 5Ah 24V Li-ion Battery
▶ Optional external case for battery capacity expansion
▶ Capable of solar kits connection
▶ High safety, low noise
▶ Soft start and slow stop, rebound against resistance
▶ Master – slave mode (2 motors work synchronously)
▶ Fully compatible with BoHui smartphone door control system

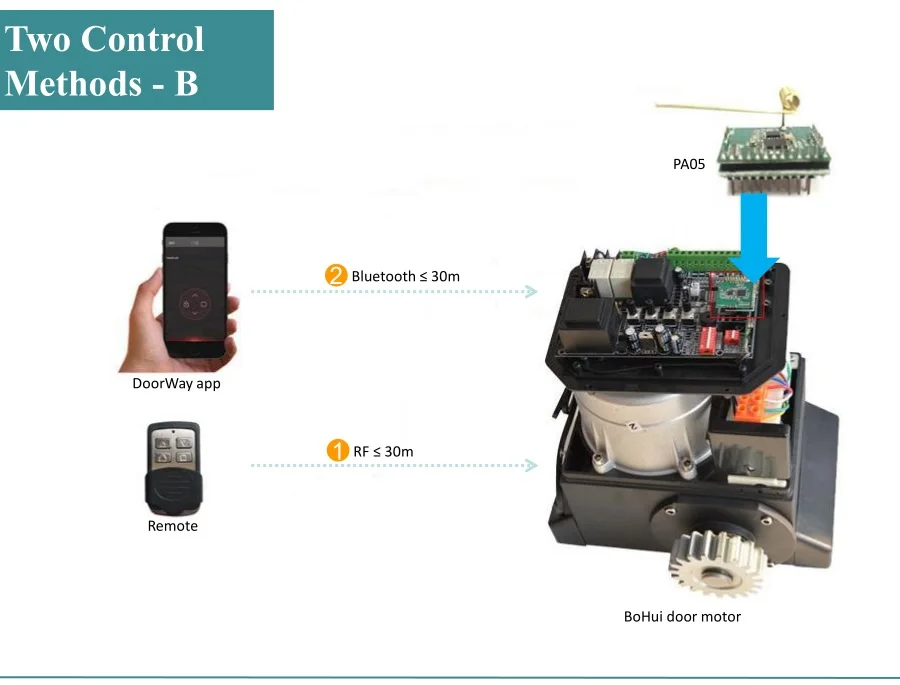

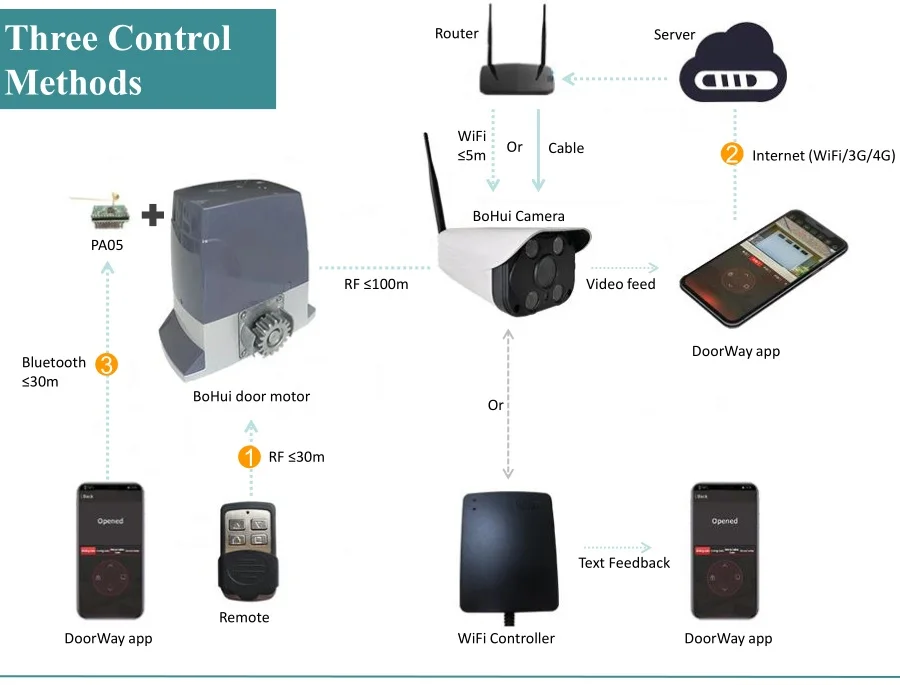

Control Methods

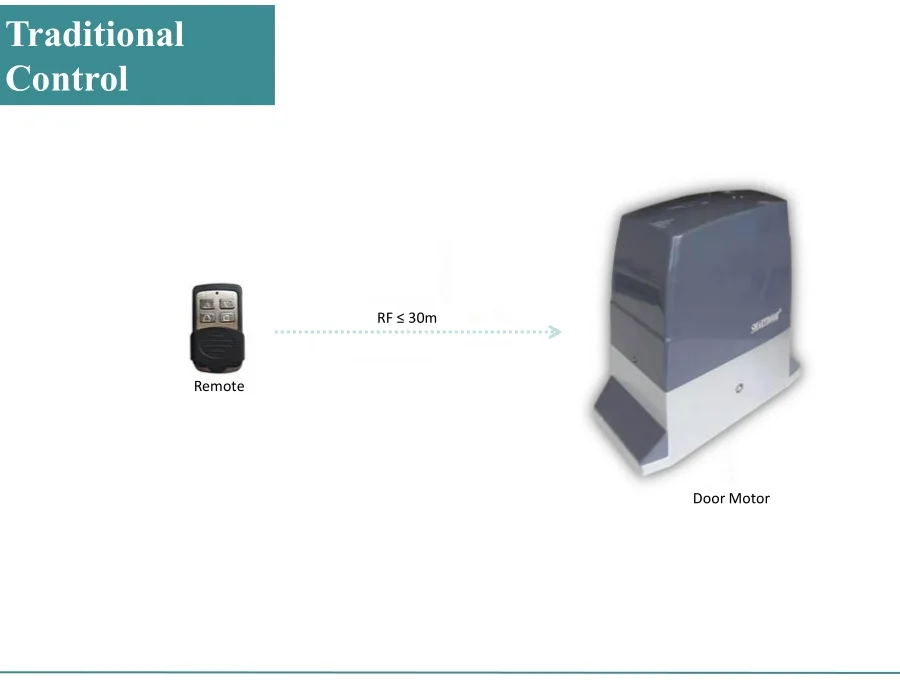

RF Remote
2 remotes are attached by default
30 meters traditional RF remote control
Bluetooth
BoHui standalone bluetooth chip required
30 meters short range control: mobile connects to motor through bluetooth and controls gate using DoorWay app

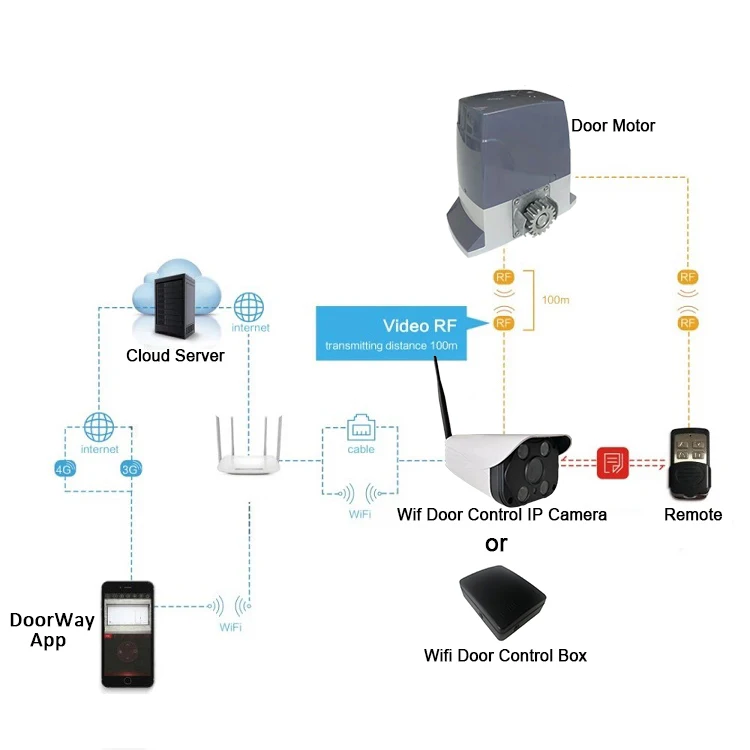

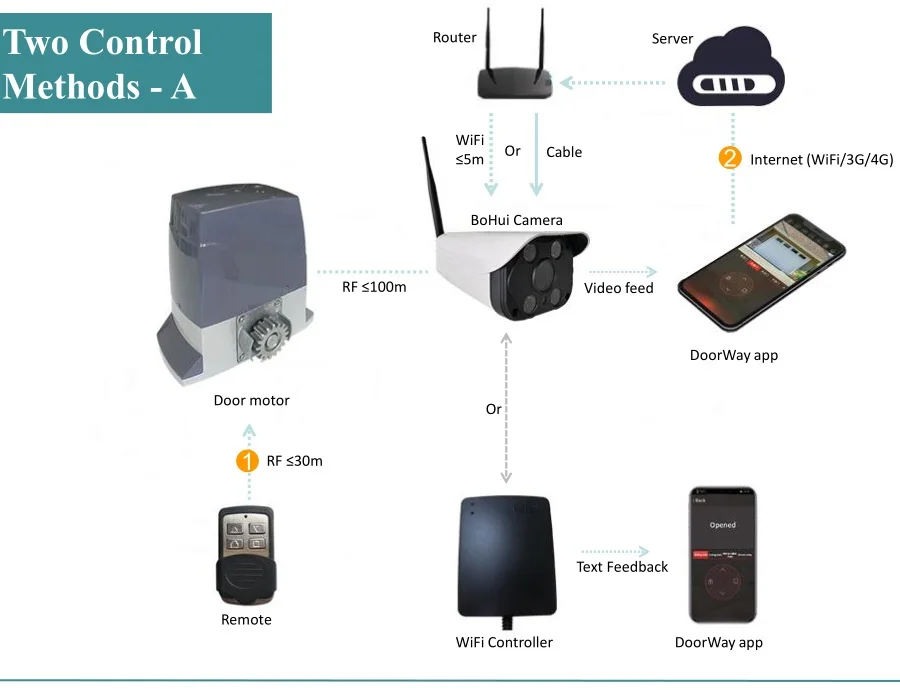

WiFi/3G/4G/5G
BoHui IP camera/controller required
No range limited control: mobile connects to motor through the Internet and controls gate using DoorWay app


Model
BG1000
BG1500
BG2000
BGH1200
Capacity
1000KG
1500KG
2000KG
1200KG
Input Voltage
AC110/220V



Output Voltage
DC24



Motor Power
130W
180W
280W
250W
Output Torque
21N.m
29N.m
47N.m
30N.m
Rotate Speed
1500RPM


2500RPM
Gate Running Speed
12m/min


18m/min
Limit Switch
Spring/Magnetic (NC/NO)



Noise
≤50dB



Ambient Temperature
-45℃~+75℃





Multiple Control Methods












Packing & Delivery

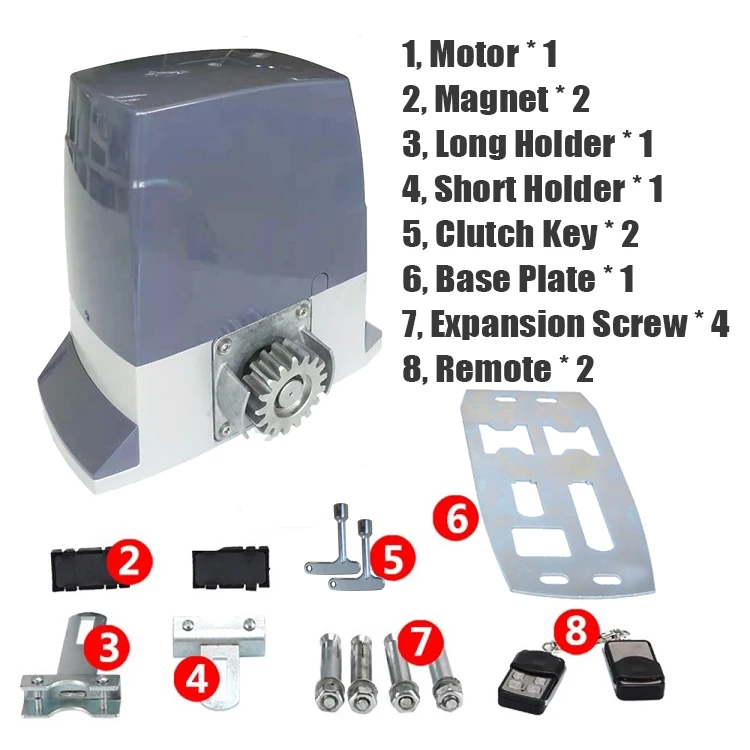

Packing List
1 * Motor
2 * Remote
1 * Set of Installation Accessories
1 * User Manual
Packaging
1 set/ctn with foam
Package Size
37*36*25cm
G.W.
13~17KG
Lead Time
3-5 days for sample orders
5-30 days for bulk orders
Delivery Way
Express (DHL, Fedex, UPS, TNT, EMS, liner, etc.)
By sea
By air




Our Company



Why Choose Bo Hui:

1, [R&D Capability] The key members of Bo Hui company are former R&D engineers from Huawei, MTK, etc.
2, [Advanced Technology] Owning a number of patents, Bo Hui is the pioneer in smartphone door control system and leading the invention of related products.
3, [Complete Product Framework] Server + Hardware + Software, with years' testing and debugging, our product framework is now mature.
4, [Solution Customization Capacity] We provide OEM/ODM services, software development is available as well as hardware development to enable customization of overall solutions.
5, [Considerate Service] We keep perfecting and updating the operation system, and 7*24 after-sale online technical support is available.







Certifications






Exhibition




1. The 22th China (Beijing) International Building Decoration & Building Material Exposition
2. The 13th China Cross-Straits Technology and Projects Fair(CSTPF)
3. The 17th International Building Decoration Exposition
4. The 12th China International & Medium Enterprises Fair
5. The 23th China (Beijing) International Building Decoration & Building Material Exposition
6. The 6th Guangzhou Sunshade Door & Windows Exposition

7. The R+T Asia 2021 Exposition

8. The 11th Sunshade and Door&Window Expo



Contact us


Bo Hui Electronics Technology (Zhangzhou) Co., Ltd.
Add: Public Creative Park, Caikeng Village, Jiuhu Town, Zhangzhou, Fujian, China (363000)

Contact: Eric
Email: eric_doorway@foxmail.com
Skype: live:clearskyrim
Mobile (WhatsApp/WeChat): +86 18050625553
