Price:$37.50 - $42.00

Quantity:


Product Overview

Description



Product Description

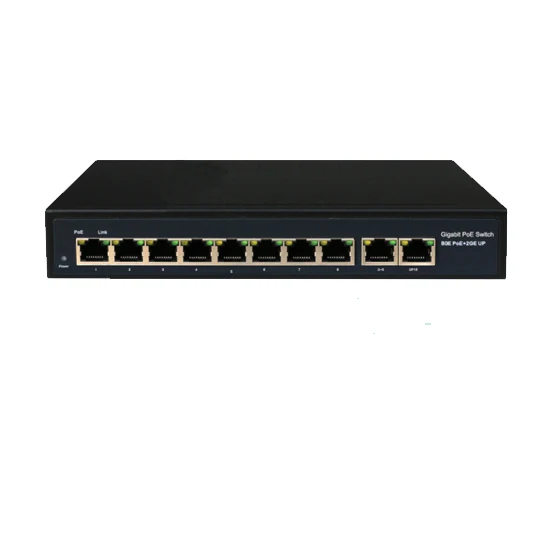

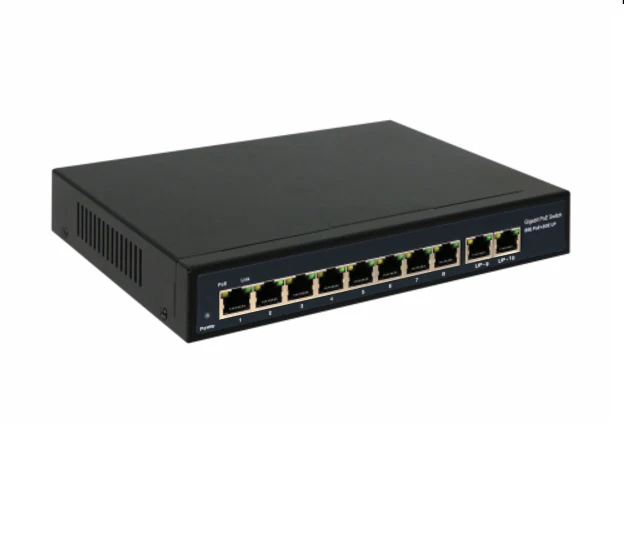

Manufacturer wholesale VLAN 48V 8 port PoE Network switch with built-in power 120W and 2 gigabit uplink ports

8*10/100/1000mbps POE port
2*10/100/1000mbps uplink Port
100m Distance
Vlan support
Support IEEE802.3AF/AT
Whole Power:120W
All port supported by MDI/MDIX auto flip and self negotiation
Supply 8*10/100/1000Mpbs adaptive high speed forwarding data packet non-lost port.
Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
Each port max. power supply reached 30W


Application:
- Wireless Access Point
- IP Camera
- IP Phone
- Computer Networks







HARDWARE FEATURES




Product
8 Port PoE+2G full giga POE Switch (Built-in)
Model
TS8208P-2G
1000M POE Port
1 to 8 support IEEE802.3AF/AT Standard
UP link port
9th_ 10th port support 1000Mbps
Output Power
15.4W/30W IEEE802.3af/at
Power Pin
Both 1/2+、3/6- and 4/5+7/8-
Whole Power
120W
POE Protocol
IEEE 802.3af/IEEE 802.3at
POE Type
End-span
Power Distance
≤150m
Network Standard
IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at
Network Medium
100/1000BASE-TX: 5 class and above non shielded twisted pair
Switch Capability
20Gbps
Forwarding Mode
Store and forward
Forwarding Rate
100Mbps:14880pps
1000Mbps:14800pps
MAC Address
MAC address table 8K
Port Function
Power priority mechanism, fast and forward, MAC automatic learning and aging

IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
LED Indicator
Each port occupied 1 LINK/ACT.1000Mbps,

POE Status Indicator, Whole power indicator
Working Environment
Working temperature: 0°-- 55°C
Input
AC 100-240V 50/60HZ
Weight
1.5kg
Dimension
210mm*140mm*45mm(L*W*H)


Detailed Images




GXCOM Company


Company info.

6 years  experience of Manufacturers of Network POE Equipments

Established in 2010, GXCOM Technology (Guangzhou) Co. Ltd specializes


PoE switches, PoE injectors, EPON ONU, EPON OLT, PoE extenders, Ethernet extenders, and Ethernet switch etc.
