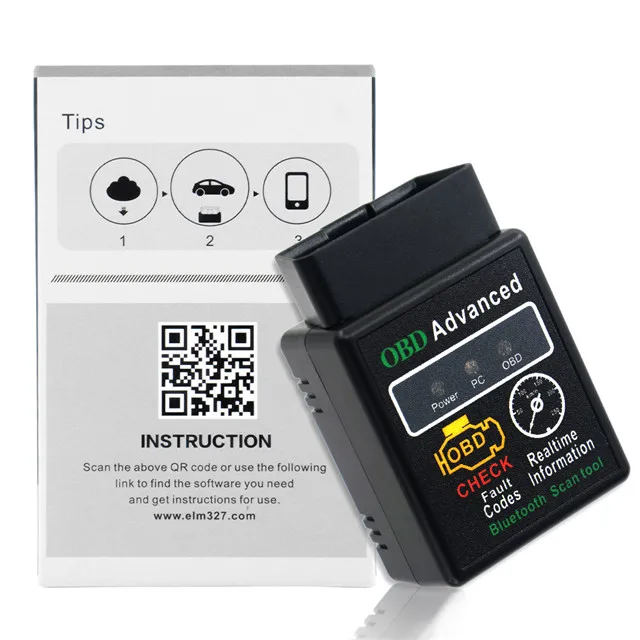

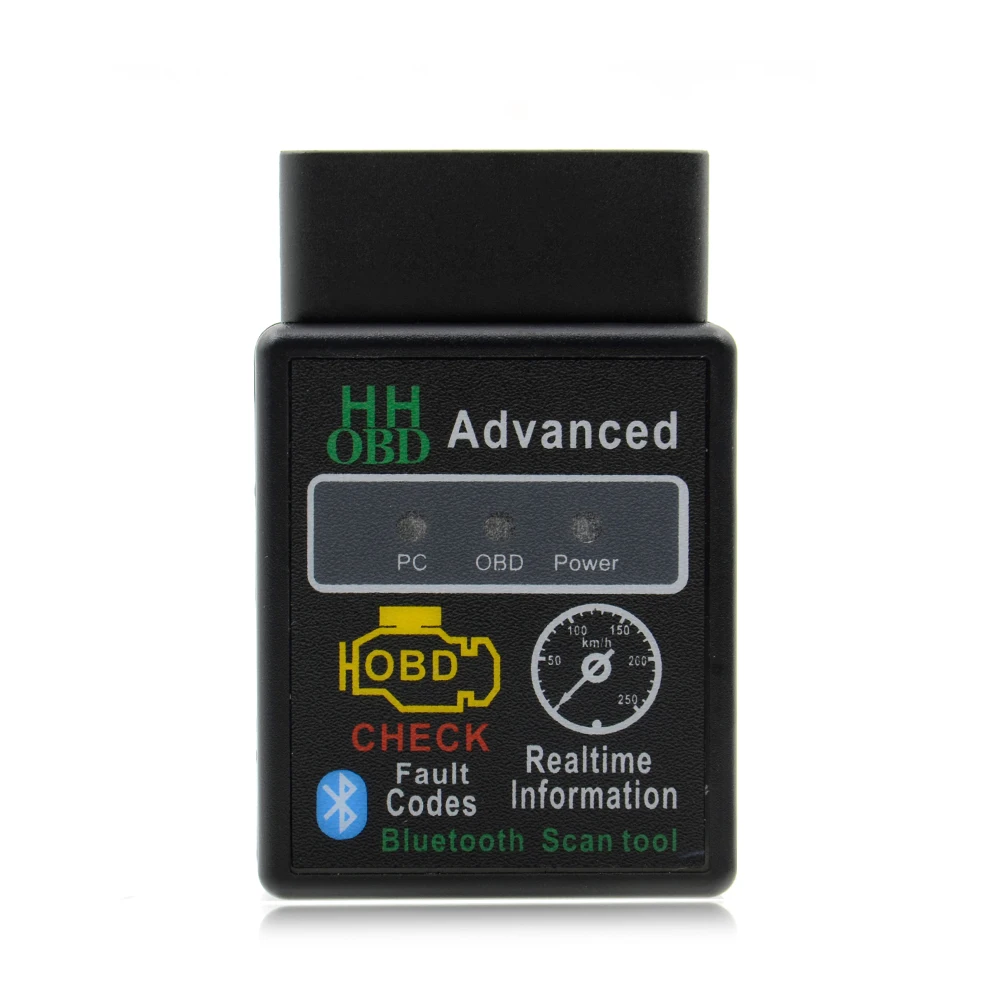

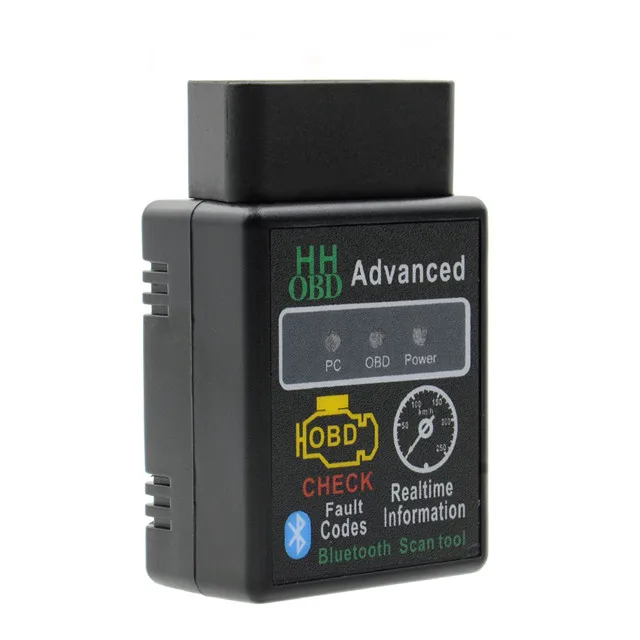

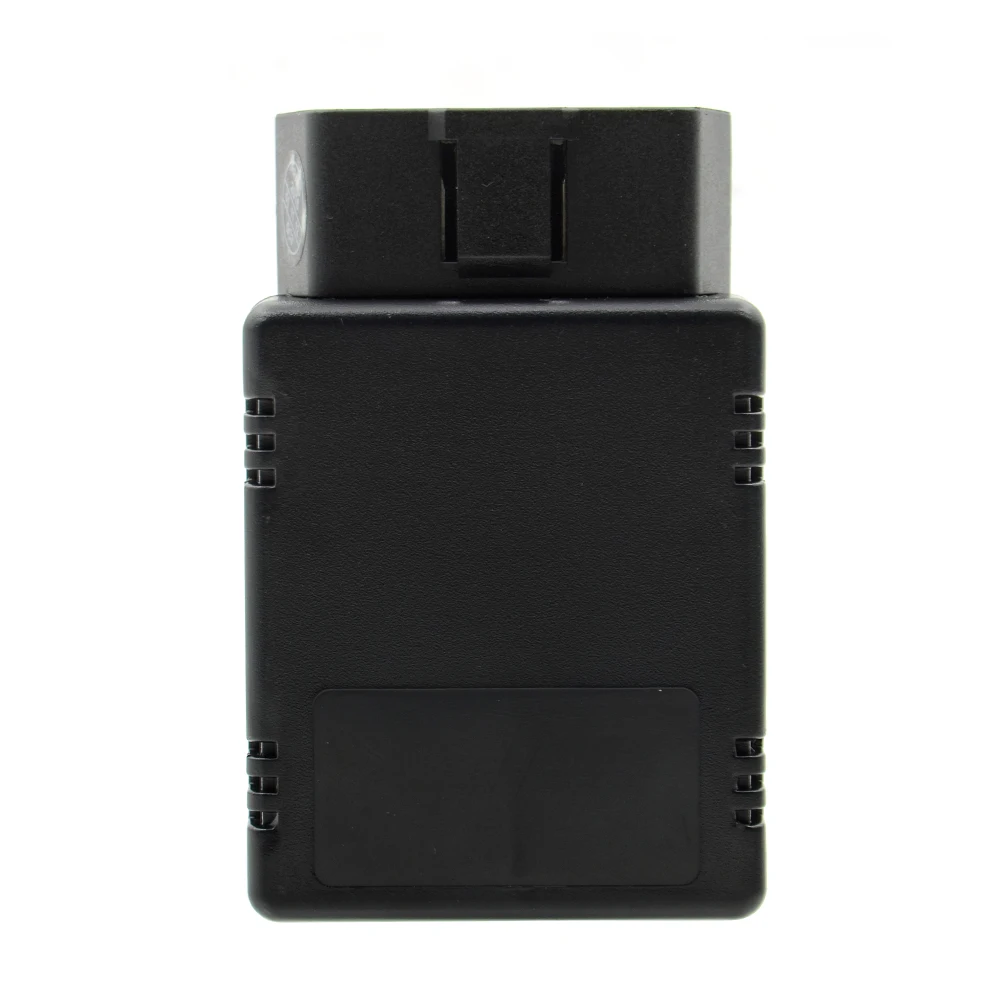

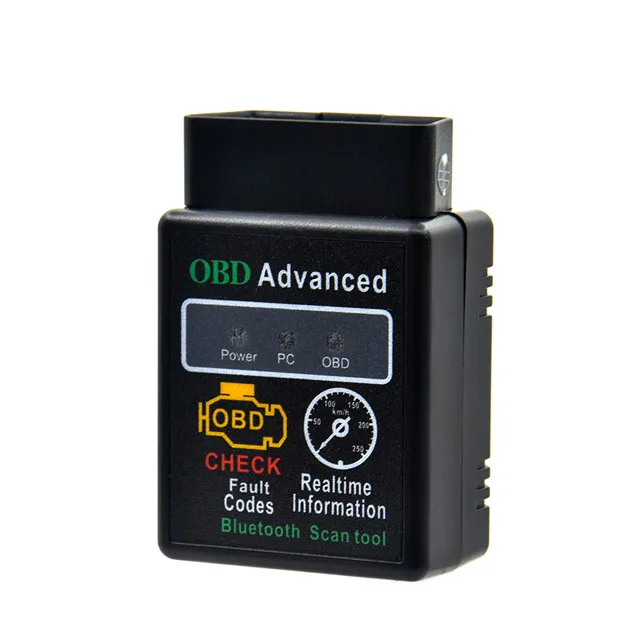

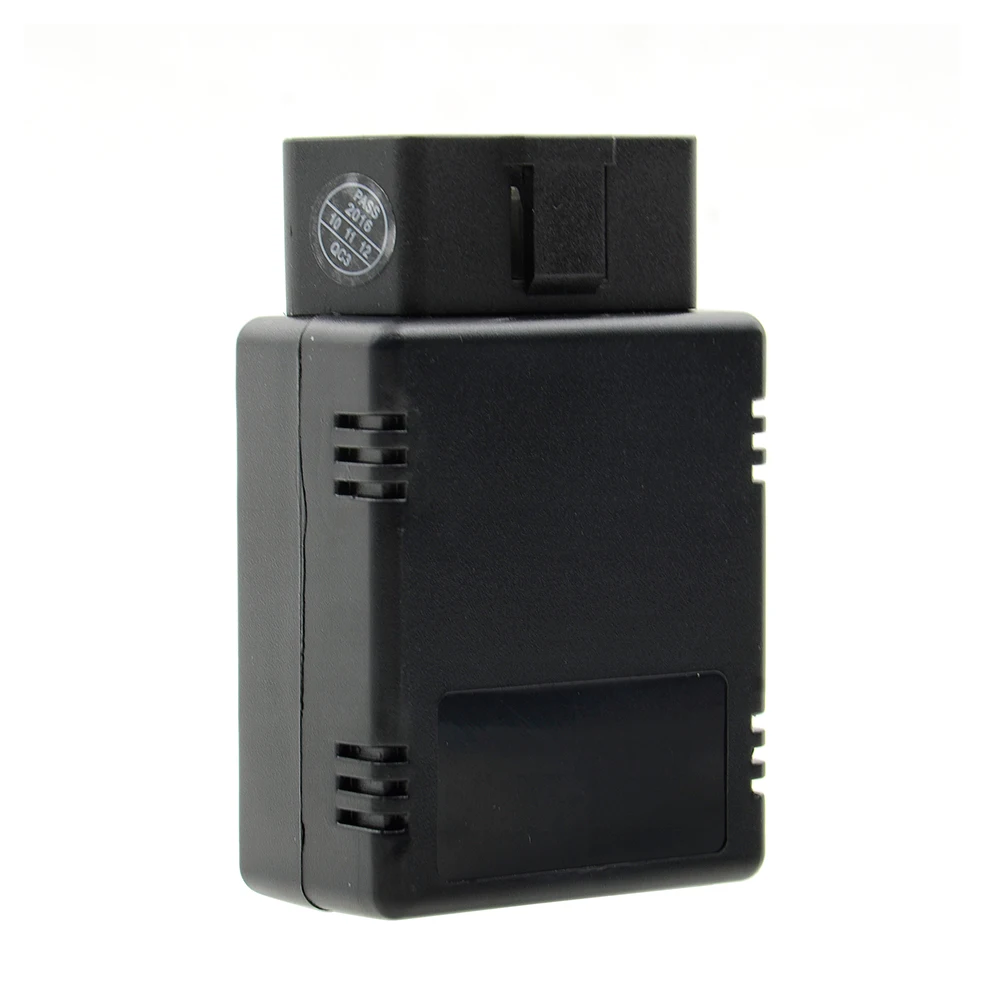

Высококачественный HHOBD Расширенный ELM327 OBD2 V2.1 считыватель кодов Сканер для автомобильного диагностического инструмента ELM 327 V2.1 V1.5
- Category: Vehicle Tools >>>
- Supplier: Shenzhen Kingobd Electronic Tech Co. Ltd.
Share on (62140459890):
Product Overview
Description
High Quality HHOBD Advanced ELM327 OBD2 V2.1 Code Reader Scanner for Car Diagnostic Tool ELM 327 V2.1 V1.5
Product Description
V2.1 Mini ELM327 OBD HH OBDII Protocolos OBD2 Car Diagnostic Scanner
Top 5 Reasons to Get V2.1 Mini ELM327 OBD HH:
1.This is a vehicle diagnostic tool interface scanner, which is is used to read trouble codes, clear trouble codes and detect fuel pressure and so on.
2.OBDII Software for ELM327 is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.
3.The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go.
4. To uninstall the program, simply delete the entire contents of the folder where the program resides.
5.The software supports four platforms - For DOS/Windows/Android. This product is a non-oem, generic product.
Notice: This device can't work with IOS system.
Notice: This device can't work with IOS system.

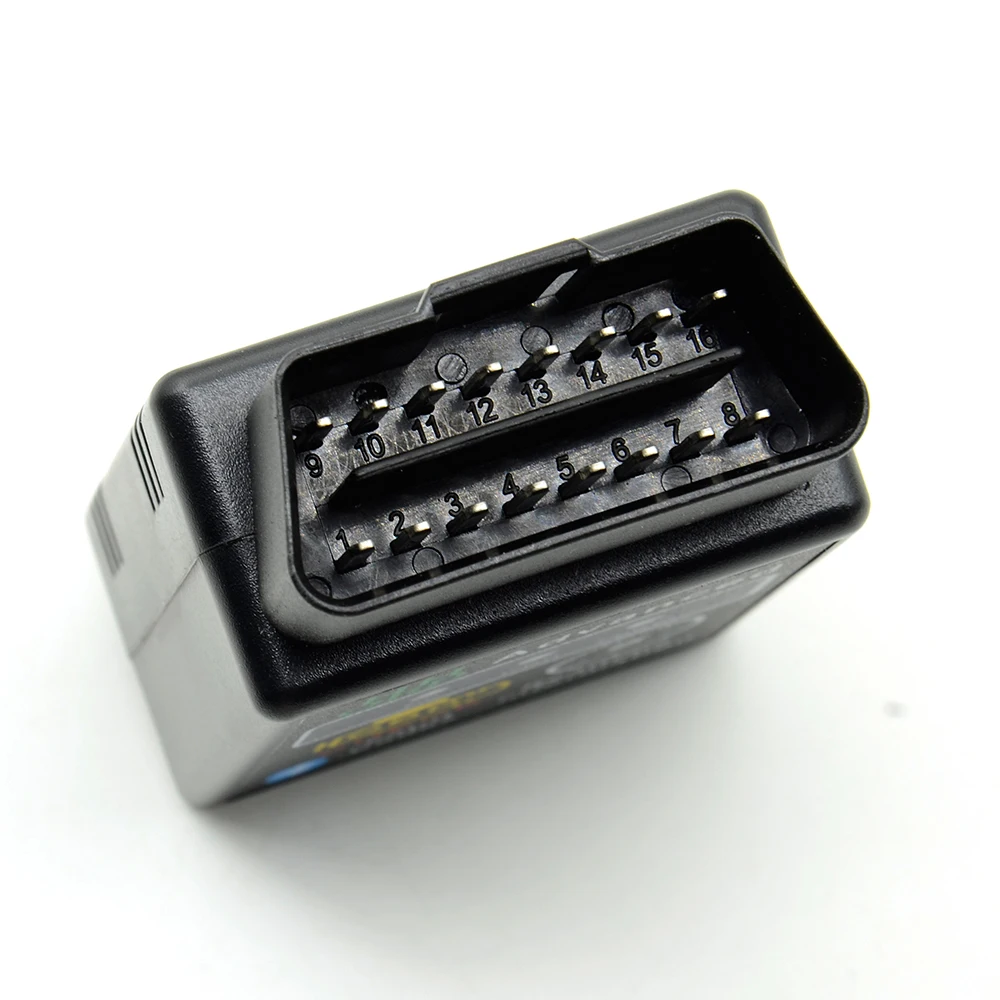

Mini ELM327 is the newly developed wireless scan tool. It supports all OBD-II protocols:
• Works with all OBD-II compliant vehicles
• Wireless
• Software included for Palm, PDA
• Software included for Windows PC
• Software included for Windows Smartphone
• Supports ISO 9141, KWP2000
• Supports SAE J1850
• Supports CAN bus
V2.1 Mini ELM327 OBD HH Car Diagnostic Scanner Specification:
Support OBD-II protocols as follows: * ISO15765-4 (CAN) * ISO14230-4 (KWP2000) * ISO9141-2 * J1850 VPW * J1850 PWM
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
Device type: Car bluetooth read interface scanner
Interface type: Auto ELM327 V1.5 interface
V2.1 Mini ELM327 OBD HH Car Diagnostic Scanner Free Software:
1. Scantool.net
2. GM Mode 22 Scan Tool by Terry
3. OBD Gauge for PalmOS and Pocket PC by Dana Peters
4. OBD Logger by Jonathan Senkerik
5. OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)
6. obd2crazy.com
7. OBD2 Scantool by Ivan Andrewjeski
8. OBDII for ELM322 by David Huffman
9. pyOBD by Donour Sizemore for MacOSX and Linux
10. RDDTC by Pete Calinski
11. Real Scan by Brent Harris
12. ScanTest for Pocket PC by Ivan Ganev aka a-ser
13. OBD by WDT
V2.1 Mini ELM327 OBD HH Car Diagnostic Scanner Functions:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many others
Package List:

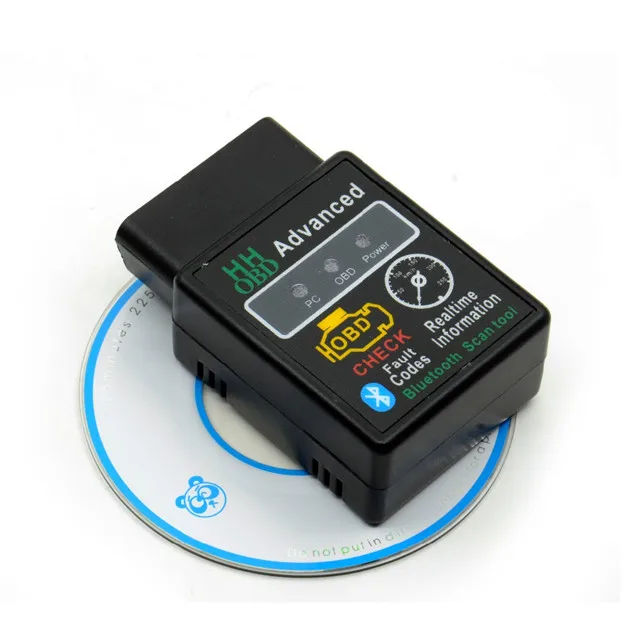

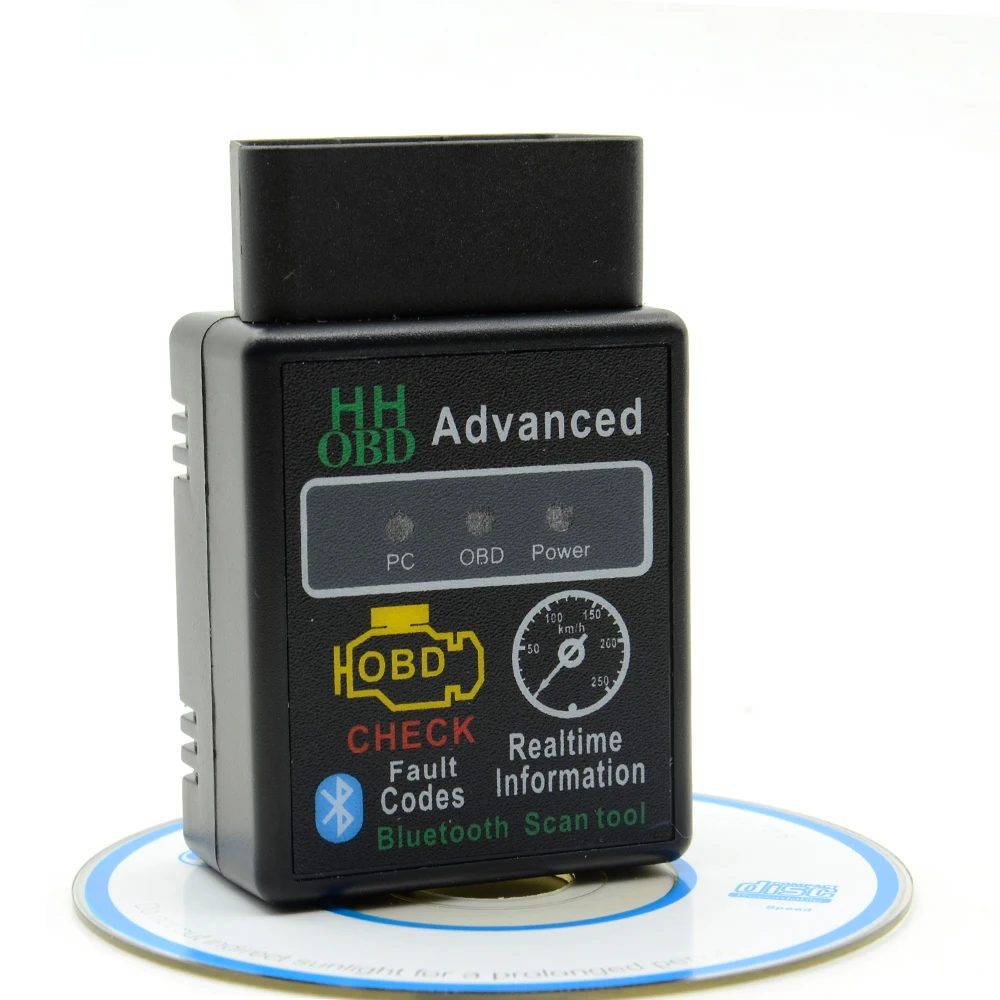

1pc x ELM 327 OBD HH Mini V2.1
1pc x CD Driver
