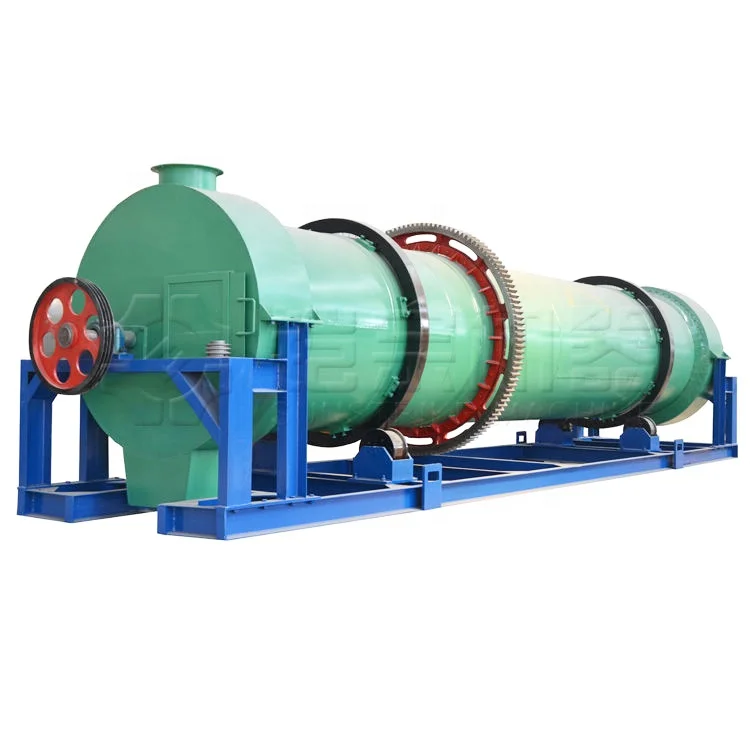

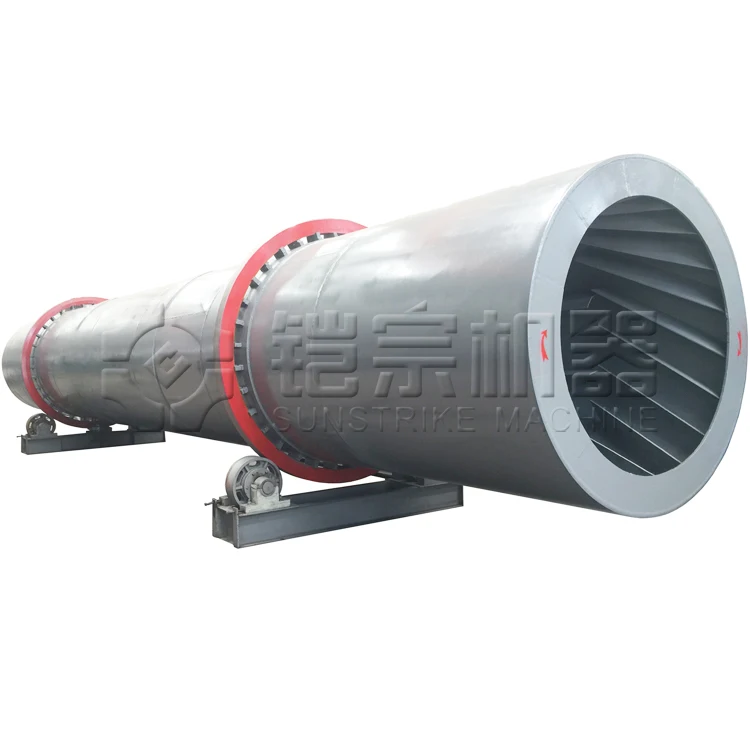

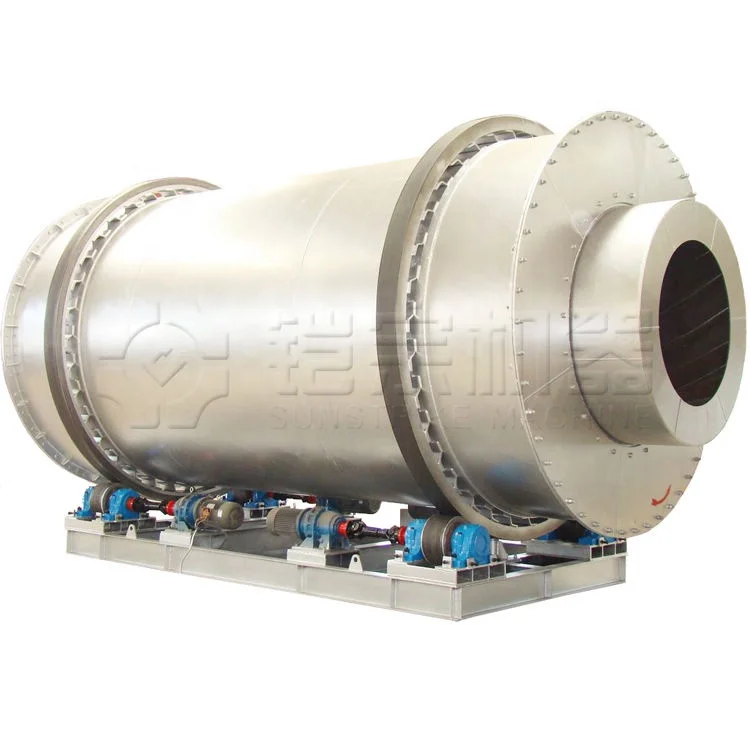

Cement Slag Horizontal Rotary Dryer Riding Rings with Competitive Price
1.Cement Slag Horizontal Rotary Dryer Riding Rings Brief Introduction

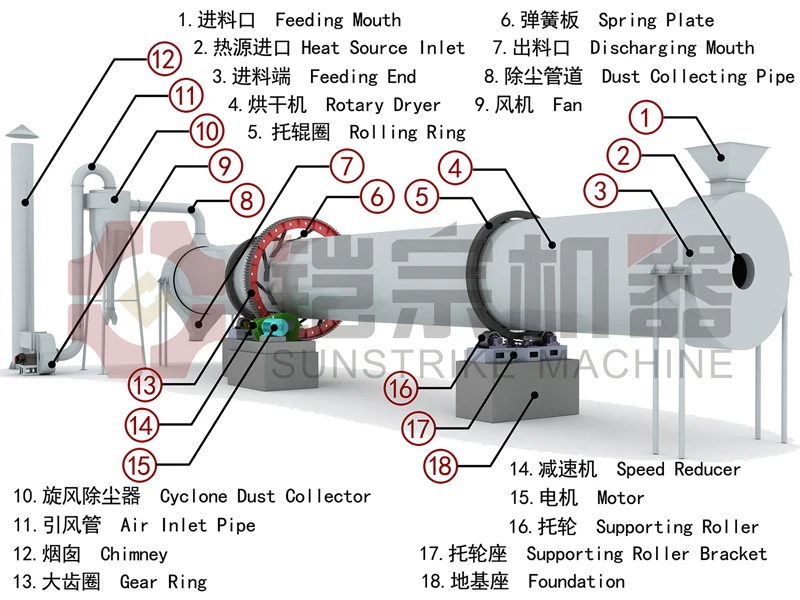

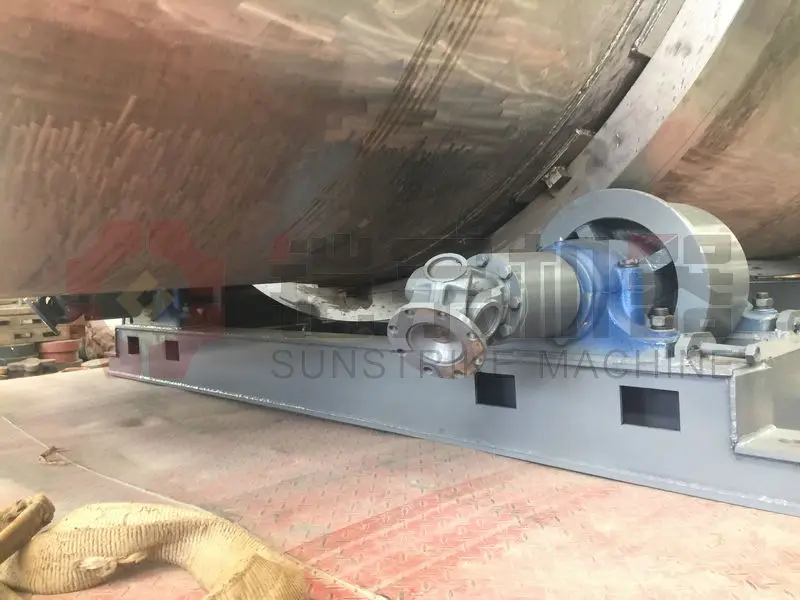

Rotary Dryer is mainly consist of rotary body, raw material feeding plate, driving and supporting device, etc.

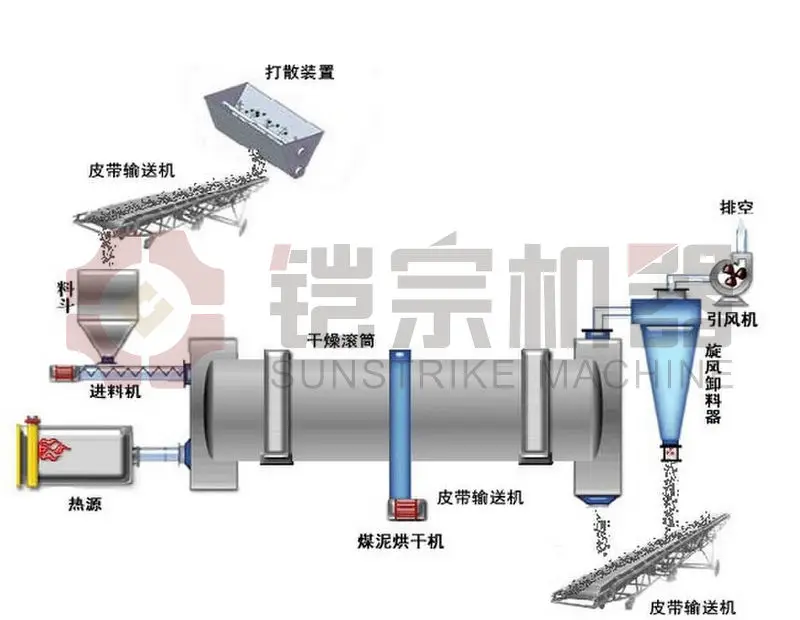

Its principle of operation: the raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder.
Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dryed.
2.Cement Slag Horizontal Rotary Dryer Riding Rings Main Advantages
1. Rotary dryer is widely used in such industries as fodder, chemistry, medicine and mine.
2.The working process of alfalfa rotary dryer goes like this: the moist materials whose water has been drained go into the dryer machine, under the rotation of the lifting board evenly installed inside the roller
drum, the materials will be evenly scattered inside the drying machine and carry out sufficient contact with
the hot air, thus accelerating the heat transfer and mass transfer.
3.In the drying process, under the lifting board with a certain inclination and the heat media, the materials
will move to the lower end of alfalfa rotary dryer and be discharged.
4. Rotary dryer for sale is suitable for drying residue materials whose water content is below 85% such as brewer’s grain, bean dregs, guniting corn bran, slurry and pomace, so that it has excellent effect for opening up fodder resources, reducing the feeding cost and reduce environment pollution.
3.Cement Slag Horizontal Rotary Dryer Riding Rings Drying Process:
The best moisture content to pelletizing is about 13-15%. Our rotary dryer is made up of Stove and Main Rotary Dryer, which can realize to reduce the moisture from 60% to 10%. Our stove is fueled by sawdust, wasted wood, coal, which can save electricity consumption largely.
Our is specially designed for energy saving purpose, the outside of the dryer is covered with special cotton material sheet to prevent the heat outrunning.
4.Cement Slag Horizontal Rotary Dryer Riding Rings Technical Parameter:
| Model | Shell diameter (mm) | Shell length (mm) | Slope(°) | Rotary speed(r/m) | Weight(t) | Power (KW) | Volume (m3) |
| Φ0.6×8 | 600 | 8000 | 3-5 | 8 | 5.1 | 4 | 2.26 |
| Φ0.8×10 | 800 | 10000 | 3-5 | 7.2 | 6.9 | 4 | 5.02 |
| Φ1.0×10 | 1000 | 10000 | 3-5 | 6.73 | 7.5 | 5.5 | 7.85 |
| Φ1.2×12 | 1200 | 12000 | 3-5 | 5.8 | 13.1 | 11 | 13.31 |
| Φ1.5×12 | 1500 | 12000 | 3-5 | 4.8 | 22.3 | 15 | 21.2 |
| Φ2.2×14 | 2200 | 14000 | 3-5 | 3.2 | 52.8 | 30 | 53.22 |
| Φ2.4×18 | 2400 | 18000 | 3-5 | 3 | 73.3 | 37 | 81.43 |
| Φ2.8×24 | 2800 | 24000 | 3-5 | 2.59 | 97 | 75 | 141 |
| Φ3.0×20 | 3000 | 20000 | 3-5 | 2.6 | 102 | 90 | 147 |
| Φ3.0×25 | 3000 | 25000 | 3-5 | 2.6 | 110 | 110 | 178 |

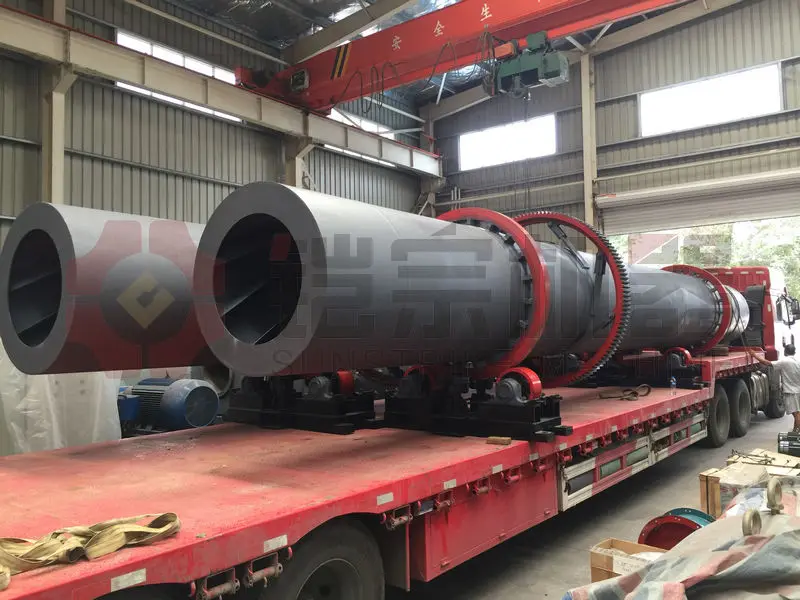

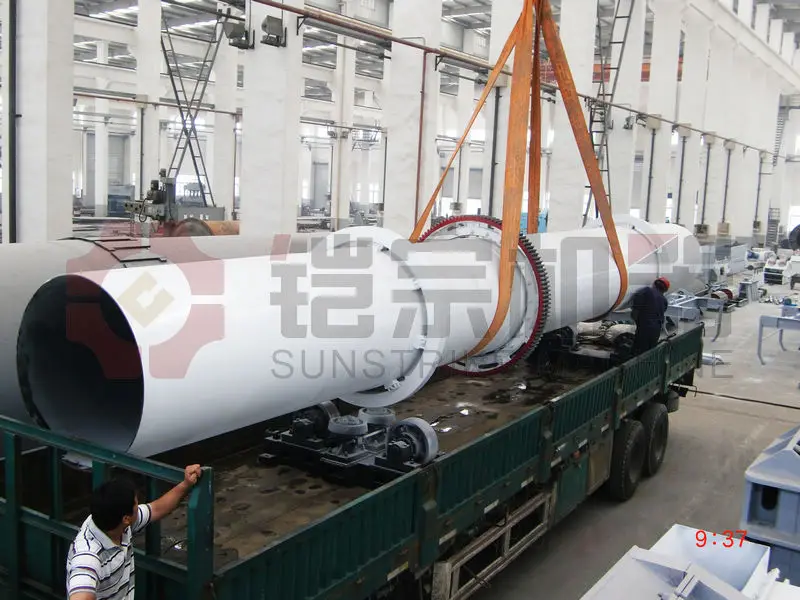

Rotary Dryer Delivery:
