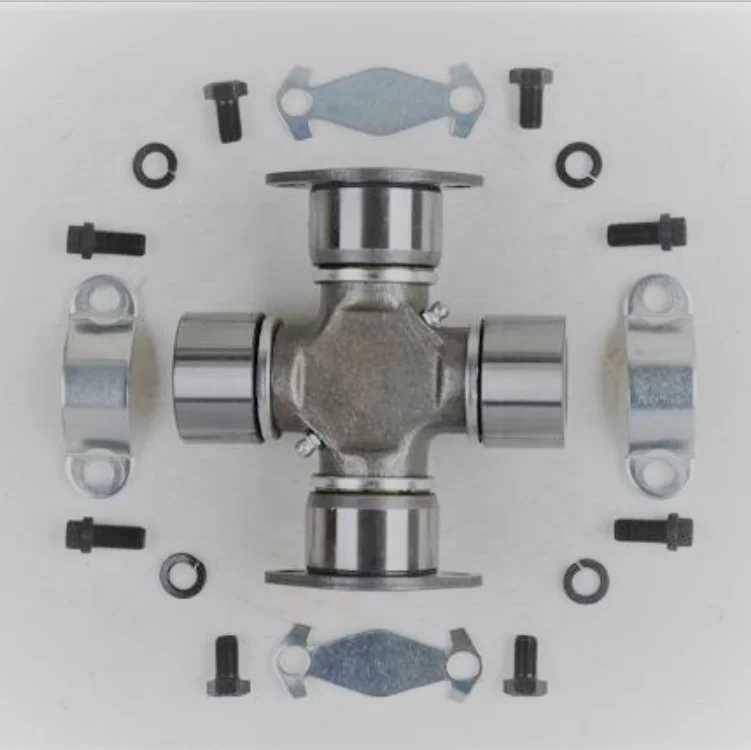

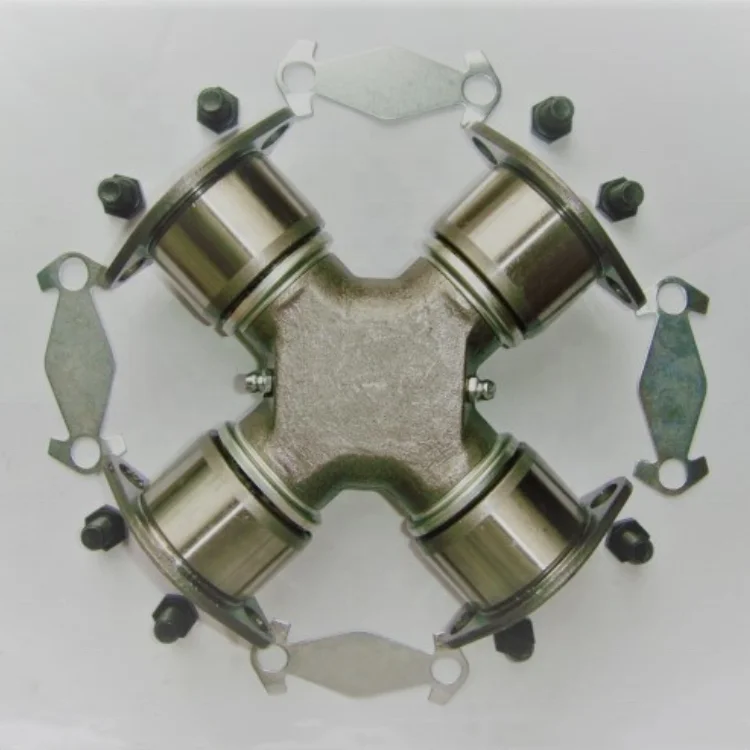

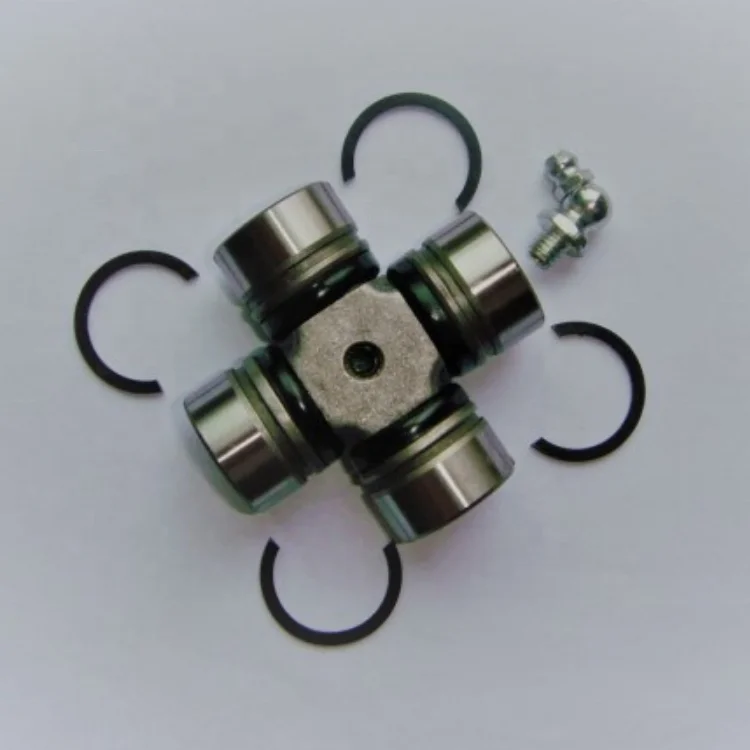

IS9670 5 6106X automobile universal Joint,cardan shaft u joint

Product Overview

Description

IS9670 5-6106X automobile universal Joint,cardan shaft u joint



2. Application:
     A power transmission universal joint cross assembly is widely used in automobile types including: middile and high end salon, off-road vehicles, most of the trucks, agriculture machinery, mine and heavy-duty machine, specifical purpose vehicles

3.  Feature:
     A universal joint is fitted between the driveshaft and the differential axle to transmit power through the axis of rotation. Perfectly smooth rotation is required, in order to handle the constantly changing angles of the rear axle caused by the vertical movement of uneven surfaces transmitted through the suspension system. In other words, a universal joint efficiently transmits power through both fixed and fluctuating angles. Moreover, since the universal joint is lightweight and compact with superior durability, it has proved to be a safe and positive product for power transfer in Automotive and Industrial applications. In recent years, we have been working to develop and produce the press type bearing which is aimed at improvement in intensity and durability and reduces cost further.

4. Structure:

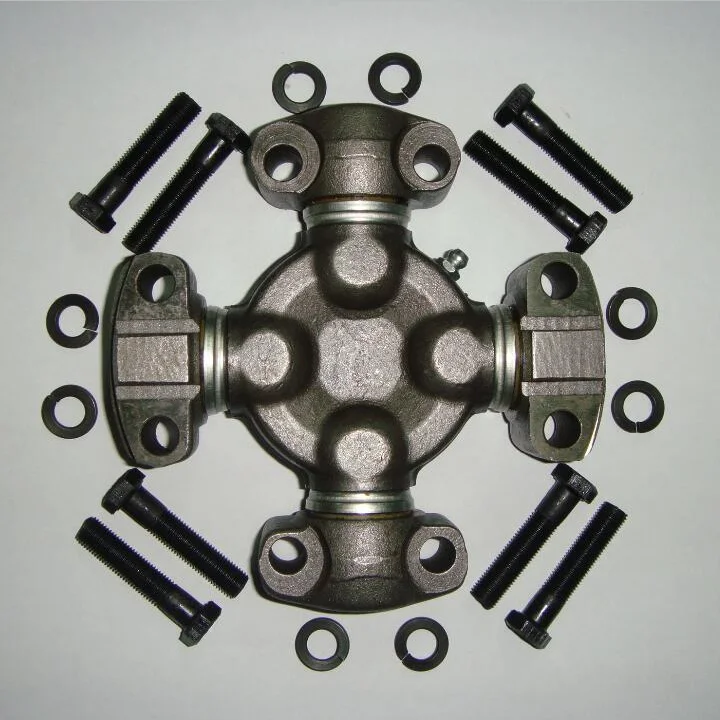

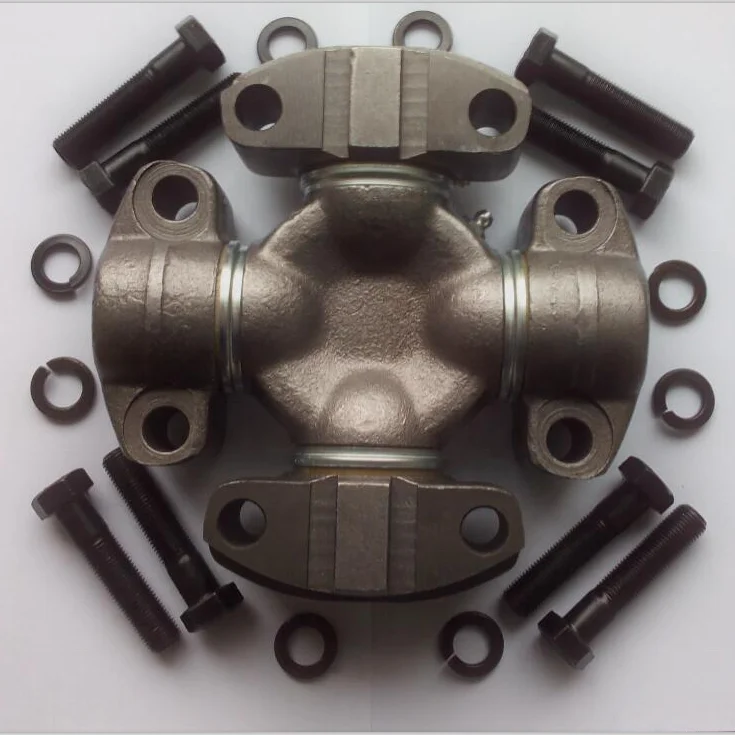

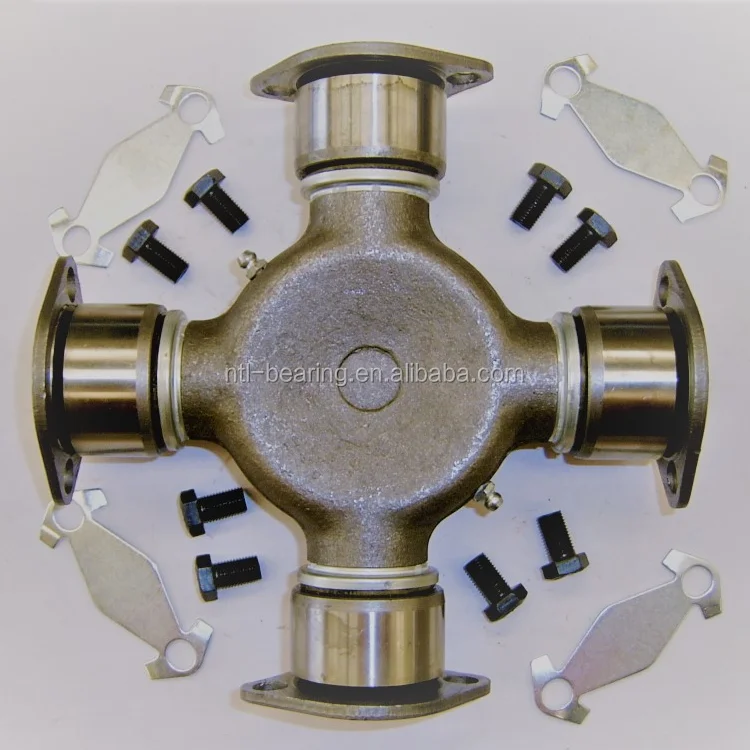

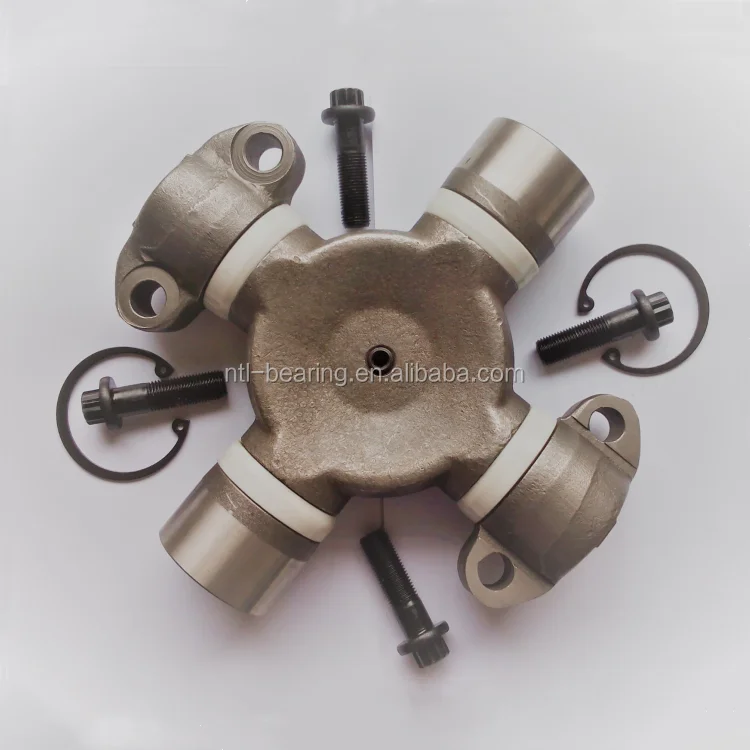

     A universal joint has four needle roller bearings that provide the strength and life which is most important and both the axes of the spider are inserted into two yokes. In the bearing, a seal is located to prevent dust, water, etc.from ingress and to prevent grease egress. For heavy duty vehicles with high torque transmission, such as large size vehicles and various industrial machine vehicles, a wing type (3 kinds: block, wing, delta) is used. Bolt-fastening mechanism and key-way are incorporated to the bearing and a precise circle is on its back. By receiving the torque through the key-way, even if a bolt is loosely tightened, the shearing stress does not apply to the bolt.





Qty control:

1.certification:ISO9001:2008

2.Very strict testing with advanced equipment

3.Hardness test after Heat Treatment

4.Final Dimension Check



Raw material:

1.20Cr for small and medium size u-joint

2.20CrMnTi for big size universal joint

3. Gcr15 for universal joint bearing



Models:

We supply all size  Unversal  Joint KIT/CARDEN Bearing if any needs pls  send inquiry to us.There are some models as belows are for your reference.





FIG	Part No.	D mm	O mm	L mm	Spicer	Precision	GMB
A	GUN26	23.82		61.3	37125 -11975	N2461	UJ110
A	GUN30	30.17		90.1	37125-85461	N3092	UJ115
A	GUN32	35.5		119.2	37125-58026	N36119	UJ117
A	GUN33	43		128	37125-99901	ND43128	UJ119
A	GUN36	25		77.6	37125-4101	NP2578	UJ120
A	GUN44	20.5		56.5	37125-99000		UJ124
A	GUN45	20.07		52.4	37125-H8500
A	GUN47	27		81.75	37125-25025
A	GUN48	27		81.75	37125-7F025
A	GUS2	20.02		35	27100-67000
A	GUS6	20.1		59.8	27200-60511
A	GUS7	25		63.8	27200-83010
A	GUSR-3	28		52.6	6232-4300
A	GUT-11	20		57	04371-10011	T2057	UJ212
A	GUT-14	28.5		77.9	04371-60010	T2978	UJ214
A	GUT-15	34		107	04371-55011	T34107	UJ216
A	GUT-16	40		118	04371-55020	T40119	UJ215
A	GUT-19	20		57	04371-10010	T2057	UJ222
A	GUT-22	40		118	04371-55021
A	GUT-24	22.06		57.5
A	K5-13XR	26.99		81.76
A	K5GB10R	30.188		106.35
A	K5L4R	27		74.6
A	KC2832ADW	40		115.6
A	KC2932ADW	44		129
A	S-E129	41.27		126
A	S-F365	55.03		164
A	S-F366	60.03		162
A	SPL140-1X	49.22		139
A	SPL170-1X	55		165
A	SPL250-1X	60		163
A	SPL70-1X	34.9		126.1		CZ256
A	SPL90-1X	41.28		126		CZ271
A	U040	23.8		61.3	5-101X/502X	340	UJ040
A	U050	23.8		61.3	5-102X/5-111X	341	UJ050
A	U080	26.94		61.85	5-310X	437G	UJ080
A	U100	27		81.8	5-153X/5-204X	329/521	UJ100
A	U110	27		74.6	5-94X	344	UJ110
A	U126	16.05		40	ST1640	-	UJ126
A	U180	20		57	5-1500X	395	UJ180
A	U189	40		118	GUT16		U189
