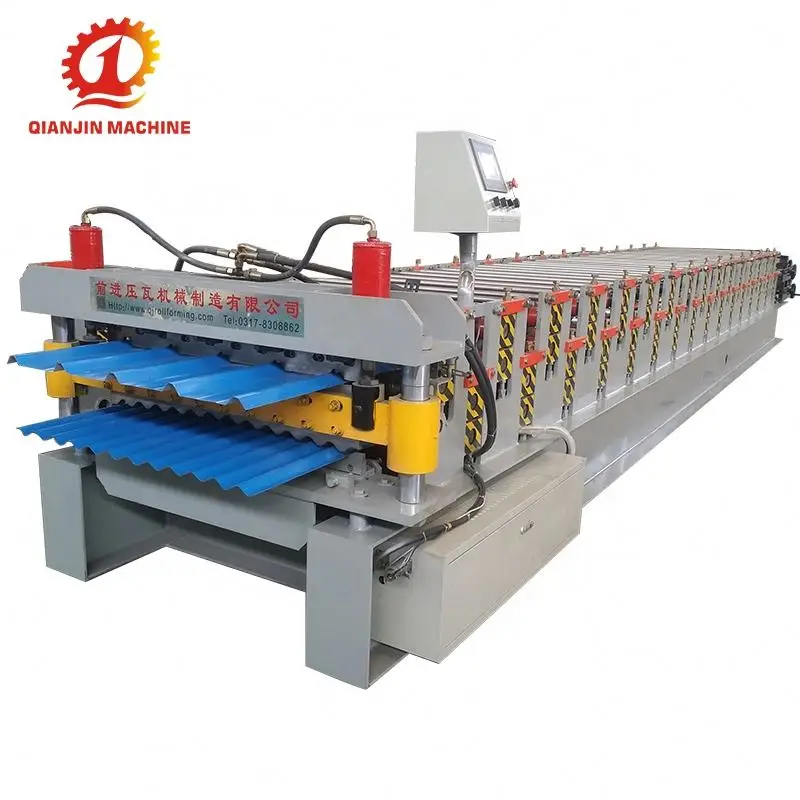

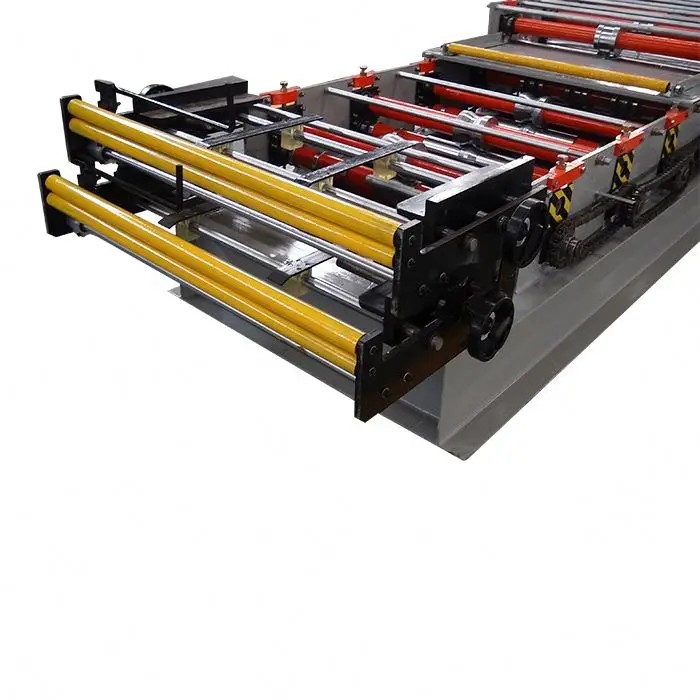

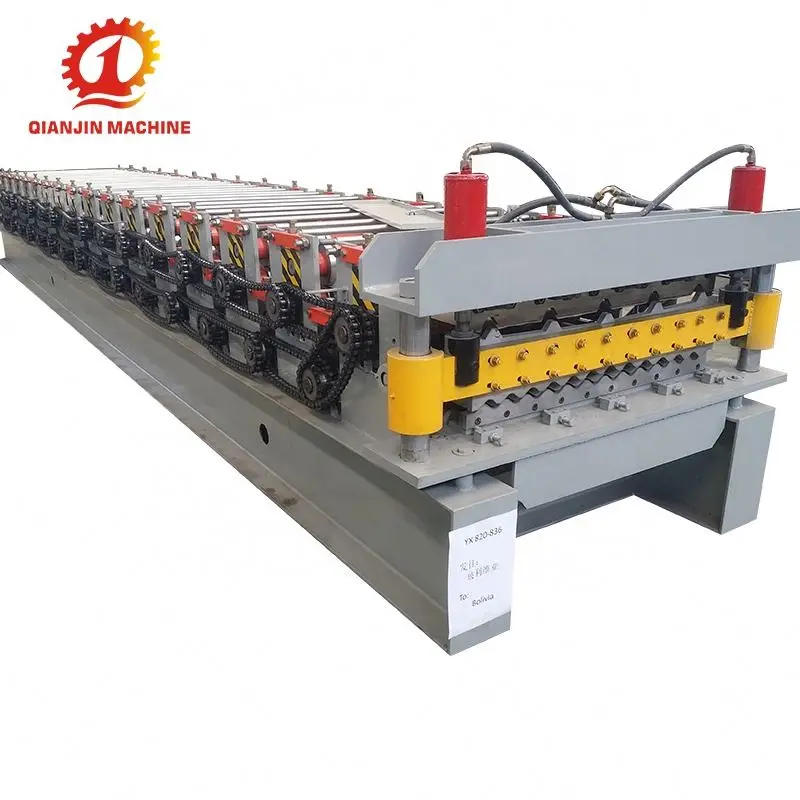

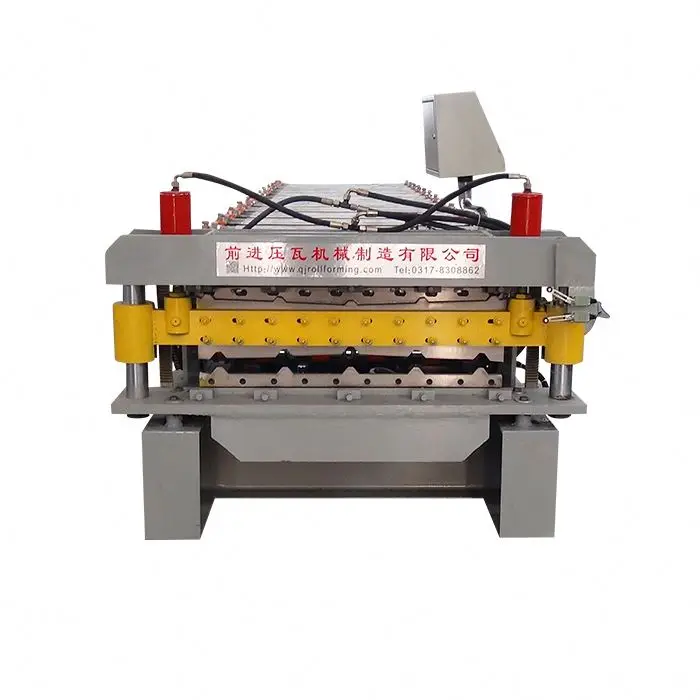

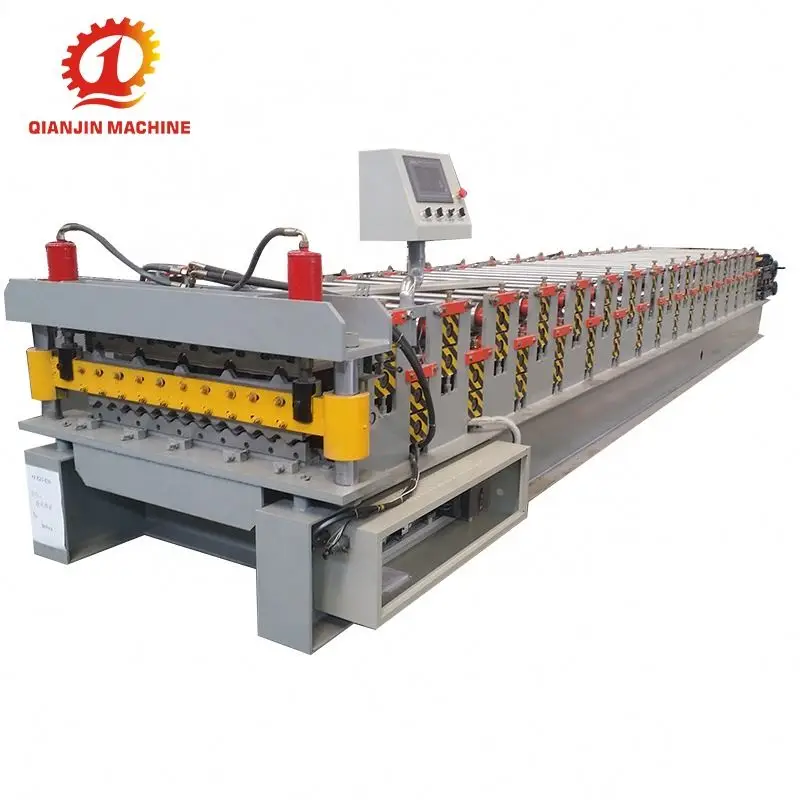

Double Deck Concrete Roof Tile Aluminum Steel Floor Rolling Forming Machine For Wooden Guard House
Forming Speed: 12-15m/min
Voltage Standard: As customer's request
Motor Power: 5.5kw+3kw
Roller Station: 13/ 16
Shaft Diameter: 70mm Solid
Shaft Material: 45# hard steel
Roller Material: 45# hard steel
Under Frame: 350 H-beam
Sidewall Thickness: 16 mm
Transmission: 1 inch chain
Pre-cutter Material: Cr12Mov
Cutting Type: Hydraulic Stop to post & Post to cut
Cutting Die Material: Cr12Mov
Control Method: Touch screen +PLC
Auxiliary Device: 5t manual decoiler 3m exit rack
Coil Material: PPGI /PPGL
Coil Thickness: 0.3-0.6mm
Feeding Width: 1000mm
Operation Flow
Main Components:
Production Flow
Trade Shows
Company Information
Packaging & Shipping
Sale Terms
Payment Method
30% as deposit ,balance payment after inspection while before delivery.
Production Period
30 days after the 30% deposit.
Packing Method
Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.
After-sell Service
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation
If installation is needed, the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist the seller to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.
Position the machine in the buyer’s factory.
Prepare necessary electric wiring.
Prepare material of trial running.
Provide labors for assistance and installation during installation.
