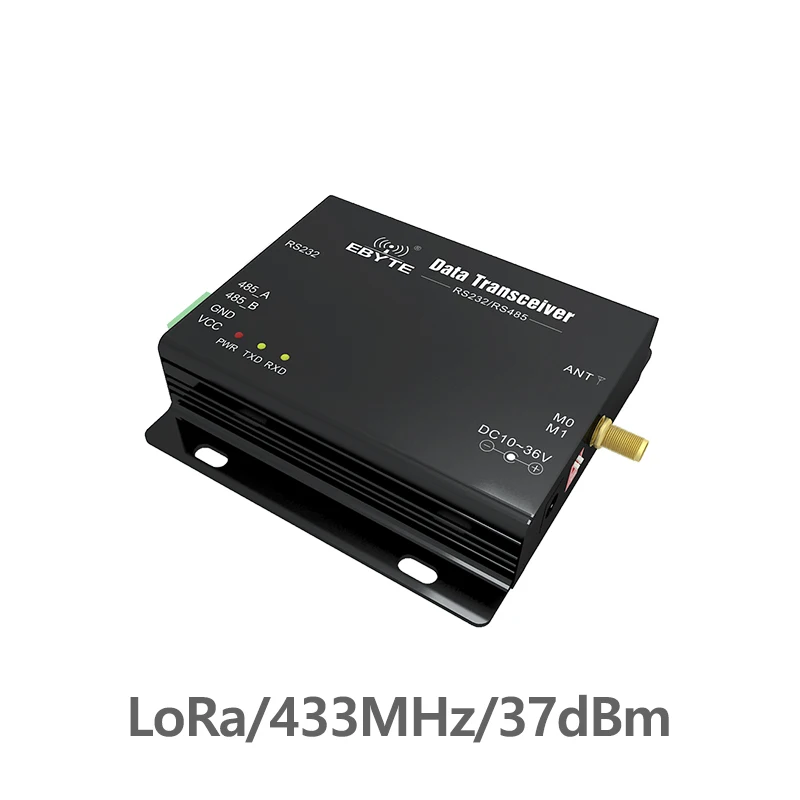

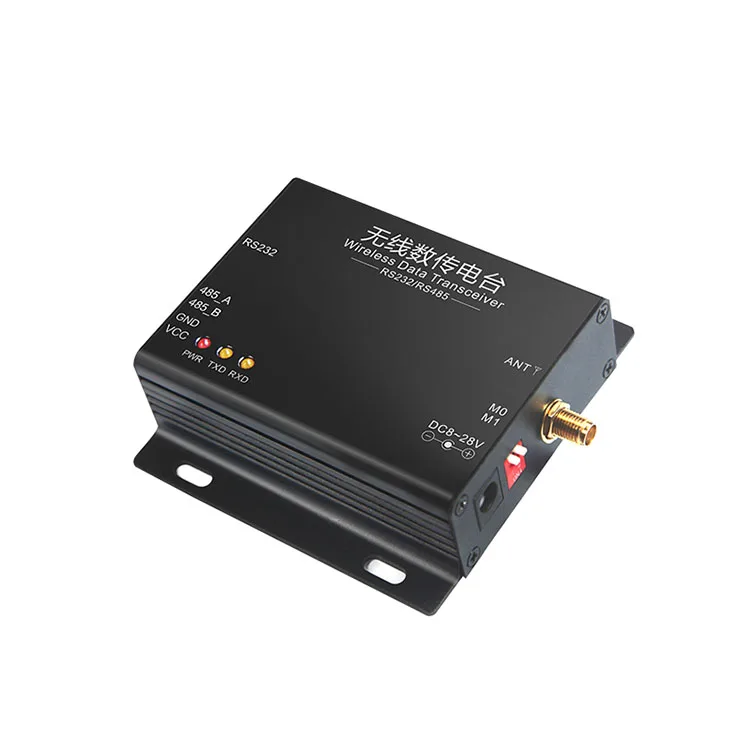

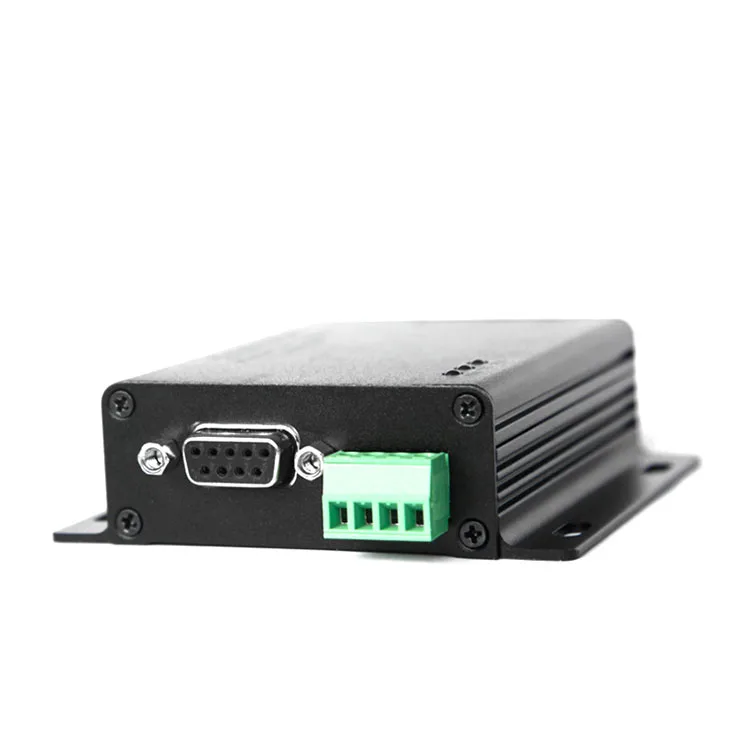

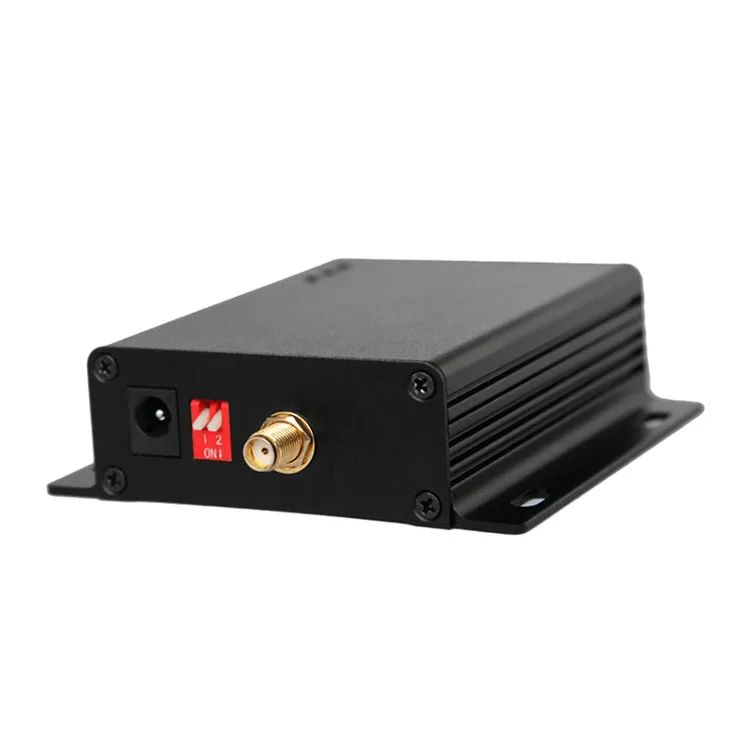

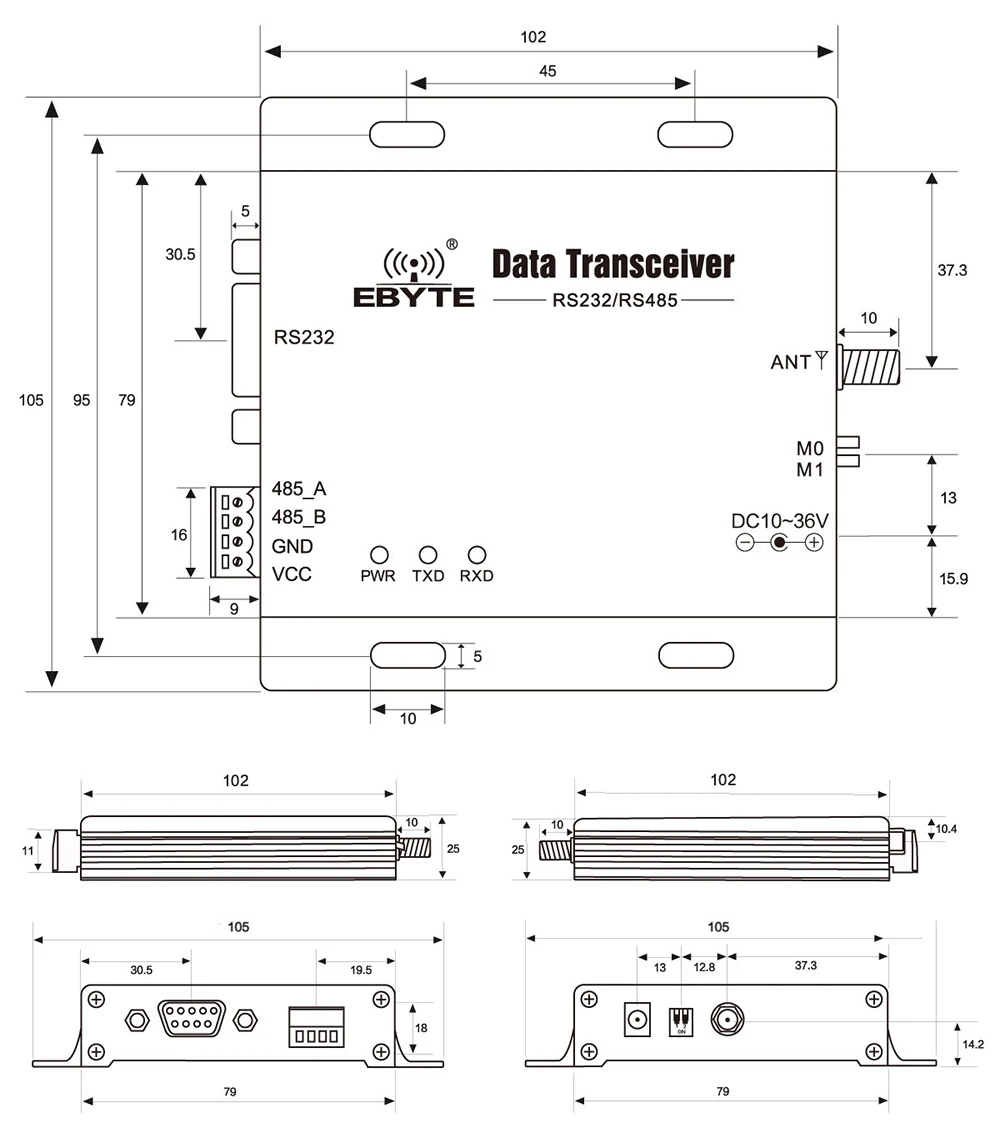

E32 DTU(433L30) TX RX lora modems 433mhz wireless data transceiver 20km long range transmission industrial iot modem
- Category: >>>
- Supplier: Chengdu Coogex Electronic Technology Co. Ltd.
Share on (62140618089):
Product Overview
Description
Product Description
5W wireless transmitter TX RX lora modems 433mhz wireless data transceiver 20km long range transmission industrial iot modem
| RF Parameter | Value | Remark |
| Working frequency | 410~441MHz | Default: 433MHz |
| Transmitting power | 37 dBm | About 5W |
| Receiving sensitivity | -130 dBm | Air data rate: 2.4kbps |
| Air data rate | 0.3k~9.6kbps | Default: 2.4kbps |
| Test distance | 20000 meter | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 2.4kbps |
| Electronic parameter | Min. | Typ. | Max. | Unit |
| Power supply | 10 | 12 | 28 | V |
| Transmitting current | 945 | 1050 | 1155 | mA |
| Stand-by current | 40 | 44 | 49 | mA |
| Operating temperature | -40 | 20 | +85 | ℃ |
| Operating humidity | 10 | 60 | 90 | % |
| Storage temperature | -40 | 20 | +125 | ℃ |
User Manual Support
Recommend For You
Our Services
Company Information
Cojxu is a high-tech company focused on IoT solutions, specializes in the developing and manufacturing wireless products such as Industrial DTU,UART Module,SPI Modul,Data Radio,PKE Module,Development Kits(Antenna,Multi-functional Adapter,Downloader and CC Debugger etc)
Our company owns a number of independent research&development products and obtain unanimously approved customers.with powerful R&D team and marketing team.
Cojxu always provide customers with perfect After-sales service and technical assistance.
Packaging & Shipping
1. Delivery will be arranged by DHL/UPS/Fedex/TNT/EMS,normally it will take 3-7 working days to arrive in most countries.
2.We can also help you ship the goods by air line,then you need to go to Air port totake it ,it takes about 2-7 days to arrive ;
3.If goods are large quantity and you not need the goods so urgently ,you can choose by sea to save some freight cost which takes about one month to arrive.
4.We can accept the payment method such as Paypal/Credit card/ L/C and T/T
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to your requirements.
Q3.Whether the product can be customized logo?
A3.For bulk orders, we support custom logo.
Q4: What about the delivery time?
A4: For regular order it takes about 3-6 days for production, for mass order or customized order it may need 15-30 days.
Q5: What is your delivery terms and payment terms?
A5: We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you. 100% in advance for sample order, 50% deposit and 50% balance for mass order.
Q6: After service and warranty?
A6: We provide 1 year warranty, if you have any problems in the use of products, please contact to your sales person.
Q7. How can we know the product quality?
A7: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.
Q8. How can we get samples from you ?
A8.Samples are available. Normally we take 2 days to arrange samples. If we have no business record with you before, we need to charge boot samples cost and post courier freight.
Q9.Can your module be connected with Arduino board? Can you provide Sample code?
A9: We don’t know the model of your Arduino, so we don’t sure if our module can be connected with it. Please be sure of the power supply when you connect your Arduino board with our module, 3.3V is ok. But for 5V, you need to add 4-10k pull-up resistor for the TXD&AUX pin. Sorry we don’t have the sample code to offer.
Q10.Can your module be connected with Raspberry Pi?
A10: Yes, our module can be connected with Raspberry Pi.
