Well Designed Plastic Recycling Machine

Product Overview

Description

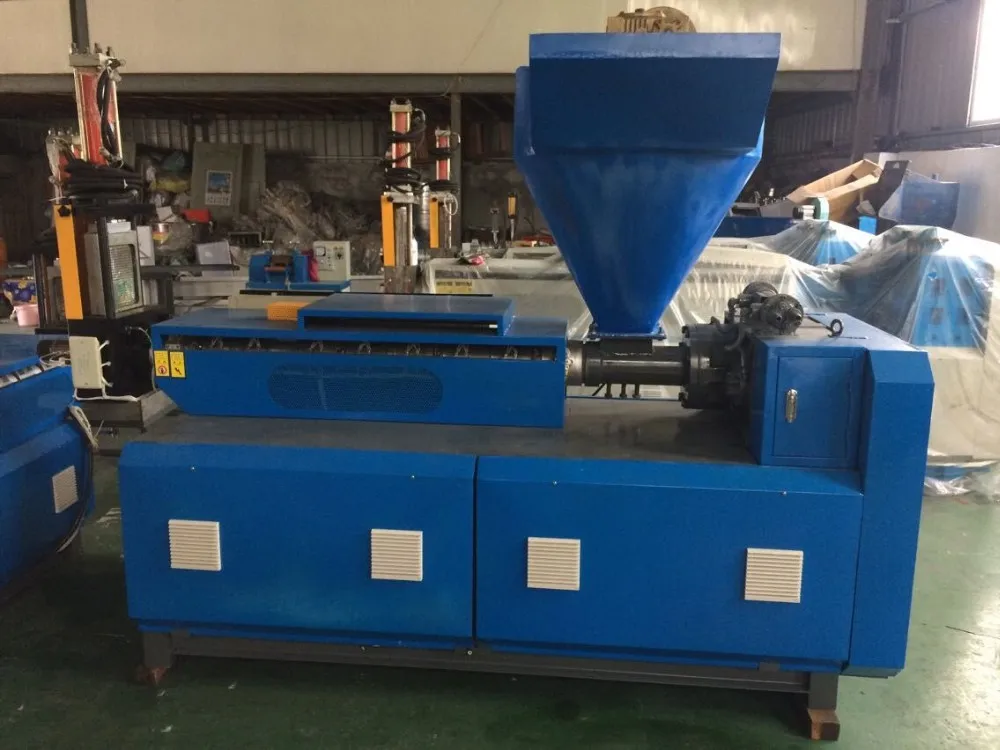

                               Well-Designed Plastic Recycling Machine





1. Machine Introduction

This machine is suitable for regeneration and granulation of waste plastics, such as HDPE, LDPE and PP etc.

It’s equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control.

The granulating crusher uses adjustable speed synchronously.





2. Machine Advantages

1, Screw and barrel is nitrided by 72 hours. 38 chromium materials,  it is very hard.

2, Motor with CE standard, more than 10 years life.

3, Hard surface gearbox, the life can be more than 5 years.

4, Electric parts is CHINT, the best supplier in China.

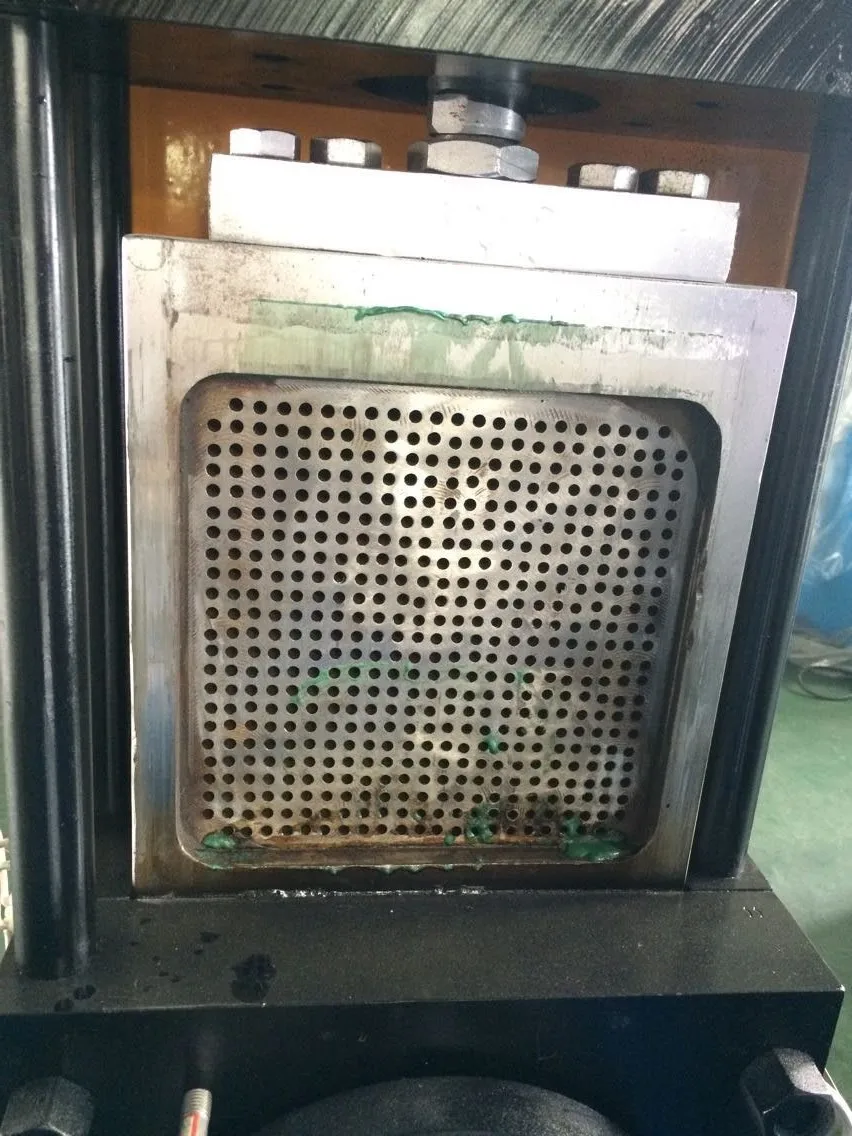

5, The screen changer is by electric controlling, you can choose hydraulic controlling.

6, Water tank is stainless.



3. Machine Parameters



Model	SJ-90B	SJ-100B		SJ-110B		SJ-120B
Diameter of Screw Stem	90mm	100mm		110mm		120mm
L:D	20:1	20:1		20:1		20:1
Speed of Screw	10-110rpm	10-110rpm		10-110rpm		10-110rpm
Gearbox	173	173		180		200
Motor Power	22kw	30kw		30kw		37kw
Output	70kg/h	90kg/h		120kg/h		135kg/h
Water Tank Length)	2800mm Stainless
Screen changer	Hydraulic for both screw
Screen changer hole	6mm
Die head hole(Alloy Metal)	4mm

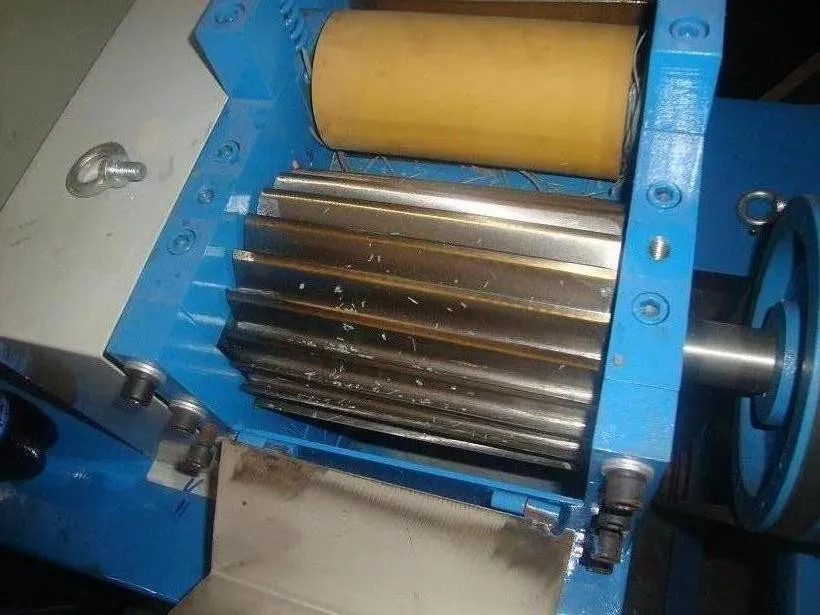

Cutter Knife	Hobbing Cutter
Cutter Motor	2.2kw		2.2kw	3kw	3kw
Machine Weight	1800kg		2000kg	2200kg	2500kg
Overail Dimensions	5.5*1.5*1.1m		5.9*1.3*1.2m	6*1.35*1.3m	6.2*1.4*1.3m

  4. Machine Details



We also have other products, If you interest , Please click it

  Film blowing machine

  Plastic bag making machine

Flexo printing machine

Recycling machine

Slitting machine

1,Q: Your factory is trading company or factory?

A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.

We are Factory, so we have cost advantage than others



2, Q: How do your company control the machine quality?

A: First we control the raw materials quality.

Second, we control the quality of machine when we are processing.

Third, Our installment engineer will test machine.



3, Q: How about payment term, payment safety and delivery time?

A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.

Delivery time is 20 to 30 days. It is according to order quantity.



4,Q: What is your company after sale service?

A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.

Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.
