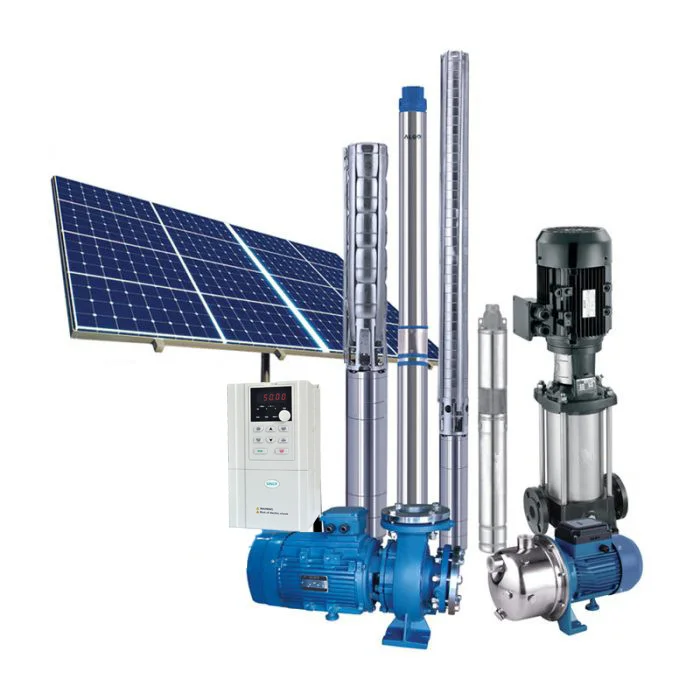

SINCR 1.5KW 2HP 1500W solar power water pump with 1 10 m3/h water flow for borehole deep well
- Category: >>>
- Supplier: Shenzhen Sincrea Electrical Technology Co. Ltd.
Share on (62140687437):
Product Overview
Description
1.5KW 2HP solar power water pump with 1-10 m3/h water flow for borehole deep well
Solar water pump
♦ Pump Introduction
The water pumps used in the solar pump system is mainly deep well pump, submersible pump, horizontal or vertical multi-stage centrifugal pump, etc., which pump water from deep well, river and lake, etc., into a reservoir or tank, or directly used for domestic water supply, agricultural irrigation and other systems. No matter to build new solar pump systems or transform the old utility (or diesel generator) into solar, the SINCREA solar pump inverter can be applied to drive those water pump with solar.
♦ Pump Features
2HP solar water pump
Material: stainless steel 304, 316, iron casting, etc.

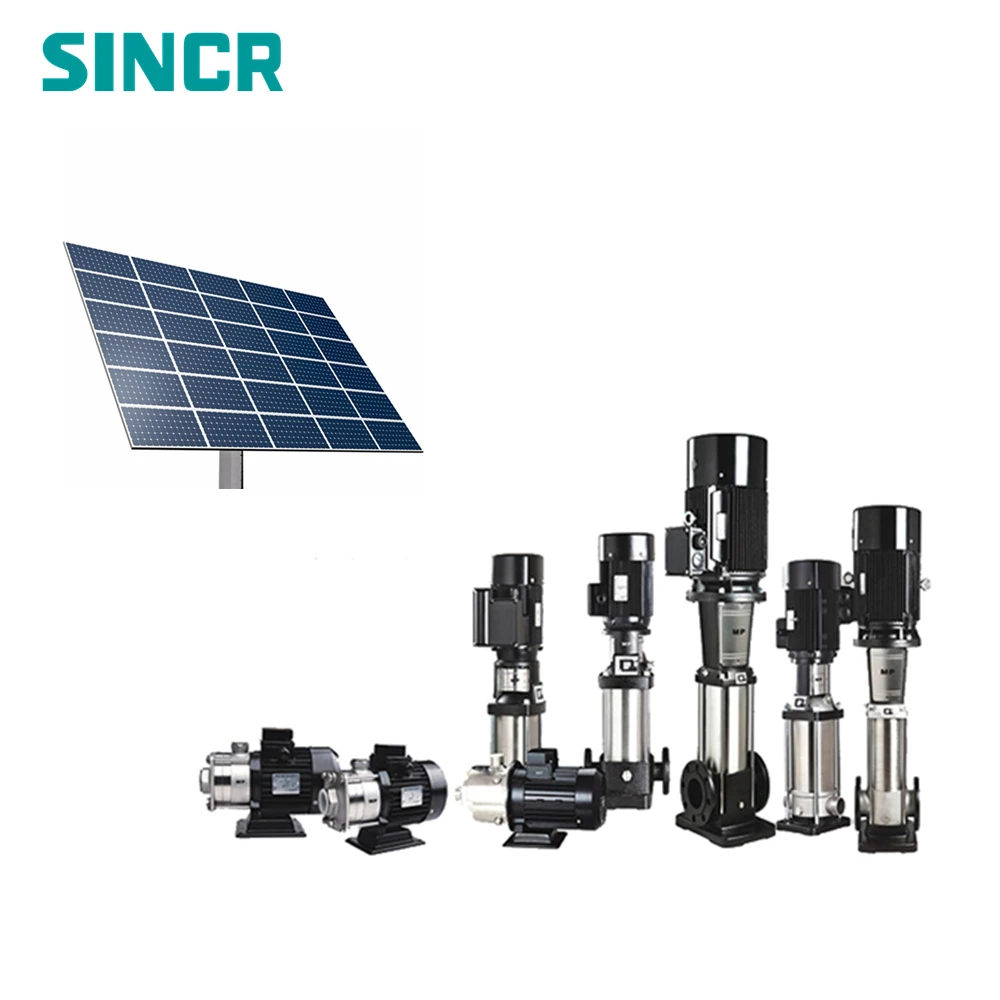

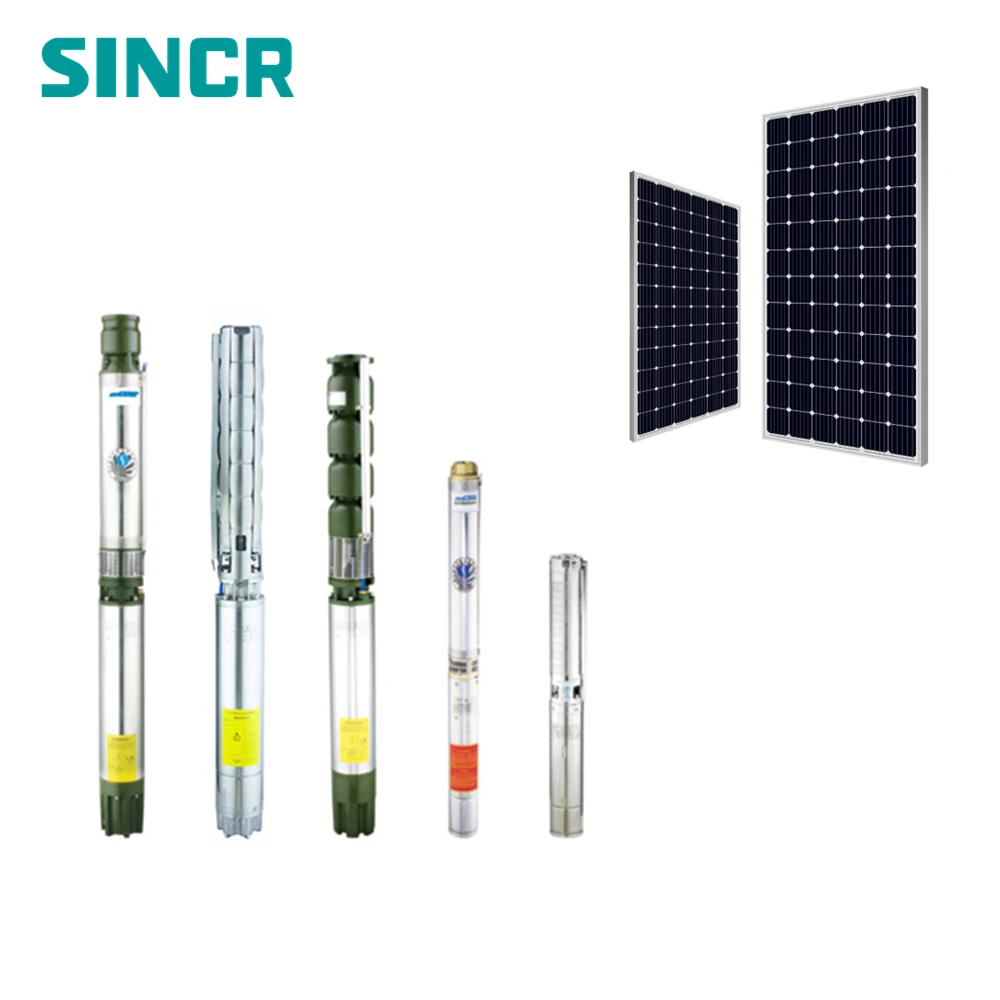

Type: deep well pump, submersible pump, surface pump, horizontal centrifugal pump, vertical multistage centrifugal pump, etc.
Voltage: single phase 110V/220V, three phase 220V/380V.
Frequency: 50/60HZ.
Maximum depth: 70m.
Application: Domestic water supply, Agricultural irrigation, Desert greening, fountains and various industrial use.
Head & Flow Curve
♦ Model Definition
2HP solar water pump
Note: 1 m³=1,000 litres

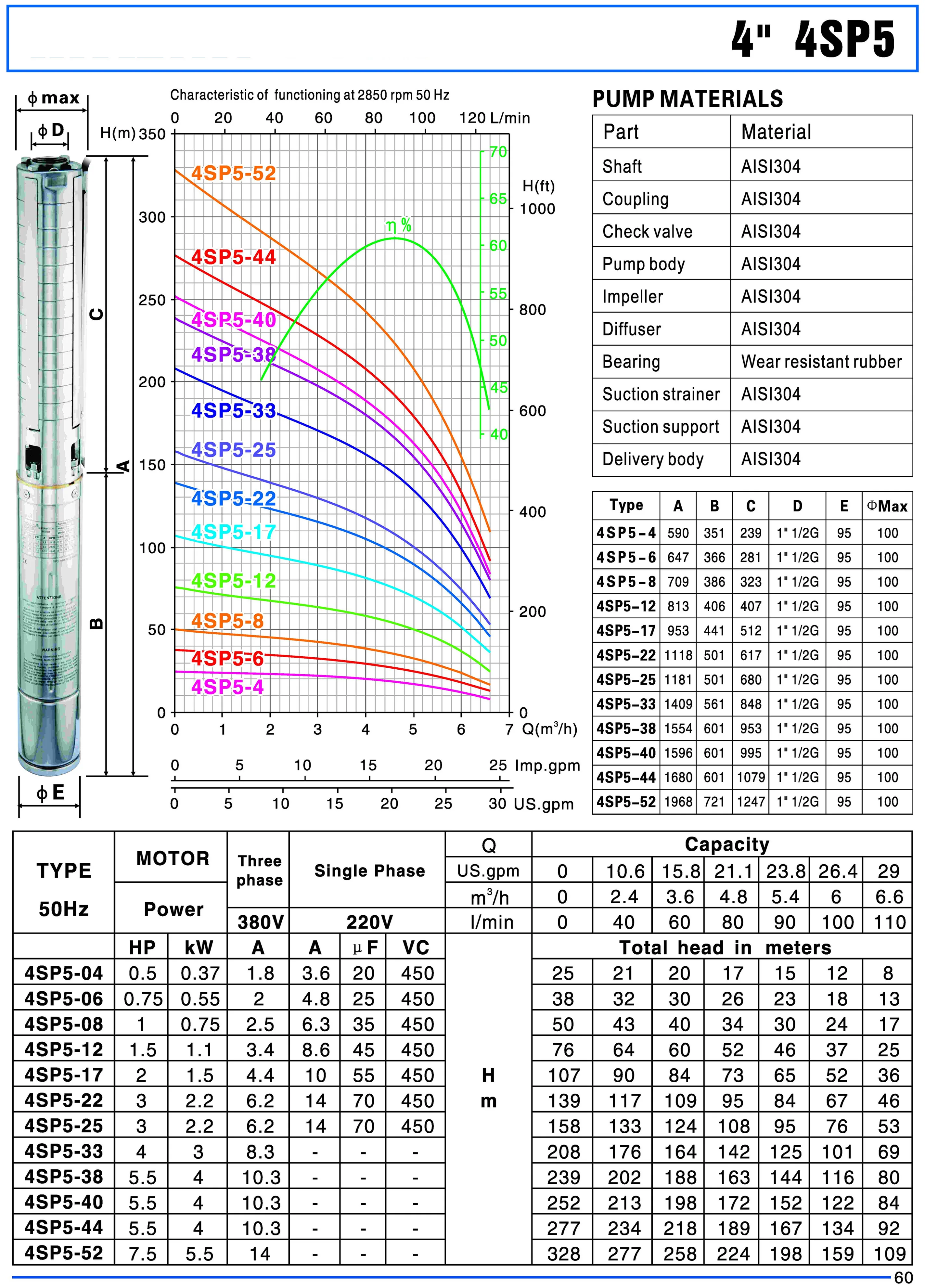

♦ 4SP series Head & Flow performance curve
Solar Pump Systemn
♦ System Features
2HP solar water pump
- Solar energy drives the pump to work directly, no need battery,used for agricultural irrigation and domestic water, low cost and maintenance-free.
- High-efficiency monocrystalline silicon and polycrystalline silicon solar modules with conversion efficiency up to 19.58%, 10-year material process warranty, and 25-year line warranty.
- Pump power: 0.75KW~110KW; water flow: 1-800 m3/h; lift head: 5-500m; stainless steel material, service life of more than five years.
- Deep well pump can be used for pumping water from 10-500m deep well, high lift head and large water flow, long distance water delivery.
- According to the sunshine and water demand in different regions, the system can pump water with 6-10 hours per day, and the maximum daily pumping capacity can reach 5000 cubic meters per day.
- Deep well water shortage protection, water tower full of water protection, light weak sleep, light intensity wake up, can achieve unattended, fully automatic operation, no manual operation.

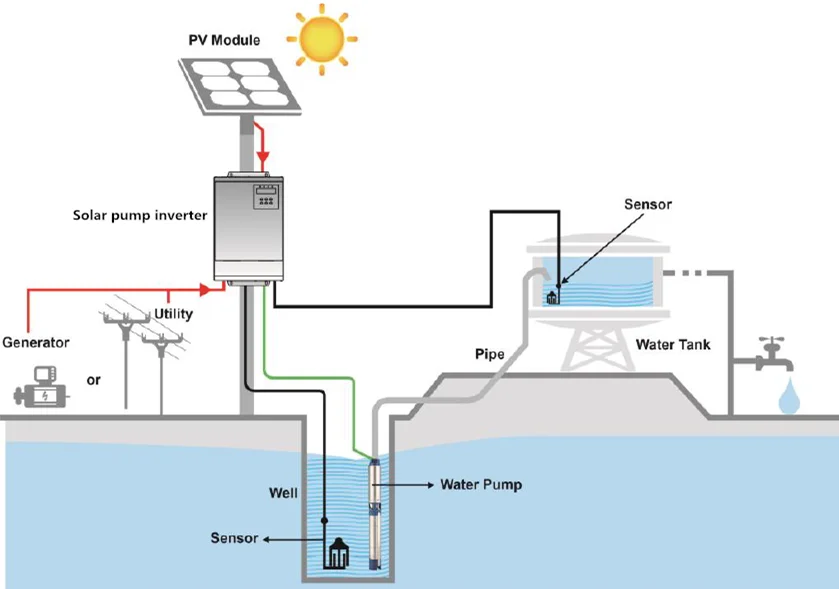

Wiring Diagram
2HP solar water pump
Product Application

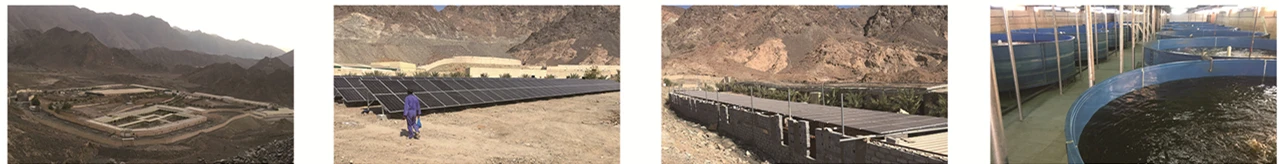

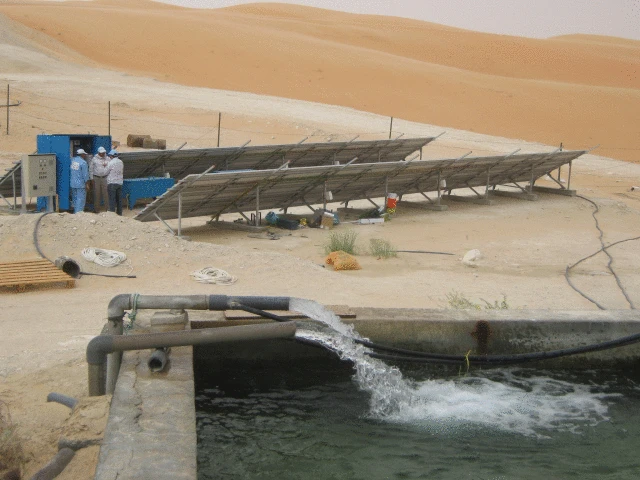

♦ Oman 100KW+50KW Solar power pump system 2HP solar water pump
| Location | Muscat-Oman | |
| Purpose | Farm fishery, animal husbandry | |
| Water source | Tank | |
| Requiredments | The farm is located in the mountains and deserts, with drought and long sunshine radiation all the year, inconvenient for water supply, unable to meet the demand for electricity in the farm, and the high dependence of the fishery on water. Considering the power grid limit, the electricity price during the day is high and the electricity price is low at night. So to install SINCREA solar pump power supply system to provide protection for fish farming and farm electricity, saving electricity costs. | |
| Solution | Water pump | 2pcs 15KW pump+8pcs 7.5KW pumps+4pcs 4KW pump |
| Solar panel | 150KW,480pcs 300W Mono solar panel in series and in parallel | |
| Solar pump inverter | SINCREA,Model:SV500-015-4TB + SV500-7R5-4TB + SV500-004-4TB 15KW,7.5KW,4KW Solar pump inverter,3P 380V | |
| Mounting bracket | Ground fixed + roof type Q235 hot galvanized steel bracket | |
| Accessories | DC/AC cables,MC4 connector,MC4 branch connector,water level sensor, installation tools,DC/AC multi-meter.etc | |
| Benefits | The SINREA 100KW ground fixed +50KW roof-type photovoltaic pump power supply system is installed in the farm. During the day, all solar energy is used to power the pump, and the electricity consumption at night is low. Now saves $1,500 in electricity bills per month, which not only solves the demand for electricity, but also saves the whole cost of electricity. | |
Company Information
♦ Company Introduction
Shenzhen SINCREA Electrical Technology Co., Ltd. is a national high-tech enterprise specializing in electric drive, frequency inverter,industrial control, solar pump inverter,new energy products research and development, produce and sales.
- National & Shenzhen High-Tech Enterprises.
- Certification: ISO9001:2015 quality system certification,ISO4001:2015,CE certification.
- 13 software patents and invention patents, including 2 national invention patents.
- Product Series:Variable frequency inverter(VFD),AC drive, Special purpose frequency inverter, Solar pump inverter,Servo drive.ect industry control products.
- 10 years of experience in R&D and production of electric drives.
- 8 years experience in solar pump system design & installation.
- Power range: 0.2KW-630KW. 2HP solar water pump
♦ Company Honor
- Full Patent Cetificate
- National & Shenzhen High-Tech Enterprise
- Software Product & Patent Cetificate
