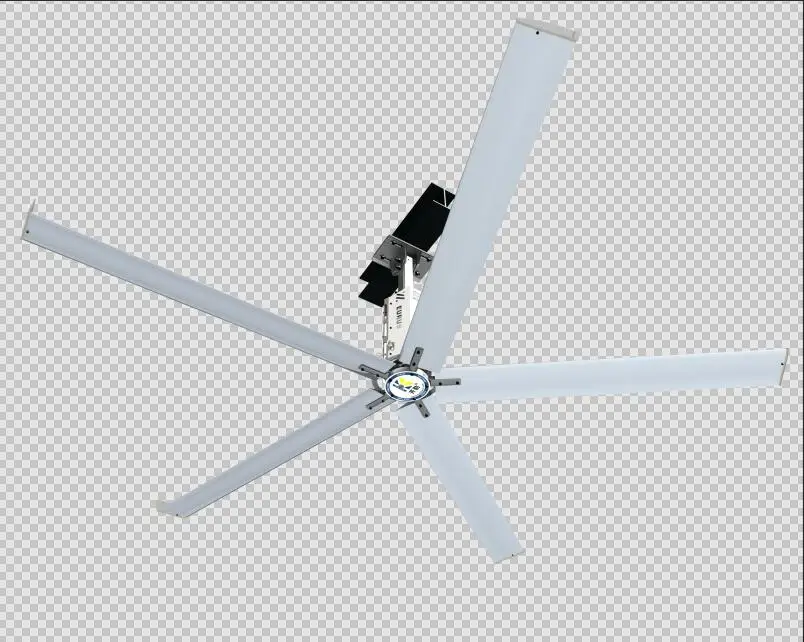

Промышленный большой потолочный вентилятор охлаждения HVLS, 7,3 метров в длину

7.3meter long Electric commercial HVLS Industrial Ceiling Fan

                          Brief Introdcution

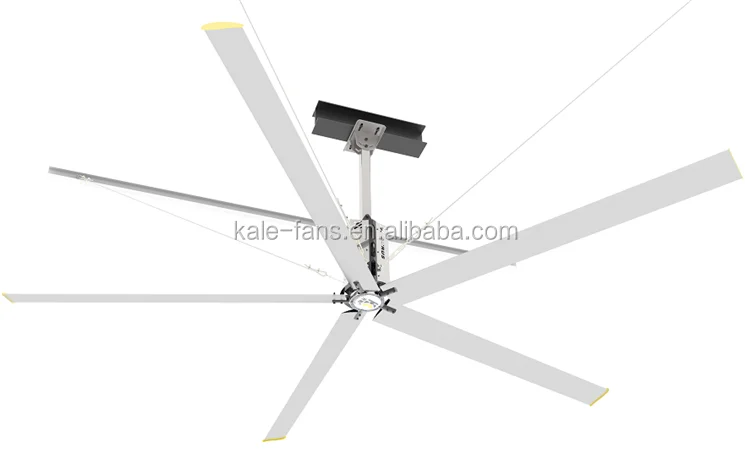

Kale best-seller Lenze gearbox motor industrial ceiling fan, with diameter of 24ft HVLS fan at most, 1.5kw motor power, 5pcs aircraft aluminum alloy blades, 16ft/18ft/20ft/24ft sizes as standard, can cover an area of 1400 square meters at most with only one unit fan.

Features

1. widely used at factory, warehouse, farms, high & large space

2. energy saving, only 1.5kw power at max

3. low noise

4. super large area cover

5. soft nature breeze feeling

6. low speed, high air volume

                                  Parameters

                          Components Details

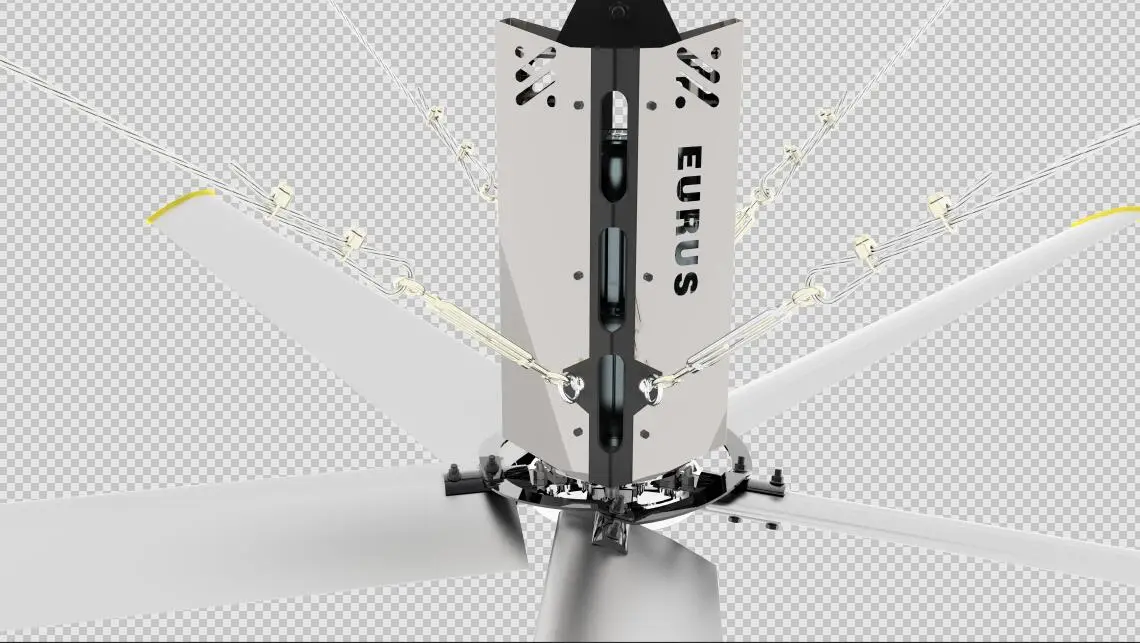

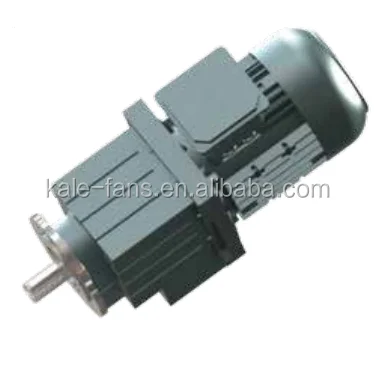

Gearbox Motor		Motor System---imported Germany LENZE motor 1.Low backlash assembly process and gear grinding technique, lower noise 2.Strength the bearing frame structure, increase oil seal and strength the motor structure with trapezoidal shaft structure, higher safety 3.Adopt IE2 high efficient motor, save more 5-10% than IE1 4.Passed CCC, CE, UL certificates

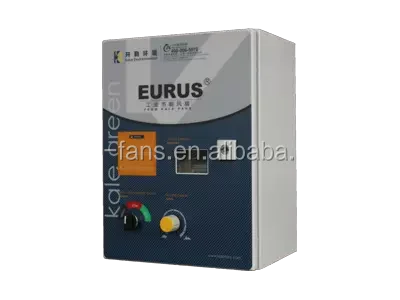

VFD Controller System		1. Schneider electrical sets, with safety protection module inside which will interrupt the output automatically in case of some accidents. 2. Germany Rittal control cabinet, passed EMC by SGS and CCC certificates, meanwhile, passed anti-creeping tests which shields electromagnetic interference effectively.  Protection level is IP55, passing UL, EMC, LVD, ROHS certificates.

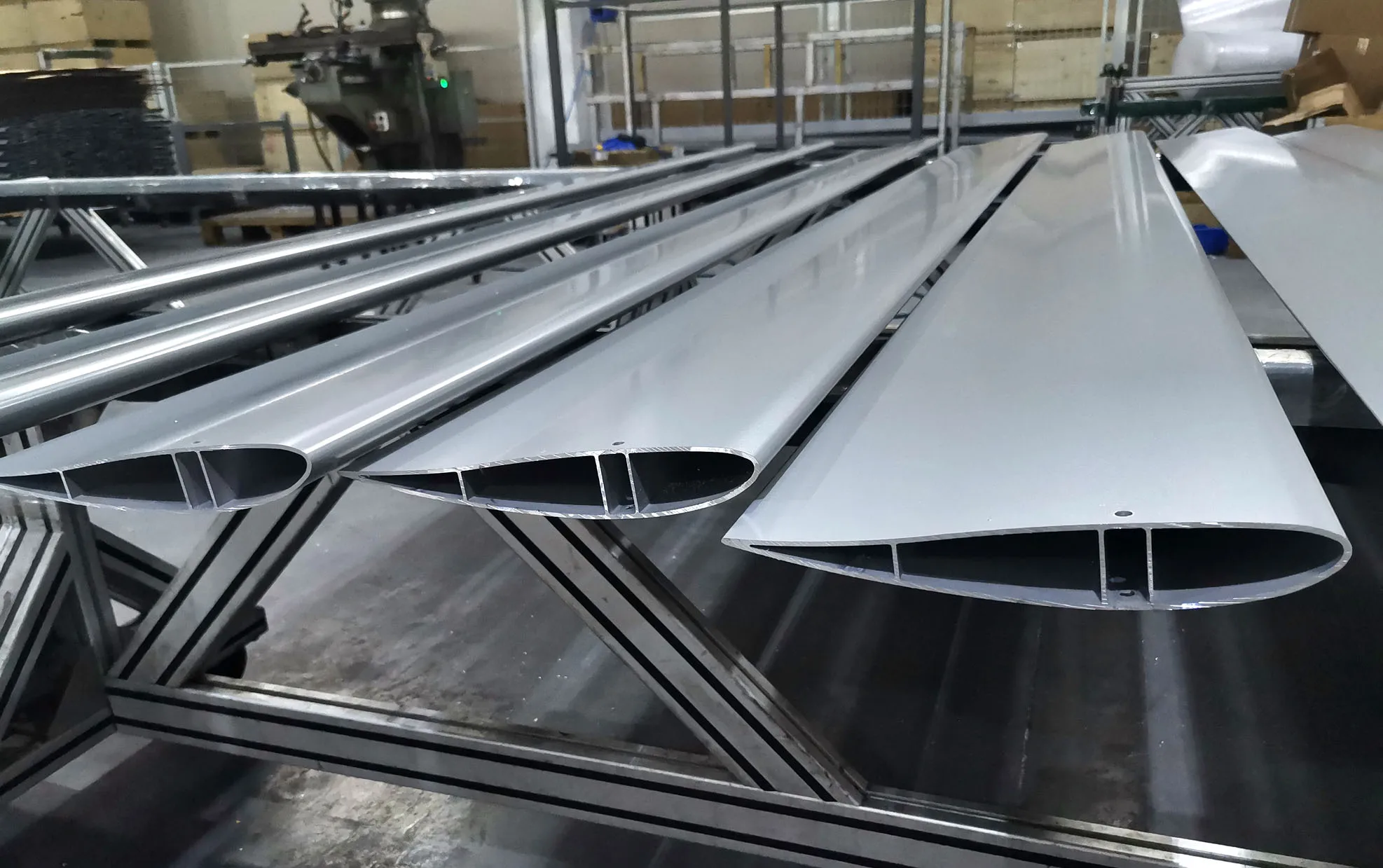

Airfoil Fan Blade		1. High strength aircraft grade magnalium, fluorocarbon paiting on surface, aerodynamic fan blade design. 2. Patented Kale Airfoil Blades™: 3 sets reinforcing rib supports system inside, enhance the strength of fan blades and avoid sagging of fan tail and fatigue loss of connecting components.

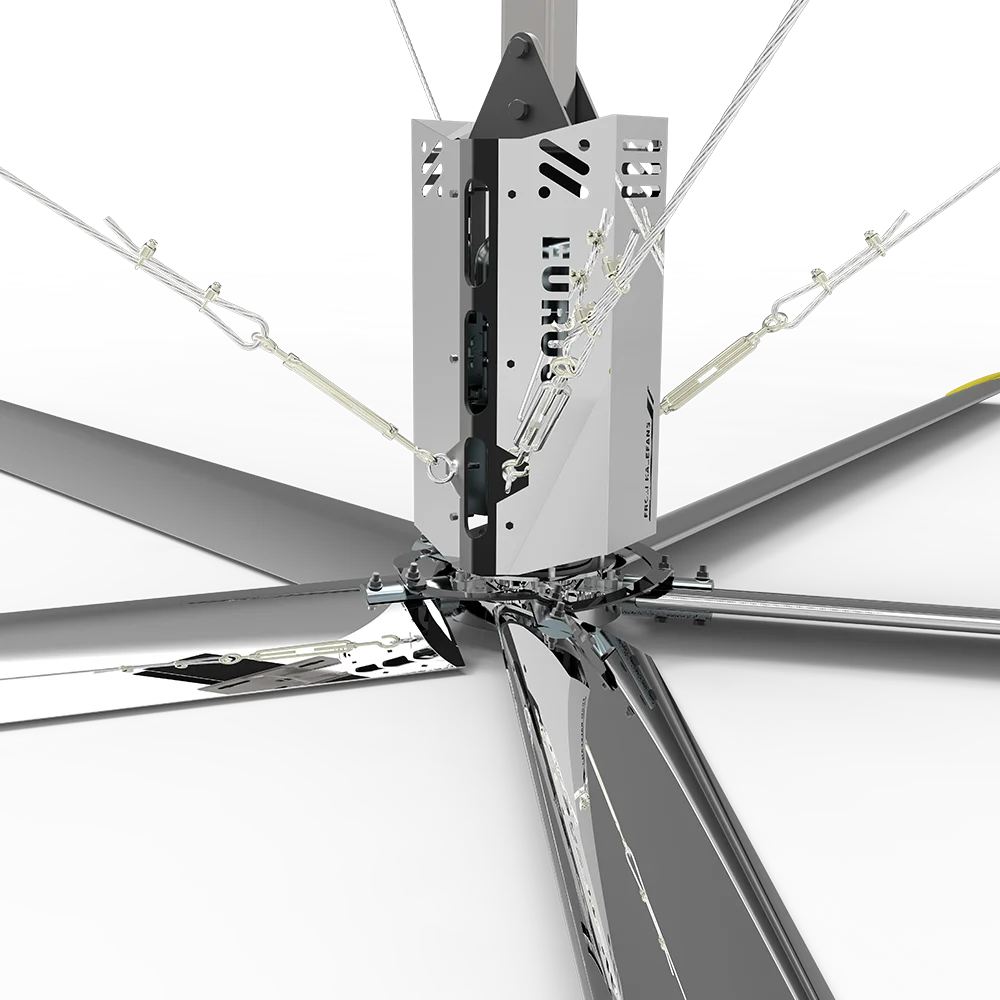

Extra Safety Protection	1. High strength fasteners; 2. 5 pcs connector connecting fan blade and motor; 3. 4 pcs steel guy wire connecting fan and beam 4. Separating blade retainers to make 5 pcs blade as a whole

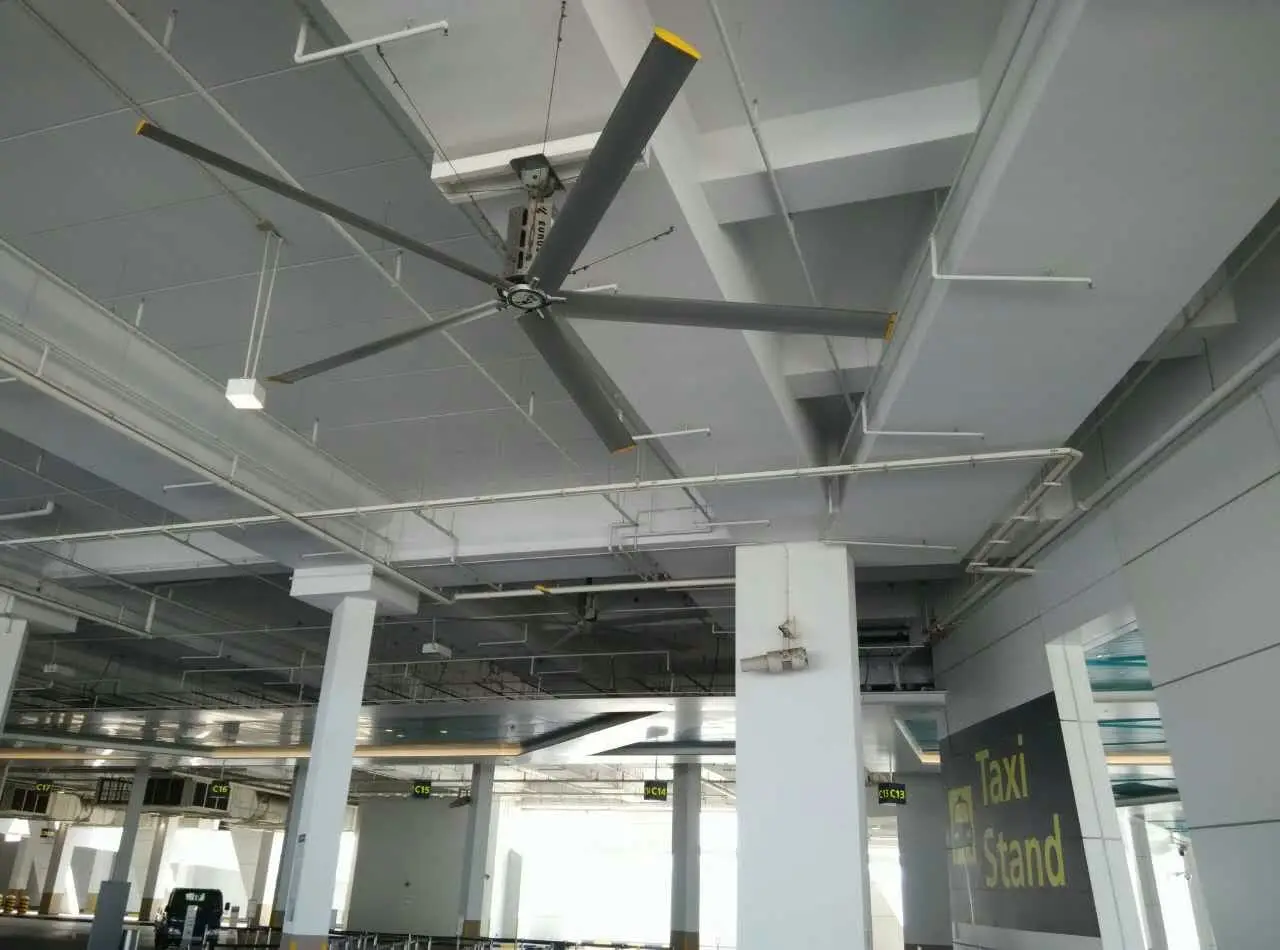

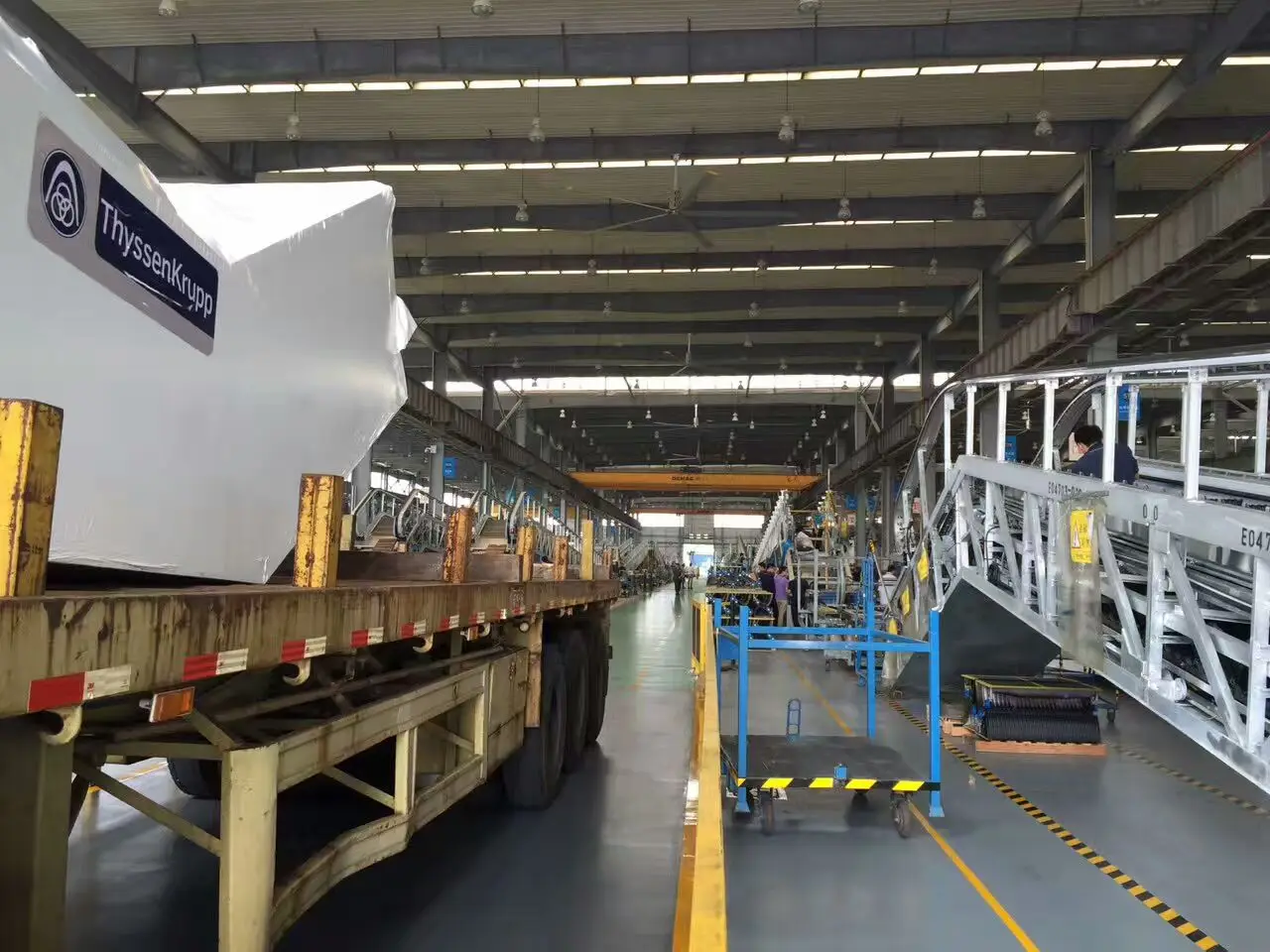

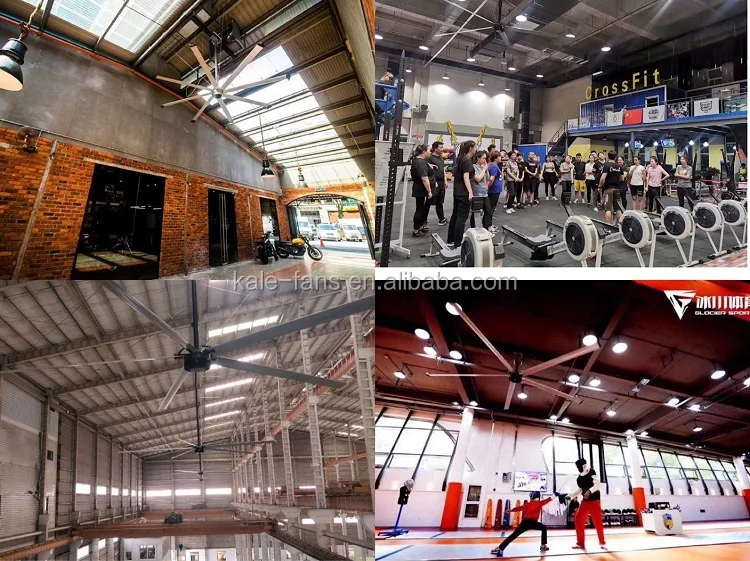

                                 Clients & Expo

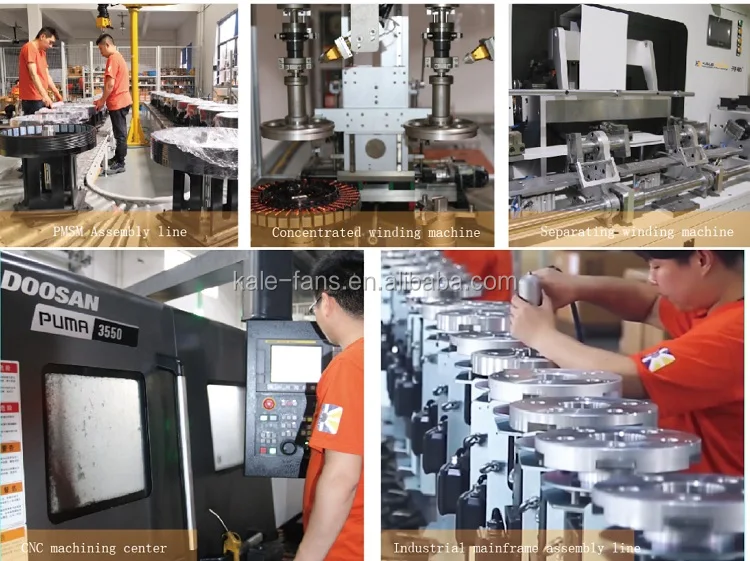

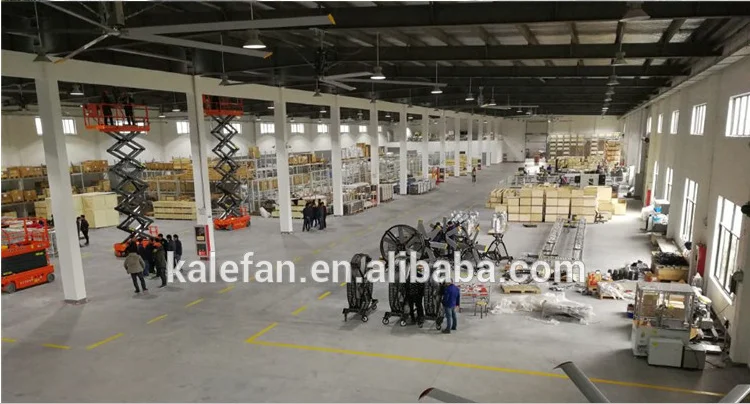

                                         Factory

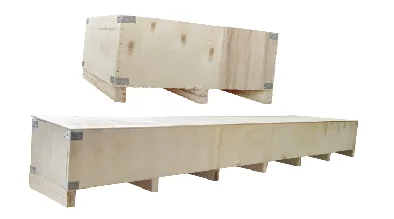

                      Packing Details& Shipping

Model	Packing Qty	Dimension	Gross Weight
HVLS-D6BAA49	2 plywood crates/set	950mm X 830mm X 600mm/ 2500mm X 420mm X 450mm	230kg
HVLS-D6BAA61		950mm X 830mm X 600mm/ 3100mm X 420mm X 450mm	245kg
HVLS-D6BAA73		950mm X 830mm X 600mm/  3700mm X 420mm X 450mm	260kg
