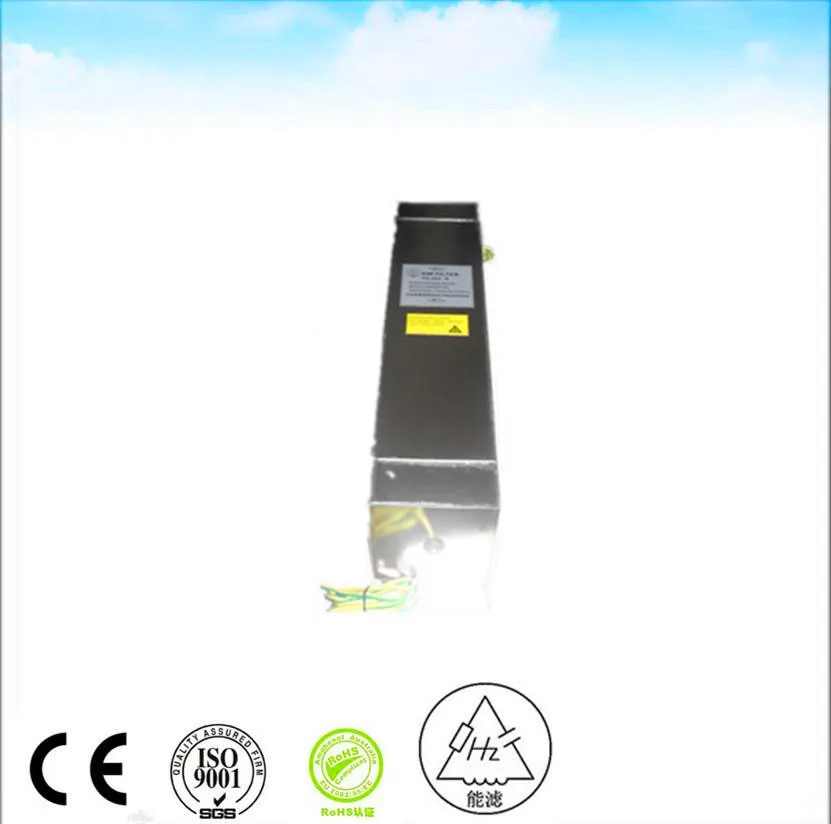

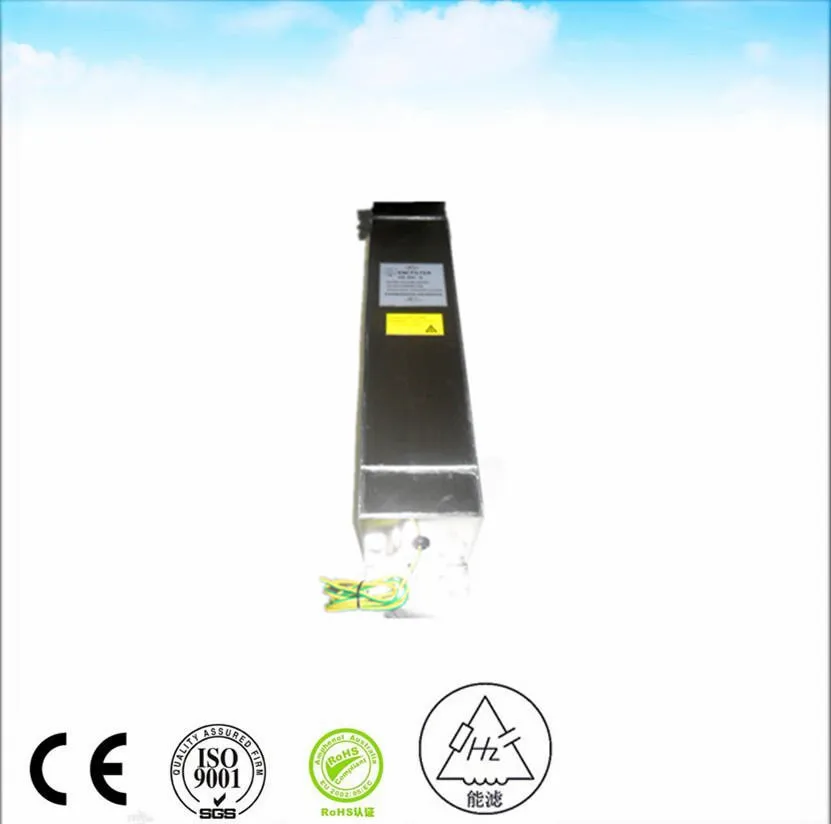

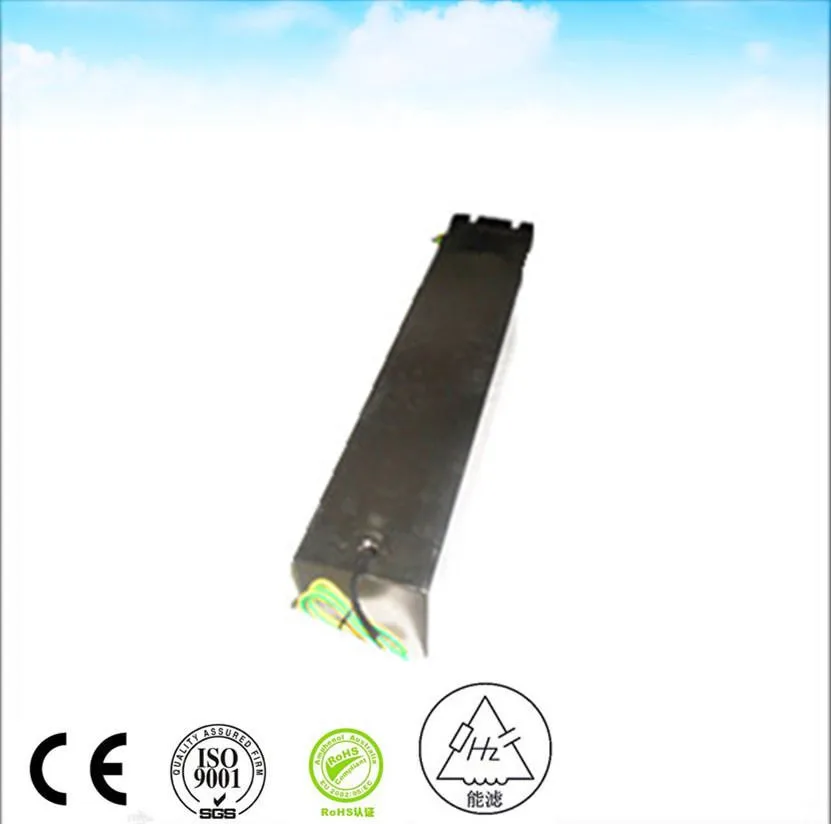

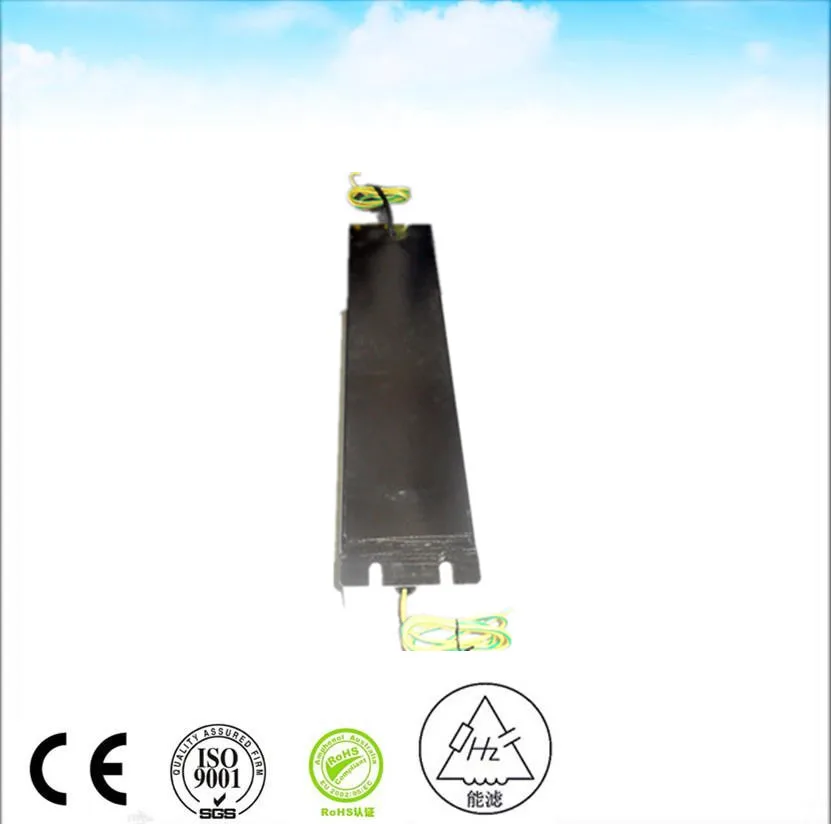

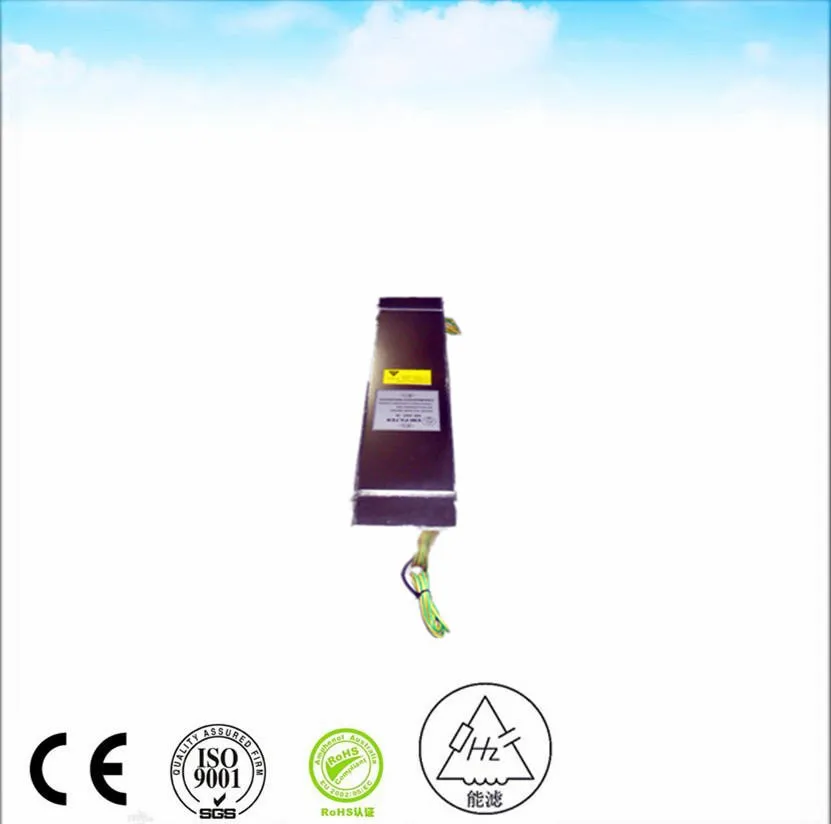

250VAC 30A emi one line filter anechoic chamber
250VAC 30A emi one line filter anechoic chamber
250VAC 30A emi one line filter anechoic chamber
250VAC 30A emi one line filter anechoic chamber
250VAC 30A emi one line filter anechoic chamber
250VAC 30A emi one line filter anechoic chamber
250VAC 30A emi one line filter anechoic chamber

250VAC 30A emi one line filter anechoic chamber

Share on (62140747737):


Price:$170.00

Quantity:


Product Overview

Description


Product Description
\t
RATED VOLTAGE
\t
250 VAC
\t
RATED CURRENT
\t
30 A
\t
OPERATIONAL FREQUENCY
\t
50 60 Hz
\t
Voltage Drop
\t
Less than 1V
\t
Overload
\t
140% of rated current for 15 minutes
\t
Harmonic Distortion
\t
Less than 2% @ full rated current
\t
Leakage Current
\t
≤0.2A@380/230VAC and 50Hz
\t
Dielectric Withstanding Voltage
\t
 1000VDC (line to line) 1000VDC (line to case)
\t
DC Insulation Resistance
\t
 As Per MIL-STD-202 Method 202
\t
Terminal Strength
\t
As Per MIL-STD-202 Method 211
\t
Temperature Rise
\t
As Per MIL-F-15733
\t
Insertion Loss
\t
≥100dB@14K-40GHz As Per MIL-STD-220A, Under Load Condition
\t
Climatic Classification
\t
25/070/21
DIMENSION




Our Company
We are a professional and famous EMI filter manufacturer.
Our technical team has more than 10 years’ experience in designing EMI filter. We know UL VDE CSA CE CQC etc safety standard very well.
Our technical service team learn many kinds of test standard such as industrial application (IEC61800-3 for frequency inverter drive EN12015 for elevator EN55011 for ISM device etc) and military application (GJB151A GJB152A etc).We can solve EMI problem quickly effectively and low-costly.
