Product Overview

Description



Product Description

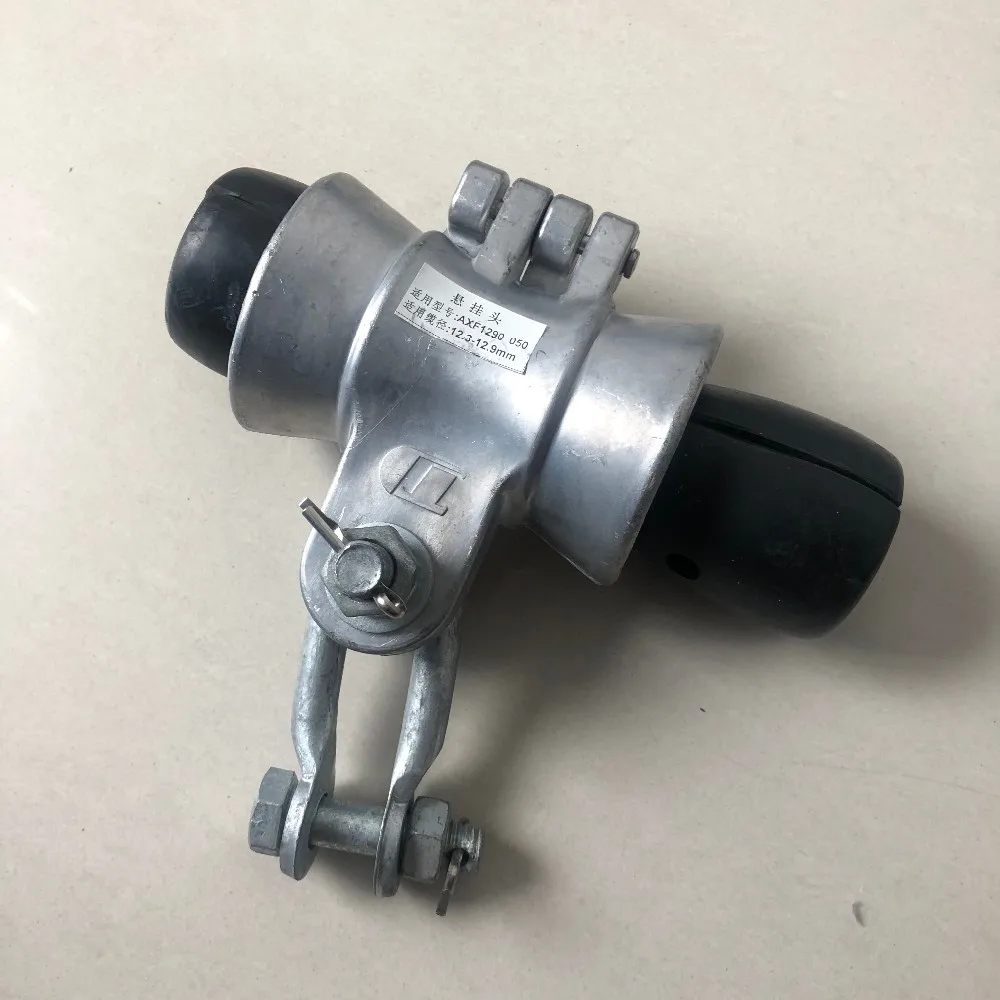

China manufacturer supply ADSS/OPGW cable tangent suspension clamp on pole or tower

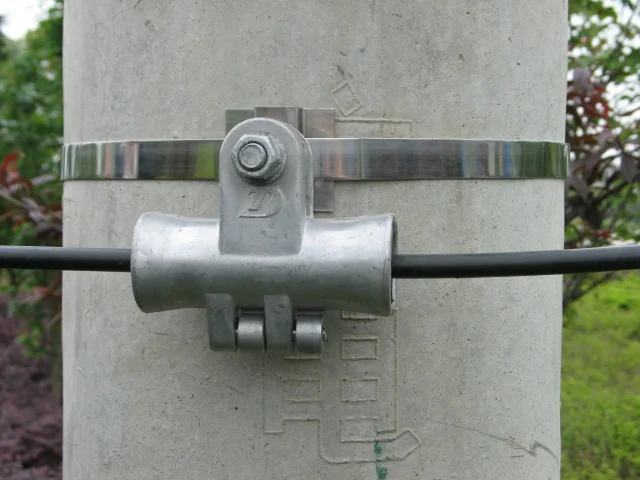

The Preformed Suspension Clamp is the connecting hardware of ADSS cable hang in transmission line pole (tower). It can reduce static stress at the support point and increase ant-vibration ability of ADSS cables, and cushioned against the dynamic stress of aeolian vibration. as well as ensure that the cable bending will not exceed the permissible values, make the cable does not produce bending stress, so that the fiber optic don't produce extra loss in the cables.


Direction :

1.It is designed to connect straight or elevation angel less than 25° pole (tower) and ADSS cables, The special specification: one unit per pole.



2.Select the specification model for Suspension Clamp is corresponding to the appropriate Cable Diameter, Load Weight or span length.





Preformed Suspension Clamp For 0-100m ADSS Cable

Preformed Suspension Clamp For 100-200m ADSS Cable



Preformed Suspension Clamp For 200-1500m ADSS Cable


X-large Span Double Suspension Clamp For ADSS Cable

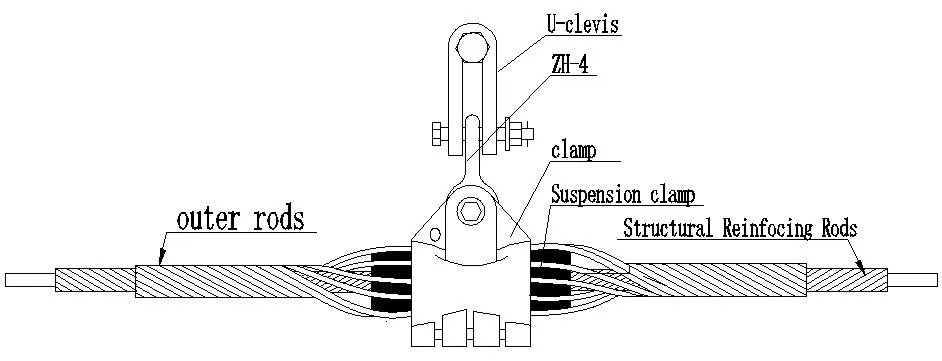

Structure




Structure and Material:

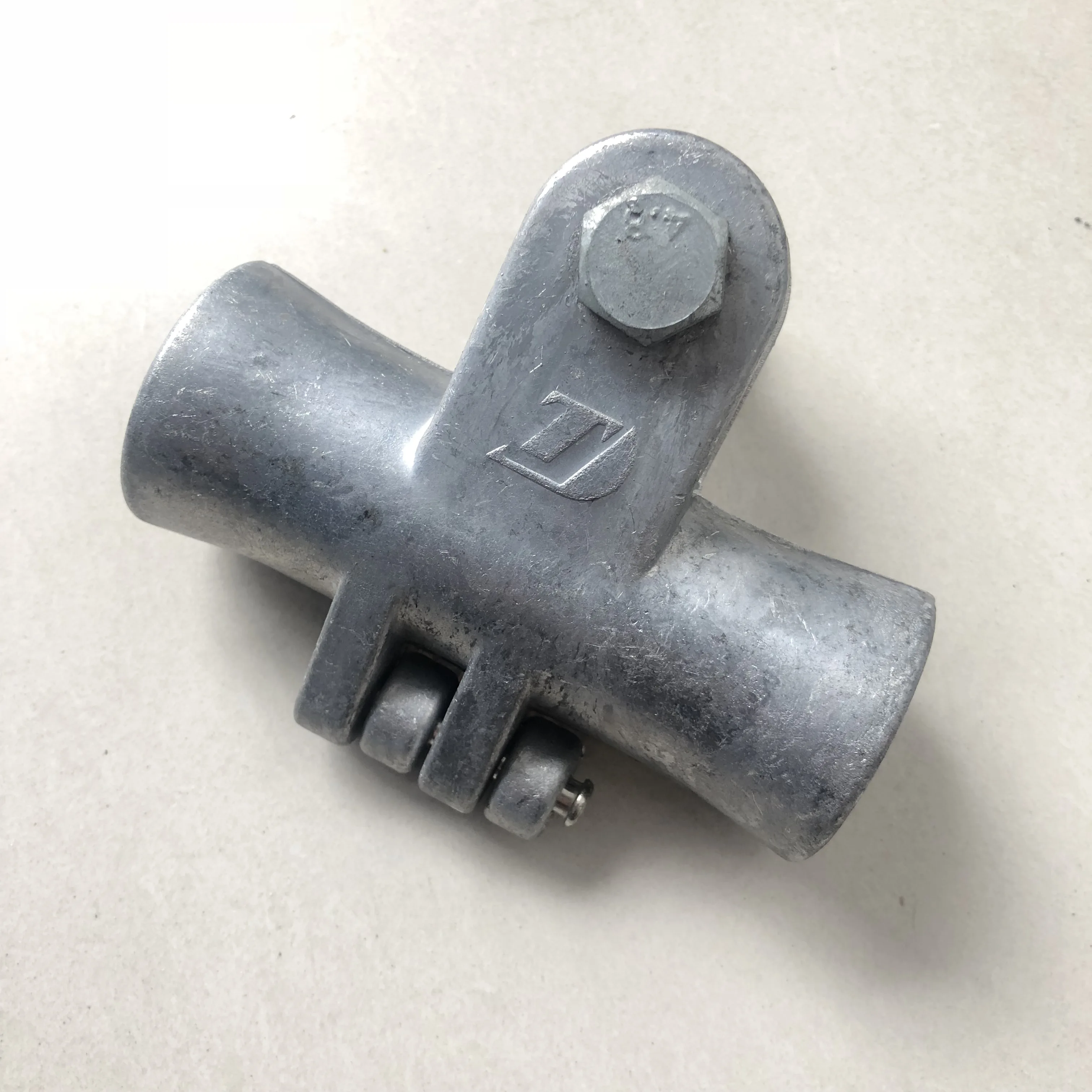

Housing--- It is made of corrosion resistance cast aluminum alloy, which is stable, better anticorrosive in aero and mechanical performance.


Rubber Insert--- It consists of high-class rubber and center reinforcing assembly, rubber insert is with ozone resistance, chemical resistances, weather resistance performance, with high and low temperature performance, high strength and elasticity, small compression deformation.


Bolt, Flat Washer, Spring Washer, Nut, Split Lock, Shackle--- Standard Parts of Electric Power.


Inner Preformed Rods---According to the mechanical performance and chemical composition to custom-made the aluminum alloy wire, with high tensile strength, hardness strength and excellent elasticity and strong rust resistance , it can be used for a long time in the bad weather condition.

Outer Preformed Rods--- The same as the Inner Preformed Rods.


Application


The Preformed Suspension Clamp is the connecting hardware of ADSS cable hang in transmission line pole (tower). It can reduce static stress at the support point and increase ant-vibration ability of ADSS cables, and cushioned against the dynamic stress of aeolian vibration. as well as ensure that the cable bending will not exceed the permissible values, make the cable does not produce bending stress, so that the fiber optic don't produce extra loss in the cables.

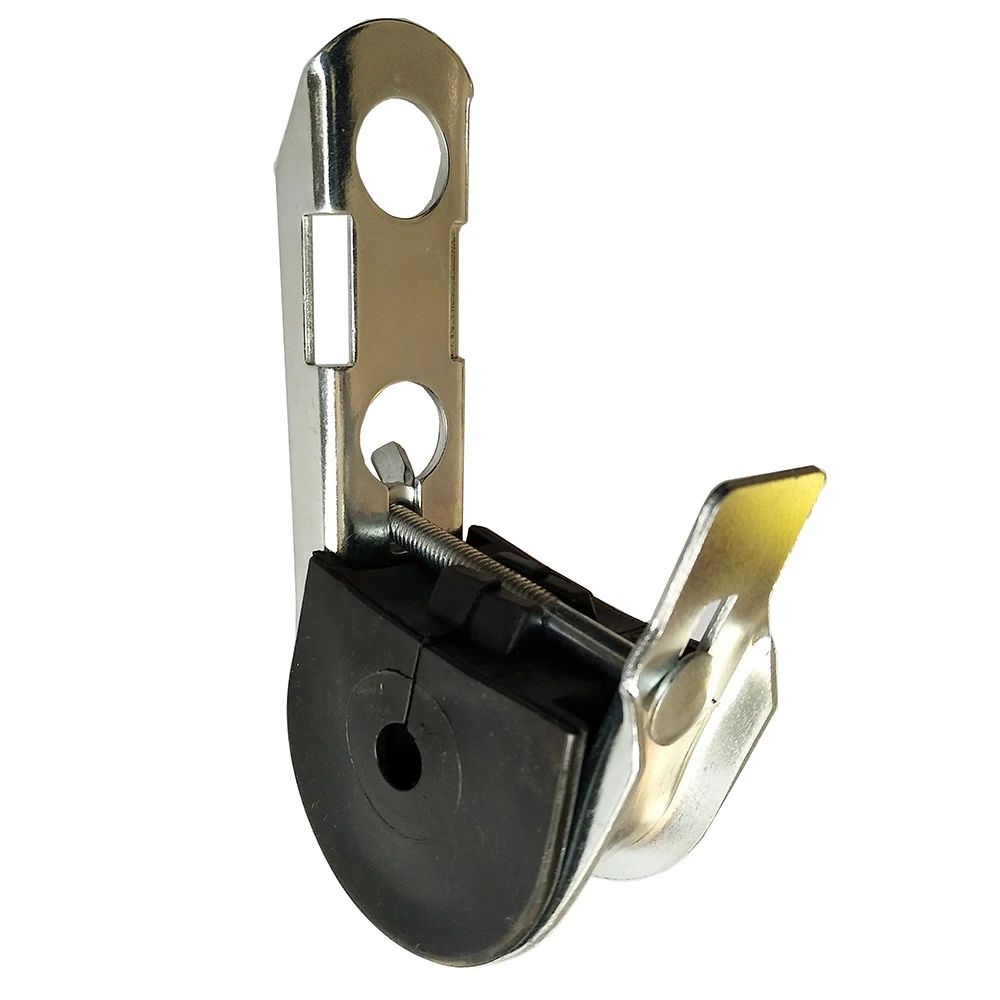

Related Products

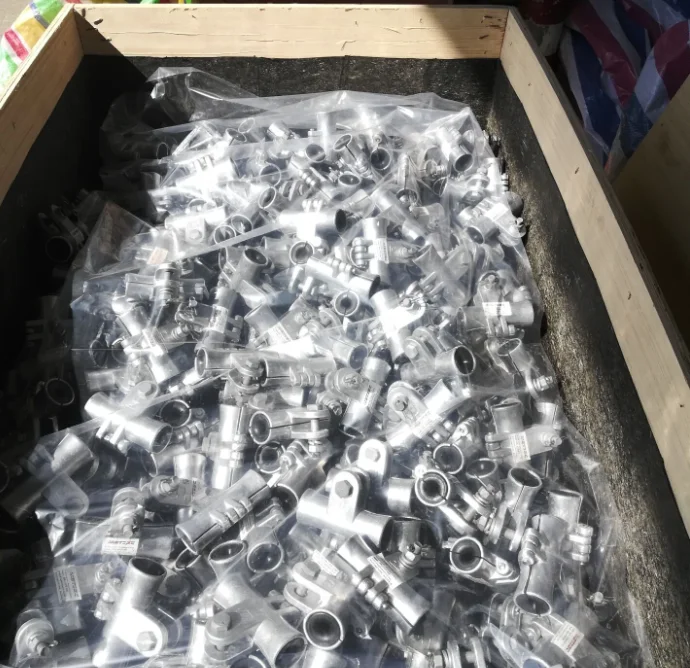

Packing & Delivery


Packing: carton box

Delivery: 5-10 working days after payment, depends on quantity



About us


Hunan Shuanglin Communication Technology Co.,Ltd. is one of the biggest manufacturer of fiber optic cable in China.

The company establishes industrial bases in up to 10 provinces of China and in South America, Europe, South Africa, Mid East, Southeast Asia, and marketing technological service branches in over 30 countries and regions around the world, supplying products in over 80 countries and regions.

The company has passed a lot of international management certificates such as UL, ROHS, ISO9001, ISO14001, OHSAS18001 and so on.

Follow up the clients'demands; make greater efforts to create more values for them, maintain long-term strategic cooperation with all larger Telecom Carriers, integrators and clients at home and abroad.

More Products you can visit our website: //sl-fibercable.en.alibaba.com
