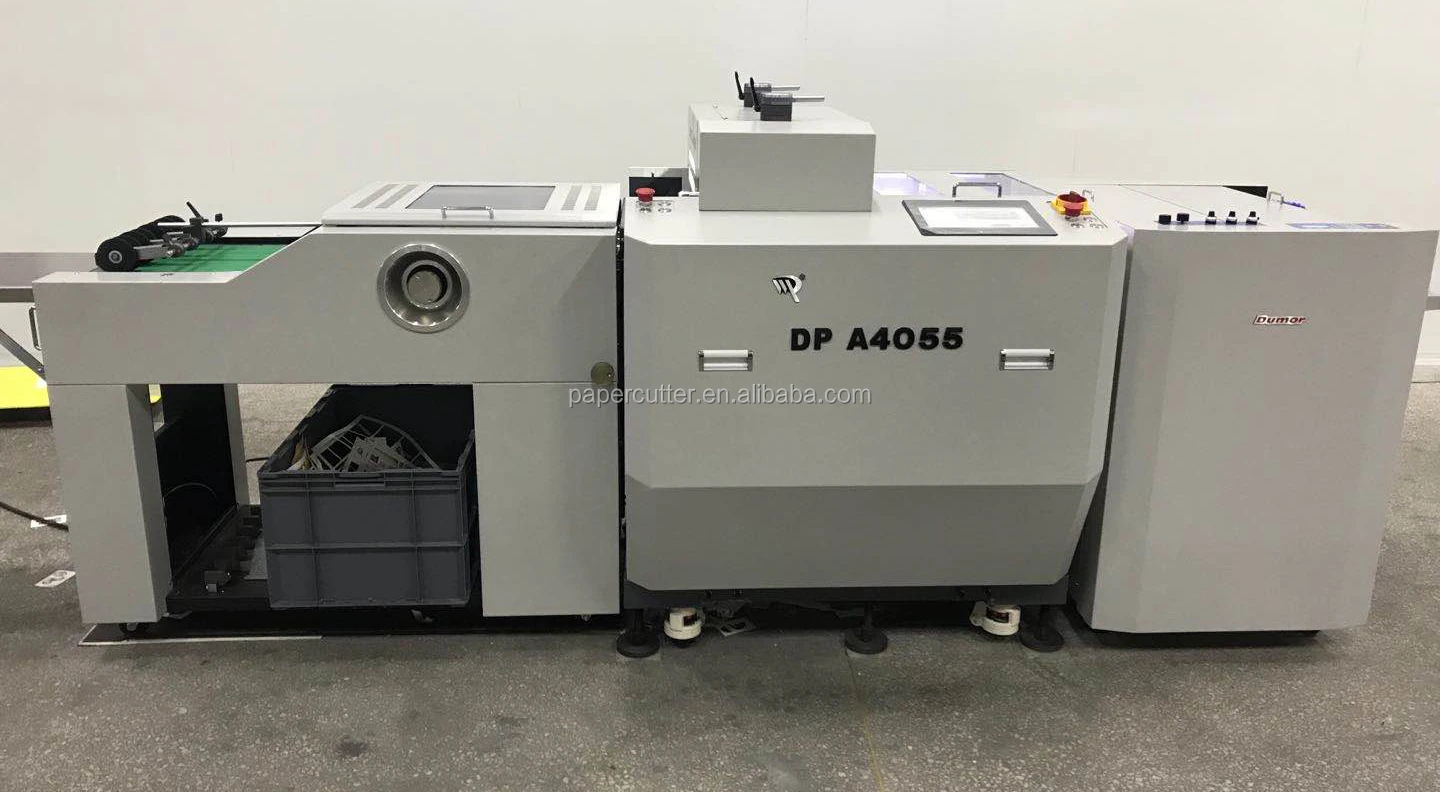

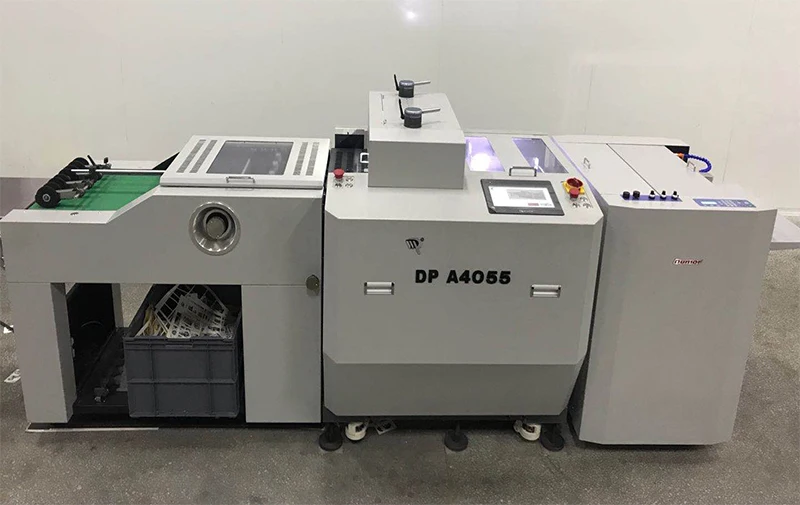

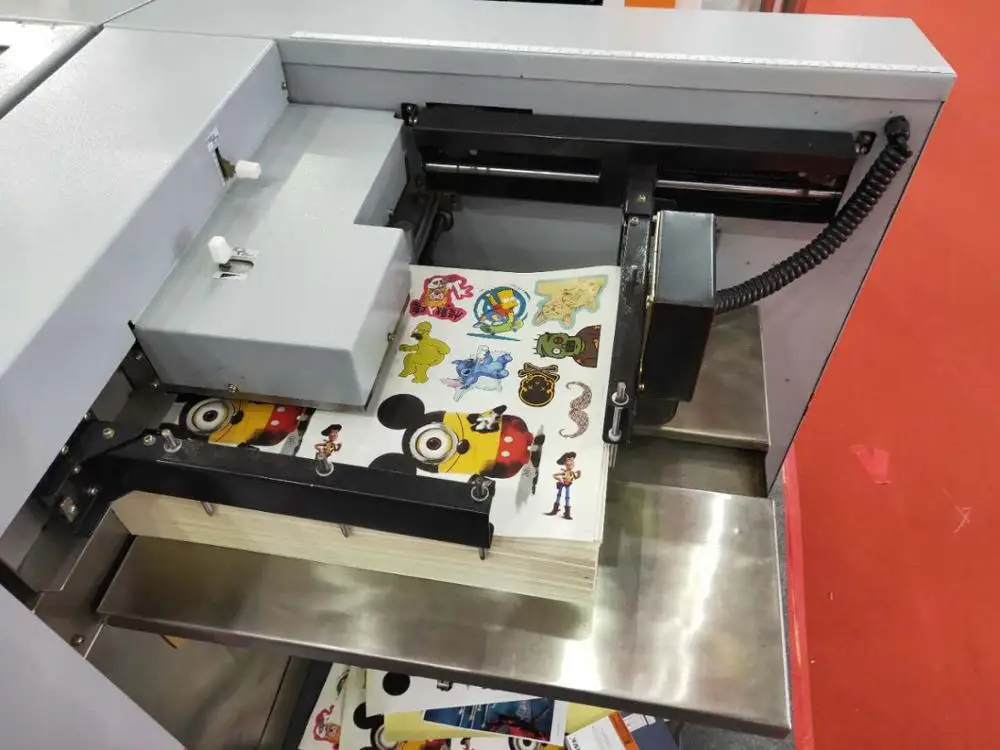

Dapeng 4055 die cutting machine for stickers rotary blade paper roll cutting machine die cutter for paper creasing/ kiss cutting

Roller Die Cutting machine is to cut the paper with the mould. It can be applied to normal paper, coated paper and cardboard, (the following paper cannot be processed: composite paper (covered with polypropylene) or plastic film). Speed can reach 6000 cycles per hour. It can remove the waste automatically, easy to operate and save time with the efficient work.

1.Operation Console:
Both setup and control can be done though the intuitive touch screen. After setting upper and lower die, the system can be set up by simply inputting sheet size and product size. The graphical illustrations on the screen are simple and easy to understand.

2.Feed Section:
Vacuum belt feeding enables superior feeding with easy setup and operation. An ultrasonic sensor is used for double feed detection on a wide range of substrates.

3.Transport Section:
Sheets are registered by vacuum belt and position is firmly secured with gripper rollers for high quality finish. Servo motor driven gripper rollers ensure the die cut position without effecting processing speed.

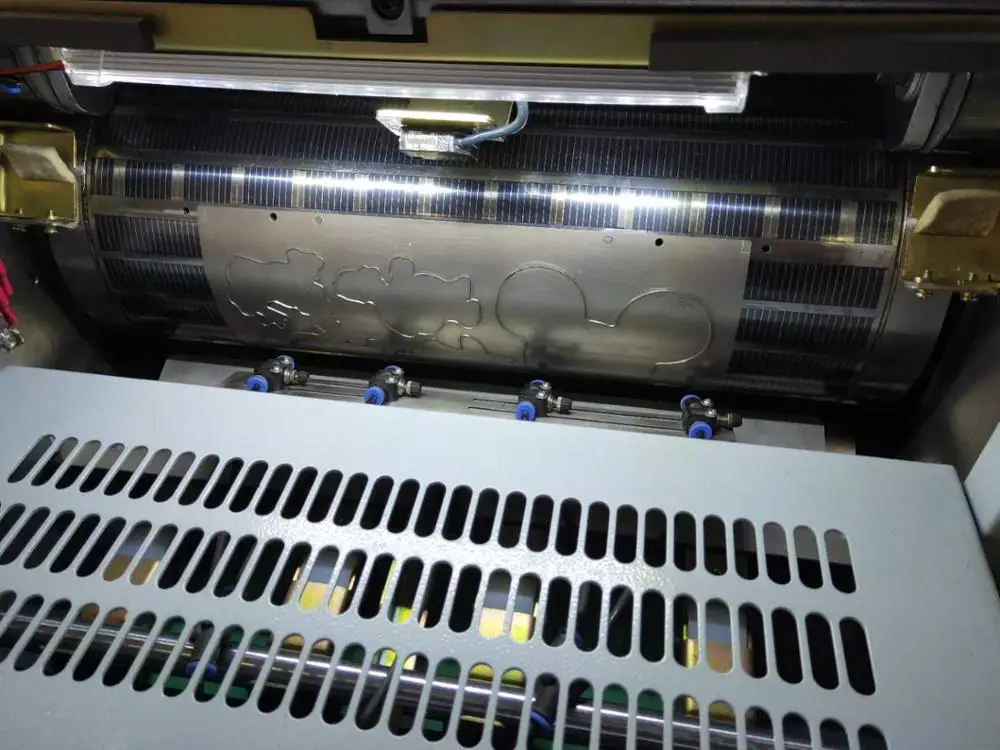

4.Die Cutting:
Rigid magnetic upper roller and solid lower anvil roller ensure high quality die cutting. Uniquely designed die cutting section enables easy and quick die setting. Both 0.6mm and 0.8mm/0.0236'' and 0.0315'' thickness of flexible die plates can be used.

5.Separator:
The separator removes the waste from the finished product and delivers it to the waste bin. Air cylinder driven separator pins and sir jets can be used depending on size of the waste.

6.Delivery Section:
Finished products are delivered on the motorized conveyor. Intermittent conveyor movement maximizes the continuous operation in a small space. Gap can be adjusted depending on the size of the product for easy handling.

7.Multi-functional system die cutting,kiss cutting creasing,repeat cutting

8.Rotary Die cutting machine (Max.400x550 mm)-Rotary Die-Cutter designed to meet the growing demand.

9.Flexible substrate-Die cut, Crease, Perforation, Silt, Hole punch and round corner in various substrates up to 0.5mm(only for die cutting)thickness for digital and offset printed sheets.

10.One pass processing-Feeding, die cutting and separating are achieved in one pass at a speed of 6,000 cycles per hour.

11.Save the cost of making die-Uniquely designed servo motor controlled "Repeat Register" feature allows multiple-up applications from single-up die to minimize die cost.

12.Simple and easy operation-Reduces costly labor steps and increases productivity.
