Product Overview

Description



Functionality


Embedded HiSilicon GPU, H.264 encoding, high compression ratio, clear image
Support 4 AHD Million HD/Analog SD video/audio inputs, 1 video/audio simultaneous output, 1 VGA output
Support 4 720P HD real-time local recording



Power


Professional on-board power deign, 9-36V DC wide voltage input desigh
Various circuit protection on undervoltage, short circuit, reverse connection and so on, can be adapted on different vehicles.
Support intelligent power management: automatical power-off under low voltage, low consumption when cut-off



Data storage


Special file management mechnism, to realize data encryption and effective data protection
Specific hard disk bad sectors inspection technology, which guarantees the continuity of recording and at the same time extend the disk lifetime
Embedded super capacitor, to avoid data loss and SD card damage in case of abnormal outages
Support 2.5 inch hard disk storage, up to 2TB
Support SD card storage, up to 256G



Interface






AHD High-definition on-board DVR (4 inputs hard disk)

System
Processor
Hi3520DV200
Operating system
Linux
Language
Chinese/English




Audio/Video
Compression formate
PAL/NTSC
Video compression
H.264
Resolution
720P /960H/D1/CIF
Decoding
1720P, real time
Recorded video rate
4096Mbps full frame, 6 selectable video quality
Recorded audio rate
8KB/s
Storage
Hard-disk + SD card

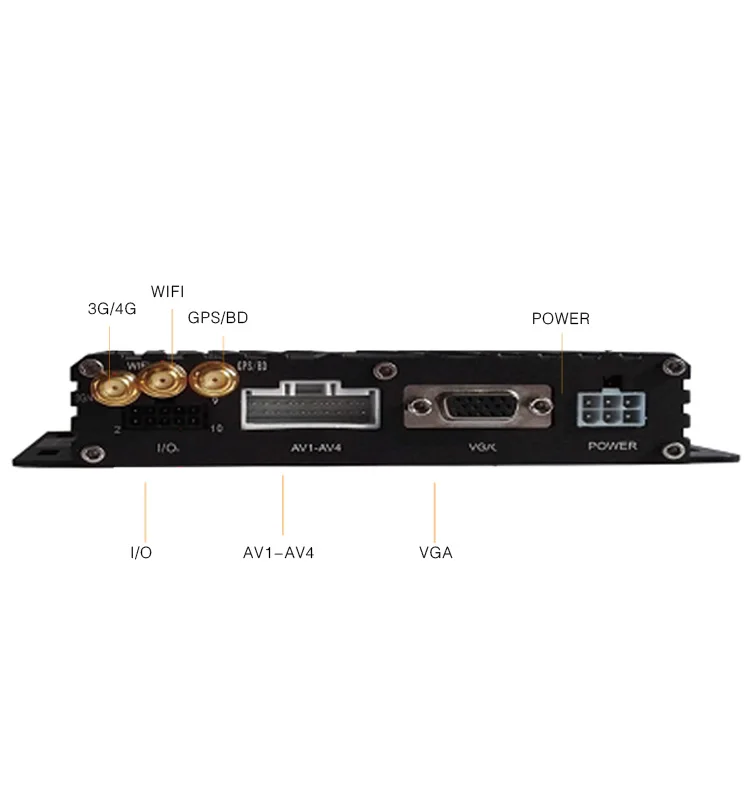

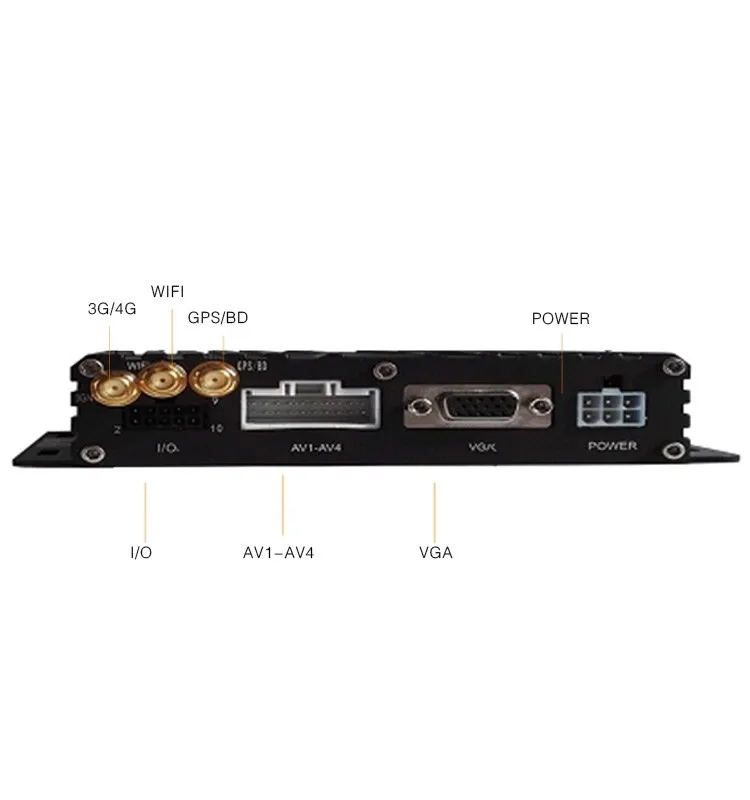

I/O
Audio/Video input
4 logical input (aviation connector)
Audio/Video output
1 VGA video output, 1 logical audio/video output (aviation connector)
Alarm input
4 digital input
Hard-disk interface
1x2.5 inch HDD(max 2TB, hot-swapping)
SD card
1 SDXC (Max 256G)
USB
1 USB 2.0
Ignition
1 ACC
Serial port
1 LVTTL

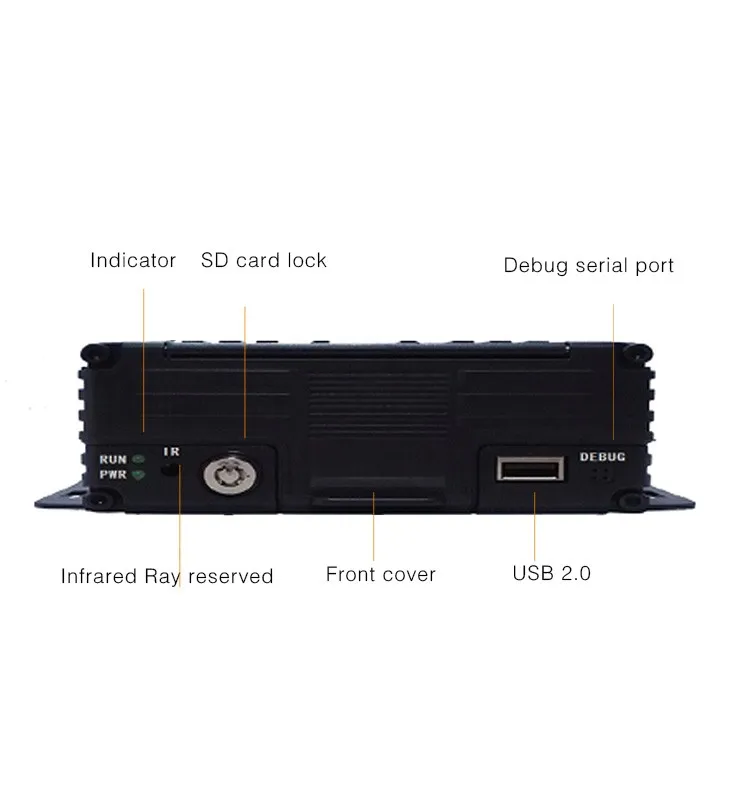

LED indicator
PWR/RUN
Hard-disk lock
1
Debug serial port
1

Extension
GPS/BD
Support antenna plug in/out/short circuit self-check
3G/4G
Support CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE
WIFI
802.11b/g/n (2.4GHz)



Others
Input voltage
DC:10V~36V
Output voltage
5V 300mA

Power consumption
Standby: 3mA
Max 18W @12V 1.5A @24V 0.75A
Working temperature
-20 --- 70℃
Dimension
162mm*153mm*52mm




Company Introduction




Shanghai TRION Industrial Co.,Ltd., located in Shanghai, China, next to Hongqiao transportation hub, is specialized in the R&D and manufature of automotive parts, covering R&D, manufature, sales and service. We focus on the automotive electronics and our products are widely equipped on different type of vehicles. We have been concentrating ourselves in automotive part domain for more than 10 years, and have accumulated abundant experience and resources.
We strive our best to satify our customers on various demands of functionality, performance and price. Meanwhile, we have set up dedicated teams for body, chasis and electical parts, which enbales us communicate with our customers effectively and efficiently on technical subjects, for example the customized development.
Our purpose is to serve our customers by developing the best cost performance products with accurate understanding of their requirements via efficient communication, professional know-how and abundant resources; by providing high quality products through excellent project management skills and quality control methods.
We adhere to the management philosophy that quality makes survival,technology brings development, market shows direction and service strengthens purpose. We are willing to provide customers with completed,pluralistic and multi-level service, and willing to work sincerely with all partners to create brilliant future!
