1700 electric bench top muffle furnaces

Product Overview

Description

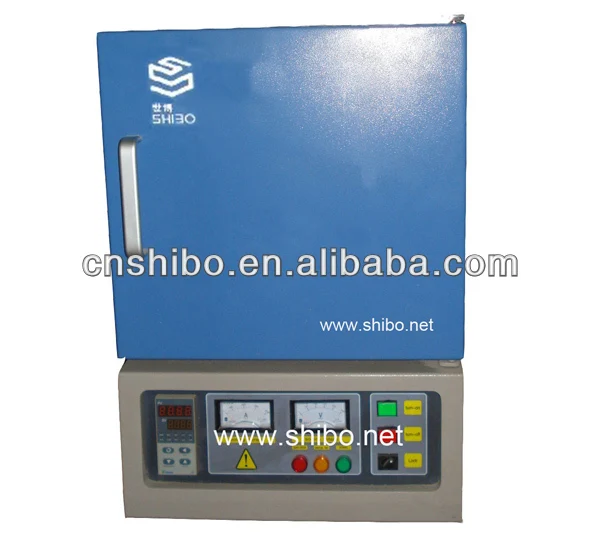

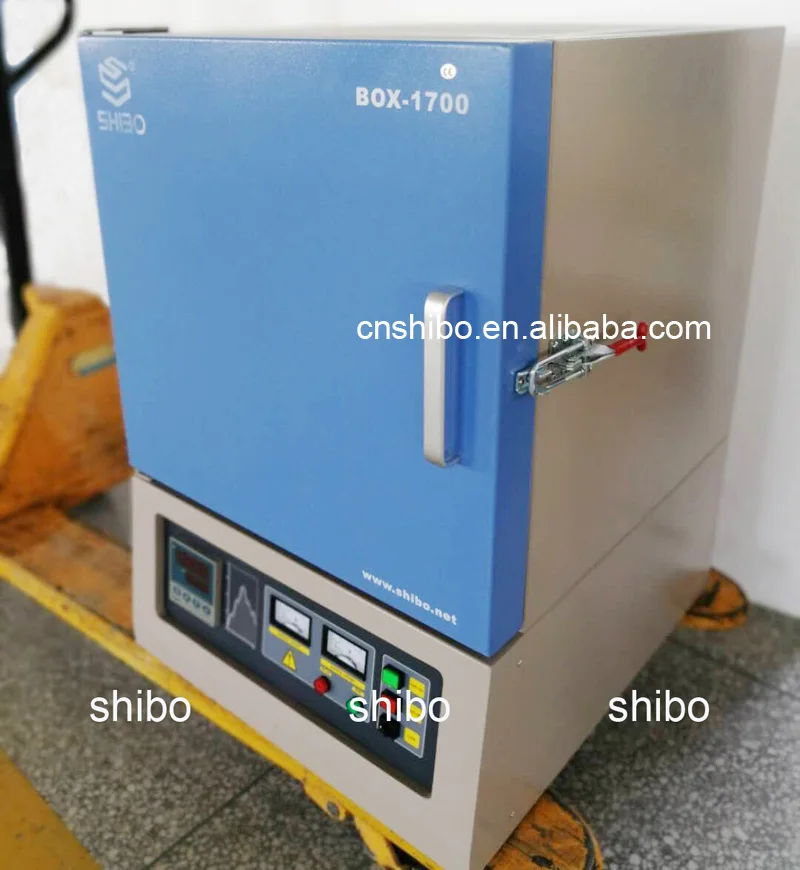

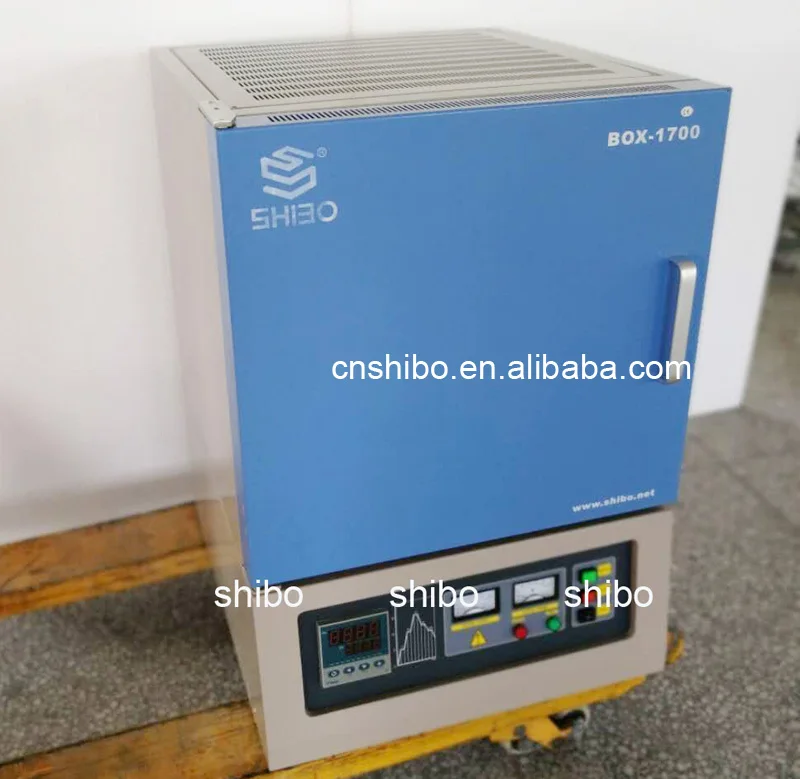

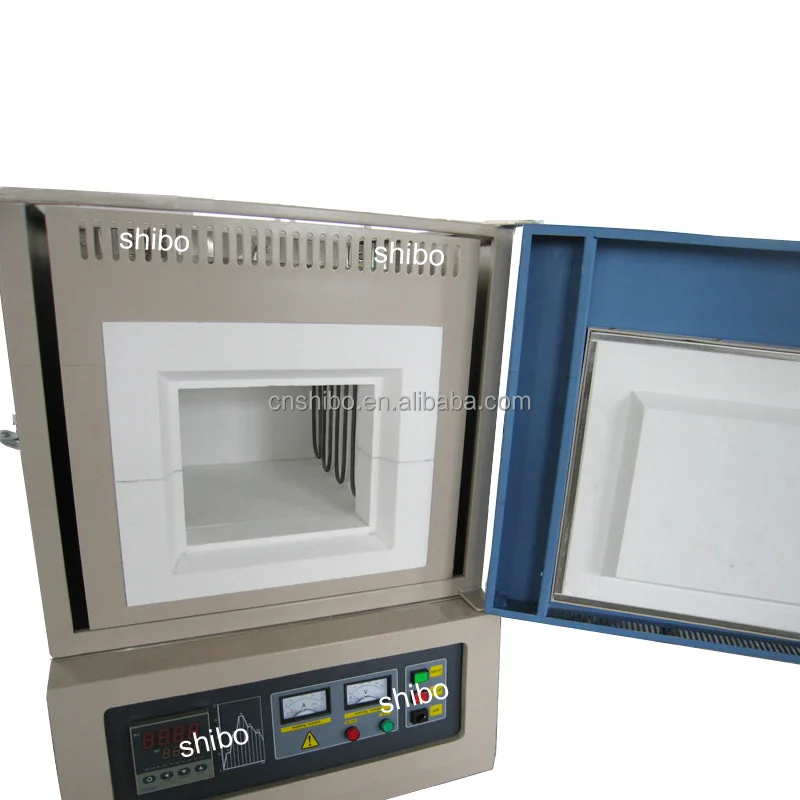

BOX-1700 high temperature lab box muffle furnaces:

BOX-1700 is the most cost effective bench-top high temperature muffle furnace made by SHIBO. The furnace consists of high quality alumina fiber brick and MoSi2 heating elements. The furnace temperature is controlled by high precision SCR (Silicon Controlled Rectifier) digital controller with accuracy at +/-1C and 50 segments programmable up to 1700C or 3092F. It is an ideal tool for materials annealing and sintering in your research laboratory.



Products character:
1) Chamber: high purity ceramic fiber, clean, light weight, good thermal insulation, faster heating,        saving energy.

2) Temperature control: PID automatic control with 50 programmable segments for precise control
3) Heating rate: 0-20℃/min(suggestion:≤10℃)
4) Over current protection and temperature alarm.



Mainly Specification for the BOX-1700 muffle furnaces

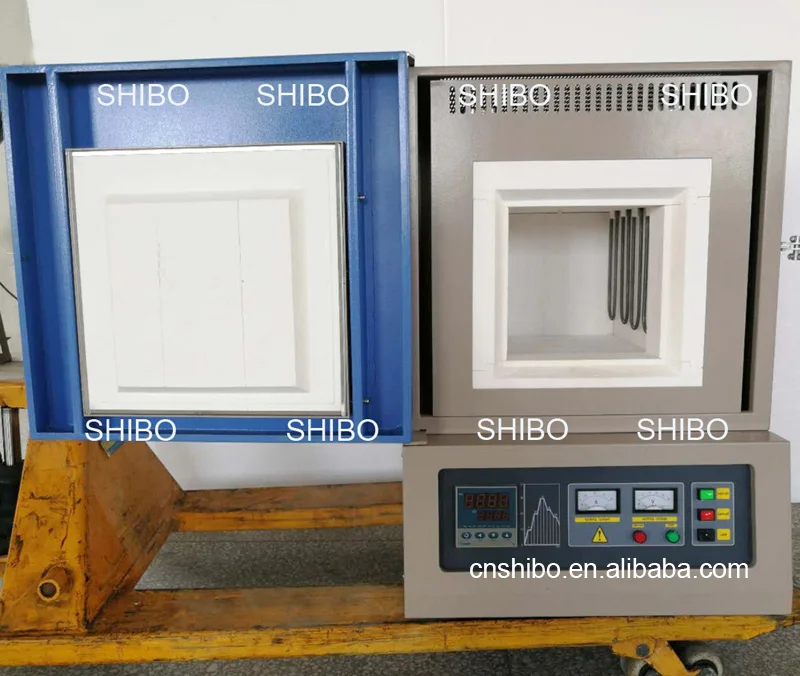

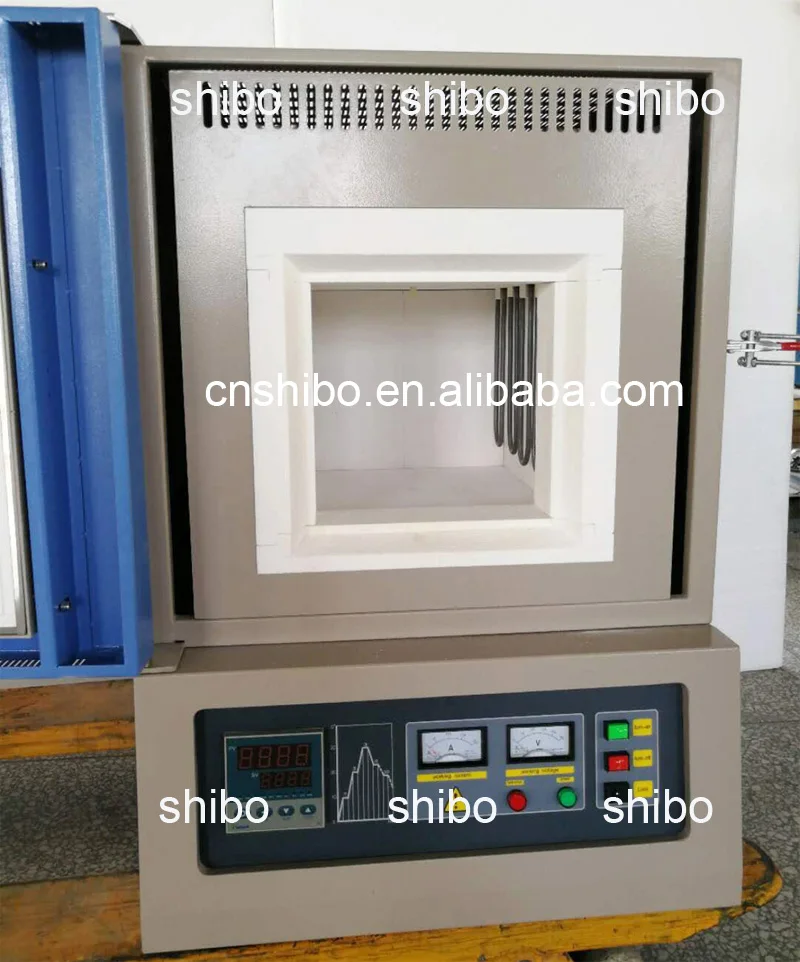

Furnace structure:	Double layer steel structure with fan cooling
	High purity alumina fiber insulation for max. energy saving
Chameber Size:	200(W)*200(H)*200(D)mm (8*8*8inch)
Max. temperature	1700C
Wok temperature:	1600C
Temperature control:	50 segments programmable and PID auto control
Heating elements:	High performance MoSi2 heating elements
Thermocouple:	Long Life B Type Thermocouple
Heating rate:	0~20°C / min (suggestion =< 10°C)
Temperature accuracy:	+/-1 °C
Wok voltage:	AC220V, 50/60HZ single phase or as your requirement
Max power:	7KW
Net weight:	150kgs
Warranty:	1 year warranty
Certificate:	CE
Optional items:	PC data recorder, Exhauster port, Quartz observation widow, Over temperature controller



Our Standard Sizes:

Model	Chamber size(W× H× D mm)	Max. Temperature
BOX-1700	150x150x150mm (6" x6" x6" )	1700. C
BOX-1700	150x150x200mm (6" x6" x8" )	1700. C
BOX-1700	200x200x200mm (8" x8" x8" )	1700. C
BOX-1700	200x200x300mm (8" x8" x12" )	1700. C
BOX-1700	250x250x300mm (10" x10" x12" )	1700. C
BOX-1700	300x300x400mm (12" x12" x16" )	1700. C
BOX-1700	350x350x400mm (14" x14" x16" )	1700. C
BOX-1700	400x400x400mm (16" x16" x16" )	1700. C
BOX-1700	500x500x500mm (20" x20" x20" )	1700. C

For other sizes, we can make as your requirement.



Usage: Sintering ceramic samples, University labs, science and research Institute, annealing, etc
