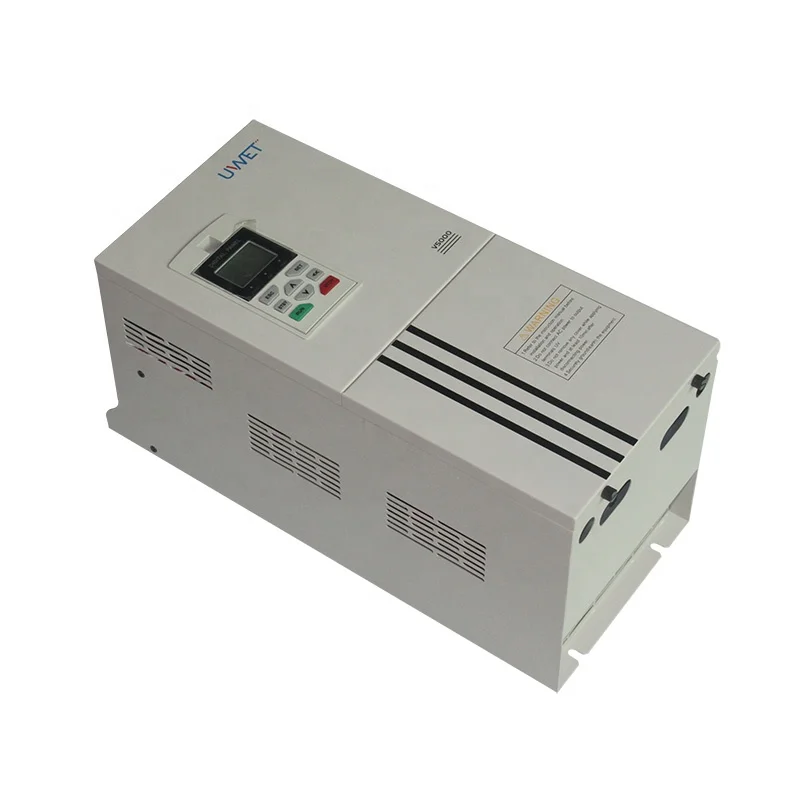

UWET H2000 Series 3kw-8kw UV Mercury Lamp Digital Power Supply

Product Introduction

H series digital power supply is a high-tech product developed for the driving of gas discharge lamps such as mercury lamps and halogen lamps. H series products are used in large current driving applications with lamp voltages below 450V, The H series power supply have strong lighting up ability, large output current and rich external expansion functions.

Features

1)Output characteristics: 1KHz low frequency stable square wave
2)High voltage mode: Non-isolated boost transformer
3)Control Mode:Power vector
4)Intelligent detection: in standby mode, it can start using of automatic voltage hold to ensure the power recovery quickly
5)Flexible power regulation modes: digital panel, external analog, RS485 communication, multi-segment power, extended board, etc.
6)Rich extended board: TCP/IP network board, Canopen board
7)Automatically matches tube pressure:automatically matches tube pressure according to lamp condition(within allowable range)
8)Multiple programmable IO, AO, AI channels, real-time transmits status of machine
9)Built-in lamp tube exhaust controls, built-in optimized PID control fan frequency converter
10)supports closed loop control of light intensity probe

Specifications

Input	Rated voltage, frequency			three phase(4T#series)380V 50/60Hz
	Voltage allowable range			Determined by model
Output	Voltage			Determined by model
	Frequency			0.3K Hz ~2K Hz
	Overload capability			110% 10min
Control Mode				vector control
Control Characteristic	Power setting Resolution			1%
	Current limitation			Power allowable setting
	Voltage limitation			110% of rated lamp tube Voltage
	power limitation			Maximum rated output power of the lamp
	Under-voltage suppression in operation			Especially for users with low grid voltage and frequent fluctuation of grid voltage, even below the allowable voltage range, the system can maintain the longest running time according to unique algorithm and residual energy allocation strategy.
Typical Function	Standby			sets standby power consumption when equipment is intermittent for energy-saving applications
	Working time record			can read lamp working time in operation
	RS485 Communication			Standard Configuration RS485 Communication Interface, Running and Stopping Commands and Machine Status Reading
	Operation			Using external Dry Contact Control to Start and Stop
	Fault analysis			with function of fault record query and fault cause analysis
Display	Operation panel display	operation Status	Monitor output voltage, output current, set power, output power, etc.
		parameter setting	Set the relevant parameter values according to actual requirements.
Protection / Alarm				Protection / Alarm of Over current, overvoltage, under voltage, overtemperature, short circuit, internal memory failure
environment	Ambient temperature			-10ºC--+50ºC(not frozen)
	Ambient humidity			Below 90%(no frost)
	Ambient environment			Indoor (no direct sunlight, no corrosion, no flammable gas, no oil mist, no dust, etc.)
	Altitude			Below 1000m
Structure	degree of protection			IP52
	Cooling method			Independent air-duct design forced air cooling

Model No. and Parameter

paste-pic-dp_uuid_pnwzl

Trade Show

Application

Mainly used in graphic printing industry, UV curing industry, spraying UV curing industry, wood surface treatment and other industries.
