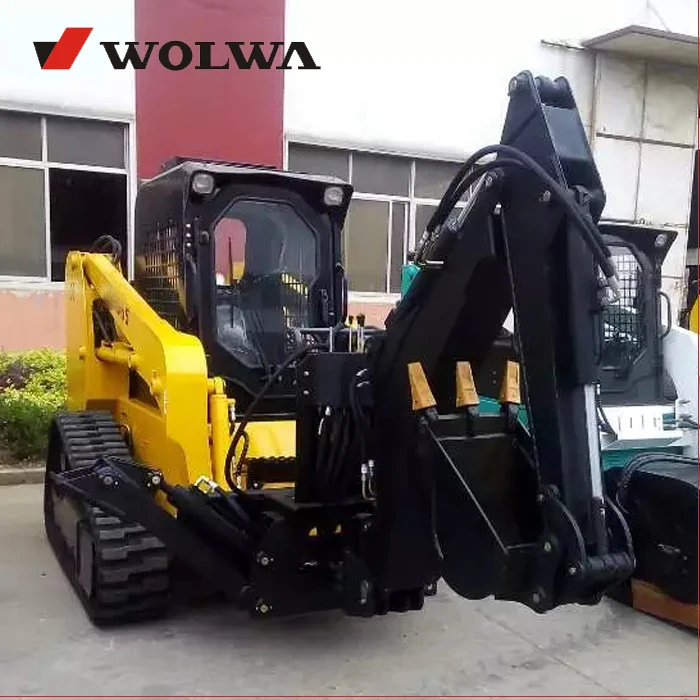

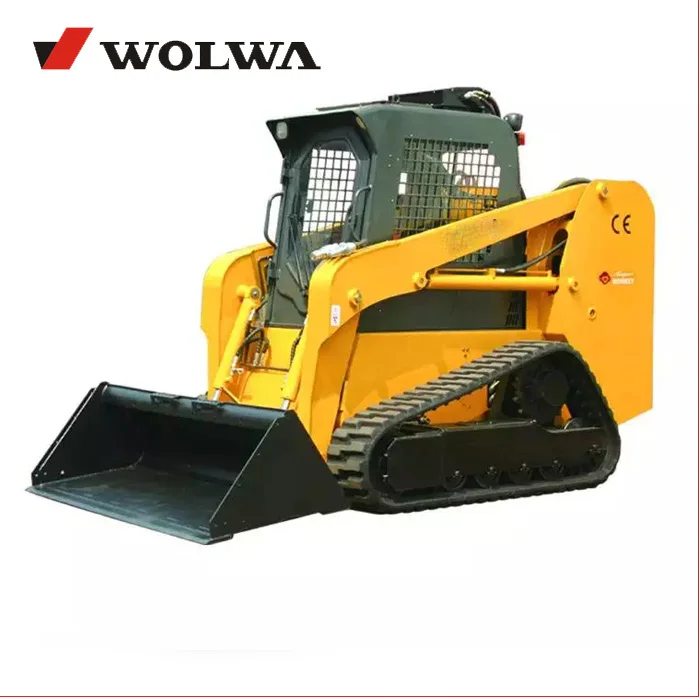

100 hp track mini skid steer loader with attachments for sale

Specifications

Rated operating capacity(kg)

1200

Tipping load(kg)

2400

Bucket capacity(m³)

0.7

Operationg weight(kg)

3560

Max. travel speed(km/h)

12

Hydraulic pump flow(L/min)

120-144

Fuel tank capacity(L)

90

Tires

12/16.5NHS

Overall dimensions(mm)

3560×1900×2150

Dimensions

Height at maximum extension(mm)

4070

Height to bucket hinge pin(mm)

3150

Width with bucket(mm)

1900

Track width(mm)

1500

Wheelbase(mm)

1185

Ground clearance(mm)

260

Dump angle

40°

Dumping height(mm)

2450

Maximum reach(mm)

710

Rollback at ground

26°

Angle of departure

20°

Engine

Maker/Model

WEICHAI Deutz/DONGFENG Cummins

Net power

100hp/2500rpm

Type

4Cylinder in-line, Water cooled, 4 stroke,  Diesel engine

Displacement(L)

3.9-4.2

Standard

Standard bucket

Enclosed operator cab

Hydraulic joystick controls

Auxiliary hydraulic couplers

Optional

High-flow hydraulic system

Prehest starting assist system for extreme cold weather

Cab fitted with a heater as standard

Air conditioner

2-speed transmission system
