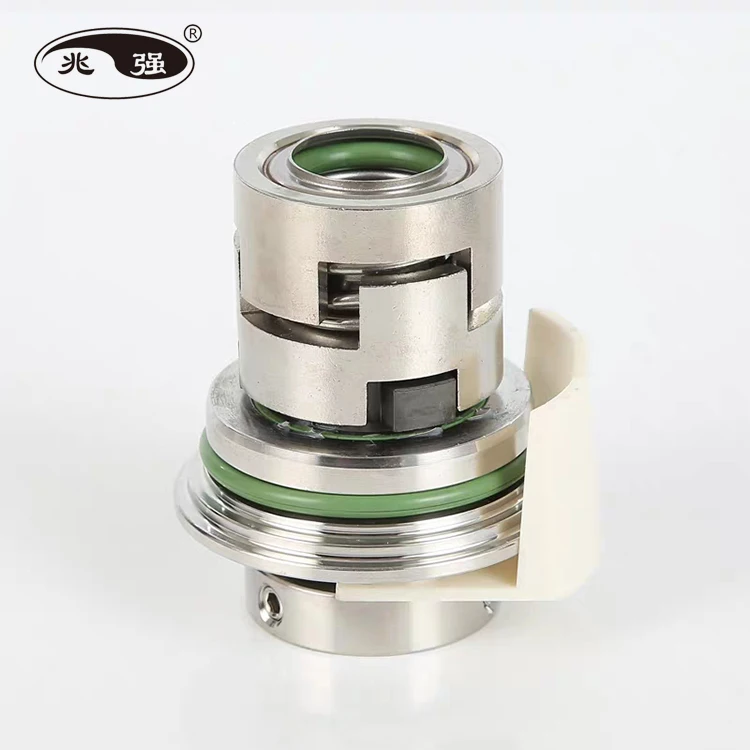

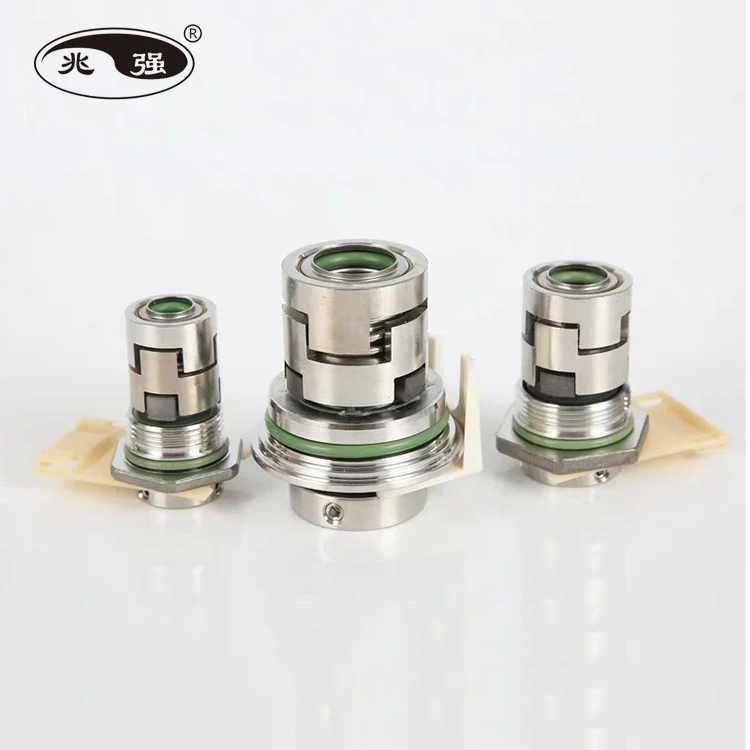

CR/CRN/CRI 12mm mechanical seal for water pump in stock

Product Description

Operating Limits

Pressure: ≤1Mpa

linear velocity: ≤10m/s

Temperature: -30~180℃

Combined Materials:

•Stationary Ring(Ceramic/SiC/TC)
•Rotary Ring(Carbon/SiC/TC)
•Secondary Seal(NBR/EPDM/VITON)
•Spring & Other Parts(SS304/SS316)

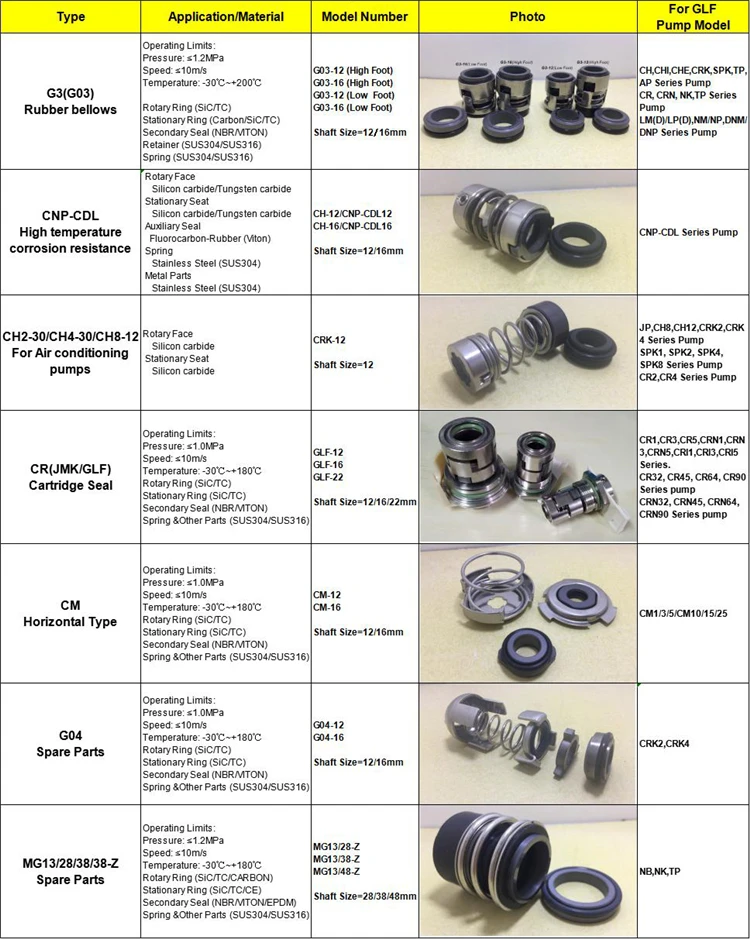

Material of Mechanical Seals
Type	Rotary Ring	Stationary Ring (Seat)	Elastomers (Rubber)	Remark
Carbon-Ceramic-NBR (CA/CE/NBR)	Carbon	Ceramic	NBR	CE :Ceramic CA :Carbon TC :Tungsten carbide
SiC-SiC-Viton (S/S/V)	Silicon carbide	Silicon carbide	Viton
Carbon-SiC-Viton (CA/S/V)	Carbon	Silicon carbide	Viton
SiC-SiC-NBR (S/S/NBR)	Silicon carbide	Silicon carbide	NBR	NBR :Nitrile Butadiene V :VitonfFKM) EP :EPDM MVQA/MQ:Silica gel
SiC-SiC-EPDM (S/S/EP)	Silicon carbide	Silicon carbide	EPDM
SiC-SiC-MVQ (S/S/MVQ)	Silicon carbide	Silicon carbide	Silica gel
TC-TC-Viton (TC/TC/V)	Tungsten carbide	Tungsten carbide	Viton

mechanical seal

Application equipment : Pipeline pumps, centrifugal pumps, submersible pumps, fresh water pumps, sewage pumps, chemical pumps. etc.

Application industry: petroleum,metallurgy industry,papermaking,oil refining industry,energy material industry,pharmaceuticals industry and water treatmentsystem etc.
