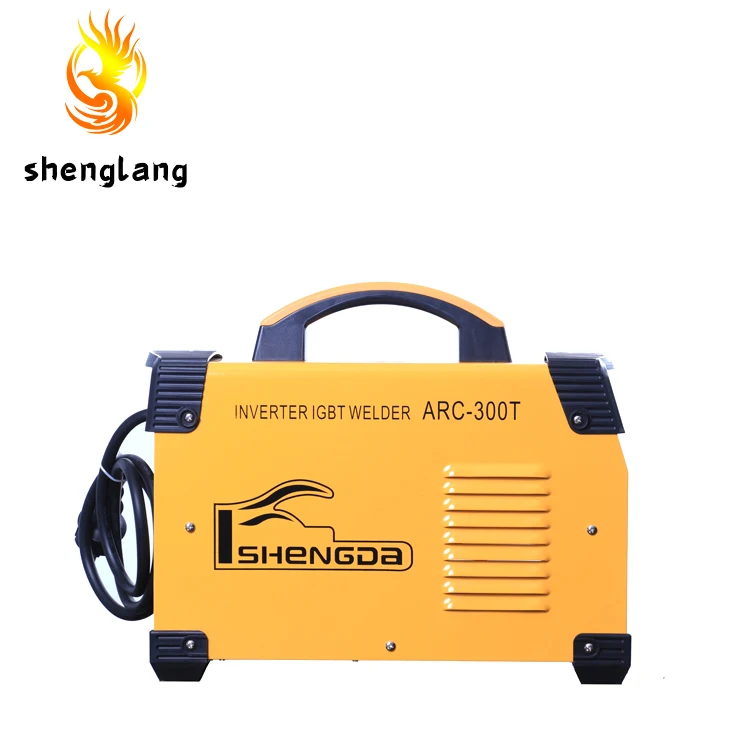

Highly Recommend Twin Arc 300 Welding Machine Welders Inverter Welding Machine
- Category: TIG Welder >>>
- Supplier: Linyi Shenglang International Trading Co. Ltd.
Share on (62142492330):
Product Overview
Description
Product Description
| Model | ARC-200 | ARC-250 | ARC-300 | ARC-315 |
| Intput voltage(V) | 220V | 220/380V | 220V | 220/380V |
| Frequency(HZ) | 50-60HZ | 50-60HZ | 50-60HZ | 50-60HZ |
| Rated input capacity(KVA) | 6 | 7.5 | 8 | 10 |
| Max no-load voltage(V) | 62 | 65 | 70-80 | 70-80 |
| Current range (A) | 20-130 | 20-160 | 20-160 | 20-220 |
| Rated duty cycle(%) | 60 | 60 | 60 | 60 |
| Welding rod size(MM) | 1.6-3.2 | 1.6-3.2 | 1.6-4.0 | 1.6-4.0 |
| Protection degree | IP21S | IP21S | IP21S | IP21S |
| Weight (KG) | 3.5 | 4.3 | 4.3 | 9.5 |
| Dimension (CM) | 33*13*20.5 | 35*15.5*24 | 35*15.5*24 | 41*23*27 |
Product Description
1. With automatic compensation for voltage fluctuations capacity, anti-network fluctuation strong, stable welding current;
2. With automatic over-voltage over-current protection function;
3. A good thrust compensation, dynamic characteristics, and flying small, high efficiency, weld appearance;
4. Through pulse width modulation(PWM) output power DC source, stable performance, small size, light weight, energy-saving , above 30% more efficient than traditional welding efficiency;
5. Current continuously adjustable, easy to use;
6. Suitable for all kinds of electrode welding.
