 MJ45 Harvey Sliding Table Saw Table Saw Machine Foshan






Product Description


.jpg





Application:
Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.





Feature:
1.Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.
2.With oxidation treatment, movable table surface is beautiful and hard wearing.
3.Manual titling and electric up/down for saw blade.
4.Tilt angles of main saw blade is digital readout for precision angle





Advantages of our products
1. We make the machine aggravating in order to improve equipment stability and is much heavier than ordinary ones and running more stable.
2. The saw axis is equipped after two dynamic balance so it is much more life-saving and high precision.
3. Movable table guide track is plating chromium steel bars structure,
exact and durable.
4.High precision and can reach 0.05mm.and the cutting surface is smoother without jagged
5.Electrical seal, preventing saw dust and objects from entering.
6.SCM Structure ,quick adjustment of the scoring saw
7.The belt of saw axis is changed from the table top


Technical Parameters

































































ModelMJ45
Dimension of sliding table3200/3800*375mm
Gross cut capacity3200/3800mm
Saw balde diameter300mm
Speed of main saw spindle4200/5600rpm
Main spindle diameter30mm
Tilting saw blade45 angle
Main motor5.5kw
Scoring saw blade diameter120mm
Speed of scoring saw blade 8500r/min
Scoring spindle diameter20mm
Scoring motor1.1kw(0.75kw)
Width of cut between saw blade and rip1250mm
Overall dimensions3200*3150*900mm
Net weight800kg

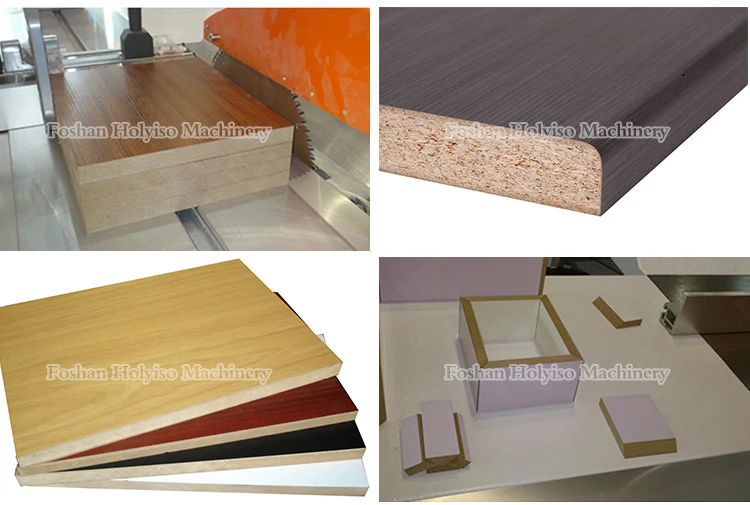

Finished Products

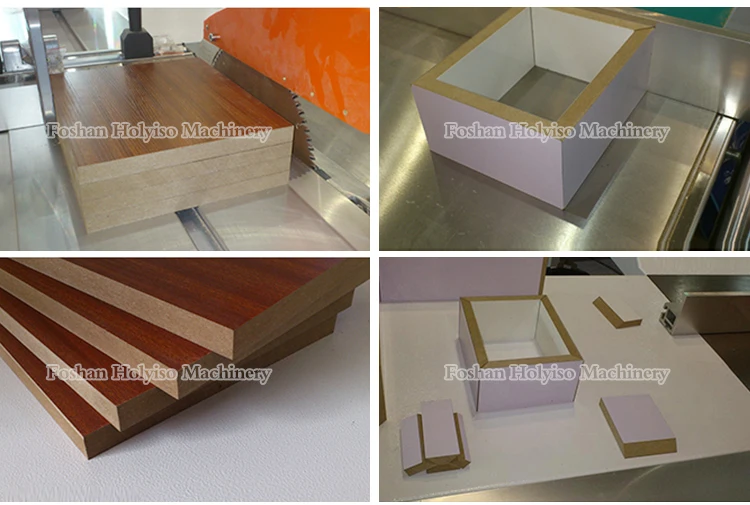

 saw cutting picture





but_offer





Packing & Service


 packing_2



1.Delivery:



We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.



2.Package:



We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.



3.Guarantee:



The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.



4.Technical support:



Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
