Hot Sale Slim Solid Bare Copper 28AWG UTP/FTP Cat 6a Lan Cable Copper Cable

 Features

TIA/EIA-568B.2-1;ISO/IEO 11801;NEC/CEC

Fire protection – IEC60332-1 (CM)

Application: Horizontal communication cable; for outdoor installation

Construction

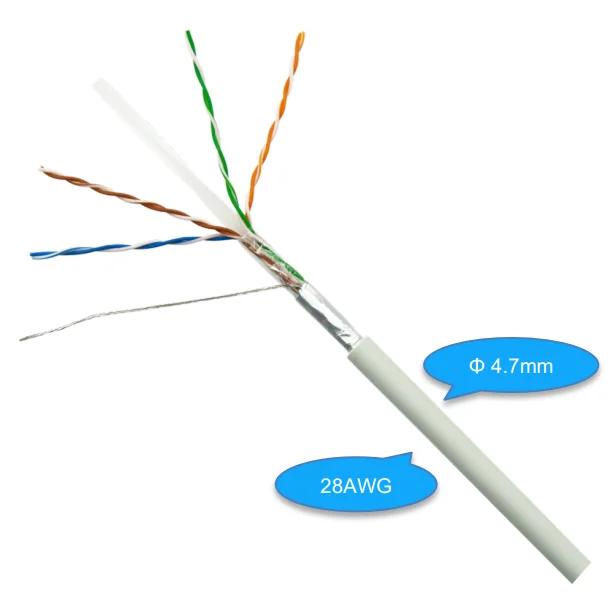

Conductor: Bare Solid Copper                                  Pair Identification: Pair1= Blue/White    Pair2= Orange/White

Conductor Dia.:0.185mm+0.05mm (28AWG)                                           Pair 3= Green/White  Pair4= Brown/White

Pair Indulation: Polyethylene

Drain Wire:0.50mm

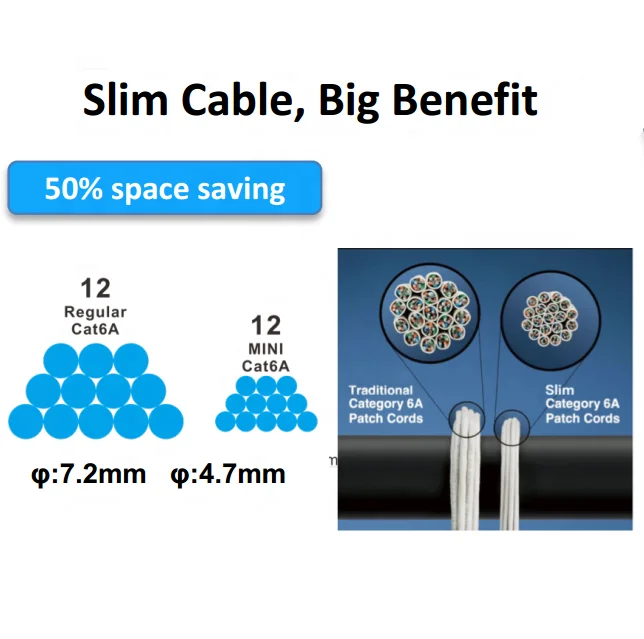

Outer Cable Diameter:4.7± 0.2mm

Outer Jacket: PVC/LSZH/CM/CMR/CMP Jacket

TECHNICAL MECHANICAL

Installation Temperature: 0°C to +60°C                                         Pulling strength: 90 N

Operating temperature: -20°C to +75°C                                        Minimum bend radius: 4 outer cable diameters

DC Resistance Unbalance :5%                                                      Dielectric Breakdown:1000 Volts DC Conductor to Conductor

Pair-to-Ground Capacitance Unbalance :330 pF/100 m            Velocity of Propagation:PE=65%

Frequency Range:1-250HMZ                                                         Maximum Skew:45ns@100 meters

PACKAGING

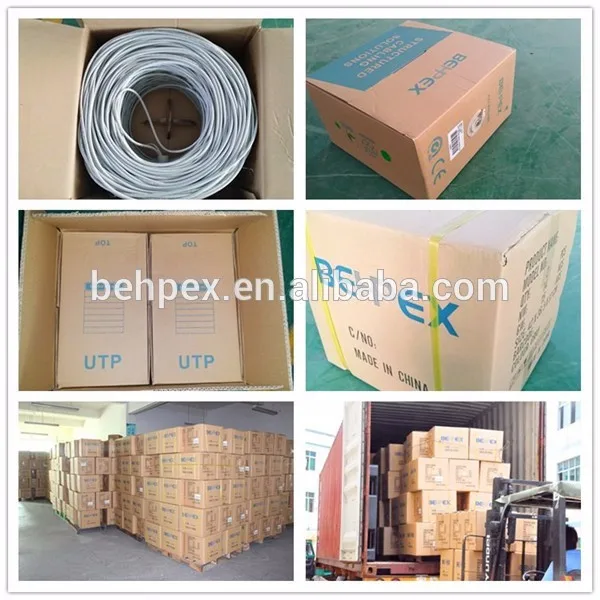

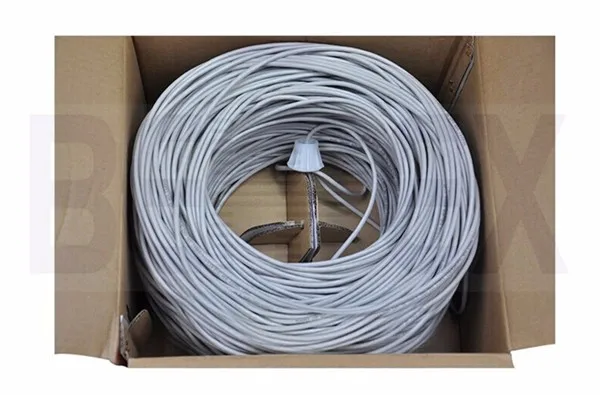

305m/1000ft/roll; 500m/wooden reel;1000m/wooden reel
