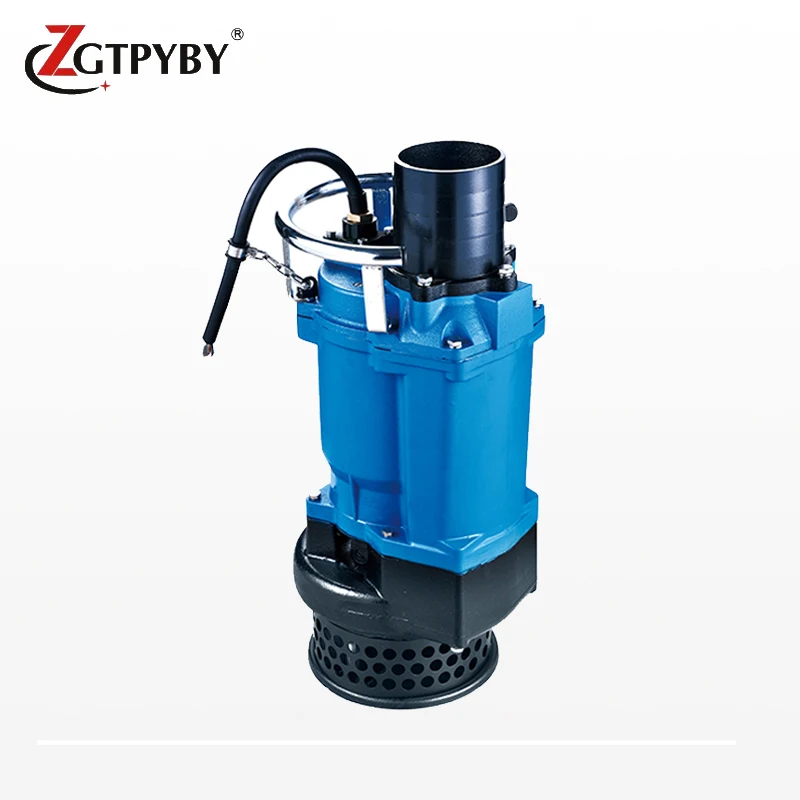

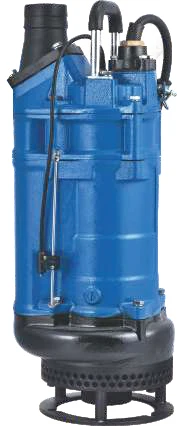

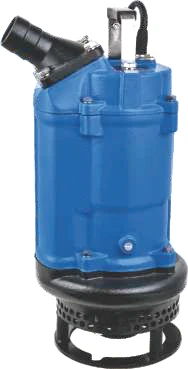

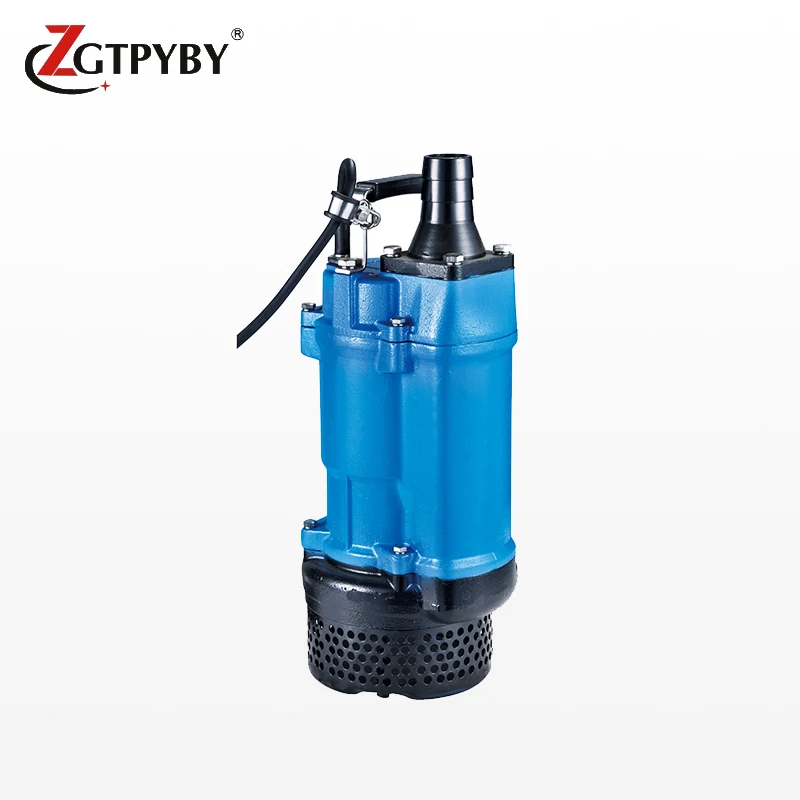

2hp 3hp 5hp 10hp 15hp 20hp KBZ series pump sludge submersible sludge and sewage pumps for sale
- Category: >>>
- Supplier: Hangzhou Qinjie Electromechanical Co. Ltd.
Share on (62142874384):
Product Overview
Description
-Seawater pumps are indispensable to waterfront development projects and aquaculture facilities.
-Qingeal has performed fieldtests in various marine construction projects under severe conditions over many years, in collabo-ration with general contractors, and applied the obtained know-how to developing submersible seawater resistant pumps.
-Qingeal also considers economic efficiency important and, therefore, designs pumps with standardized materials as many as possible.
Product Description
Pump Advantage
- The body of motor and pump is made of rigid cast iron for long-lasting durability.
- Semi-open impeller made of high chrome alloy mach with wear plate achieves superior durability.
- Effective motor cooling due to discharge channel cast as part of the motor housing space economically by a top outlet
- Hermetically sealed motor equipped build-in thermal protection for the power below 15kw
- Effective motor cooling due to discharge channel cast as part of the motor housing space economically by a top outlet
- Hermetically sealed motor equipped build-in thermal protection for the power below 15kw

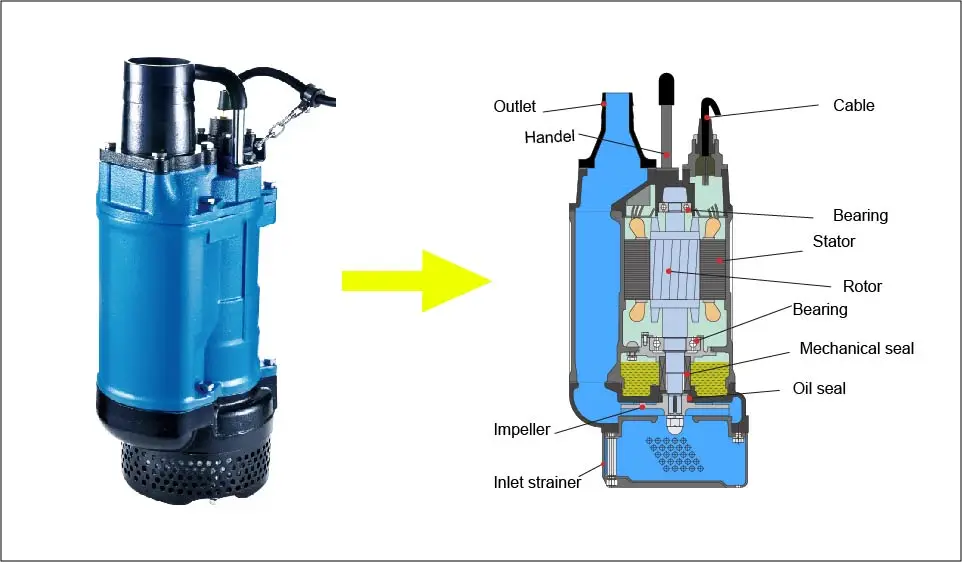

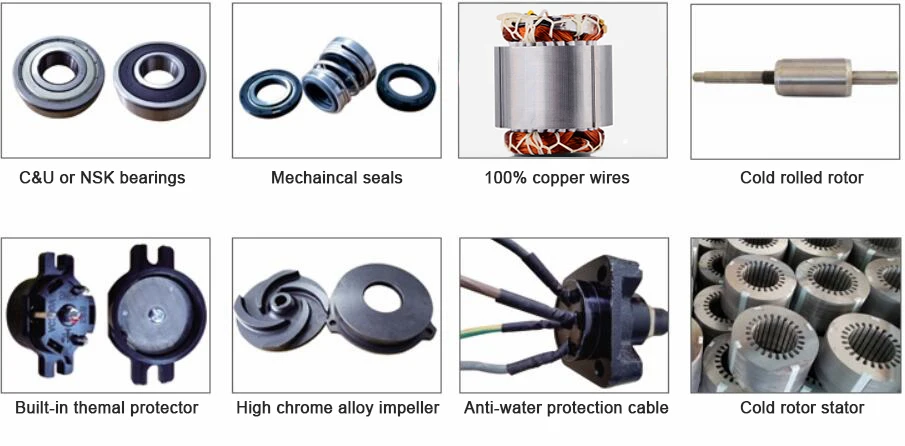

The part of sea water pump & materials

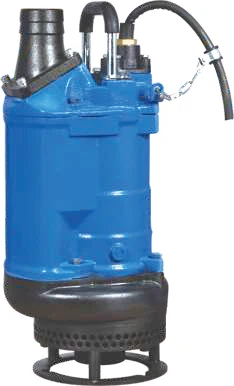

Pump details
Other Hot Pump

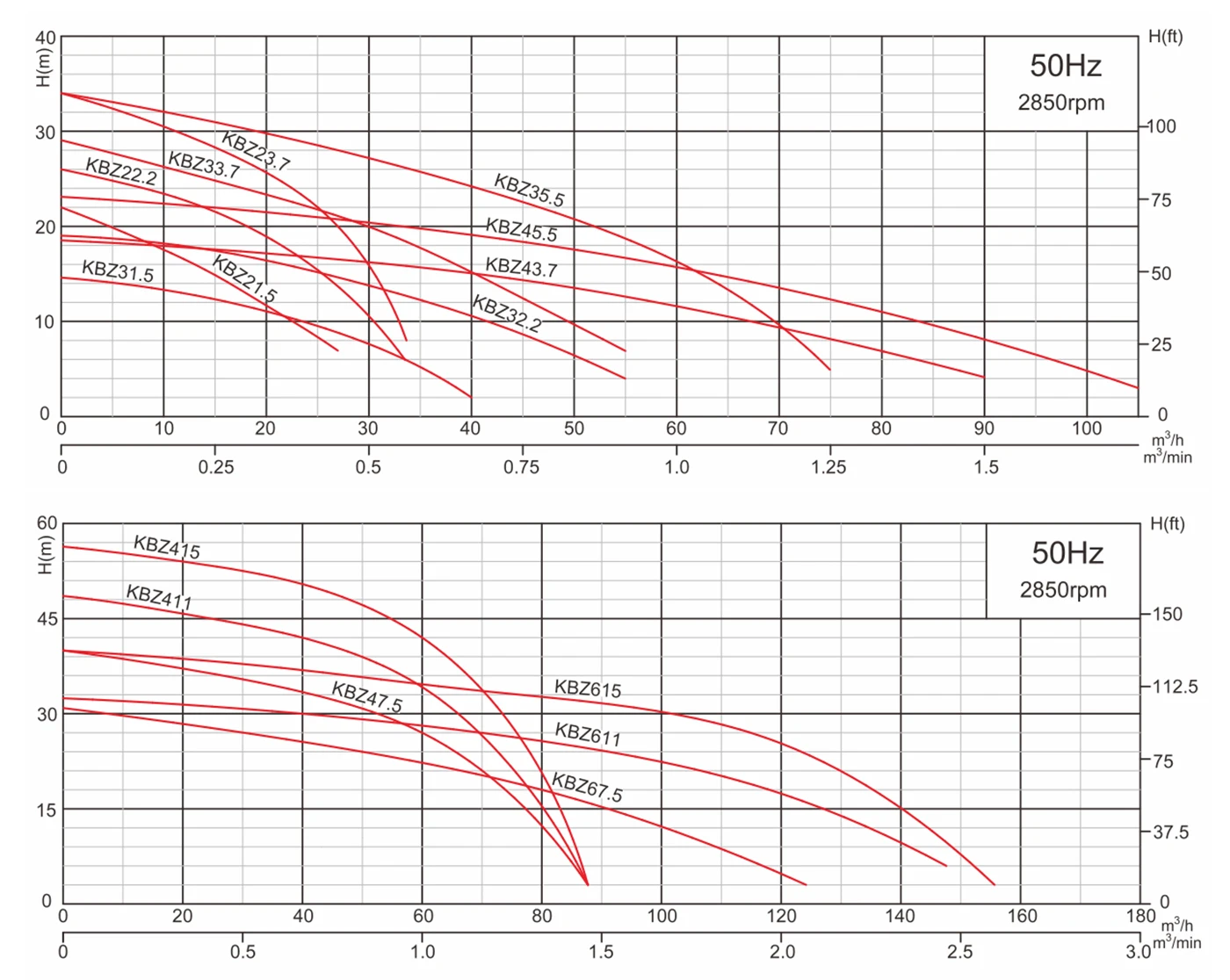

Paramenters of other models
Model | Max Head (m) | Max Flow (m3/h) | Power (KW/HP) | Outlet (inch/mm) |
KBZ21.5 | 21.5 | 28 | 1.5/2 | 2/50 |
KBZ31.5 | 13 | 42 | 1.5/2 | 3/80 |
KBZ22.2 | 26 | 33 | 2.2/3 | 2/50 |
KBZ32.2 | 19.5 | 55 | 2.2/3 | 3/80 |
KBZ23.7 | 34 | 31 | 3.7/5 | 2/50 |
KBZ33.7 | 27.5 | 57 | 3.7/5 | 3/80 |
KBZ43.7 | 17.8 | 91 | 3.7/5 | 4/100 |
KBZ35.5 | 32.8 | 80 | 5.5/7.5 | 3/80 |
KBZ45.5 | 22.8 | 103 | 5.5/7.5 | 4/100 |
KBZ47.5 | 40 | 84 | 7.5/10 | 4/100 |
KBZ67.5 | 31.8 | 121 | 7.5/10 | 6/150 |
KBZ411 | 48.5 | 86 | 11/15 | 4/100 |
KBZ611 | 32 | 145 | 11/15 | 6/150 |
KBZ415 | 55 | 86 | 15/20 | 4/100 |
KBZ615 | 39 | 159 | 15/20 | 6/150 |
80KBS44 | 14.8 | 99 | 4/5.5 | 3/80 |
100KBS46 | 16.9 | 144 | 6/8 | 4/100 |
150KBS49 | 21.5 | 192 | 9/12 | 6/150 |
Customized
Voltage
Pump can be customized voltage & frequency

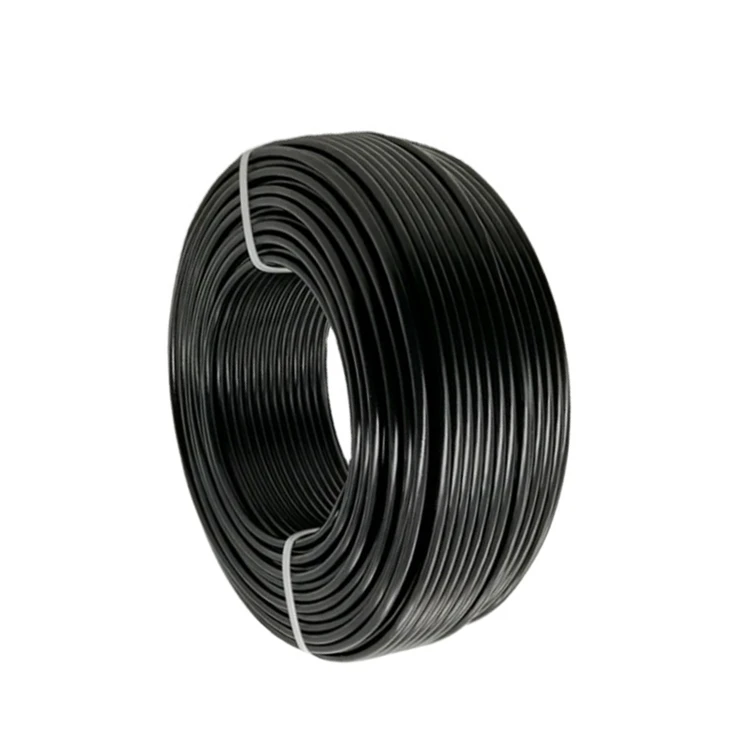

Cable Wire
Cable wire adopts water-proof structure. better quality than common cable.
Original pump cable is 8m, if need longer, can be customized for you.

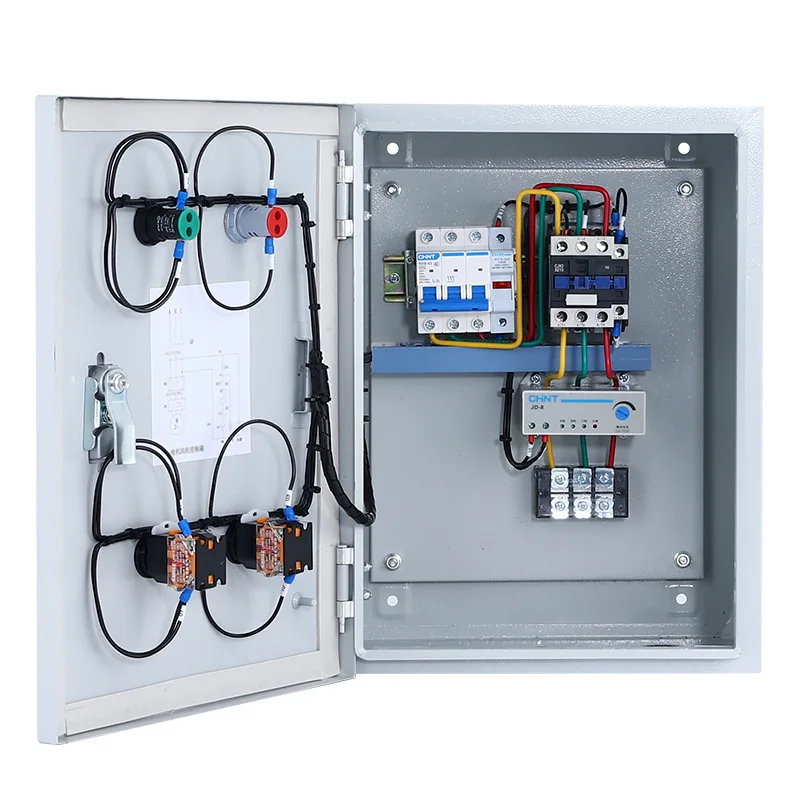

Control Cabinet
Pump can equip with control cabinet, will equip float switch.
Advantage:
-can realize the function of supervising working condition whenunattended
-start, stop and warning automatically
If you want to know more customization, please contact me!!!
My name: Kiely Sun
My phone number: +8618758028160
My WhatsApp/WeChar: +8618758028160
My email: sales5@qingeal.com
How to Follow Us!
Application
Application of Seawater Pump:
●Booster and water supply for fire, high-building, Drainage in industry and city
●Metallurgy, Energy sources, chemical industry, textile timber processing
●Petroleum, electric power, food and pharmacy and synthetic fiber
●Gasoline, diesel oil, kerosene etc petroleumFlammable chemical liquid

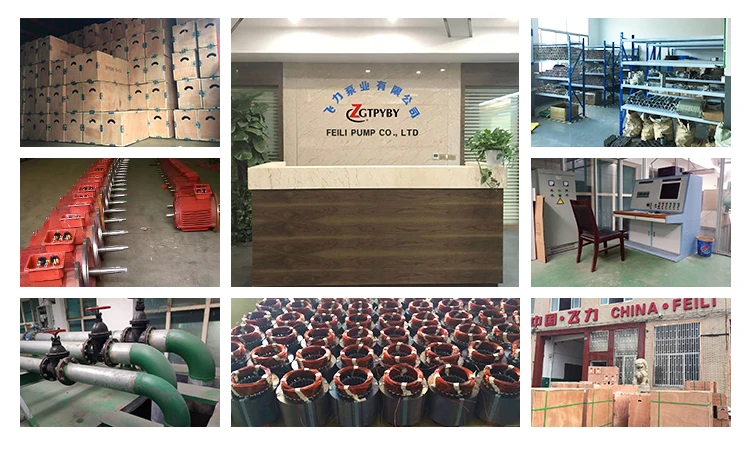

Brief introduction of company
Hangzhou Qinjie Electromechanical Co.,ltd is a branch company established by Feili Pump in 2015, based in Hangzhou city-famous E-commerce city, provincial capital of Zhejiang Province.
We mainly produce and sell series of pump includes solar water pumps, submersible pumps, pipeline pumps and fountain pumps. Our goal is providing high-quality, cost-effective solar water pumps to customers around the world, let's make world more eco friendly!
Hangzhou Qinjie followed ISO9001 quality system, has strict quality control procedure, use good raw material for all pumps to make sure pump's quality. We have a 9,000 square meter workshop and two assembly lines with the ability to produce motors, assemble pumps, test and develop. Currently has 5 utility model patents.
At the same time, we implement After-ales service feedback system which can offer solutions within 24 hours to support customers if need.
At present, our pumps have obtained relevant export certificates such as CE, SGS CB, and our pumps have gained certain market share and brand recognition in Southeast Asia, Africa and North America.
We mainly produce and sell series of pump includes solar water pumps, submersible pumps, pipeline pumps and fountain pumps. Our goal is providing high-quality, cost-effective solar water pumps to customers around the world, let's make world more eco friendly!
Hangzhou Qinjie followed ISO9001 quality system, has strict quality control procedure, use good raw material for all pumps to make sure pump's quality. We have a 9,000 square meter workshop and two assembly lines with the ability to produce motors, assemble pumps, test and develop. Currently has 5 utility model patents.
At the same time, we implement After-ales service feedback system which can offer solutions within 24 hours to support customers if need.
At present, our pumps have obtained relevant export certificates such as CE, SGS CB, and our pumps have gained certain market share and brand recognition in Southeast Asia, Africa and North America.
