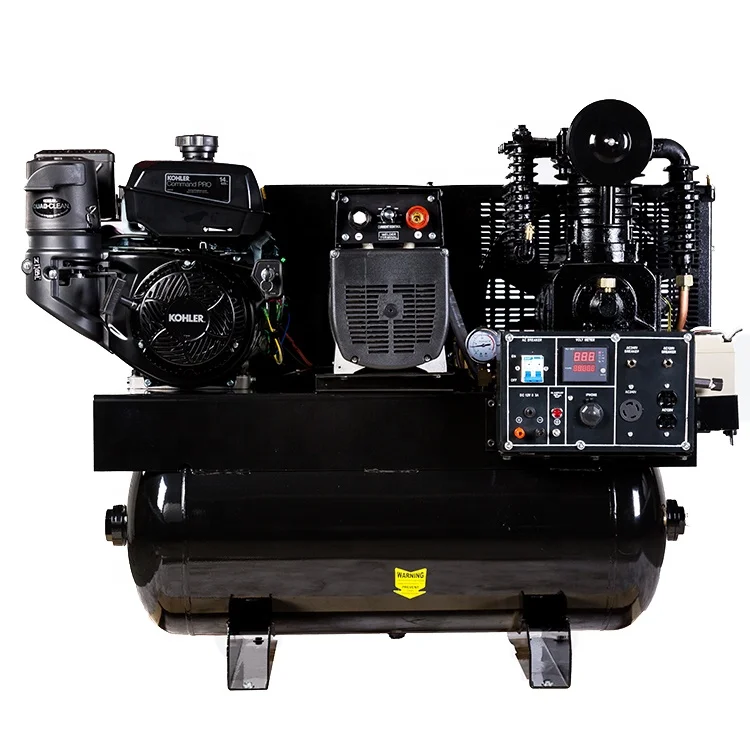

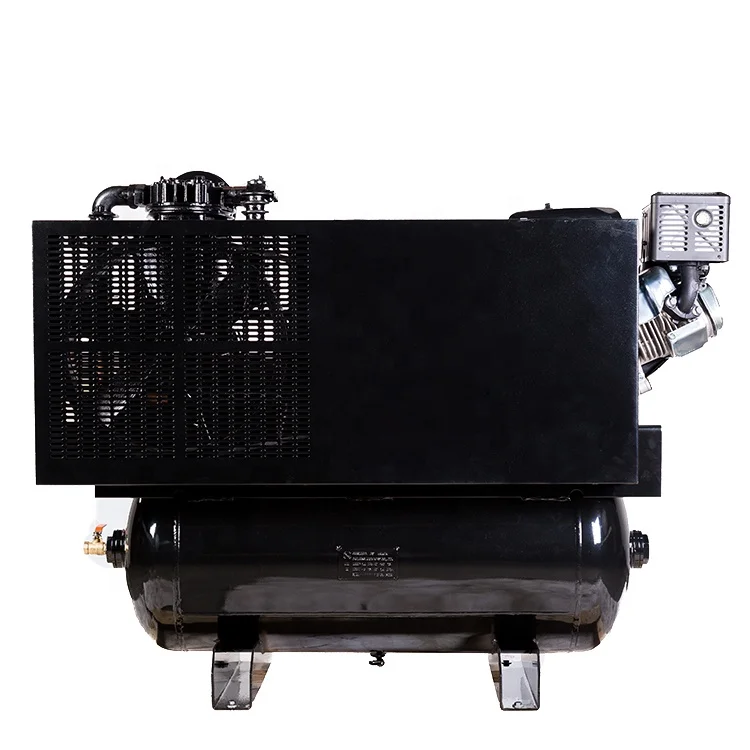

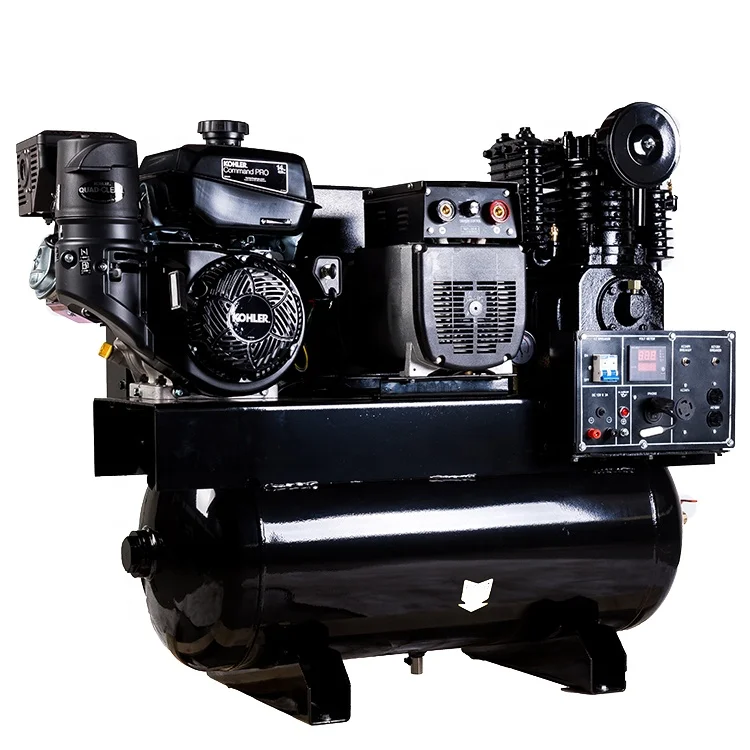

3 in 1 42 Gallon Air Compressor Generator Welder With Kohler Engine

Talos Plus 3-in-1 Air Compressor/Generator/Welder with Kohler Engine provides compressed air, electric power and a DC welder for jobsite needs or severe weather emergencies.

Ideal for commercial and industrial applications on the jobsite and mobile services, this unit is powered by a reliable Kohler CH440 gas engine.

The cast iron air compressor delivers air 420L/min, 12.5bar pressure with a large 113L(30-gallon) air tank and a heavy-duty steel belt guard for safety. 6,000 Watt generator. 50–200 amp DC welder easily handles 1.5 - 4.0mm(1/16 -5/32in) electrodes to weld steel.

Key Specs

Model	AGW10000E	Brand	Talos Plus
Product Type	3-in-1	Welding DC Current Range	50 - 200A
Welding Material	Steel, Cast Iron	Working Voltage	24 - 30V
Electrode Diameter	1.5 - 4.0mm	Duty Cycle	60%@200A, 28V
No-Load Voltage	75 - 85V	Rated Watts	6000W
Surge Watts	6500W	Frequency	60Hz
Voltage	120/240V	DC	12V/8.3A
Pressure	12.5Bar(181PSI)	Adjustable Pressure	1 - 12.5bar
Tank Capacity	160L(42Gal)	Air Delivery	420L/min(15CFM)
Voltmeter	Yes	Circuit Breakers	Yes
Engine Type	Air-cooled, gasoline	Engine Model	CH440
Displacement	429cc	Low Oil Shutdown	Yes
Battery Included	Yes	Fuel Tank Capacity	6.5L
Start Type	Electric/ recoil start	Cooling System	Air cooled
Weight	358kg	Dimension(L x W x H)	157 x 72 x 121cm
Receptacles (qty.)	(1) 120V/20A, (1)240V/30A
Warranty	1 year consumer/90 day commercial
Available Options	Electrode holder, earth clamp, welding cable, brush, hammer, welding mask, Honda, B&S engine.

Features

Generator produces 6,000 Watt surge power, 6,500 Watts continuous power.

Ideal for jobsite needs or severe weather emergencies.
50–200 Amp DC weld output for excellent stick welding performance.

420L/min air delivery, 12.5bar pressure.
60% duty cycle.

Maintenance-free battery.

100% cooper wire alternator.

ASME air tank.

Detailed Images

Packing & Delivery

Packing & Delivery

Durable carton box or according to demand.
Package dimension(L x W x H): 157 x 72 x 121cm
Gross weight with package: 358kg.
Lead time: regular 45 days after got deposit.
