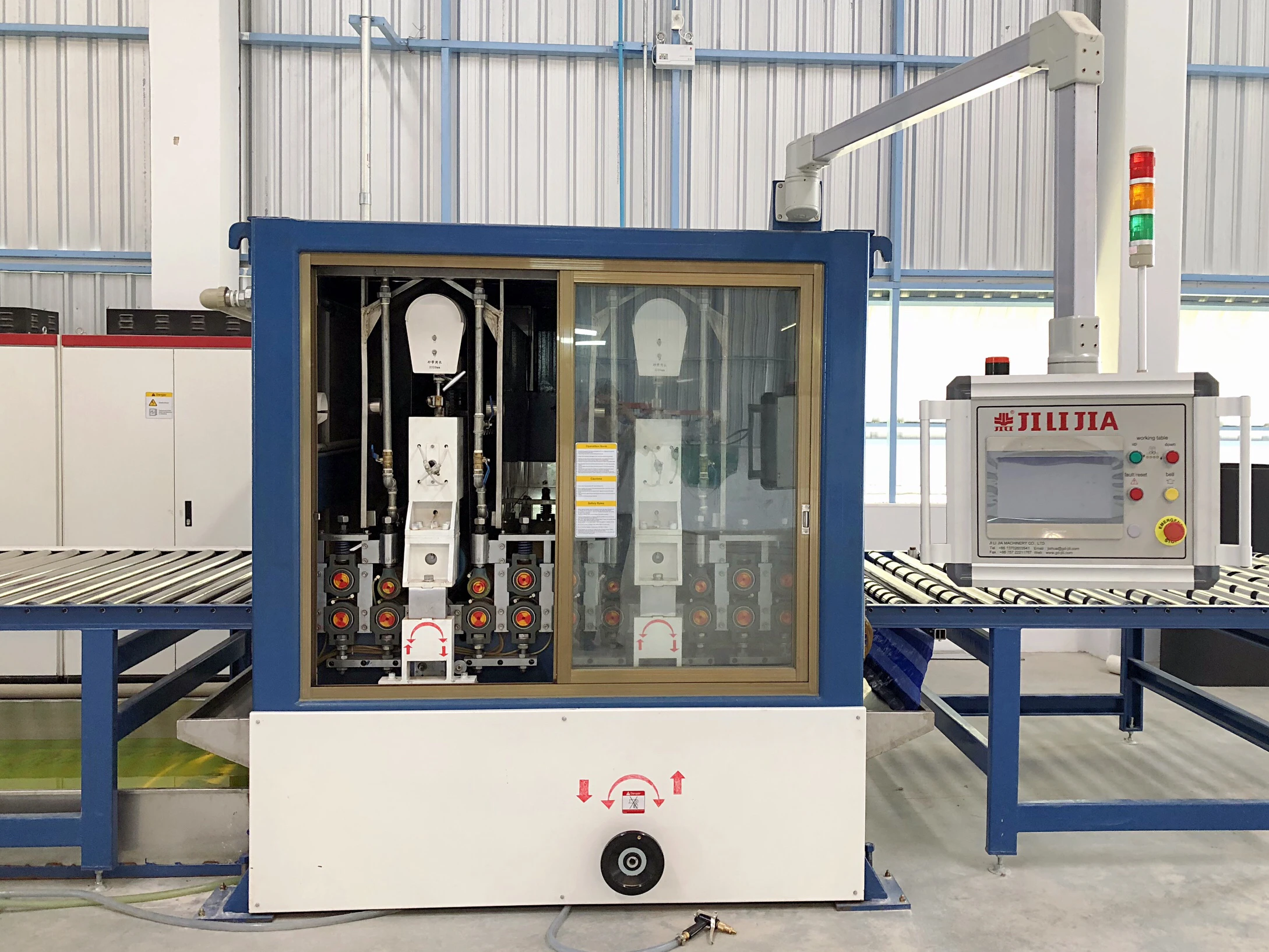

JGD series provides a polishing service for metal coil or sheet. To this end, we developed these short thread series with dry or wet polishing type in 1995’s. JGD series has a high-precision and high-rotation speed bottom contact roller, which can obtain a stable and perfect surface even in a high-speed production.

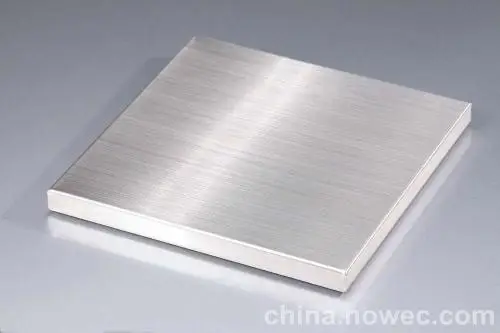

It is easy to be achieved the different surface styles by setting the parameter and changing the abrasive belt, including to obtain the finishing No.3, ("coarse polishing", with abrasive grains from G60 to G150) and No.4 ("fine polishing", abrasive grain from G180 and beyond).
In addition, we have developed bottom short thread series to solve the problem of releasing the internal stress of the sheet due to insufficient annealing of metal materials, so as to achieve the leveling of the finished products.
All JDG /JSGcan be fully integrated to install into an existing lines.
GENERAL DATA
- The processing thickness can be adjusted electrically or manually
- With special main cross beam design, the abrasive belt can be replaced rapidly
FRAME& MATERIALS
--Ji Li Jia use only first choice materials from ISO9001 or CE certificated suppliers
- Standardized and maximum spare parts, perfect after-sales spare parts supply system
- All frames are made of welded steel, stress relieved, sanded, polished, oiled, primer-coated and painted
MOTOR
- Only use the high-quality domestic brand or Siemens brand motor
- The motor power is determined according to the processing type

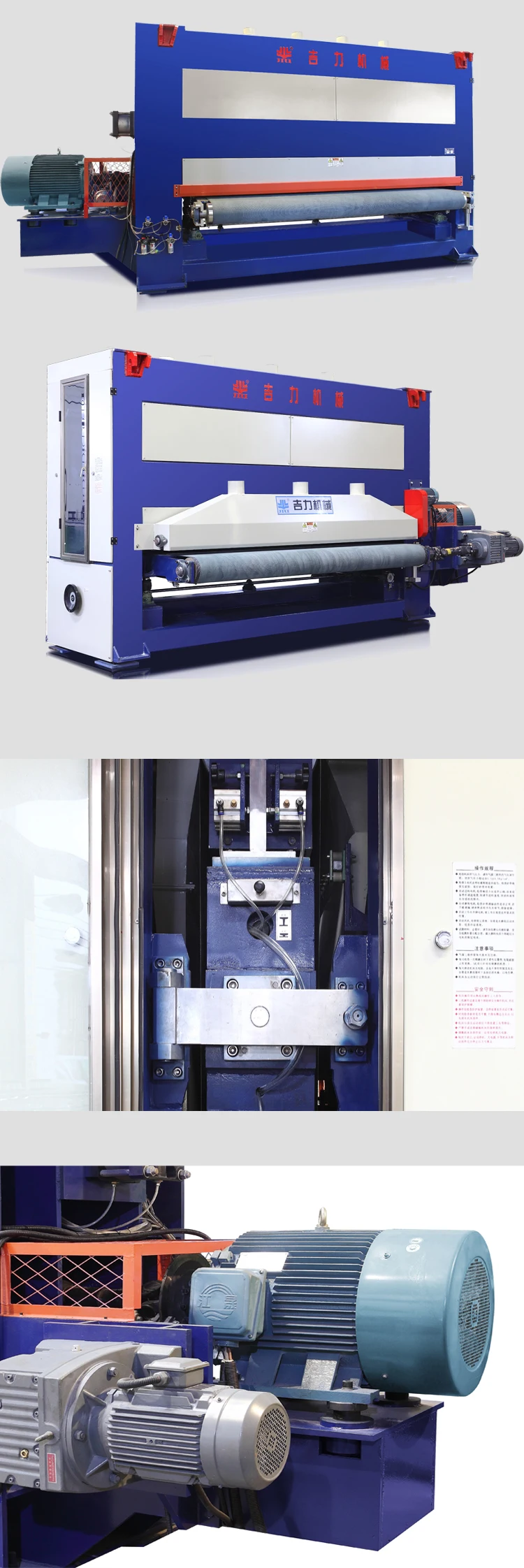

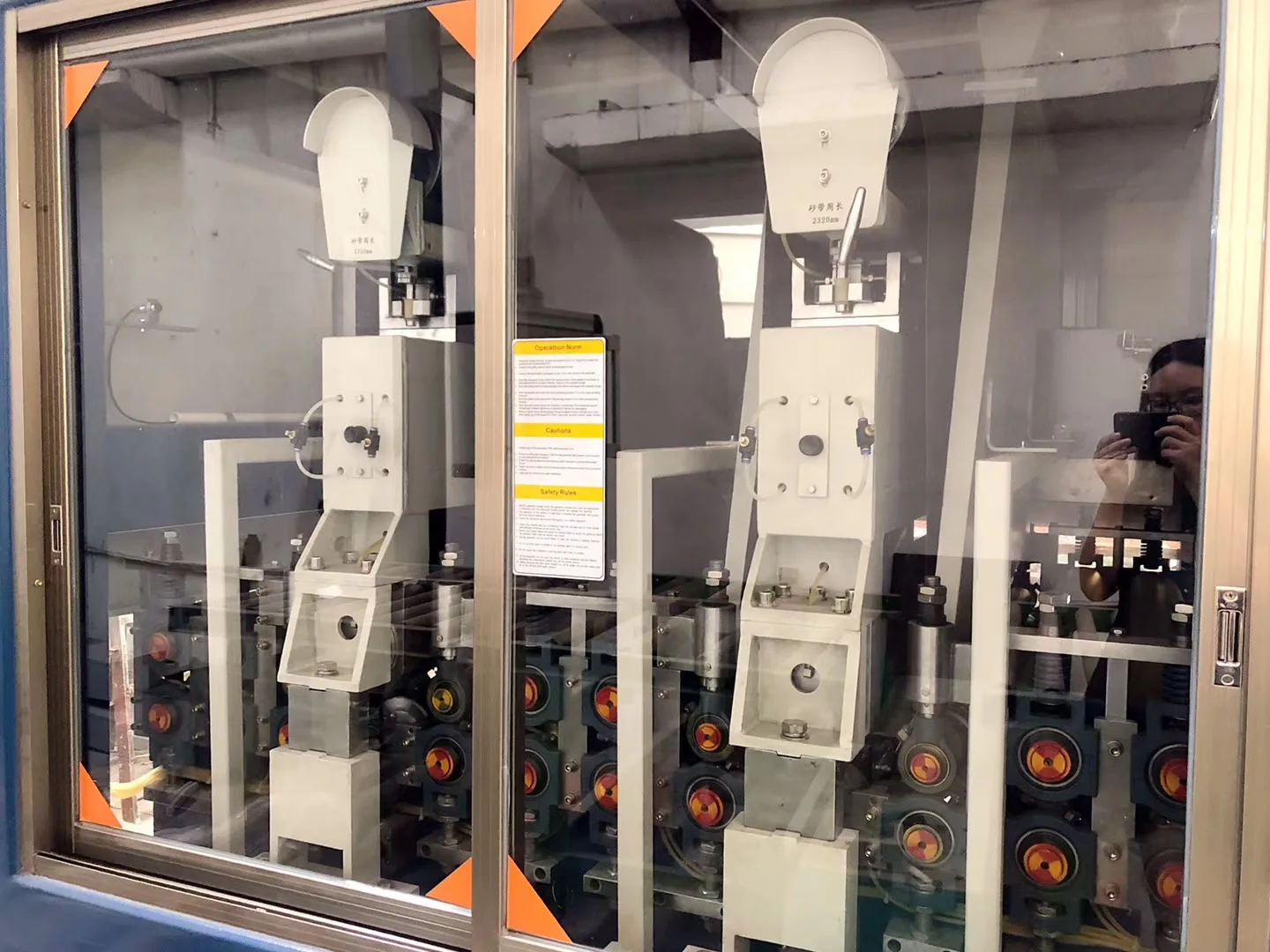

CONTACT ROLLER
- It is directly driven by motor
- Each contact roller has own processing file management with strictly precision control
- The contact roller bearings have an auto oil injection system

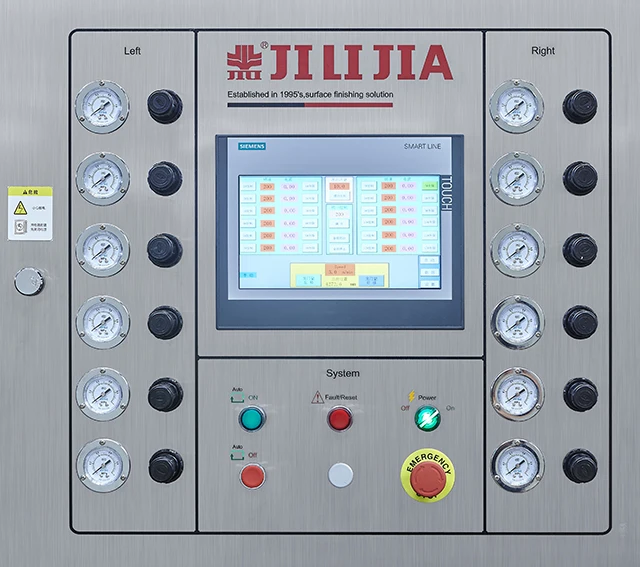

PLC CONTROL&INTERFACE
- LCD touch screen with human-machine dialogue control
- Easy to use partition integrated console
ELECTRICCABINET
- The main switch controls the power supply of the whole line
- One module is connected by one electric cabinet, combination or repair easily
OPTIONAL FEATURES
- PLC system from Siemens or other brands
- Electric elements from Schneider or other brands
FACTORY INSPECTION
- Two work days online detection on average before delivery.
- Our polishing test oil is of Castrol brand.
Model
JGD
JGS
Number of contact roller
1
2
Processing type
Dry or wet polishing available for sheets and coils
As the standard configuration, the speed of the second contact roller is adjustable.
Abrasive belt perimeter
Sheet: 2320mm Coil: 2320mm /2800mm
Exhaust dust capacity (dry polishing)
4000m³/h
8000m³ /h
Filter flow (wet polishing)
250L/min
500L/min
Machine pass line
960mm
Single module weight
4500kg
6800kg
Company Information
Foshan Ji Li Jia Machinery Co., Ltd. is a hightech company specialized in the R&D, production, and marketing kinds of surface treatment machine and related products. We start in this field in1995, and already install machines more than 20 countries.
Our company currently has 70 employee, including 10 expects, technician, and 2 programmer engineers. We have a high quality raw materials and manufacturing accuracy control, in order to represent the highest standard of the surface treatment machine.
Successful Case
We have more than 20 years experience on surface processing machinery, our team provide a powerful installation, training, turn-key service.
