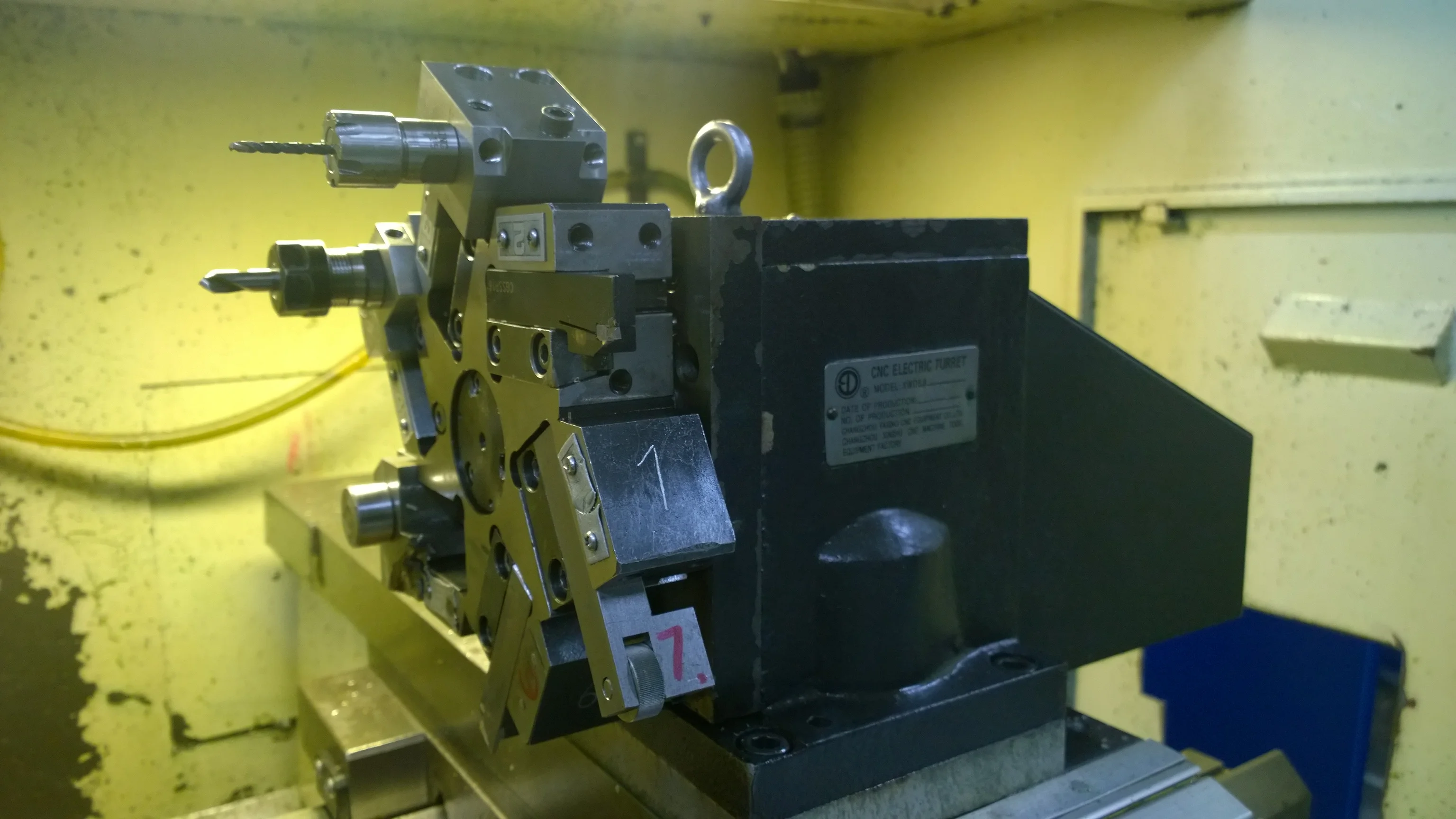

6 position Stations Horizontal tool holder Quick Change Tool Post CNC Lathe part turret WD series
- Category: Machine Tools Accessory >>>
- Supplier: Ningbo Blin Machinery Co. Ltd.
Share on (62143759486):
Product Overview
Description
| Item | Parameter | Item | Parameter |
| Model | 0625/6132/6140 | The max bias torque | 8/10/10 |
| 60° changing time | 1.5/1.5/1.5 | Repeatability Accuracy | Less than 0.005 |
| 120° changing time | 2/2/2 | Indexing Accuracy | 7'' |
| 300° changing time | 3.5/3.5/3.5 | Motor power | 60/120/120 |
| Max tangential torque | 600/1200/1200 | Motor speed | 1400/1400/1400 |
| Max axial torque | 600/1200/1200 | Net Weight | 25/40/44 |
Our tool turets are CHINA top Brand,with high quality.has stock,the delivery time is very short.
Some introduction is belowing:
The Flat bed cnc lathe mostly mount electric tool turret,rarely mount hydraulic tool turret.
The slant bed cnc lathe mostly mount hydraulic tool turret.sometimes mount electric tool turret.
Electric tool turret have 3 series:BWD,WD,XWD
BWD series is the most expensive in the electric tool turret.suitable to mount in the slat bed cnc lathe,also can mount in the flat bed cnc lathe.
WD series is the cheapest.suitable to mount in the small flat bed cnc lathe.
The price of XWD series is between the BWD and WD.has higher rigidity,lower failure rate.
Hydraulic tool turre is HLT series.
Generally it is 8 station,also have 12 station,is suitable for slant bed cnc lathe.
Servo tool turret is SLT series.
