MK361 oscillation mortiser jig chisel woodworking machine

Product Overview

Description

MK361 oscillation mortiser jig chisel woodworking machine

Single-axis vertical woodworking Mortise machine also called square mortising and groove machine,commonly known as drilling machine. Mainly used for square wood, wooden frame and other parts or components on the surface of processing square or rectangular mortise groove.its cutting tool adopts the hollow square chisel with drill bit inside, which is used to chisel square L or long tenon in the joint of wooden parts. It is an ideal tool for the wood processing industry and individual households to open tenon.

Parameter of MK361 oscillation mortiser jig chisel woodworking machine

Product name	Single-axis vertical woodworking Mortise machine
Keyword	tenon and mortise machine
Maximum groove length	120mm
Maximum groove depth	120mm
Blinking bit width	6~16mm
Drill diameter	13mm
Insert diameter	19.05mm (groove cutter mounting hole size)
Motor speed	2860rpm
Left and right stroke	100mm
Front and rear stroke	40mm
Motor power	550W
Voltage	220V,50Hz
Workbench size	200 *120mm
Dimension	390*315*740mm
Weight	52kg

Feature of MK361 oscillation mortiser jig chisel woodworking machine

1. mainly composed of main body, spring frame lifting adjustment, vertical adjustment of column sleeve, head tension spring and deep drilling ring. It is compact and light, flexible and reliable, stable operation.

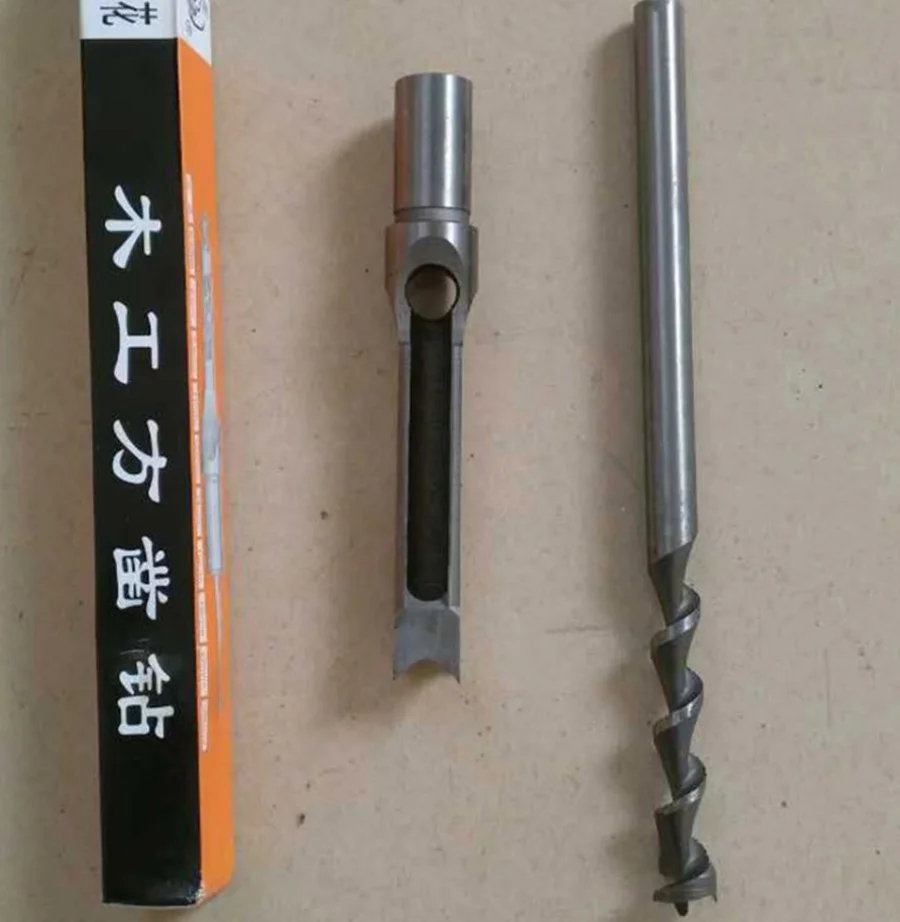

2. Include a square drill bit. In addition to rotary motion, the drill bit and fixed non-rotating hollow square axis also do reciprocating motion. Hollow square chisel to drill a round hole into a square mortise hole. In addition to reciprocating motion of the drill bit and square chisel, lateral movement of the workpiece must be done when processing the rectangular mortise groove.

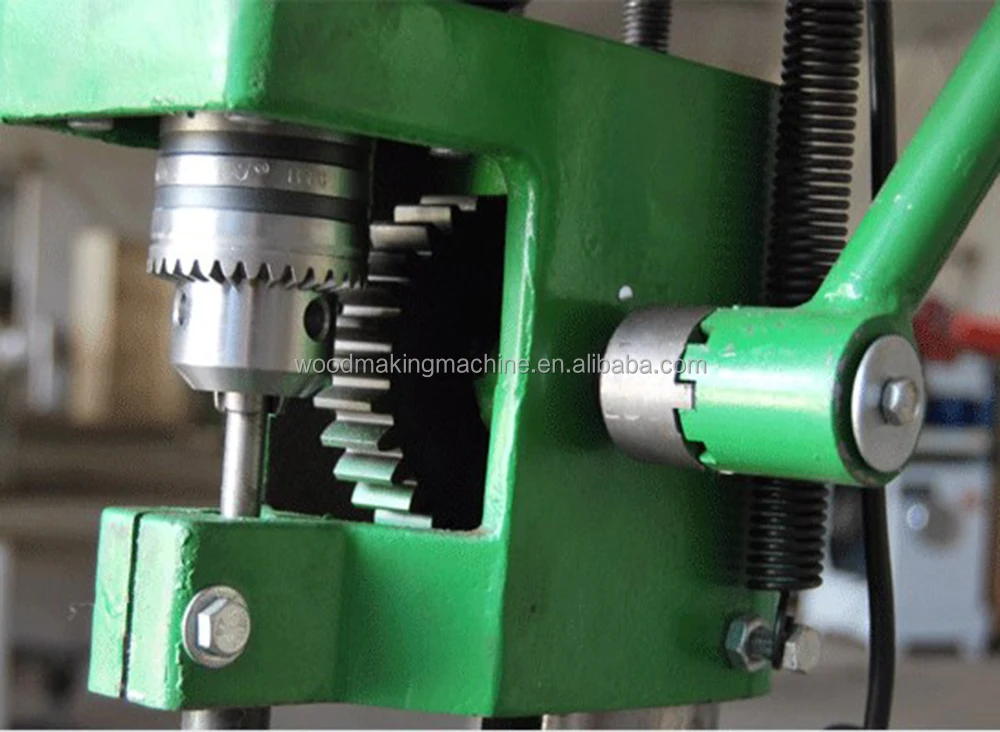

3. Precision machining of cast iron gears and columns to increase drive stiffness, reduce wear and ensure machine accuracy.

4.Pure copper motor, standard energy consumption, superior performance

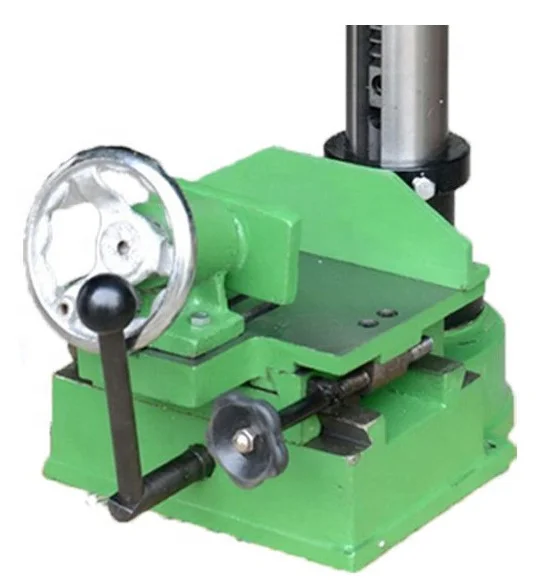

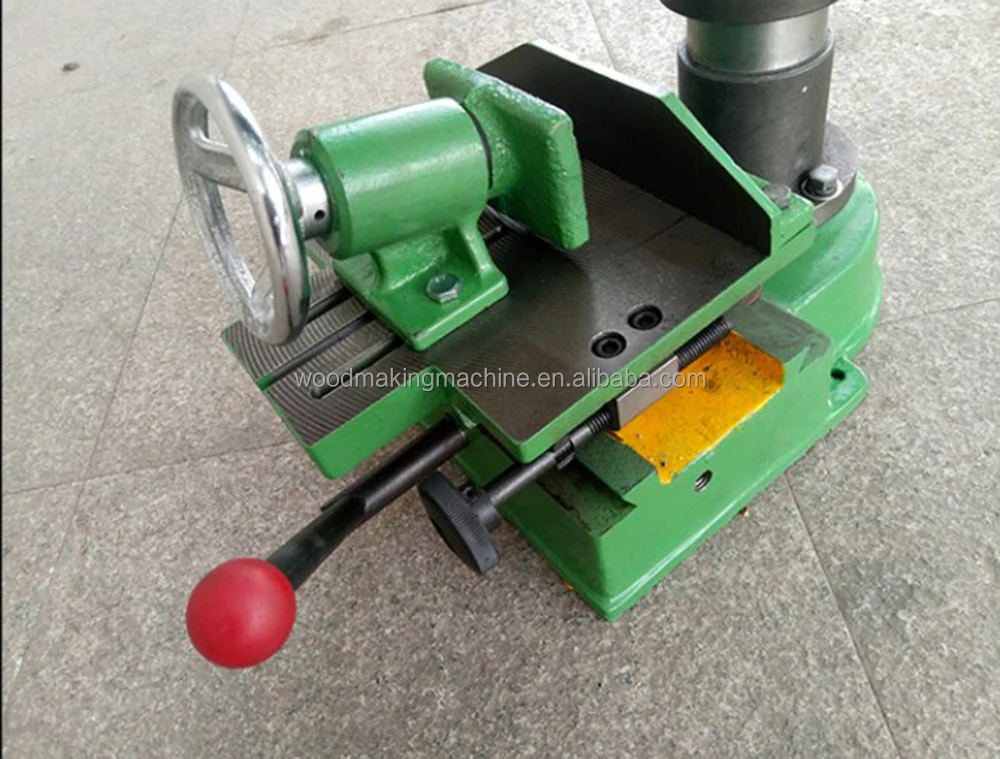

5. Swallowtail table 210*150mm, hand wheel pressing system

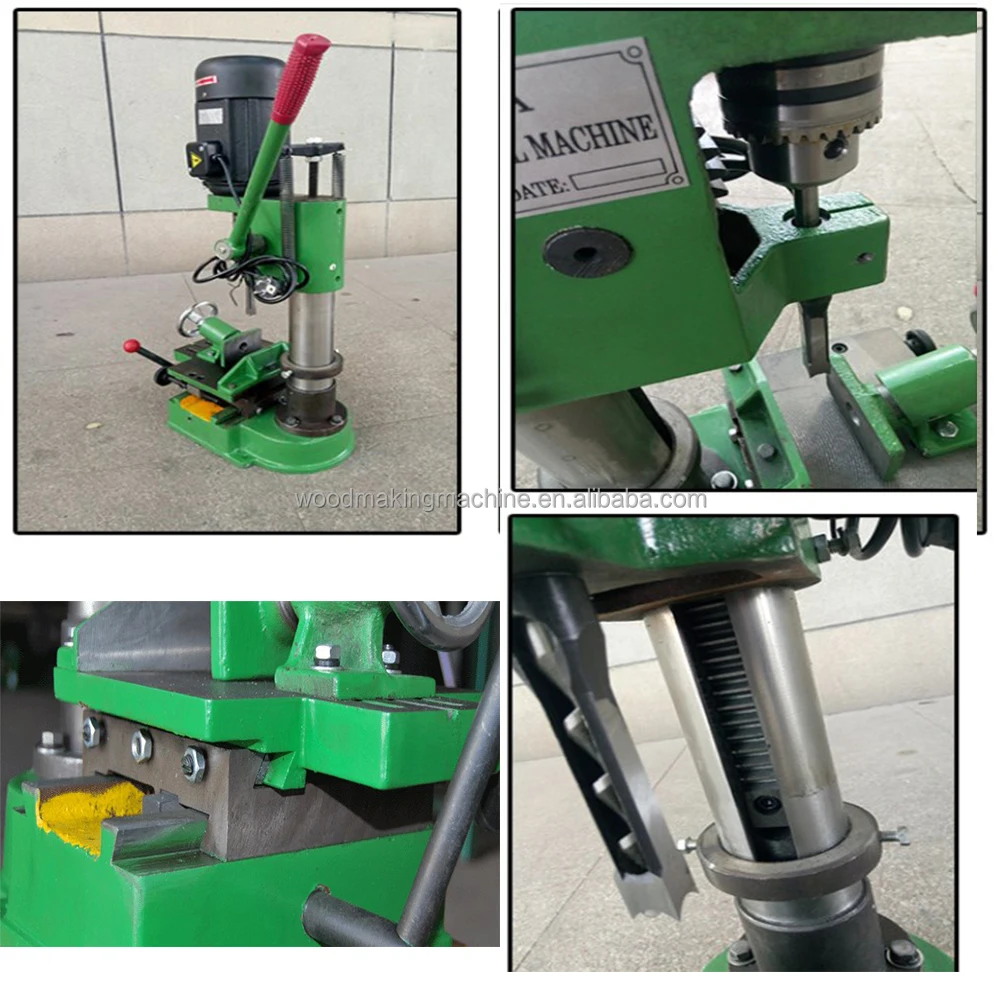

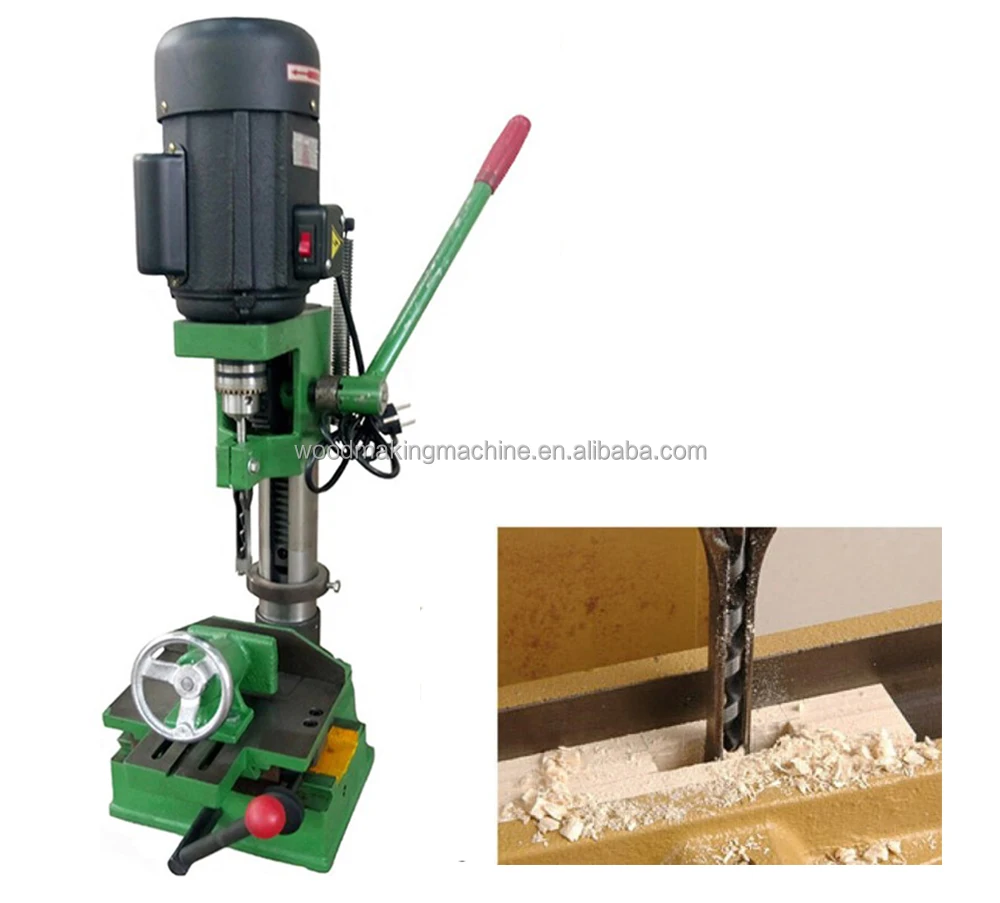

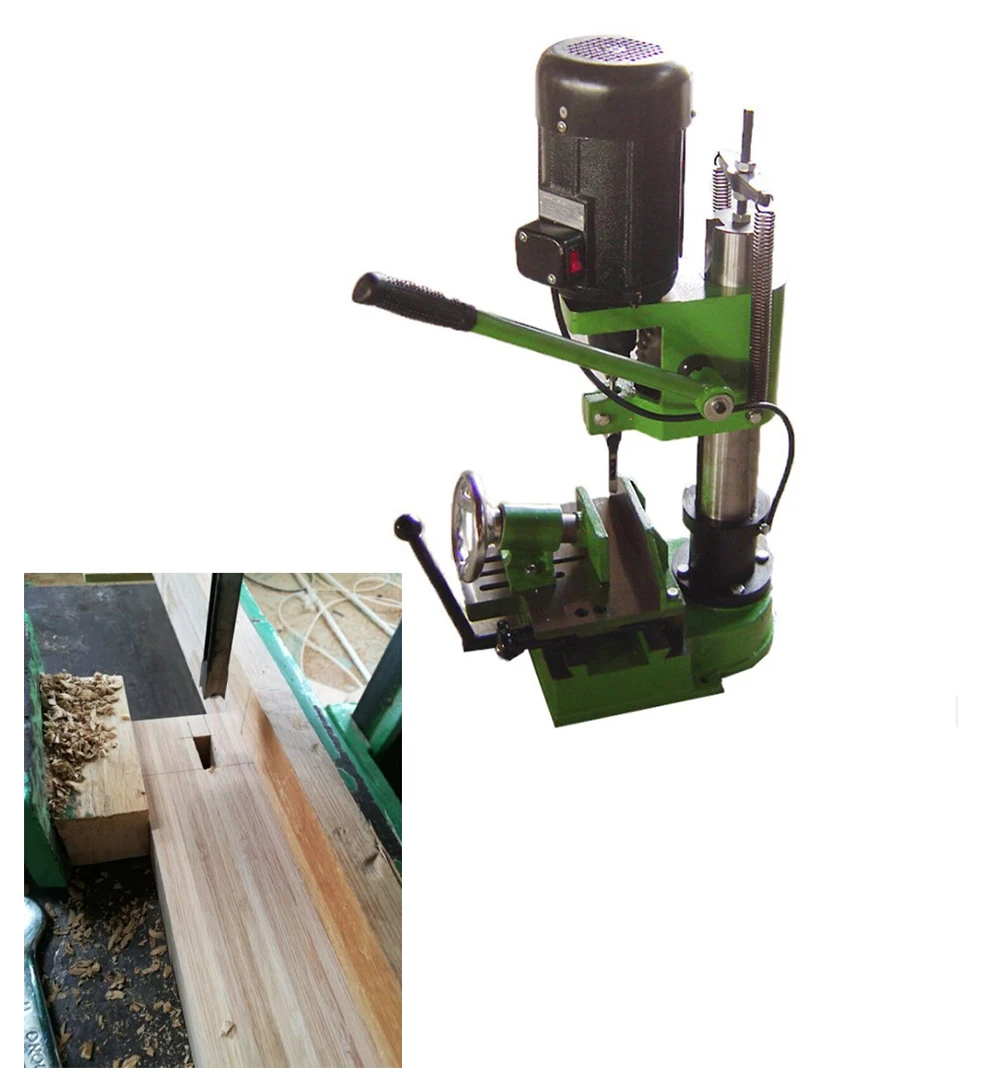

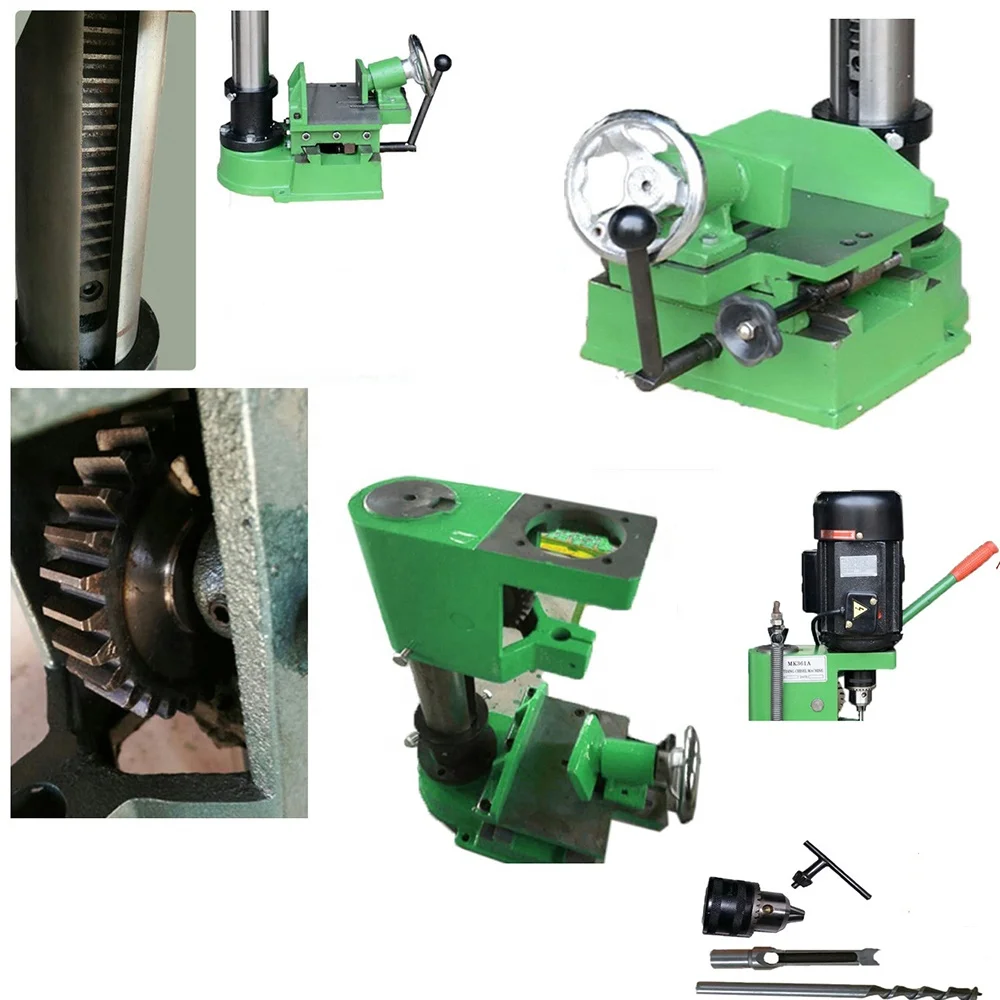

Photo of MK361 oscillation mortiser jig chisel woodworking machine
