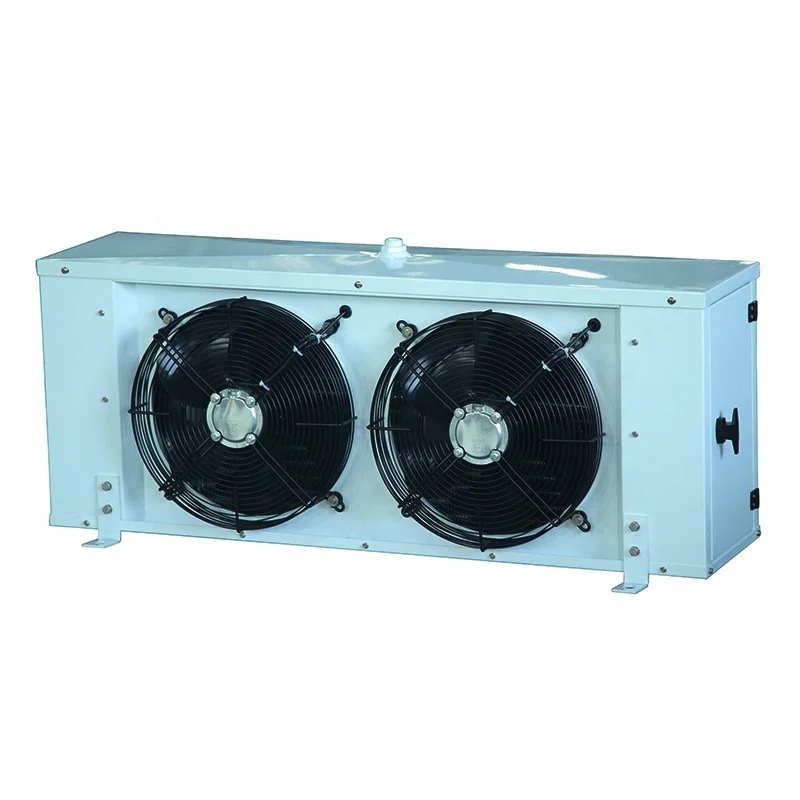

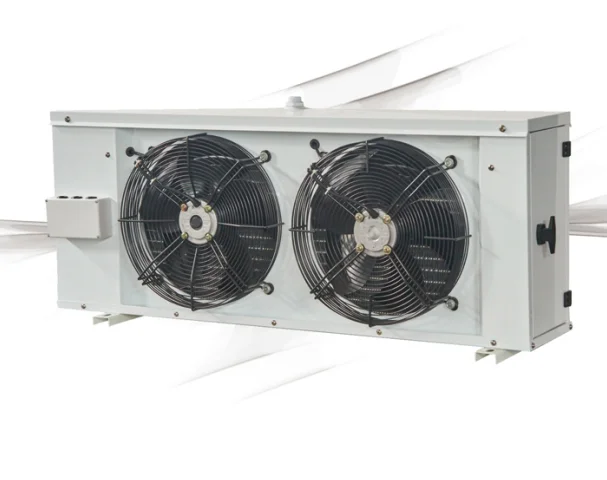

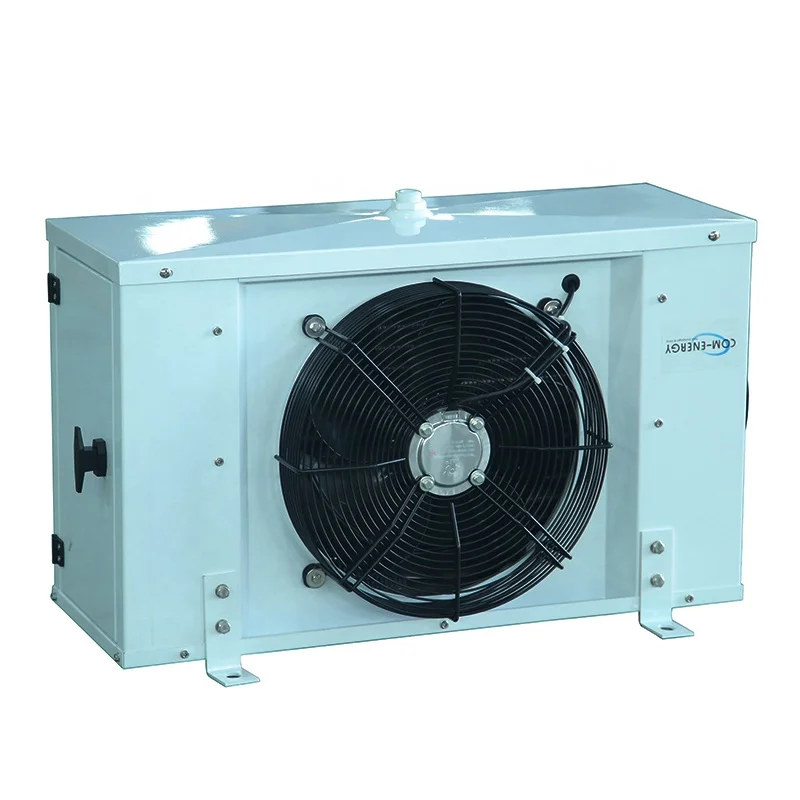

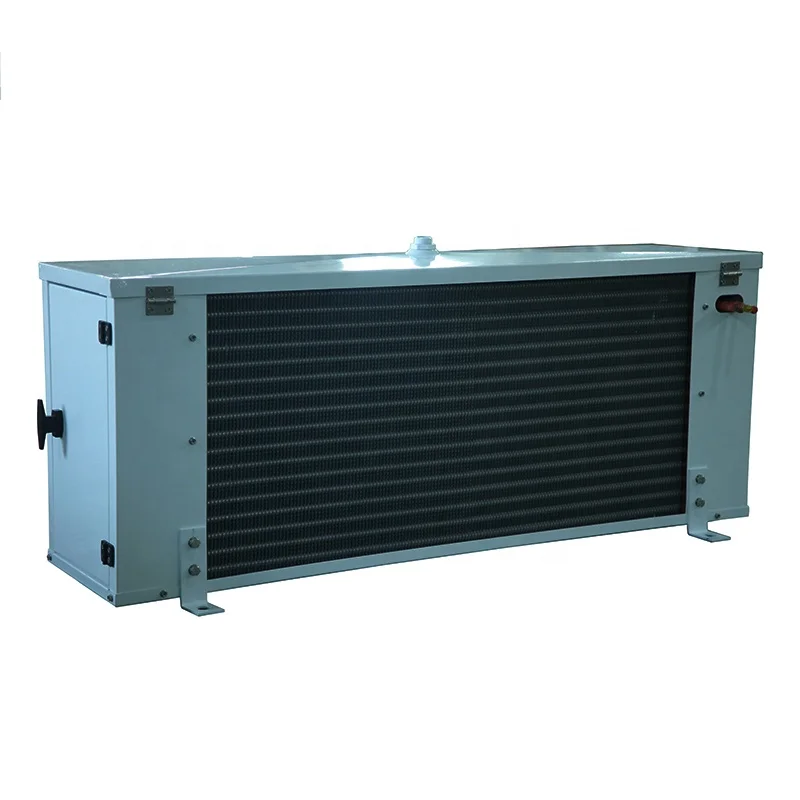

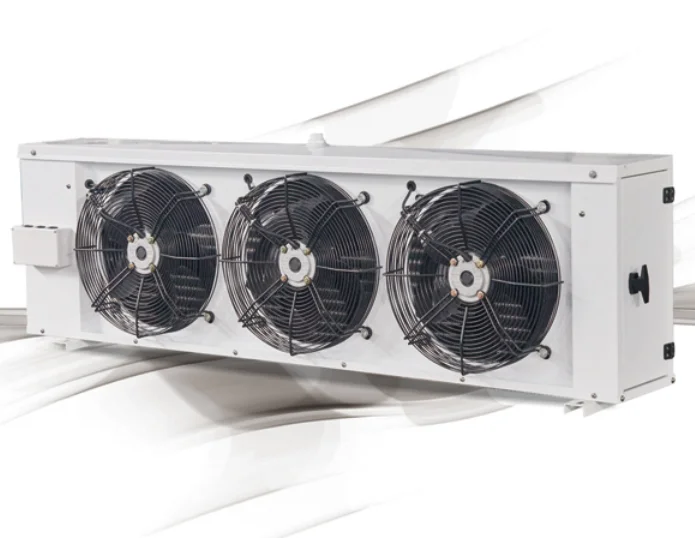

Blue Fin Space Cold Room Heat Exchange Evaporator with Copper Tube
- Category: >>>
- Supplier: Shengzhou City Refrigeration Equipment Factory
Share on (62143918082):
Product Overview
Description
Blue Fin Space Cold Room Heat Exchange Evaporator with Copper Tube
Main Features :
1) Two sides end plate and drain plate design into open type for maintenance conveniences.
2) Front shell with ineer concave deisgn looks very nice,oberall shell with muti-folded design make high strength and less vibration.

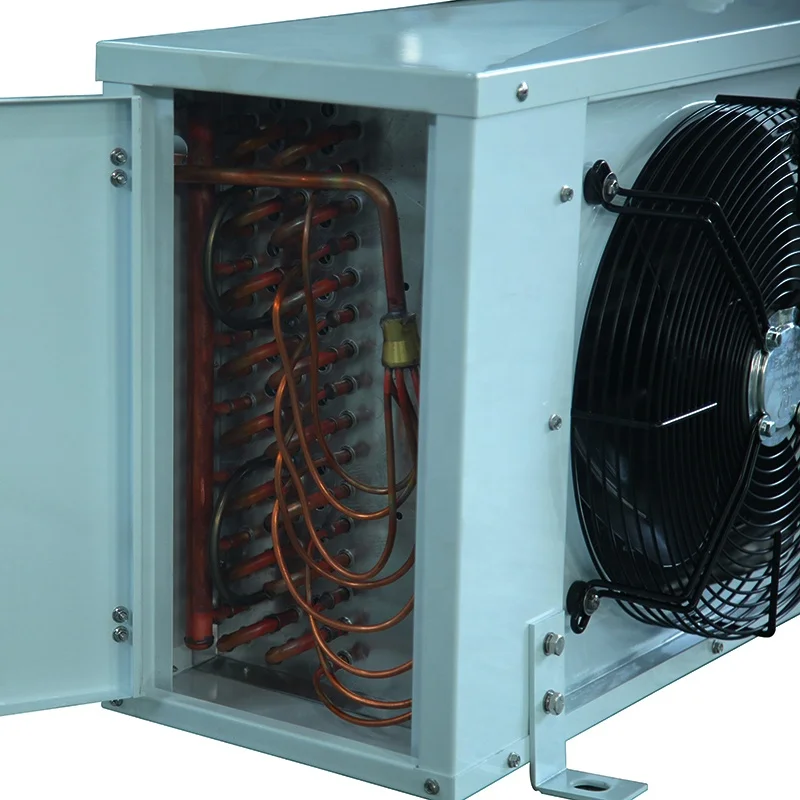

3) Copper pipeline is optimized re-design for high heat exchange efficiency.
4) Assembling axial fan motor with high efficiency ,low energy consumption suit to complex environment.
Parameters :
| ZLL Type Air Cooler Specification | Fin Space(9.0mm) | ||||||
| Model | Capacity | Area | Fan Motor | ||||
| Qty | Dia. | Voltage | Air Flow | ||||
| TC=-18 C | TC=-25C | ||||||
| DT1=8K | DT1=7K | ||||||
| W | W | Square Meter | Pcs | mm | V | Cbm/h | |
| ZLL-1.2/8 | 1680 | 1200 | 8 | 2 | Φ350 | 380 | 2x3100 |
| ZLL-2.1/15 | 2940 | 2100 | 15 | 3 | Φ350 | 380 | 3x3100 |
| ZLL-3.6/20 | 5040 | 3600 | 20 | 2 | Φ400 | 380 | 2x4000 |
| ZLL-4.6/30 | 6440 | 4600 | 30 | 2 | Φ400 | 380 | 2x4000 |
| ZLL-7.1/40 | 9940 | 7100 | 40 | 2 | Φ500 | 380 | 2x6500 |
| ZLL-8.9/55 | 12460 | 8900 | 55 | 2 | Φ500 | 380 | 2x6500 |
| ZLL-11.6/70 | 16240 | 11600 | 70 | 3 | Φ500 | 380 | 3x6500 |
| ZLL-14.3/85 | 20020 | 14300 | 85 | 3 | Φ500 | 380 | 3x6500 |
| ZLL-17.1/100 | 23940 | 17100 | 100 | 4 | Φ500 | 380 | 4x6500 |
| ZLL-19.6/115 | 27440 | 19600 | 115 | 4 | Φ500 | 380 | 4x6500 |
| ZLL-23.1/140 | 32340 | 23100 | 140 | 4 | Φ550 | 380 | 4x8500 |
| ZLL-28.0/170 | 39200 | 28000 | 170 | 4 | Φ550 | 380 | 4x8500 |
| ZLL-34.6/210 | 48440 | 34600 | 210 | 4 | Φ600 | 380 | 4x12000 |
| ZLL-41.2/250 | 57380 | 41200 | 250 | 3 | Φ710 | 380 | 3x16200 |
| ZLL-49.5/300 | 6930 | 49500 | 300 | 3 | Φ710 | 380 | 3x16200 |
| Remark | R404A | ||||||

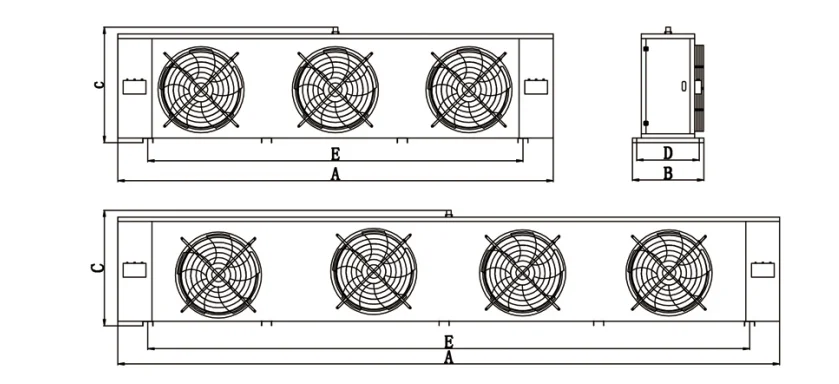

Drawing:

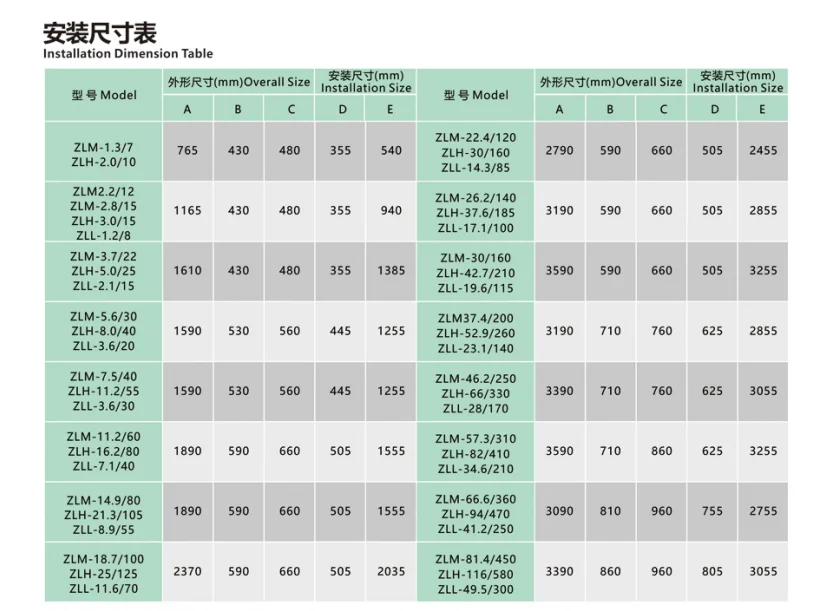

Installation Dimenison:

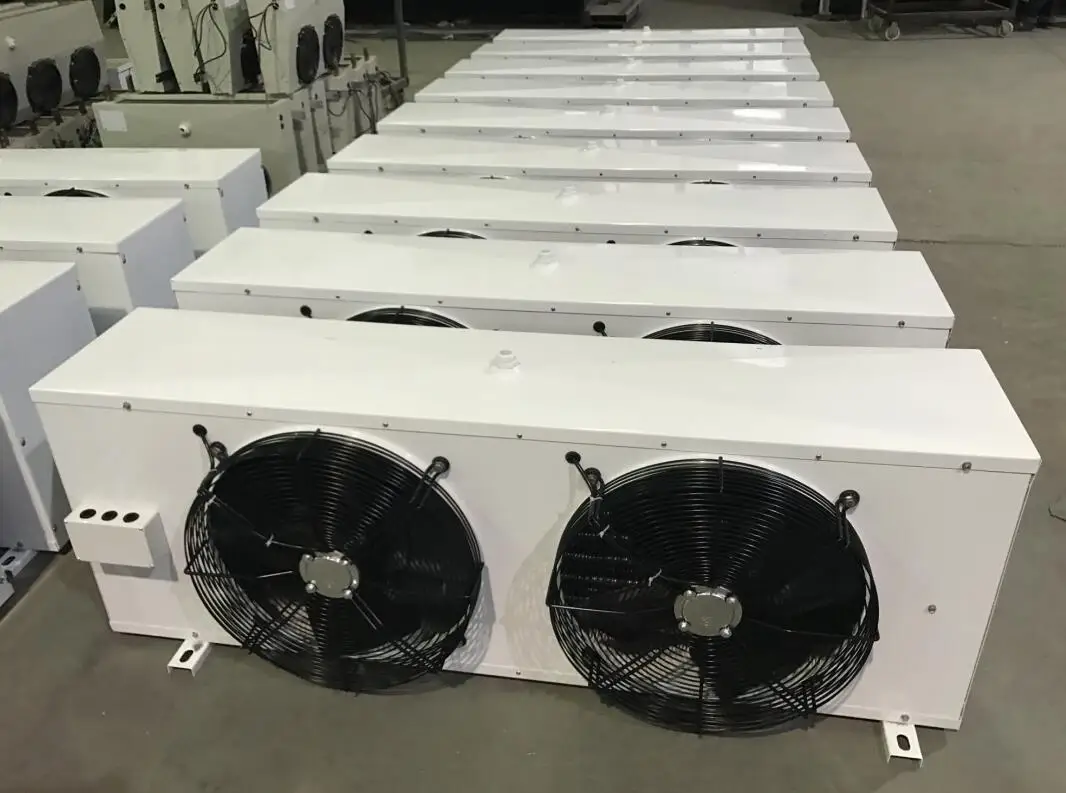

Photos:
